1/3" Aptina AR0330 3MP Nextchip NVP2470 AHD TVI 2 in 1 CCTV security Camera board (Black)
$9.00
Availability:
In stock
Out of stock
Variations
Product Description
Technical Characteristics:
-
Image sensor Aptina AR0330, Output AHD / TVI 3MP / 1080P / 720P / 960H, Effective resolution is up to 2048 * 1536
-
OSD menu supports 12 different languages with strong light inhibition / privacy protection, BLC / DPC, 2D noise reduction function
-
Adopt Nextchip 2470H DSP with OSD function (mirror image, color / white-black, PAL / NTSC)
-
AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu Support D-WDR
-
Support UTC (Optional), 2-in-1, switched by OSD, Enhancement adjustment supported by OSD
-
Power (600W) & Video (2KV) dual-lightning protection design, OSP antioxidant PCB, size 32 * 38 dual-board.
| Product parameters | |
| Image Sensor | 1/3 AR0330 |
| Effective Pixels | 2048(H) * 1536(V) |
| Effective resolution | 3MP |
| Signal system | PAL/NTSC (Switched by OSD) |
| Day-night mode | External (default) / Auto / Color / White& black (OSD switch) |
| S/N ratio | ≥41dB |
| Minimum illuminaiton | 0.01LUX |
| BLC | AUTO |
| (AES) Auto electronic shutter | AUTO / 1/50(1/60)-1/50,000sec |
| (AWB)Auto white balance | AUTO |
| IR control voltage input | OFF(DC 0V) / ON(DC 3-8V) |
| OSD language | English/ Simplified Chinese/Traditional Chinese /German /French /Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish |
| Video output | AHD / TVI |
| Video record occupation | 1minute about 24MB (4mm lens) |
| Power consumption | DC12V / 62mA ± 6mA (wide voltage 5V-40V) |
| Working temperature | -20°C to 50°C |
OSD Function description ：
-
PAL / NTSC: Enter into OSD menu, Enter into option 7 (Adjust), then go into option4 (Output Mode), Choose option 2 (frame rate) to switch Pal / NTSC. 25fps is Pal (default), 30fps is NTSC. Repeat to switch NTSC to Pal system.
-
2-in-1 Switch: Enter into OSD menu, enter into option 7 (Adjust), then go into option 4 (Output Mode), Choose option 1 (Format) Press right button once (press shortly) to change to TVI, press left button to return to AHD. And press Save before exit. (The default is AHD).

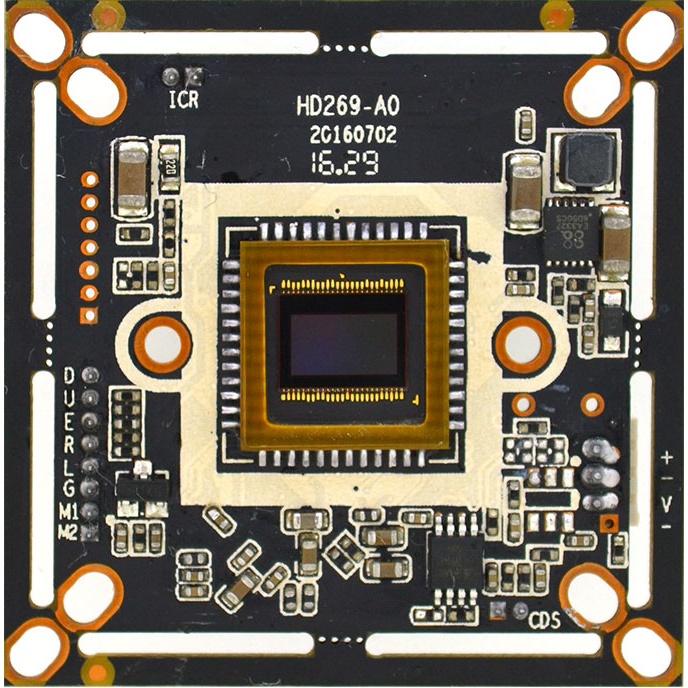

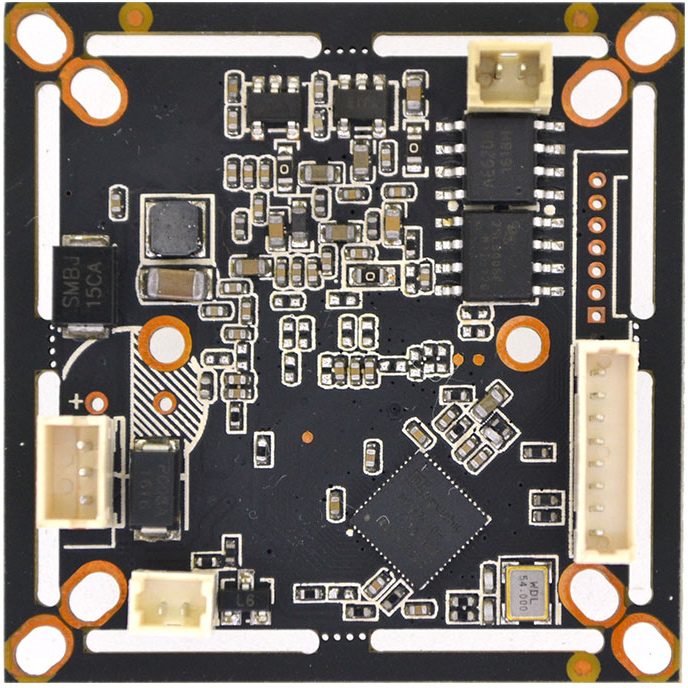

Pin definition:
OSD Menu Port
D Down (Orange)
U Up (Gray)
E Enter (Purple)
R Right (Green)
L Left (White)
G GND (Brown)
M1 M2 Can set to Mode switch or Alarm Output
Power video port
V Yellow
-/G Ground
+ Power+
CDS LED board photoresist
ICR IR-CUT dual filter switch
Technical Characteristics:
-
IMX323 2MP 1080P FHD image sensor, AHD / TVI / CVI / Analog (CVBS) output. Effective resolution is up to 1920 * 1080
-
OSD support 5 different languages, Saturation/White balance, DWDR/D& N switchm 2D NR function；
-
Adopt FH8536E(V30E) DSP, with OSD function (mirror image, color/white& black, PAL/NTSC switch)；
-
AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu；
-
Can support UTC function(Optional), 4-in-1 output, OSD adjust freely, support OSD function and Gain value modification
-
Power（600W）video（2KV）dual lightning protection design，OSP antioxidant PCB，small size 32*38 double board design.
| Product parameters | |
| Image Sensor | 1/3 AR0330 |
| Effective Pixels | 2048(H) * 1536(V) |
| Effective resolution | 3MP |
| Signal system | PAL/NTSC (Switched by OSD) |
| Day-night mode | External (default) / Auto / Color / White& black (OSD switch) |
| S/N ratio | ≥41dB |
| Minimum illuminaiton | 0.01LUX |
| BLC | AUTO |
| (AES) Auto electronic shutter | AUTO / 1/50(1/60)-1/50,000sec |
| (AWB)Auto white balance | AUTO |
| IR control voltage input | OFF(DC 0V) / ON(DC 3-8V) |
| OSD language | English/ Simplified Chinese/Traditional Chinese /German /French /Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish |
| Video output | AHD / TVI / CVI / Analog (CVBS) |
| Video record occupation | 1minute about 38.3MB (4mm lens) |
| Power consumption | DC12V / 62mA ± 6mA (wide voltage 9V-18V) |
| Working temperature | -20°C to 50°C |
OSD Function description ：
-
PAL / NTSC: Press Enter button to Main Menu, press (Video setting) to choose (Video first time press right button is NTSC, second time is PAL, press left button to return, press Enter button to save. (The default output is PAL)
-
4-in-1 Switch: Press Enter button to main menu, press (Video setting) to choose (Video syst). First time press right button (shortly press) is CVBS, second time is CVI, third time is CVI, fourth time is AHD. Press (Return) to save & exit. (The default output is AHD)
-
4-in-1 Switch (shortcut switch): Power on (without enter into main menu), long press the up button for 5 seconds comes to CVBS down button is CVI left button is AHD mode right button is TVI. (The above standard is defaulted mode). (The default output is AHD)
Pin definition:
OSD Menu Port
D Down (Orange)
U Up (Gray)
E Enter (Purple)
R Right (Green)
L Left (White)
G GND (Brown)
M1 M2 Can set to Mode switch or Alarm Output
Power video port
V Yellow
-/G Ground
+ Power+
CDS LED board photoresist
ICR IR-CUT dual filter switch
