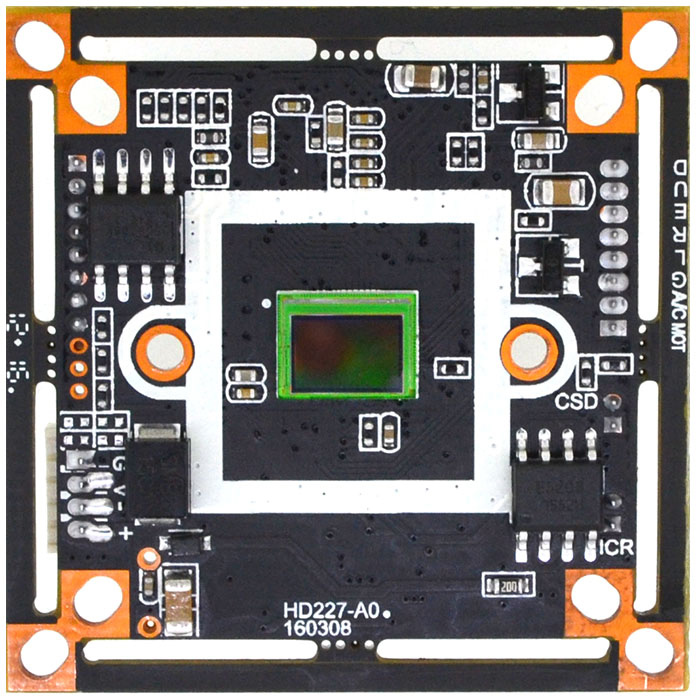

1/2.9" Sony IMX323 1080P 2MP AHD TVI CVI Analog 4 in 1 CCTV security Camera board

Technical Characteristics:

• IMX323 mega HD image sensor, with high definition 1080P, AHD 1080P / CVBS 960H output, effective resolution is up to 1920 * 1080

• OSD menu supports 12 different languages with DWDR / defog function, strong light inhibition / motion detection / privacy protection, 2D / 3D noise reduction function

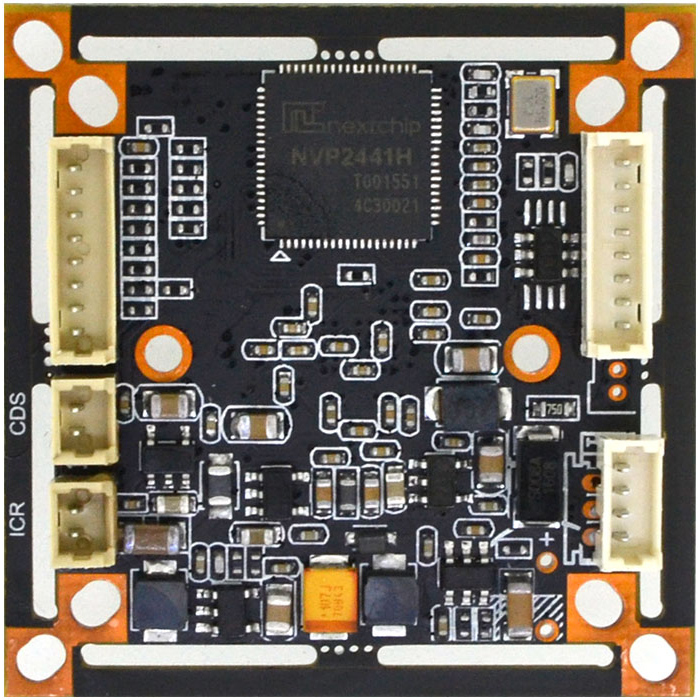

• Adopt Nextchip 2441H DSP with OSD function (mirror image, color / white-black, PAL / NTSC)

• AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu, built-in HOLD picture (freezing) function.

• Support UTC, 4-in-1, switched by OSD, Output LCD / CRT can be chosen and device name can be displayed by OSD

• Power (600W) Video (2KV) dual-lightning protection design, OSP antioxidant PCB, size 32 * 38 dual-border.

Product parameters
Image Sensor	1/2.9 IMX323
Effective Pixels	1920(H) * 1080(V)
Effective resolution	2MP
Signal system	PAL/NTSC (Switched by OSD)
Day-night mode	External control(default) / Auto / Color / White&amp black (OSD switch)
S/N ratio	≥41dB
Minimum illuminaiton	0.01LUX
BLC	AUTO
(AES) Auto electronic shutter	AUTO / 1/50(1/60)-1/50,000sec
(AWB)Auto white balance	AUTO
IR control voltage input	OFF(DC 0V) / ON(DC 3-8V)
OSD language	English/ Simplified Chinese/Traditional Chinese /German /French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish
Video output	AHD 1080P &amp 960H
Video record occupation	1minute about 24MB (4mm lens)
Power consumption	DC12V / 77mA ± 6mA (wide voltage 9V-18V)
Working temperature	-20°C to 50°C

OSD Function description ：

• There're two methods to switch AHD / CVBS, OSD switching or [AHD / CVBS] pin short to GND switching, The default is OSD switching, short circuit to ground switching is in non-functional status.

• When Burning A / C program, [AHD / CVBS] pin short circuit to GND, the output the output is analog CVBS. When burning this grogram, OSD shortcut switch function is non-functional.

• In product wiring diagram, when [AHD / CVBS] pin is without any connection, the output is defaulted AHD.

• OSD switching and [AHD / CVBS] pin short-circuit switching are two different programs, they can not be used in the same time.

Pin definition:

OSD Menu Port

    D Down (Orange)

    U Up (Gray)

    E Enter (Purple)

    R Right (Green)

    L Left (White)

    G GND (Brown)

    M1 M2 Can set to Mode switch or Alarm Output

Power video port

    V    Yellow

    -/G    Ground

    +    Power+

CDS     LED board photoresist

ICR    IR-CUT dual filter switch

7226131c-50e8-4d3b-81b6-b9ead8c14238 791 1/2.7" SOI K02 4MP AHD TVI CVI Analog 4 in 1 Hybird CCTV security Camera board HD564A-B0 Camera Board, AHD Camera Board Yes

Technical Characteristics:

• SOI 4MP HD image sensor, AHD / TVI / CVI / CVBS(Analog) Video output, effective resolution is up to 2704H * 1528V/ 960H

• OSD support 2 different languages, with White Balance, mirror, Digital Noise Reduction functions

• Adopt FH8538M DSP, with OSD function ( color / white black, PAL / NTSC switch)

• Dual filter switching, clear day and night, OSD switch a variety of day and night mode

• Can support UTC function, OSD adjust freely for different mirror mode

• Power (600W) video (2KV) dual lightning protection design, OSP antioxidant PCB, small size 32 * 38 double board

Product parameters
Image Sensor	1/2.7 SOI K02
Effective Pixels	2704(H) * 1528(V)
Effective resolution	4MP
Signal system	PAL/NTSC (Switched by OSD)
Day-night mode	External control(default) / Auto / Color / White&amp black (OSD switch)
S/N ratio	≥50dB
Minimum illuminaiton	0.2LUX
BLC	AUTO
(AES) Auto electronic shutter	AUTO / 1/50(1/60)-1/50,000sec
(AWB)Auto white balance	AUTO
IR control voltage input	OFF(DC 0V) / ON(DC 3-8V)
OSD language	English/ Simplified Chinese/Traditional Chinese/ Italian/ Spanish
Video output	AHD / TVI / CVI / CVBS(Analog)
Video record occupation	1minute about 35.2MB (3.6mm lens)
Power consumption	DC12V / 70mA ± 6mA (wide voltage 9V-18V)
Working temperature	-20°C to 60°C

OSD Function description ：

• PAL/NTSC: Press Enter button to Main Menu, press（Video setting）to choose（Video system）. First time press right button is NTSC, second time is PAL, press left button is returnning back, Enter button is to save the settings.（The default output is PAL）

• 4-in-1 switch (shortcut switch): Power on (without enter into main menu), long press the up button for 5 seconds comes to CVBS mode down button is CVI left button is AHD mode right button is TVI. (The above standard is defaulted mode). Customized external switch modes is available.(The default output is AHD)

Pin definition:

OSD Menu Port

DDown (Orange)

UUp (Gray)

EEnter (Purple)

RRight (Green)

LLeft (White)

GGND (Brown)

M1 M2 Can set to Mode switch or Alarm Output

Power video port, 4PIN * 1.25mm

V    Yellow

-    Ground

+    Power+

CDS     LED board photoresist

ICR    IR-CUT dual filter switch
