super low distortion camera hd 1/2.3 inch machine vision CCTV 24mm lens
$7.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
top ten selling products high focus super low distortion camera hd 1/2.3 inch machine vision CCTV 24mm lens
Features:
- 16 Megapixel high definition lens
- M12*P0.5 board mount
- Fixed iris and fixed focus 2.68mm fisheye lens with 150° large FOV.
- 1/2.3 inch CMOS/CCD cctv camera, 49% distortion,
- 6G1M glass fisheye lenses, optical lens and metal,
- used in CCTV camera lens, sport DVR, CCTV camera system, security camera system and car rear view camera

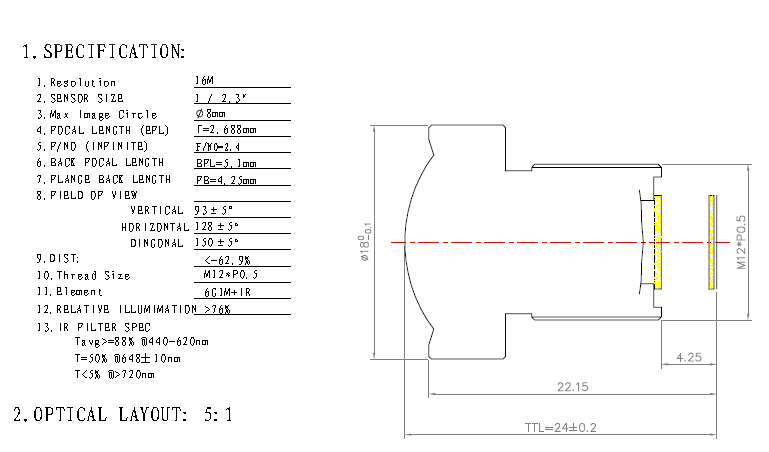

Technical Parameter:
| StyleNo. | Sensor Size | EFL(mm) | F/NO | Field of view | TTL(mm) | Distortion | Structrue | Threadsize | Image |
| 1/2.3" | 2.68 | 2.4 | D=150 | 24 | 49% | 6G1M+1R | M12*P0.5 | 16MP |

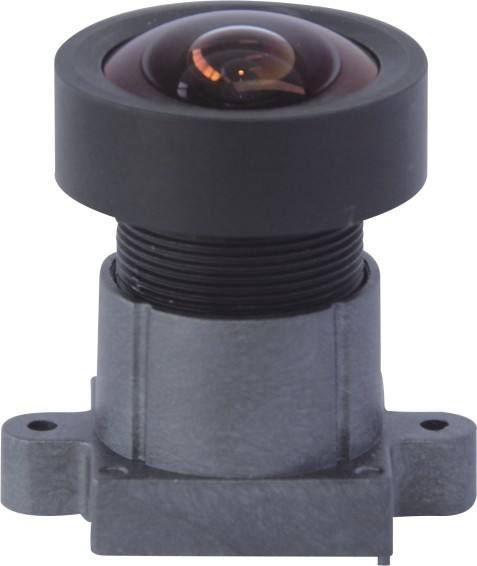

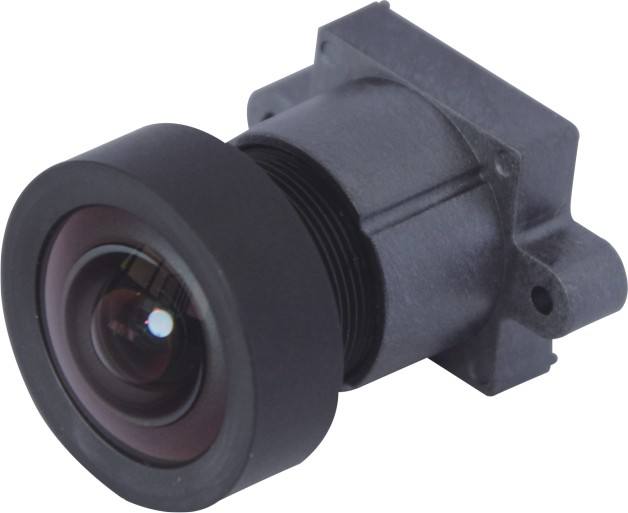

Pictures for M12 fisheye lens :
