m7*0.35 lens mount ir filter hd home camera security lenses f2.0 cctv lens

M7*0.35 lens mount ir filter hd home camera security lenses f2.0  cctv lens

• 1.1/5" Megapixel Fisheye Lens
• 2. Board Mount, MINI Lens, M7*0.5
• 3.1.7mm Wide angle CCTV Lens
• 4.IR Correct to support Day/Night Using, if you just want to use it in day time, please select IR Cut Filter Lens.
• 5.Fisheye Lens for Surveillance CameraIntelligent Home Security Camera Lens, Network IP Camera Lens

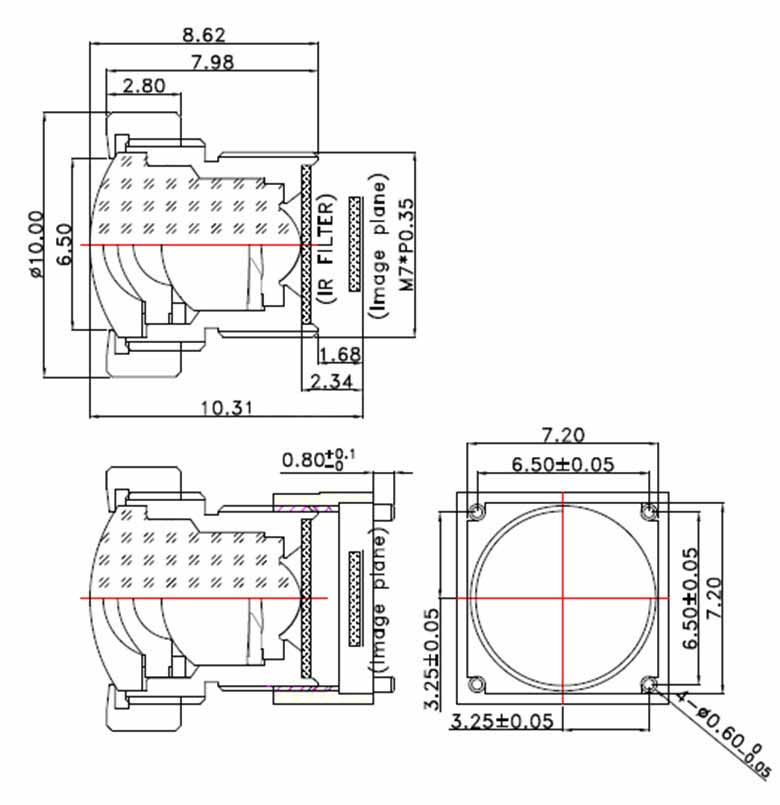

 SPECIFICATION:

  1.SENSOR SIZE:    1/5"(OV7740)

  2.FOCAL LENGTH(EFL)       1.70mm

  3.F/NO(INFINITE)     2.0

  4.BACK FOCAL LENGTH      2.34mm

  5.FLANGE BACK LENGTH    1.68mm

  6.FIELF OF VIEW   D=135'(H=110',V=80')

  7.THREAD SIZE   M7*P0.35

   8.Element      2G2P+IR

Features for home security system camera lens

1.Wide Angle Mega Pixel Lens,Megapixel mini lens,MTV Lens

2.1.7mm megapixel board lens for blackbox

3.1/5" format cover,used in car recorder

4.F2.0 Aperture car dvr camera recorder lens

5.Fixed Iris Board Lens

6.M7×0.35 Mount

7.Used in board camera and ccd board module

8.high quality and most popular mini lens/mtv lens/board lens/cctv board lens

9. home security camera lens
