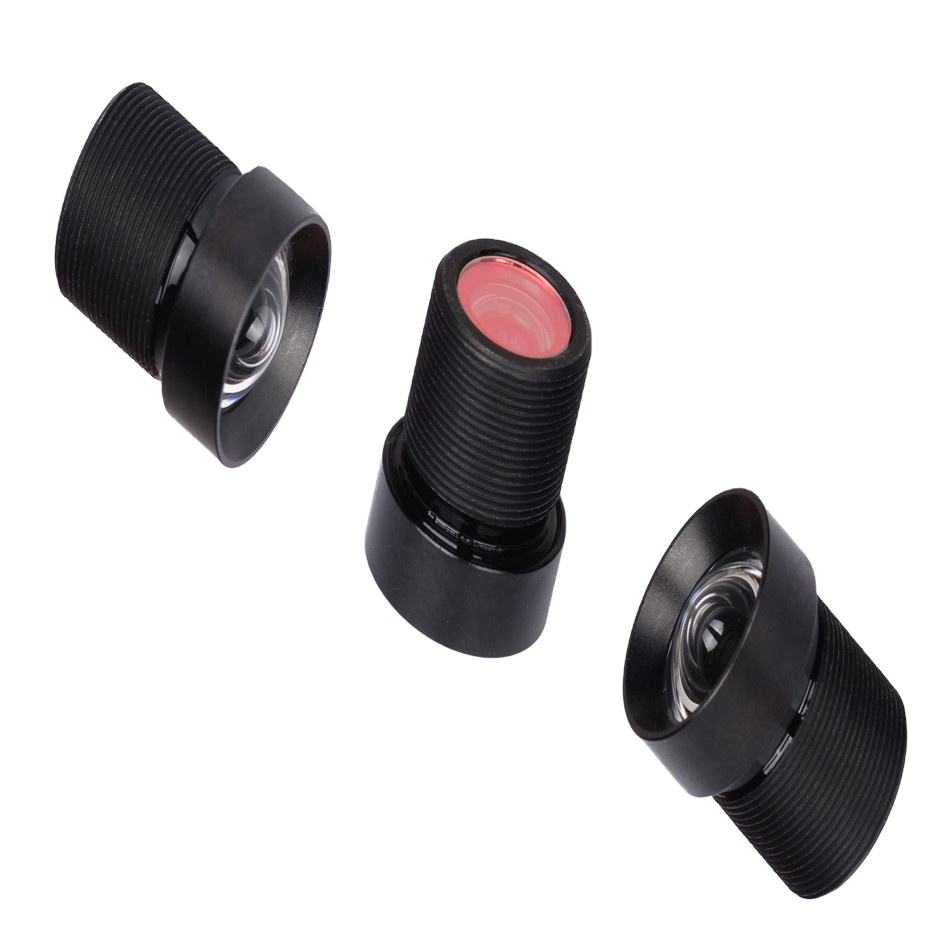

3.6mm cctv lens m12 S mount 5MP optical lens with 1/2.5 inch cmos sensor 96 degree FOV
$4.50
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
3.6mm cctv lens m12 S mount 5MP optical lens with 1/2.5 inch cmos sensor 96 degree FOV

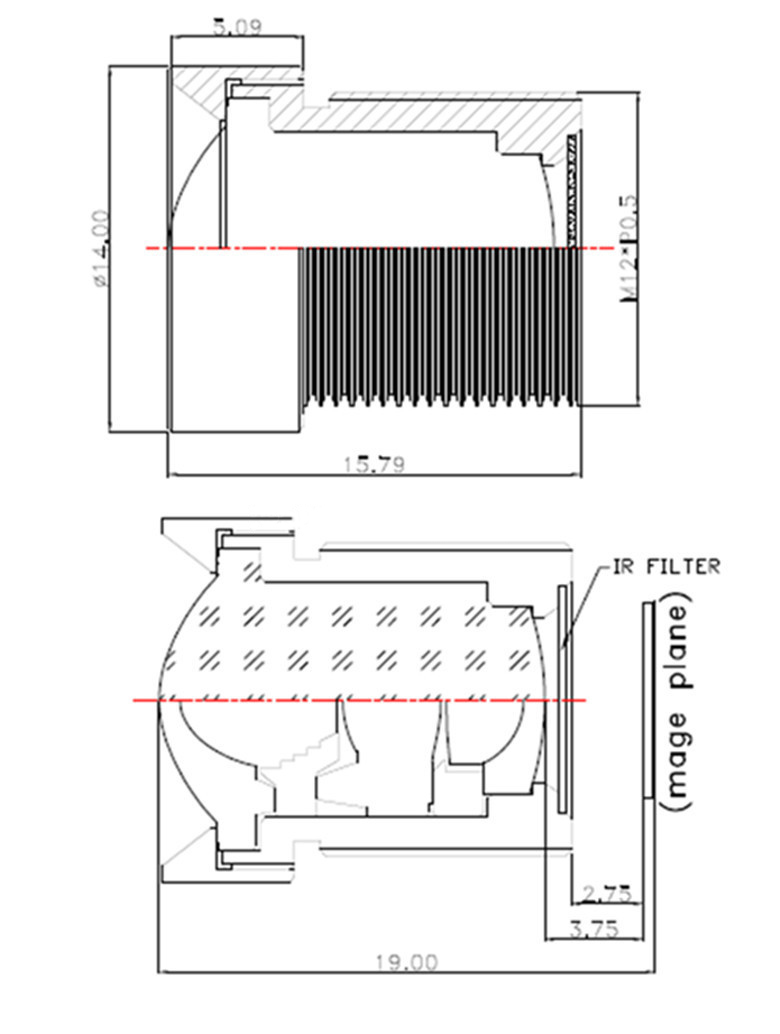

Specification:
| Focal Length(EFL): | 3.6mm | |
| F/NO(Infinite): | 3.0 | |
| Back Focal Length: | 3.75mm | |
| Flange Back Length: | 2.75mm | |
| Field of View | D: | 96° |
| H: | 80° | |
| V: | 60° | |
| Distortion: | 1% | |
| Thread Size: | M12*0.5P | |
| Structure: | 2G2P | |
| Diameter: | φ14 | |
| TTL: | 19mm | |
| Option Ir Filter | 650+10nm | |
| 850+10nm | ||
| 940+10nm | ||
| Resolution: | 5MEGA | |
- Features:
-
- 1/2.5" 1/2.7" 1/3" cmos board lens
- Fixed focal 3.6mm lens
- Fixed focal 3.6mm lens
- m12 s mount board lens
- m12 s mount board lens
- No / zero / low distortion lens
- 5 megapixel cctv lens
Application:
- Car DVR , Car Rearview Camera, Car Recorder
- Sports DV, Sports Camera
- Home Security Monitor
- Portable Document Camera
- Panoramic Surveillance
