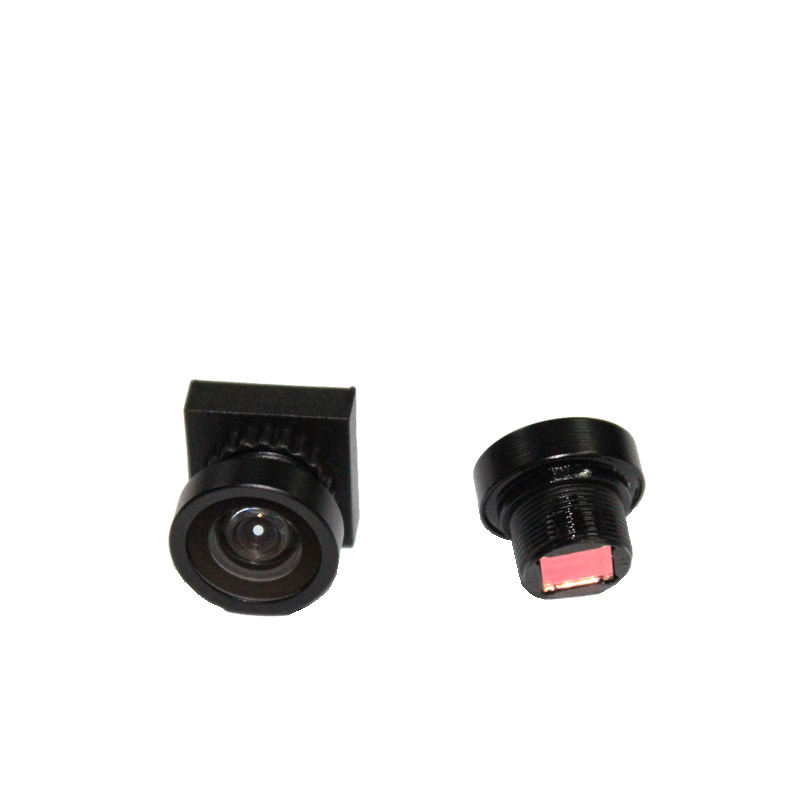

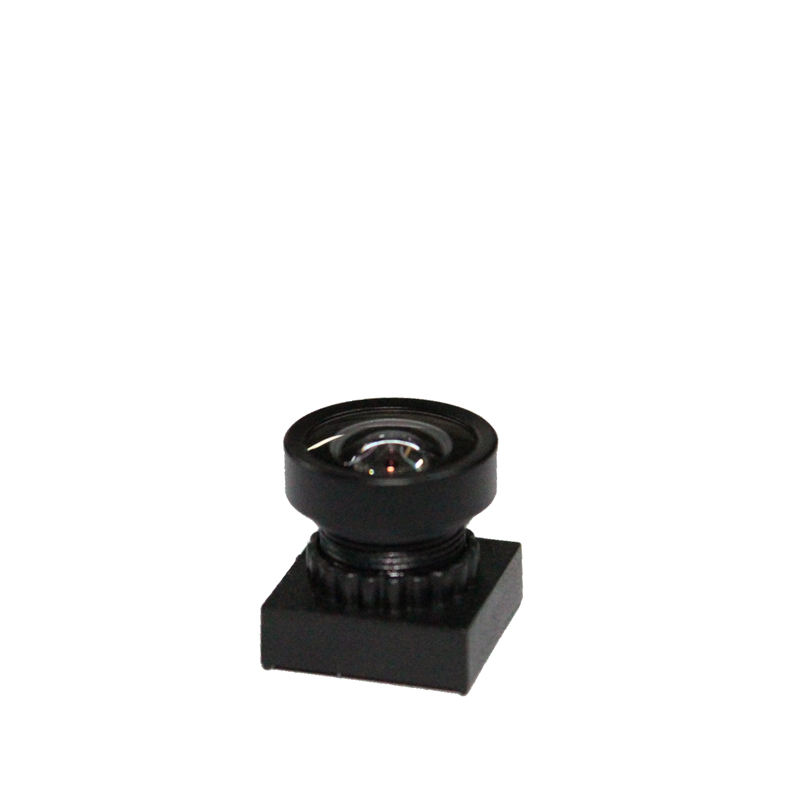

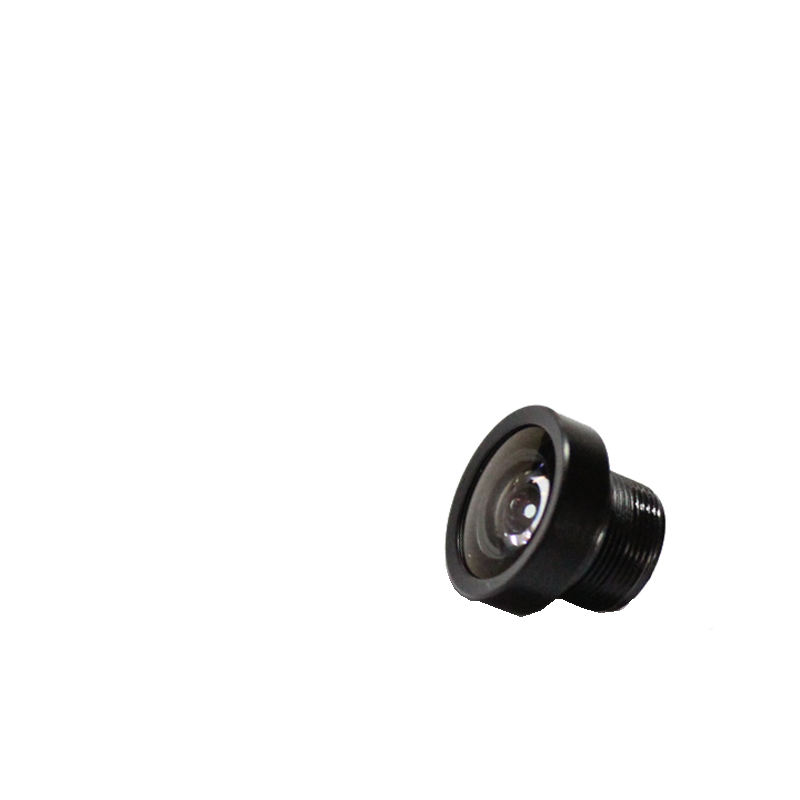

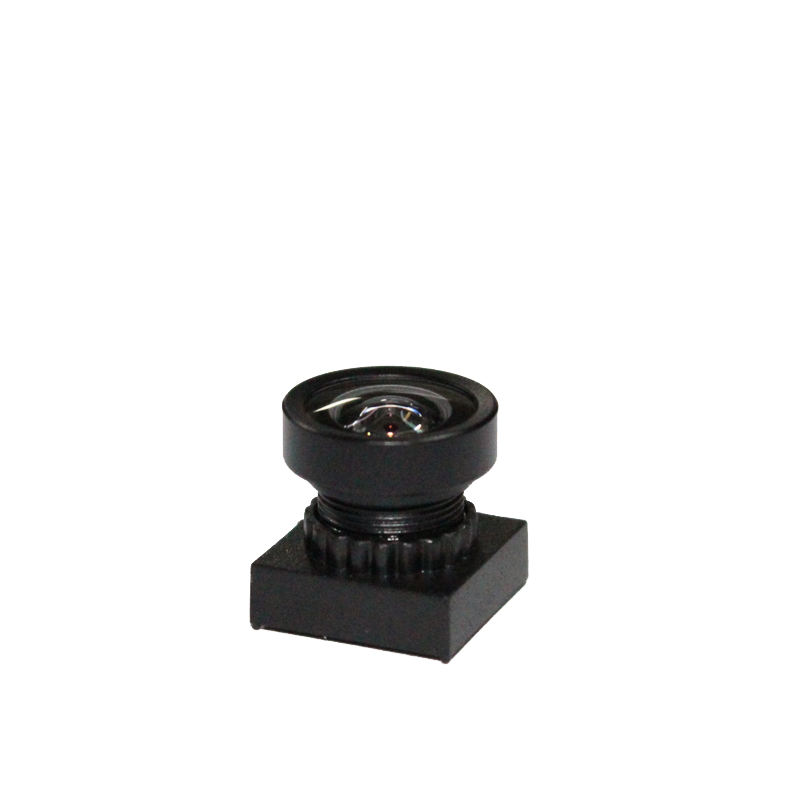

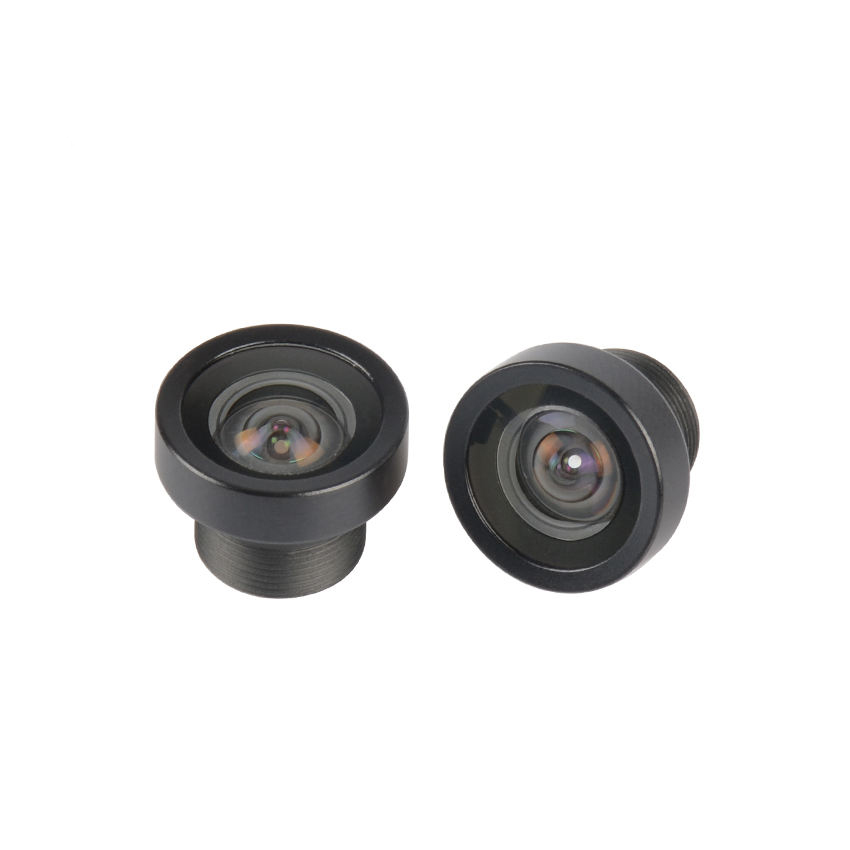

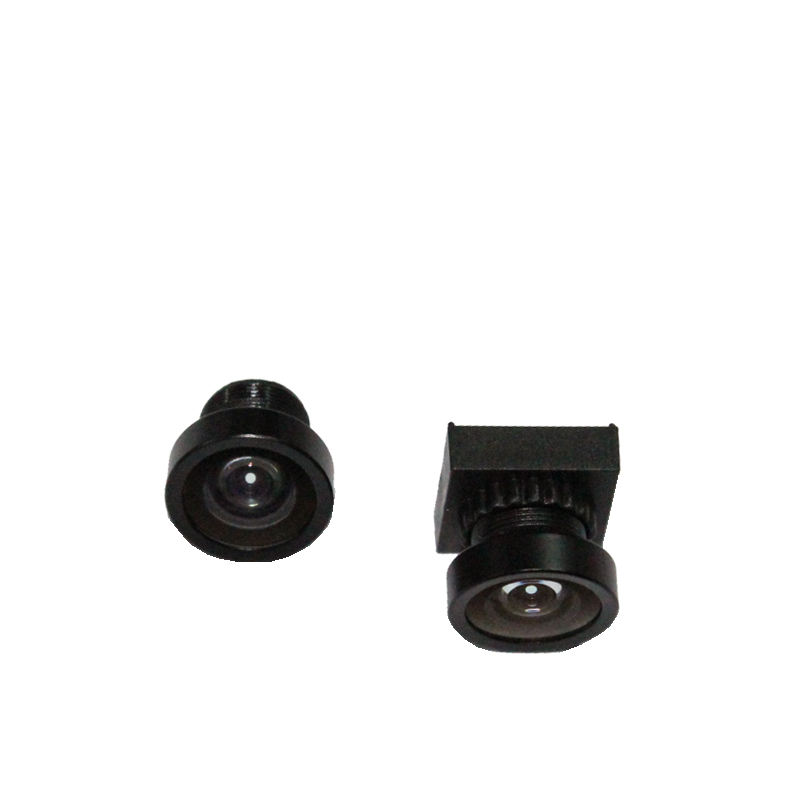

1/3" camera surveillance fisheye lens for cctv camera lens
$1.00
Availability:
In stock
Out of stock
Variations
Product Description
1/4" CMOS wifi video intercom wireless doorbell camera m7/m8/m12 cctv lens

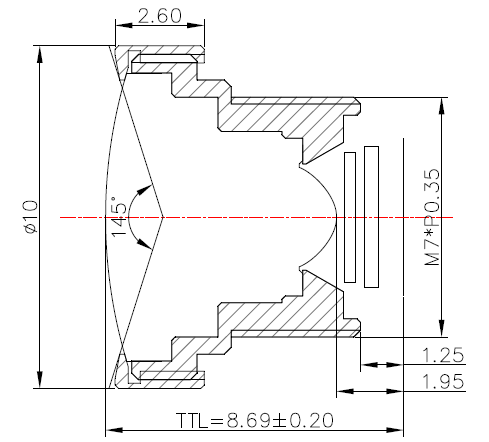

| Specification | ||
| Resolution | 2 mp | |
| Max image Circle | φ=4.8 mm | |
| Focal Length (EFL) | f=1.05 mm | |
| F/NO(INFINITE) | F/NO=2.4 | |
| BACK FOCAL LENGTH | BFL= 1.95 mm | |
| FLANGE BACK LENGTH | FB=1.25 mm | |
| Thread Size | M7*P0.35 | |
| Element | 1G3P+IR | |
| IR FILTER SPEC | Tavg≥88% @440-620nm | |
| T=50% @648±10nm | ||
| T<5% @>720nm | ||
| sensor | 1/4" | |
| FOV | Vertical | 100° |
| Horizontal | 123.5° | |
| Diagonal | 145 ° | |
| DISTORTION | low distortion | |
| CRA | / | |
| TTL | 8.69 mm | |
| the front cover diameter | φ=10 mm | |
