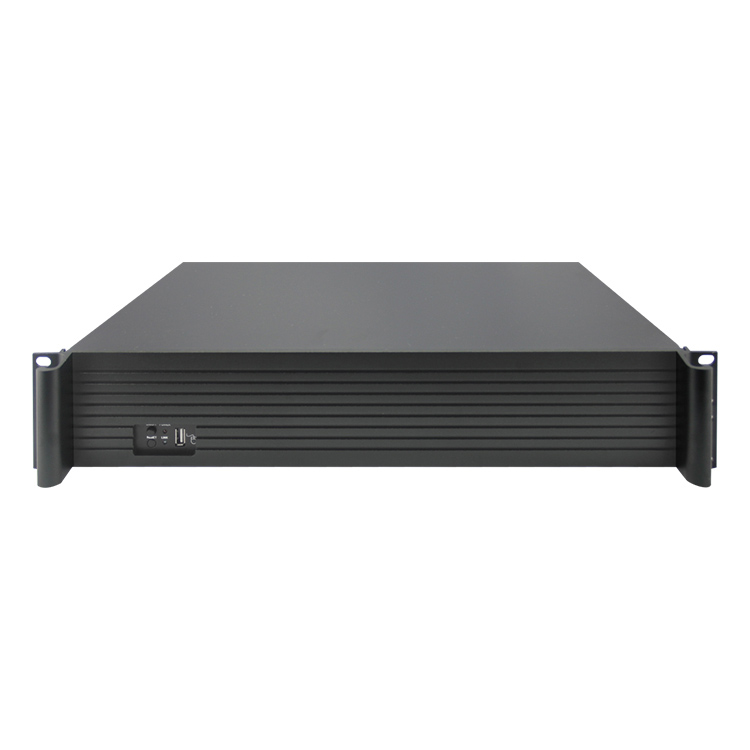

36ch 4k nvr
$294.00
Availability:
In stock
Out of stock
Variations
Product Description
| Video Standard | H.264+/H.265 | |
| Monitoring Image Quality | 4K(4096×2160)/5MP(2592×1944)/3MP(2048×1536)/1080P(1920×1080)/960P(1280×960)/720P(1280×720) | |
| Image Motion Detection | Each screen can set multiple detection areas and set 6-level sensitivity | |
| Recording Playback Quality | 1/4ch playback simultaneously | |
| Region Cover | Every channel can set 4 cover regions(IPC Support) | |
| Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode | |
| Backup Way | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup(Partly needs IPC Support) | |
| Operation Way | Mouse, Keyboard | |
| Local Login | Username and password | |
| Recording Storage | Local HDD, network | |
| Video Input | 36×(4096×2160)+sub[960*576]+4Ref.+4Play 8M/ch | |
| 36×(2048*1536)+sub[960*576]+4Ref.+9Play 8M/ch | ||
| 36×(1920*1080)+sub[720*576]+4Ref.+16Play 2M/ch | ||
| Audio Input | 1:1 network audio input according to network video channel number | |
| Video Output | 1ch VGA+1ch HDMI | |
| Audio Output | 1ch RCA output | |
| Network Port | 2 RJ45,10M/100M/1000M self-adaptive LAN port | |
| RS485 Port | Full duplex standard 485 port | |
| USB Port | 1USB 3.0 port, 2 USB 2.0 ports | |
| Alarm Input | 4ch | |
| Alarm Output | 4ch | |
| HDD | HDD Port | 9 SATA+1 E-SATA HDD ports |
| MAX Capacity | Each port supports MAX 6TB HDD | |
