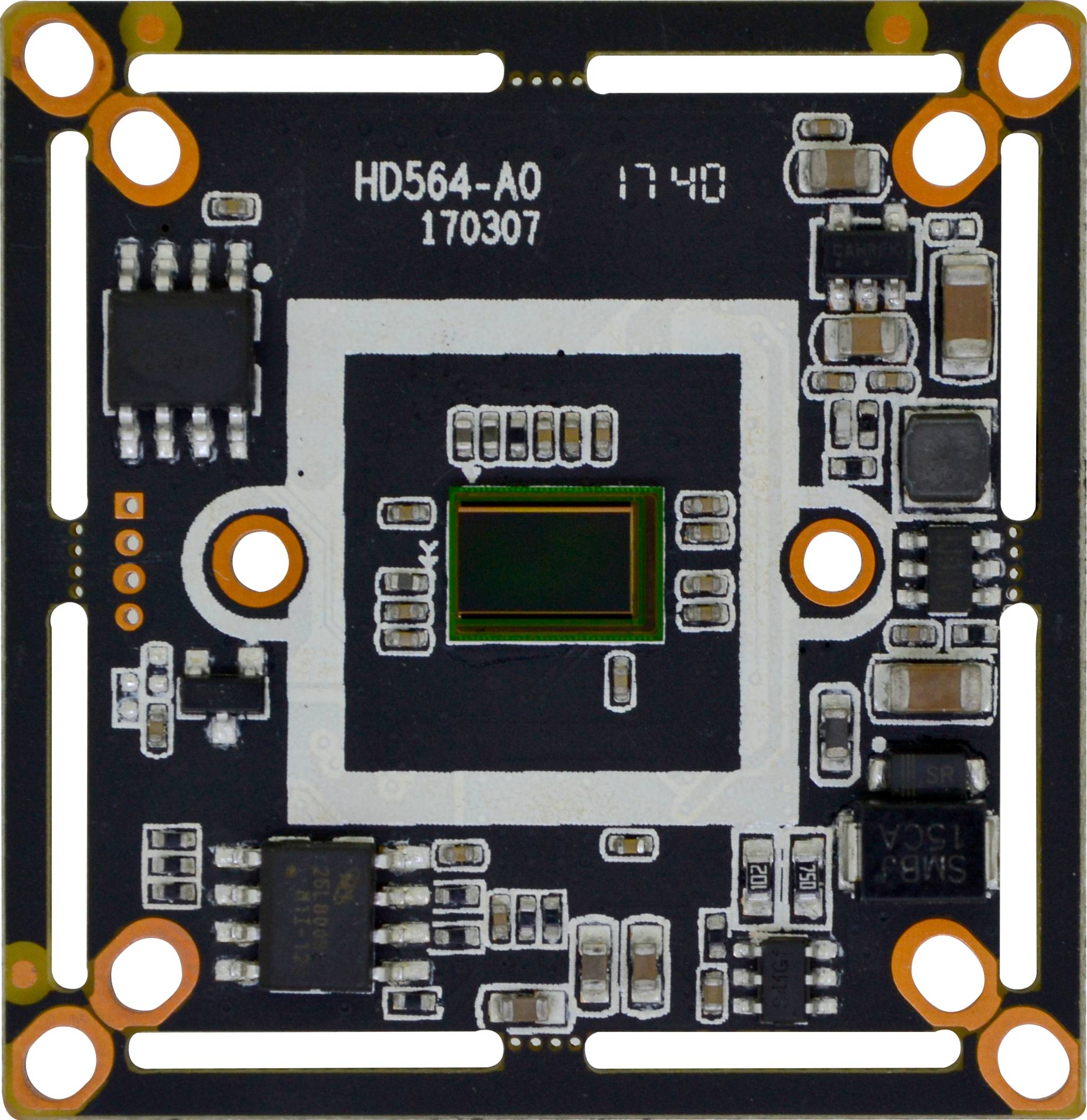

1/2.7" SOI K02 4MP AHD TVI CVI Analog 4 in 1 Hybird CCTV security Camera board (Black, K02)
$9.20
Availability:
In stock
Out of stock
Variations
Product Description
Technical Characteristics:
-
SOI 4MP HD image sensor, AHD / TVI / CVI / CVBS(Analog) Video output, effective resolution is up to 2704H * 1528V/ 960H
-
OSD support 2 different languages, with White Balance, mirror, Digital Noise Reduction functions
-
Adopt FH8538M DSP, with OSD function ( color / white black, PAL / NTSC switch)
-
Dual filter switching, clear day and night, OSD switch a variety of day and night mode
-
Can support UTC function, OSD adjust freely for different mirror mode
-
Power (600W) video (2KV) dual lightning protection design, OSP antioxidant PCB, small size 32 * 38 double board
| Product parameters | |
| Image Sensor | 1/2.7" SOI K02 |
| Effective Pixels | 2704(H) * 1528(V) |
| Effective resolution | 4MP |
| Signal system | PAL/NTSC (Switched by OSD) |
| Day-night mode | External control(default) / Auto / Color / White& black (OSD switch) |
| S/N ratio | ≥50dB |
| Minimum illuminaiton | 0.2LUX |
| BLC | AUTO |
| (AES) Auto electronic shutter | AUTO / 1/50(1/60)-1/50,000sec |
| (AWB)Auto white balance | AUTO |
| IR control voltage input | OFF(DC 0V) / ON(DC 3-8V) |
| OSD language | English/ Simplified Chinese/Traditional Chinese/ Italian/ Spanish |
| Video output | AHD / TVI / CVI / CVBS(Analog) |
| Video record occupation | 1minute about 35.2MB (3.6mm lens) |
| Power consumption | DC12V / 70mA ± 6mA (wide voltage 9V-18V) |
| Working temperature | -20°C to 60°C |
OSD Function description ：
-
PAL/NTSC: Press Enter button to Main Menu, press（Video setting）to choose（Video system）. First time press right button is NTSC, second time is PAL, press left button is returnning back, Enter button is to save the settings.（The default output is PAL）
-
4-in-1 switch (shortcut switch): Power on (without enter into main menu), long press the up button for 5 seconds comes to CVBS mode down button is CVI left button is AHD mode right button is TVI. (The above standard is defaulted mode). Customized external switch modes is available.(The default output is AHD)

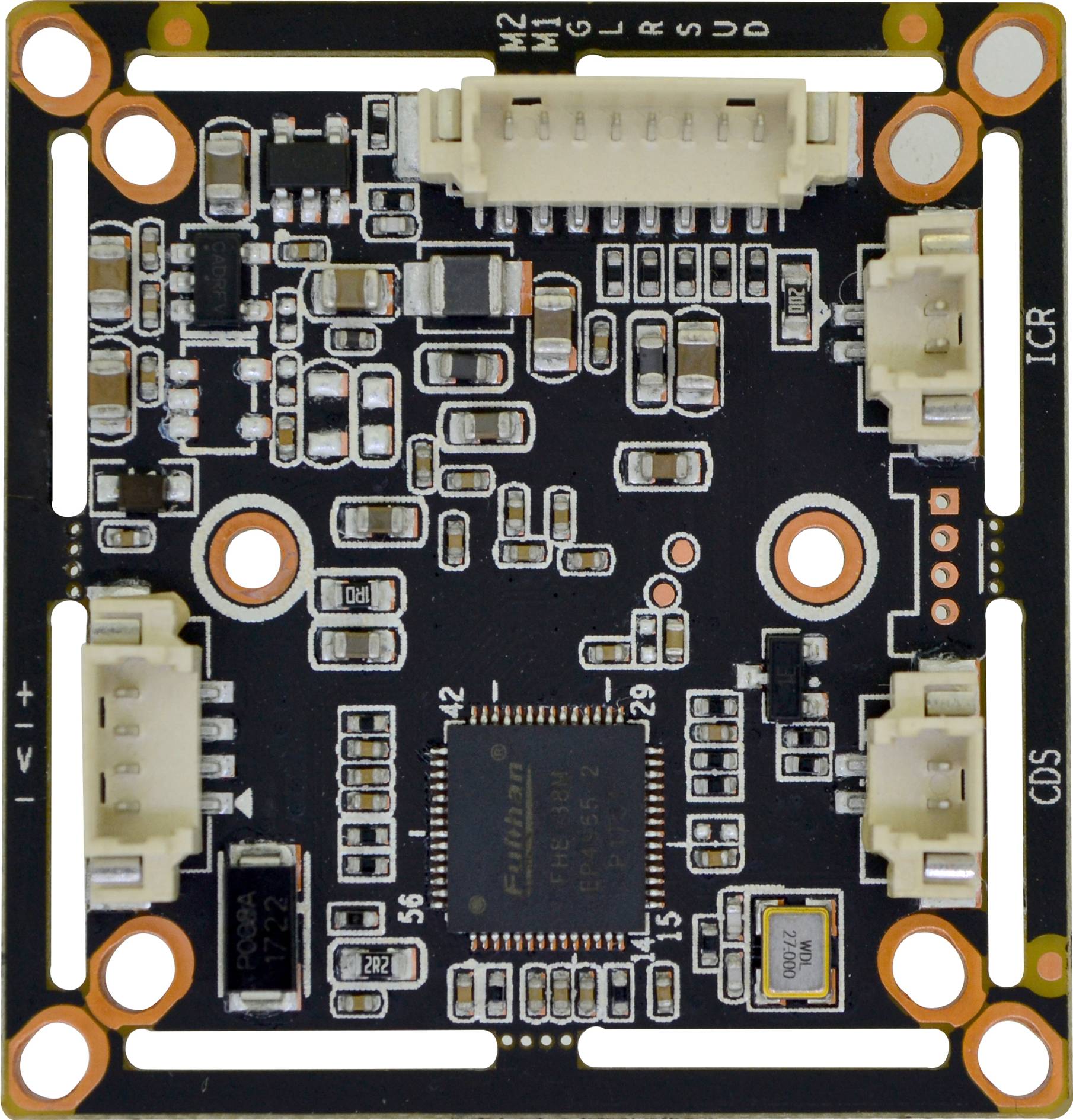

Pin definition:
OSD Menu Port
DDown (Orange)
UUp (Gray)
EEnter (Purple)
RRight (Green)
LLeft (White)
GGND (Brown)
M1 M2 Can set to Mode switch or Alarm Output
Power video port, 4PIN * 1.25mm
V Yellow
- Ground
+ Power+
CDS LED board photoresist
ICR IR-CUT dual filter switch
