1/2.7" SOI F22 FH8536E V30E 2MP AHD TVI CVI Analog 4 in 1 security Camera board (Black)
$6.20
Availability:
In stock
Out of stock
Variations
Product Description
Technical Characteristics:
-
F22 mega HD image sensor, AHD / TVI / CVI / CVBS, effective resolution is up to 1920 * 1080 / 960H
-
OSD support 4different languages, with Exposure / White Balance, Day & Night switch / Digital Noise Reduction / DWDR functions
-
Adopt FH8536E (V30E) DSP, with OSD function (mirror image, color / white black, PAL / NTSC switch)
-
AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu
-
Can support UTC function, 4-in-1 output, OSD adjust freely, support OSD menu and Gain value modification
-

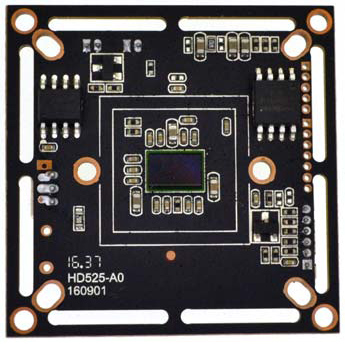

Power (600W) video (2KV) dual lightning protection design, OSP antioxidant PCB, small size 32 * 38 double board
| Product parameters | |
| Image Sensor | 1/2.7" F22 |
| Effective Pixels | 1920(H) * 1080(V) |
| Effective resolution | 2MP |
| Signal system | PAL/NTSC (Switched by OSD) |
| Day-night mode | External control(default) / Auto / Color / White& black (OSD switch) |
| S/N ratio | ≥41dB |
| Minimum illuminaiton | 0.01LUX |
| BLC | AUTO |
| (AES) Auto electronic shutter | AUTO / 1/50(1/60)-1/50,000sec |
| (AWB)Auto white balance | AUTO |
| IR control voltage input | OFF(DC 0V) / ON(DC 3-8V) |
| OSD language | English/ Simplified Chinese/Traditional Chinese/ Italian/ Spanish |
| Video output | AHD / TVI / CVI / CVBS(Analog) |
| Video record occupation | 1minute about 38MB (4mm lens) |
| Power consumption | DC12V / 70mA ± 6mA (wide voltage 9V-18V) |
| Working temperature | -20°C to 50°C |
OSD Function description ：
-
PAL/NTSC: Press Enter button to Main Menu, press（Video setting）to choose（Video system）. First time press right button is NTSC, second time is PAL, press left button is returnning back, Enter button is to save the settings.（The default output is PAL）
-
4-in-1 switch (shortcut switch): Power on (without enter into main menu), long press the up button for 5 seconds comes to CVBS mode down button is CVI left button is AHD mode right button is TVI. (The above standard is defaulted mode). Customized external switch modes is available.(The default output is AHD)

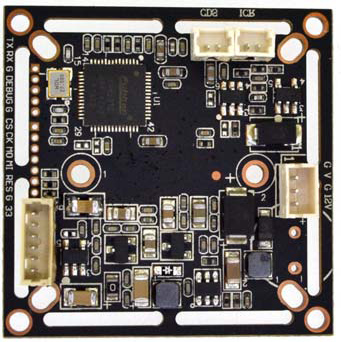

Pin definition:
OSD Menu Port
DDown (Orange)
UUp (Gray)
EEnter (Purple)
RRight (Green)
LLeft (White)
GGND (Brown)
M1 M2 Can set to Mode switch or Alarm Output
Power video port
V Yellow
- Ground
+ Power+
CDS LED board photoresist
ICR IR-CUT dual filter switch
