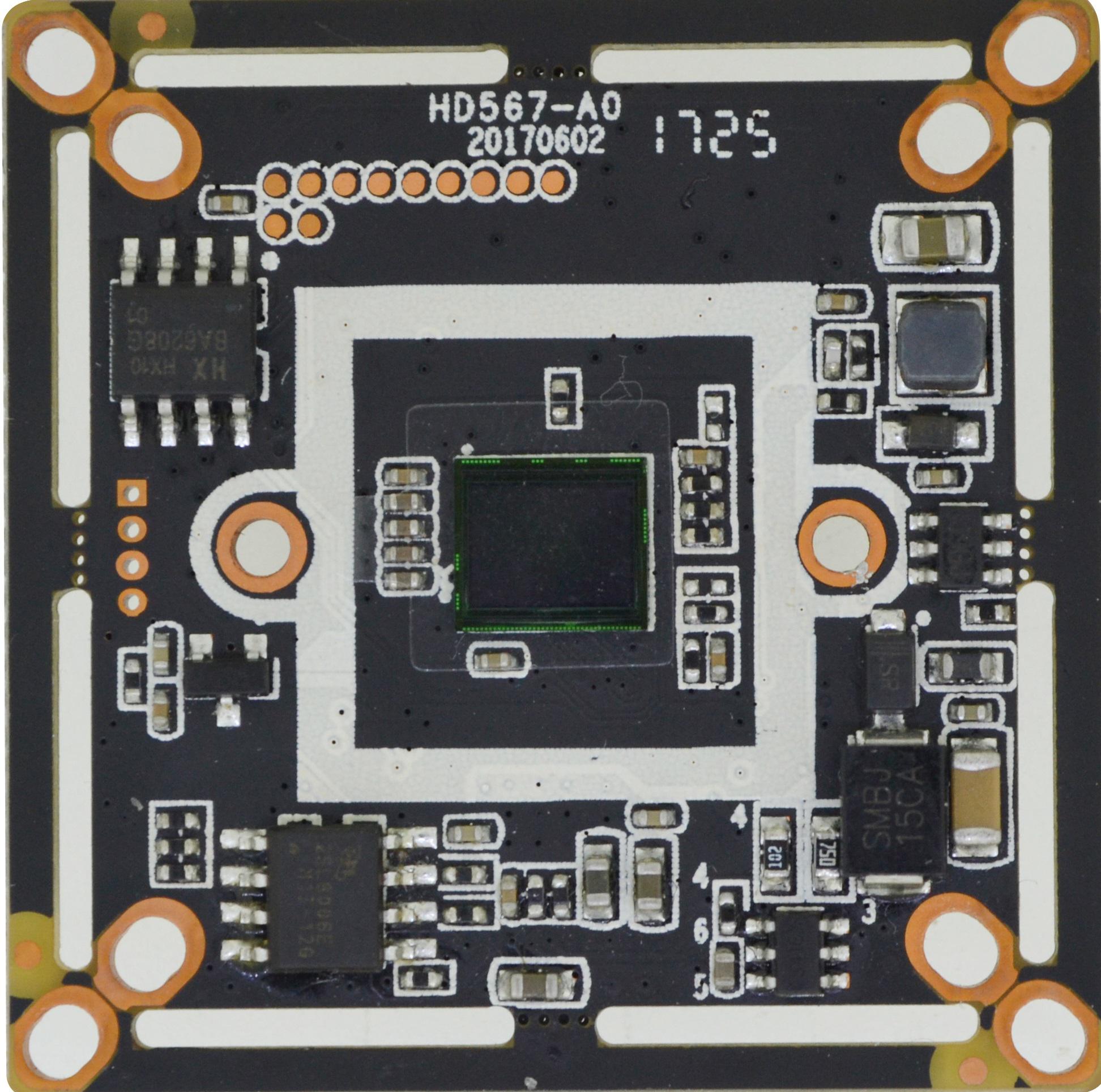

1/2.7" OS05A10 5MP AHD TVI CVI Analog 4 in 1 security Camera board (Black)
$16.20
Availability:
In stock
Out of stock
Variations
Product Description
Technical characteristics:
-
OSO5A10 mega HD image sensor, AHD / TVI 5MP output, CVI / CVBS 4MP output, effective resolution is up to2688 * 1944 / 960H
-
OSD menu supports 2 different languages, support WB / mirror / digital noise reduction
-
adopt FH8538M DSP, with OSD function (color / white-black, PAL / NTSC)
-
dual filter switch, day-night effect is distinct, various day-night modes can be switched by OSD menu
-
support UTC
-
Power (600W) Video (2KV) dual-lightning protection design, OSP antioxidant PCB, size 32 * 38 dual-border
| Product parameters | |
| Image Sensor | 1/2.7" OS05A10 |
| Effective Pixels | 2688(H) * 1944(V) |
| Effective resolution | 5MP |
| Signal system | PAL/NTSC (Switched by OSD) |
| Day-night mode | External control(default) / Auto / Color / White& black (OSD switch) |
| S/N ratio | ≥50dB |
| Minimum illuminaiton | 0.01LUX |
| BLC | AUTO |
| (AES) Auto electronic shutter | AUTO / 1/50(1/60)-1/50,000sec |
| (AWB)Auto white balance | AUTO |
| IR control voltage input | OFF(DC 0V) / ON(DC 3-8V) |
| OSD language | English / Simplified Chinese / Traditional Chinese |
| Video output | AHD / TVI / CVI / CVBS(Analog) |
| Video record occupation | 1minute about 35.2MB (3.6mm lens) |
| Power consumption | DC12V / 128mA ± 6mA (wide voltage 9V-18V) |
| Working temperature | -20°C to 50°C |
OSD Function description ：
-
PAL/NTSC: Enter into OSD menu, enter into option 5 (video out) to enter HD mode, switch right to (CVBS）, and then choose（video standard）, press OSD left/right randomly to switch, press right(press shortly) one time to NTSC, twice to PAL, left button to return. Enter button to save(Default is PAL)
-
4-in-1 Switch：Press enter button to go into the main menu, Press(Video setting) to enter, and choose (transfer mode) press right button shortly once is CVI, twice is CVBS, triple times is TVI, four times is AHD. And then choose (return) to save and return (Default is AHD）.
-
4-in-1 Switch（shortcut switch）：After power on(no need to enter main menu), press the OSD button for 5 seconds to switch, up button to CVBS, down to CVI, left to AHD, right to TVI (Default is AHD)

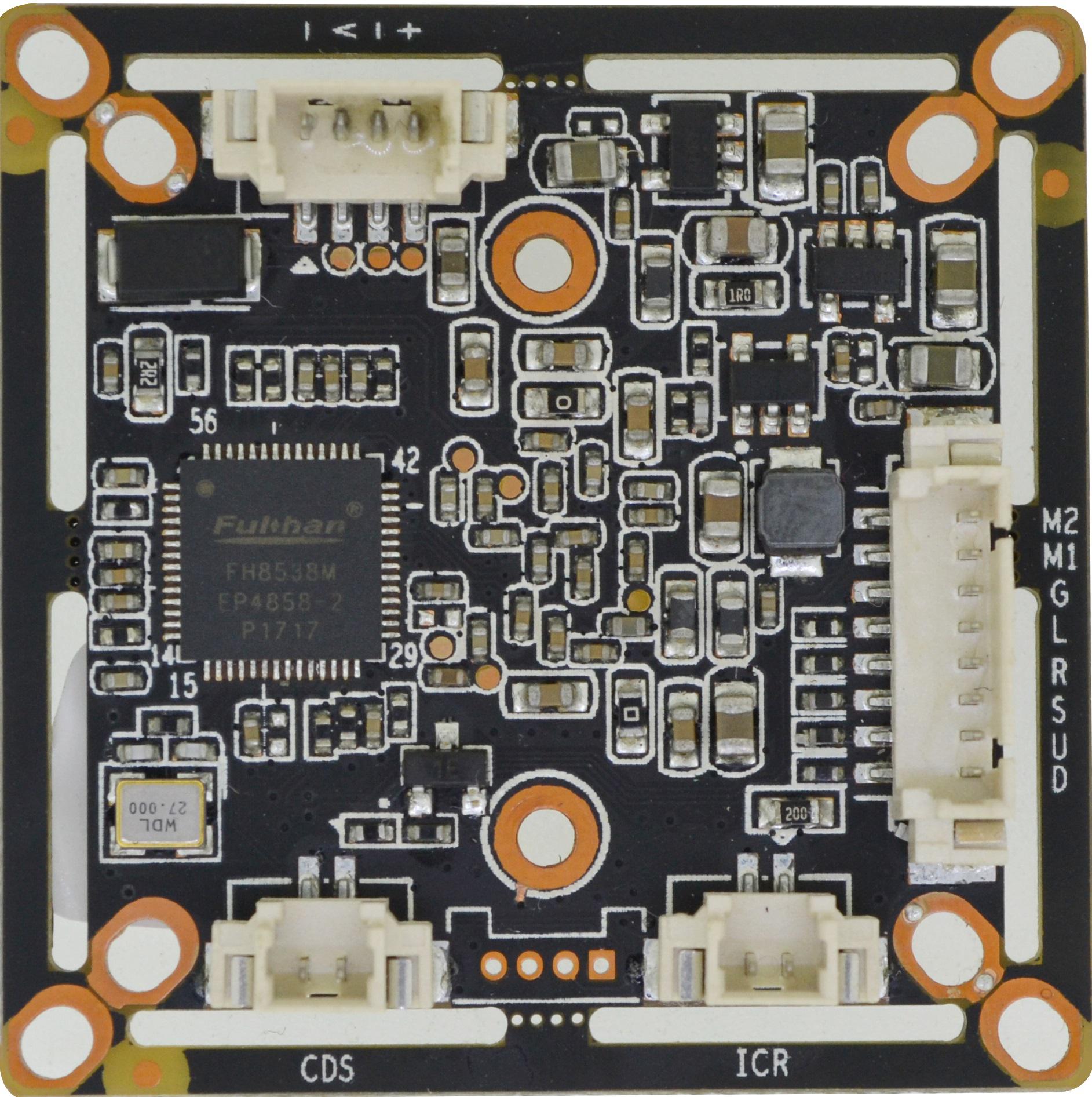

Pin definition:
OSD Menu Port
DDown (Orange)
UUp (Gray)
EEnter (Purple)
RRight (Green)
LLeft (White)
GGND (Brown)
M1 M2 Can set to Mode switch or Alarm Output
Power video port
V Yellow
- Ground
+ Power+
CDS LED board photoresist
ICR IR-CUT dual filter switch
