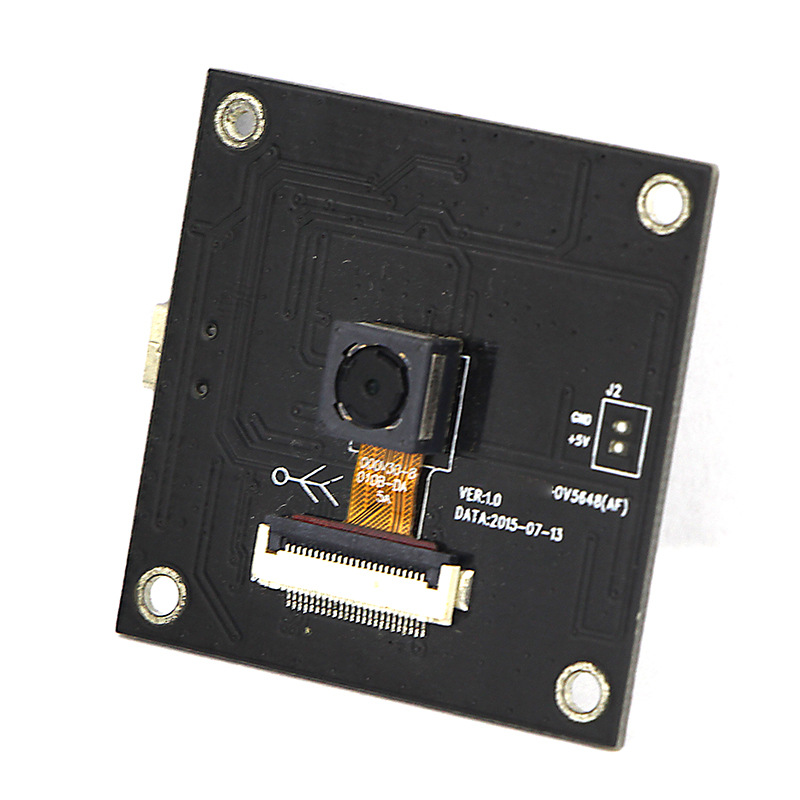

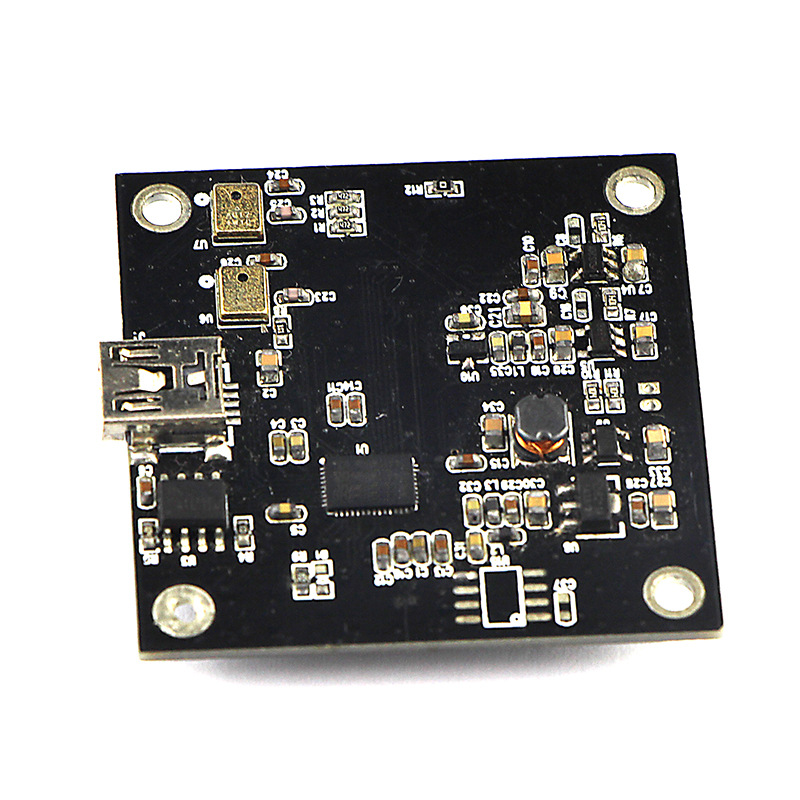

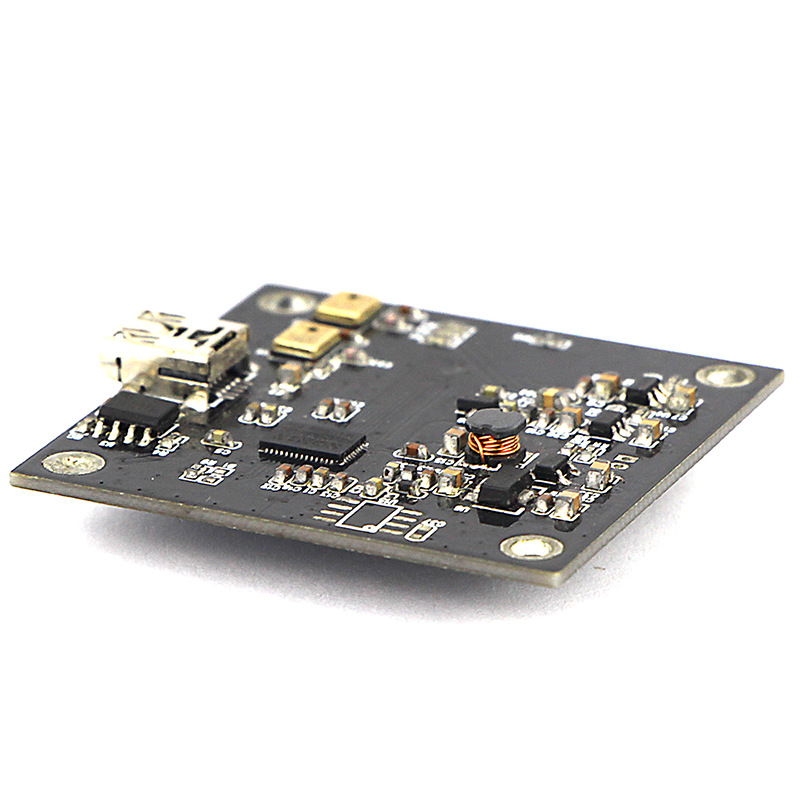

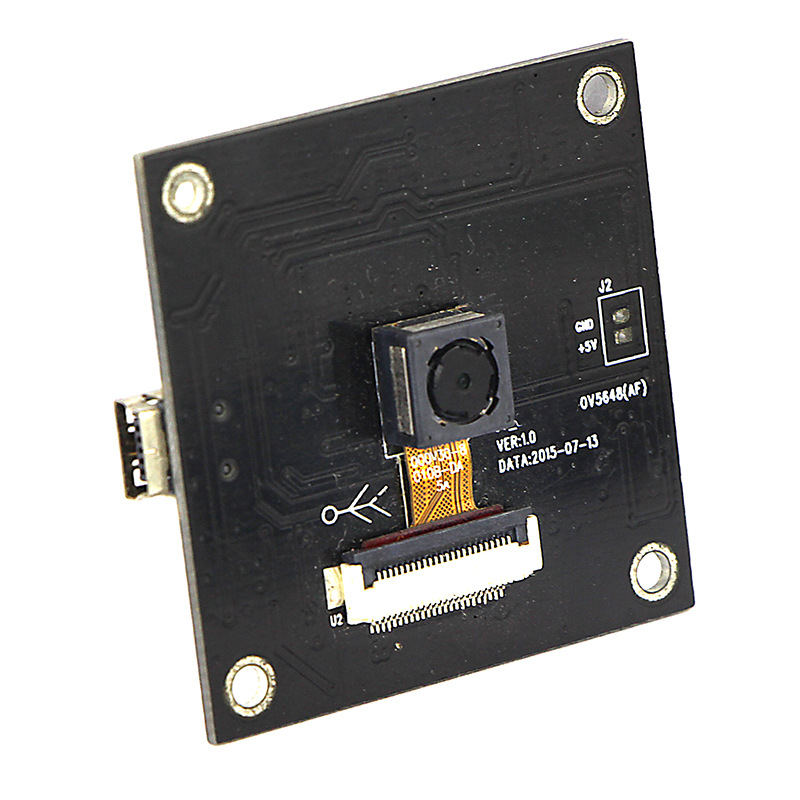

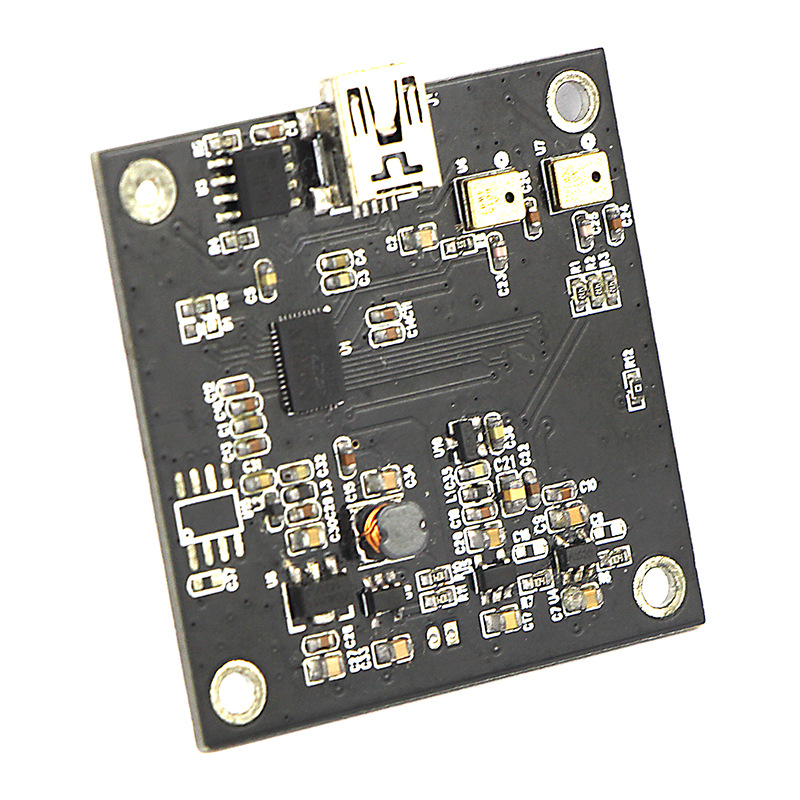

1/4" OV5648 5MP 1080P 30fps USB2.0 OTG UVC Camera board H.264 YUY2 MJPEG
$37.50
Availability:
In stock
Out of stock
Variations
Product Description
Features
5MP HD USB camera cost effective with 1/4" OV5648 Sensor
1/4" OV5648 CMOS Sensor, more stable
5MP 15fps real-time preview, good image effect, high definition
Support UVC protocol, free driver, plug and play.
Support USB2.0 OTG protocol, OTG access devices.
Support linux, Android and other embedded systems.
Support dual digital MIC, stereo capture quality excellence.
| Product number | |||
| Sensor | OV5648 | ||
| MAX effective pixels | 2592 * 1080 | ||
| Sensor Size | 1/4 inch | ||
| Pixel Size | 1.4μm x 1.4μm | ||
| Image area | / | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| YUY2/MJPEG | 1080P | 30fps | |
| input clock frequency | / | ||
| focusing | Fixed | ||
| max S/N ratio | 34dB | ||
| dynamic range | 67dB | ||
| dark current | 8mV/s @ 50°C junction temperature | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | 1/4" Construction: 4G+IR FOV: 66degree Thread: M12*0.5mm Optical Distorition: < -1% | ||
