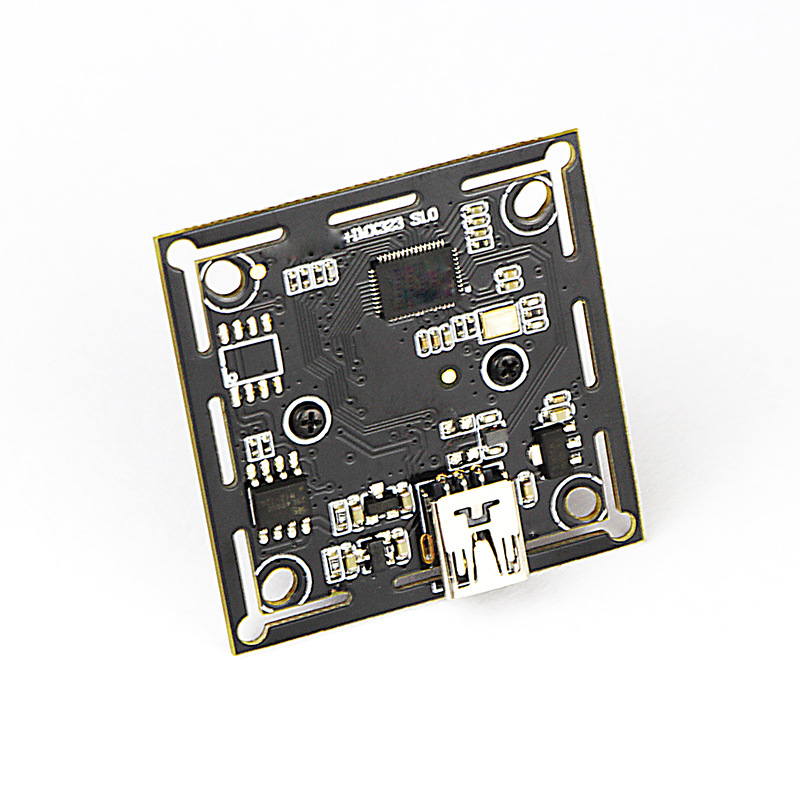

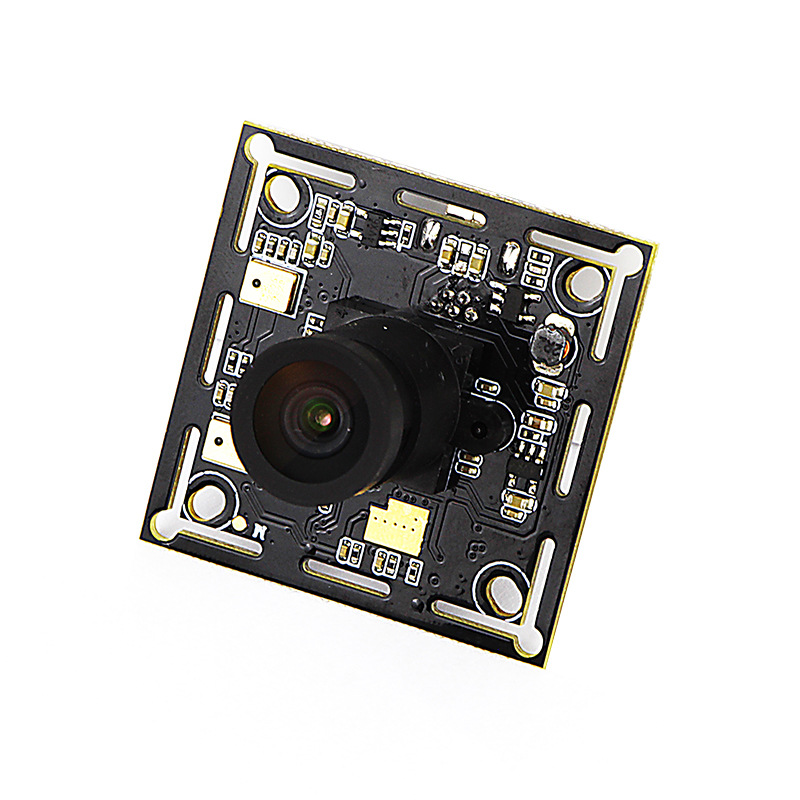

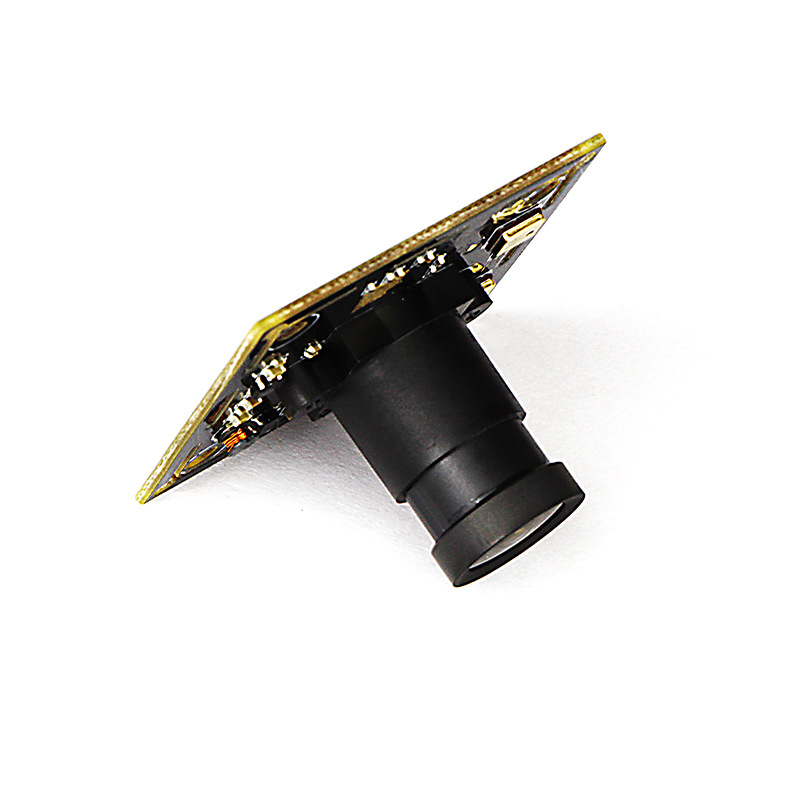

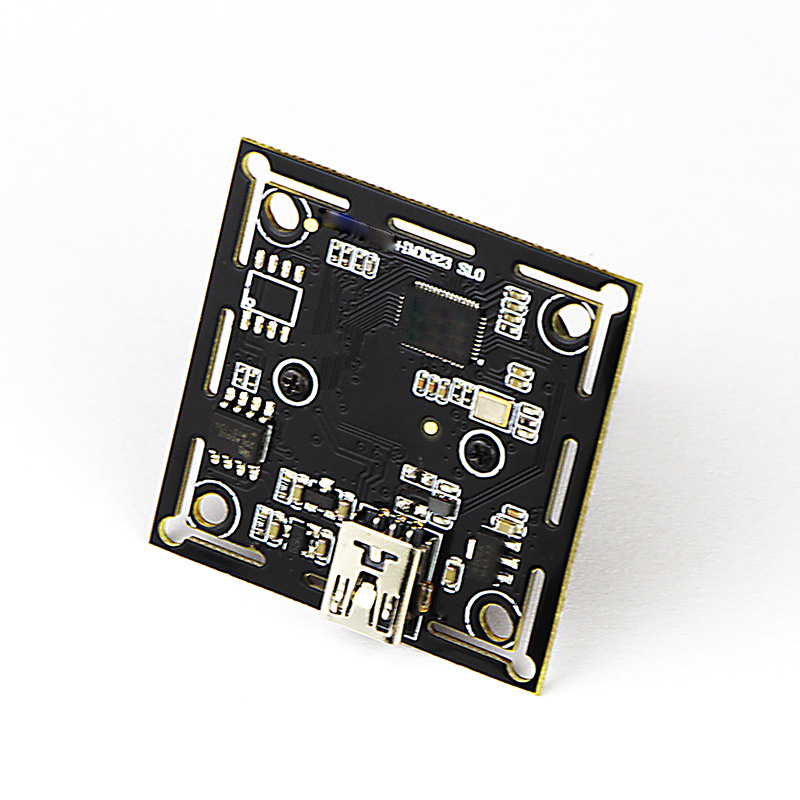

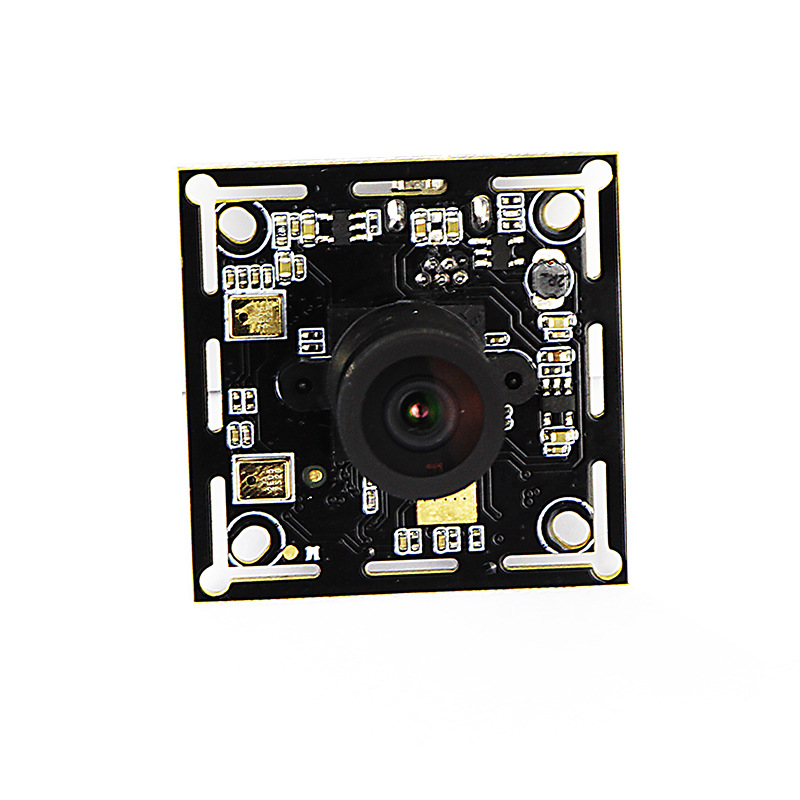

1/2.9"IMX323 2MP 1080P 30fps USB2.0 OTG UVC Camera board H.264 YUY2 MJPEG (Black)
$37.50
Availability:
In stock
Out of stock
Variations
Product Description
Features
2MP 1080P HD USB camera with 1/2.9" Sony IMX323 Sensor
-
1/2.9" Sony IMX323 CMOS Sensor, more stable
-
Using H.264, MJPEG, YUY2 three encoding, has a very good indoor and outdoor effects, vivid colors
-
Support UVC protocol, no driver, plug and play.
-
Support USB2.0 OTG protocol, OTG access devices.
-
Support linux, Android and other embedded systems.
-
Support dual digital MIC, stereo capture quality excellence.
| Product number | |||
| Sensor | Sony IMX323 | ||
| MAX effective pixels | 1920 * 1080 | ||
| Sensor Size | 1/2.9 inch | ||
| Pixel Size | 2.8μm x 2.8μm | ||
| Image area | / | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| H.264/YUY2/MJPEG | 1080P | 30fps | |
| input clock frequency | 37.125MHz | ||
| focusing | Fixed | ||
| max S/N ratio | 21dB | ||
| dynamic range | 45dB | ||
| dark current | < 10mA | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 260mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | 1/2.7" Construction: 4G+IR FOV: 110degree Thread: M12*0.5mm Optical Distorition: < 0.35% | ||
