1/2.7" AR0230 2MP 1080P 30fps USB2.0 OTG UVC Camera board H.264 YUY2 MJPEG (Black)
$51.00
Availability:
In stock
Out of stock
Variations
Product Description
Features

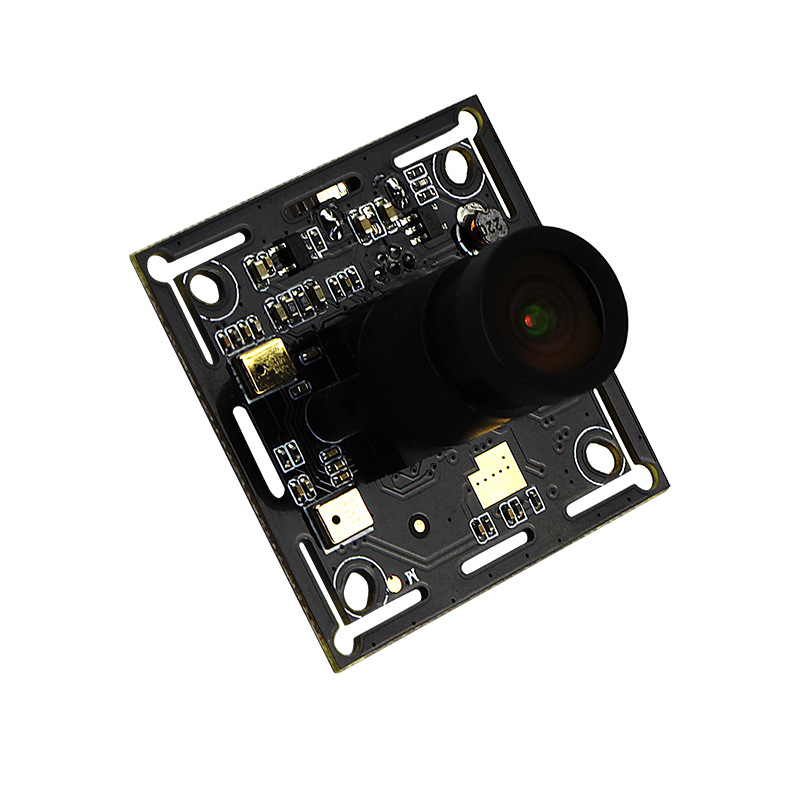

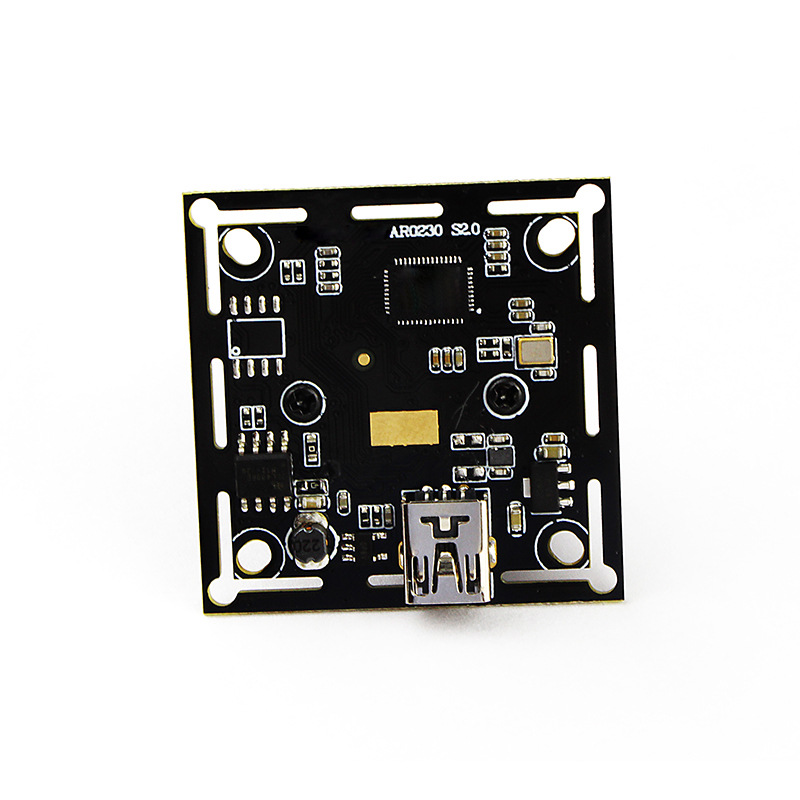

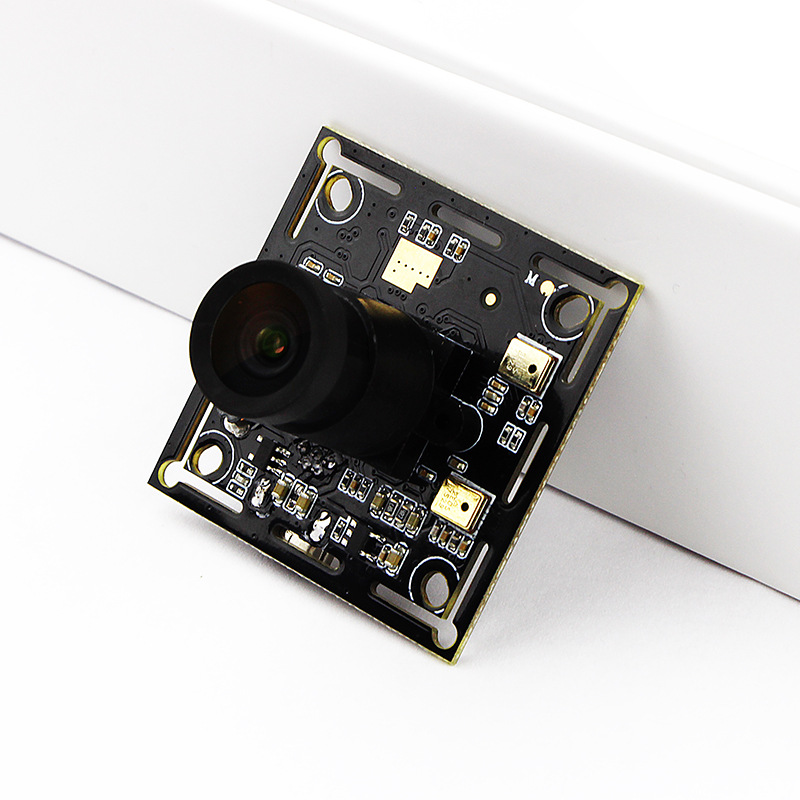

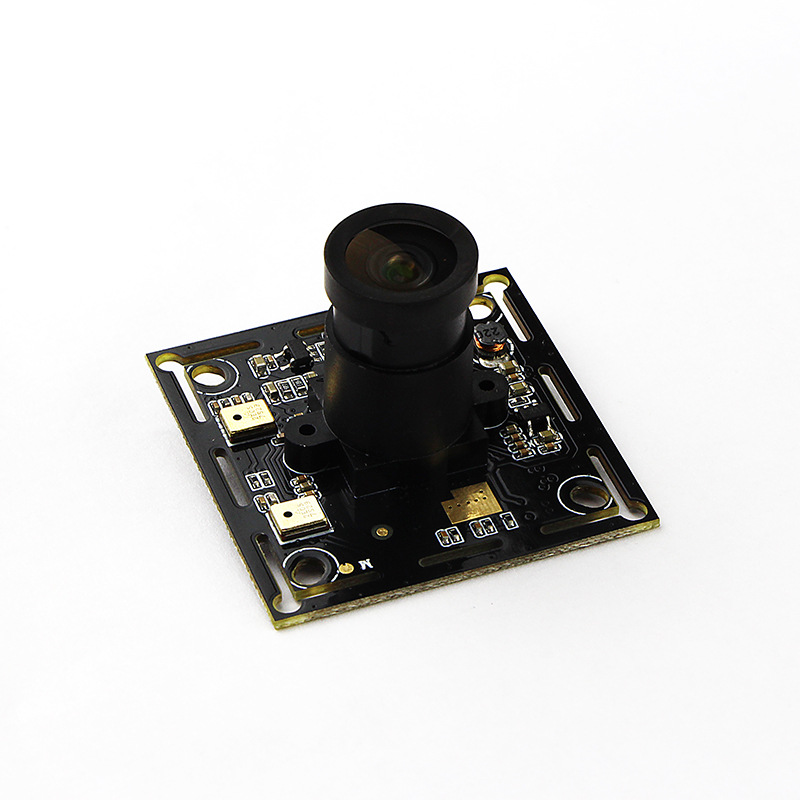

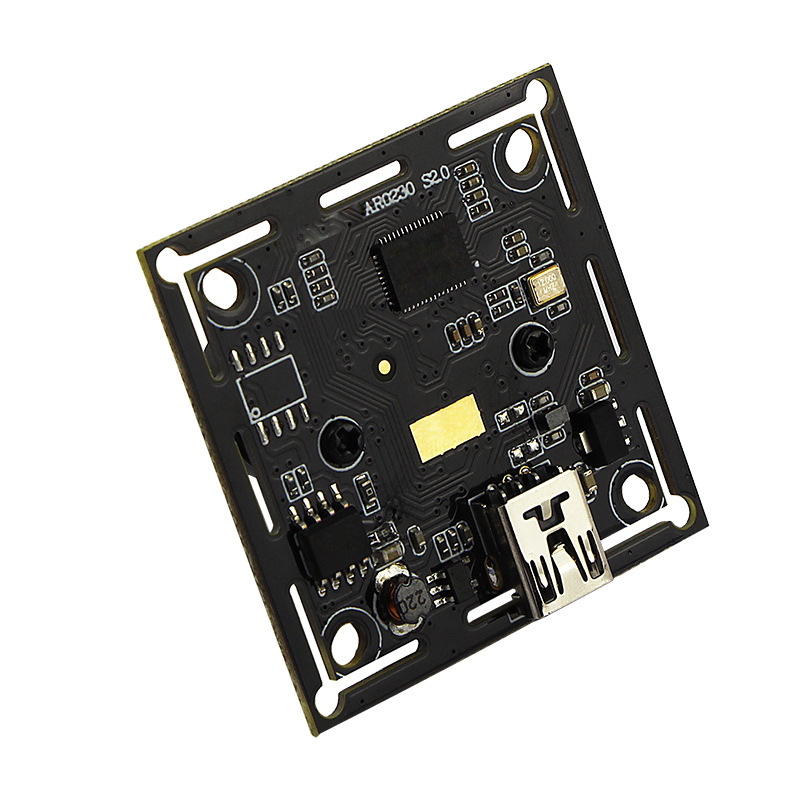

2MP 1080P HD USB camera with 1/2.7" AR0230 Sensor
1/2.7" AR0230 CMOS Sensor, more stable
Using H.264, MJPEG, YUY2 three encoding, has a very good indoor and outdoor effects, vivid colors
Support UVC protocol, no driver, plug and play.
Support USB2.0 OTG protocol, OTG access devices.
Support linux, Android and other embedded systems.
Support dual digital MIC, stereo capture quality excellence.
| Product number | |||
| Sensor | AR0130 iLCC | ||
| MAX effective pixels | 1920 * 1080 | ||
| Sensor Size | 1/2.7 inch | ||
| Pixel Size | 3.0μm x 3.0μm | ||
| Image area | / | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| H.264/YUY2/MJPEG | 1080P | 30fps | |
| input clock frequency | 6-48MHz | ||
| focusing | Fixed | ||
| max S/N ratio | 41dB | ||
| dynamic range | 96dB | ||
| dark current | < 10mA | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 60°C | ||
| working temperature | 0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
