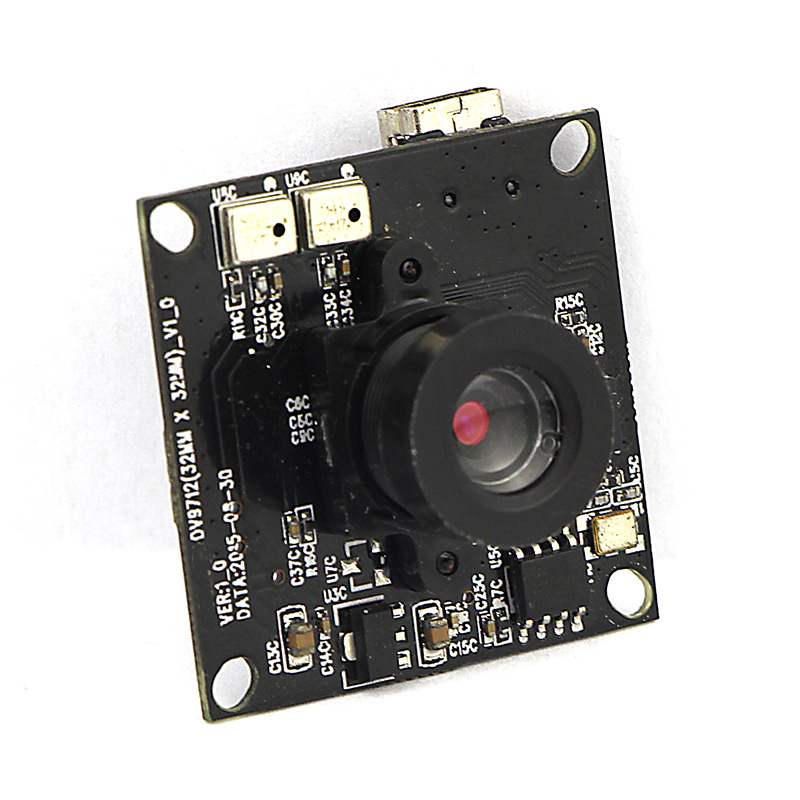

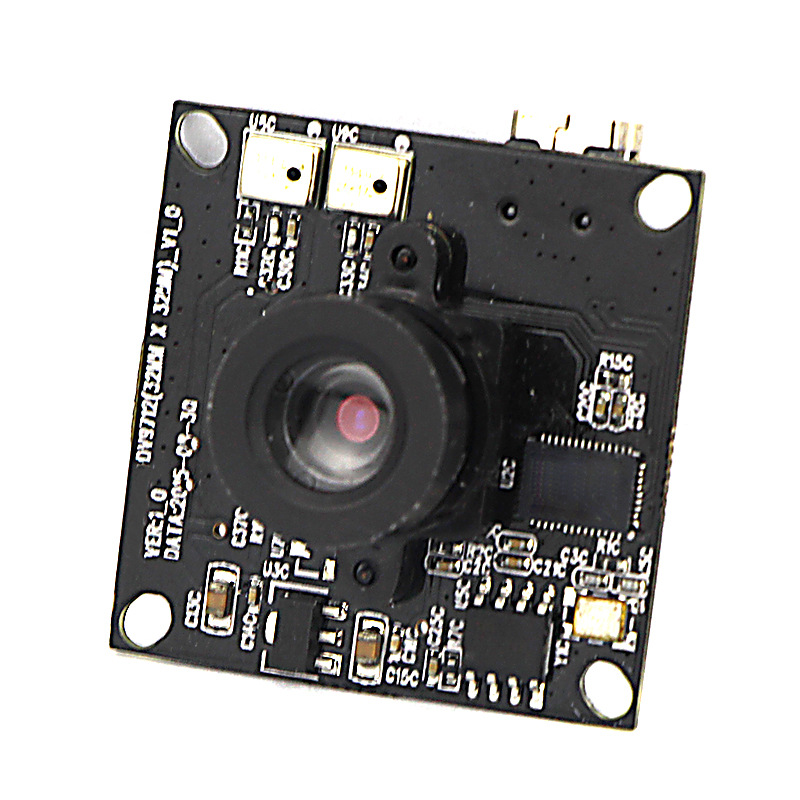

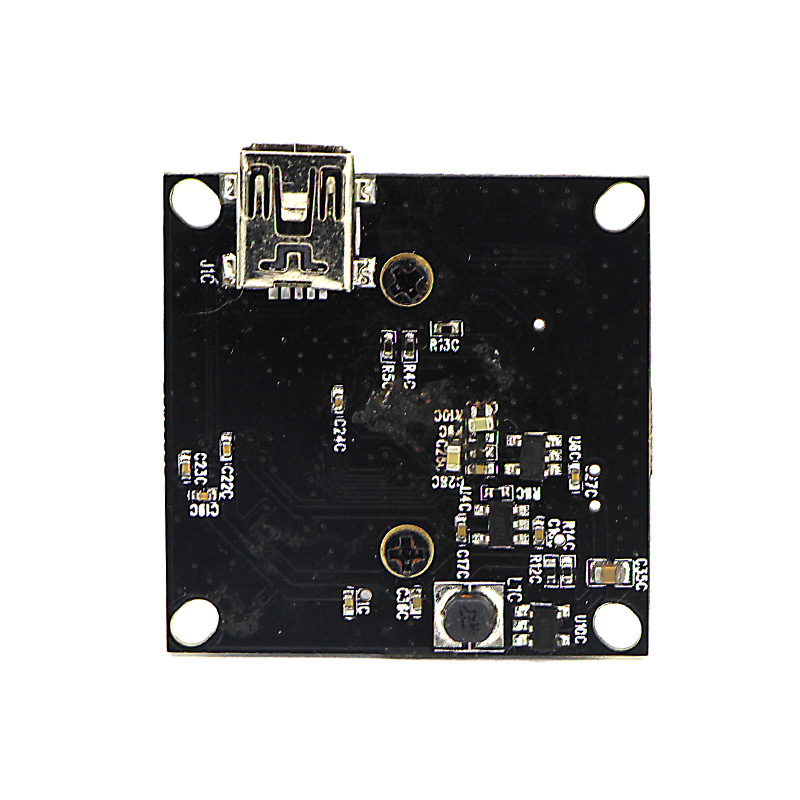

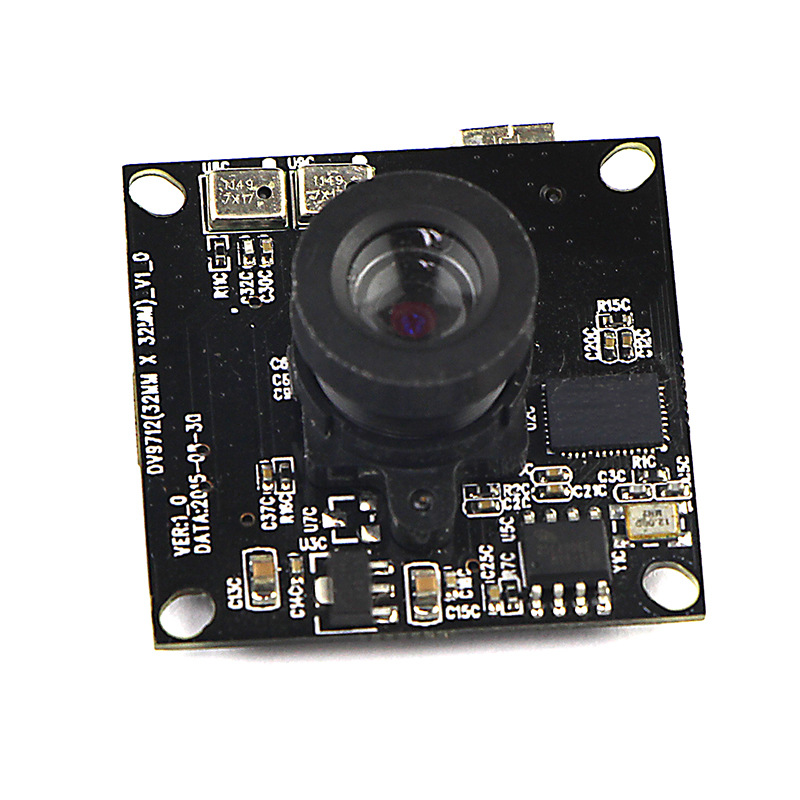

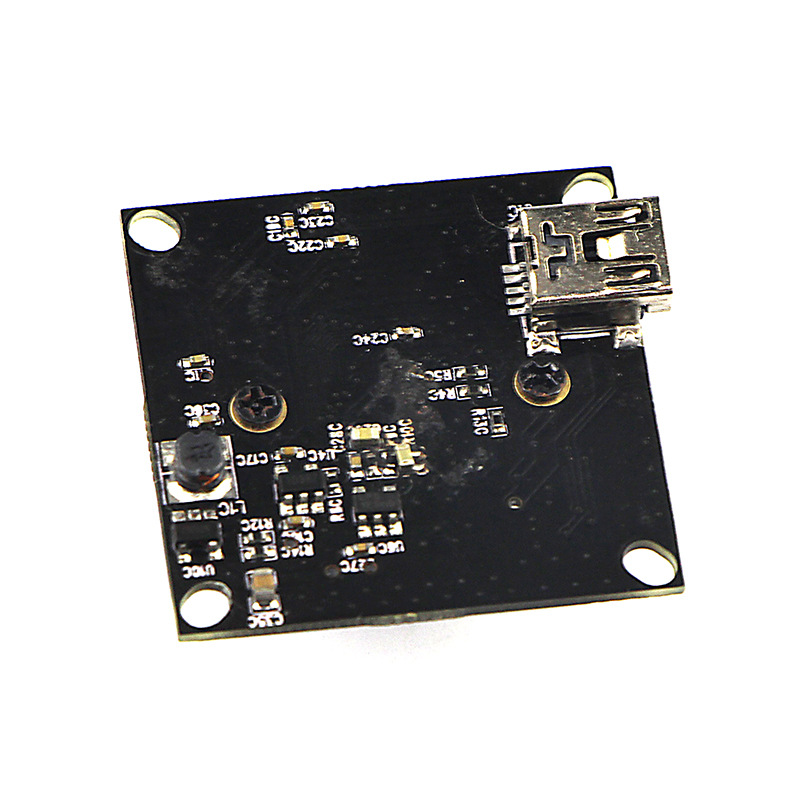

1/4" OV9712 1MP 720P USB2.0 OTG Camera board YUY2 MJPEG
$19.90
Availability:
In stock
Out of stock
Variations
Product Description
Features
1MP 720P HD USB camera with 1/4 OV9712 Sensor
720P 30-frame real-time preview, low illumination
has a very good outdoor effect, vivid colors
Support UVC protocol, no driver, plug and play
Support USB2.0 OTG protocol, can access OTG equipment
Support linux, Android and other embedded systems.
| Product number | |||
| Sensor | OV9712 | ||
| MAX effective pixels | 1280 * 720 | ||
| Sensor Size | 1/4 inch | ||
| Pixel Size | 3.0μm x 3.0μm | ||
| Image area | 3.888mm(H) x 2430mm(V) | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| YUY2/MJGP | 1MP 720P | 30fps | |
| input clock frequency | / | ||
| focusing | Fixed | ||
| max S/N ratio | 39dB | ||
| dynamic range | 69dB | ||
| dark current | < 10mA | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 200mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
