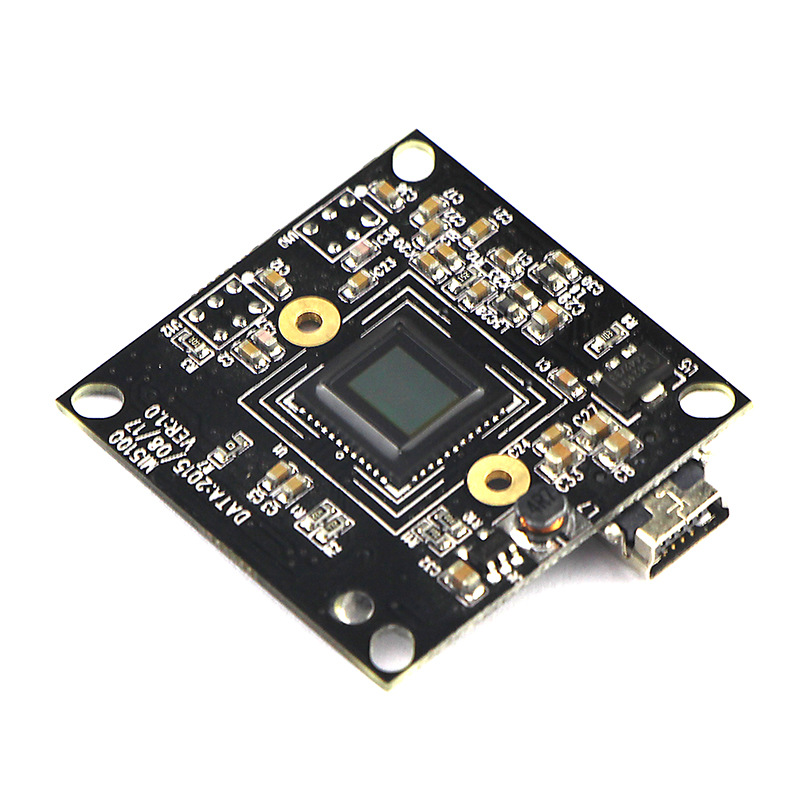

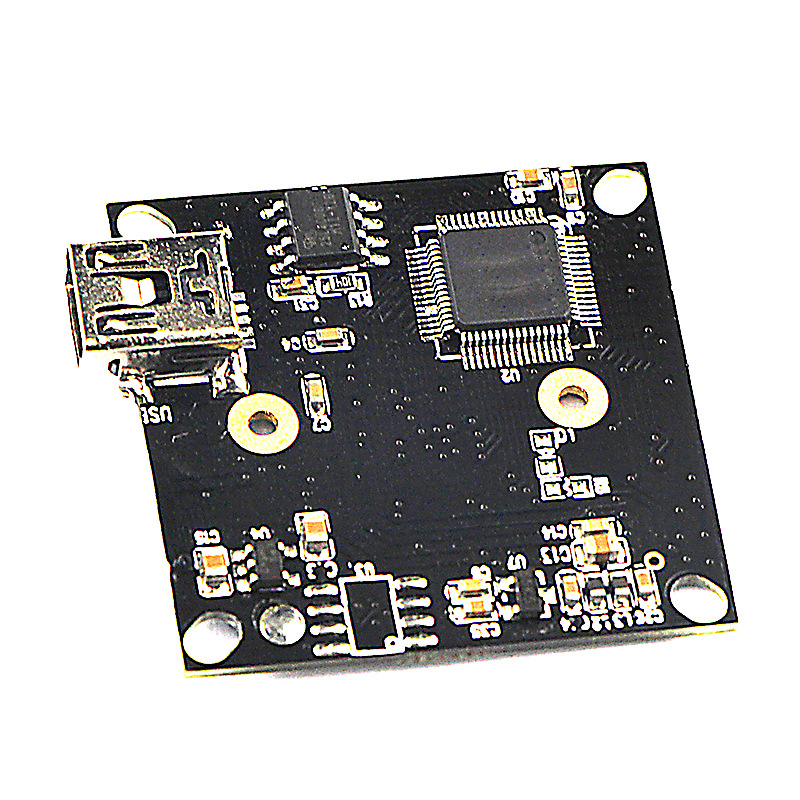

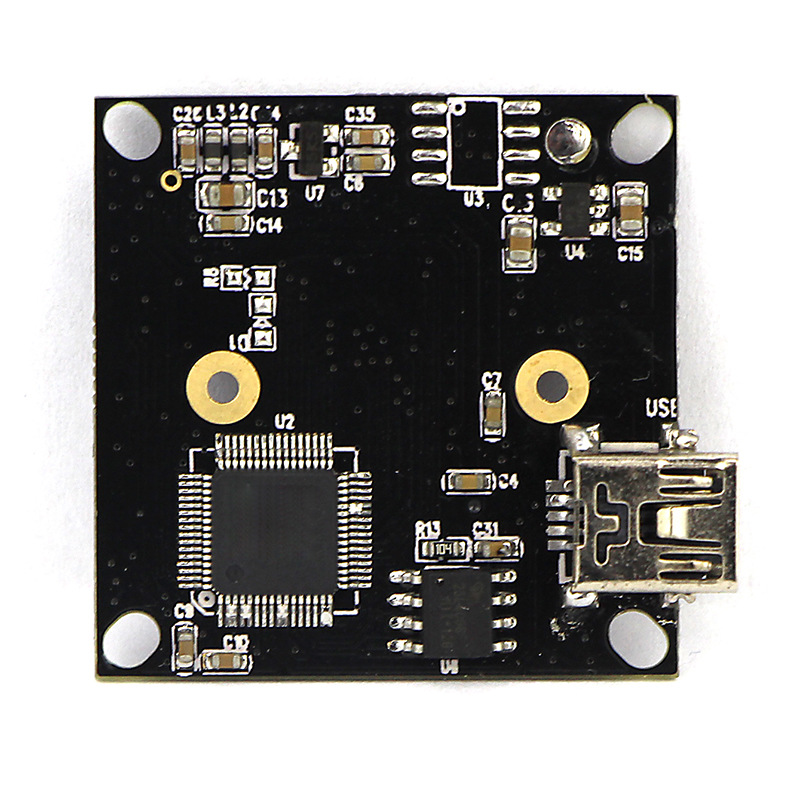

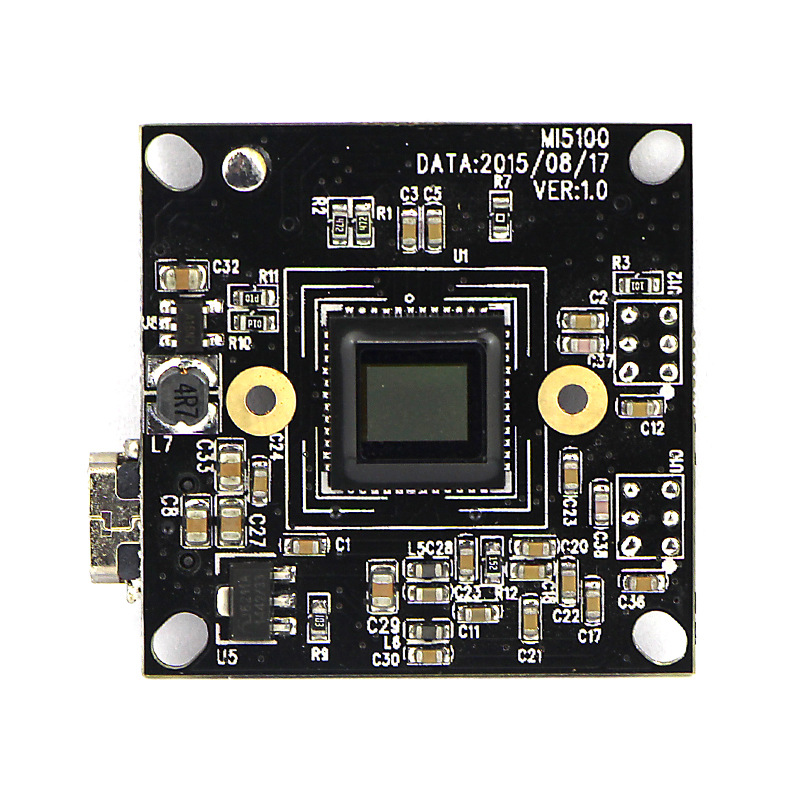

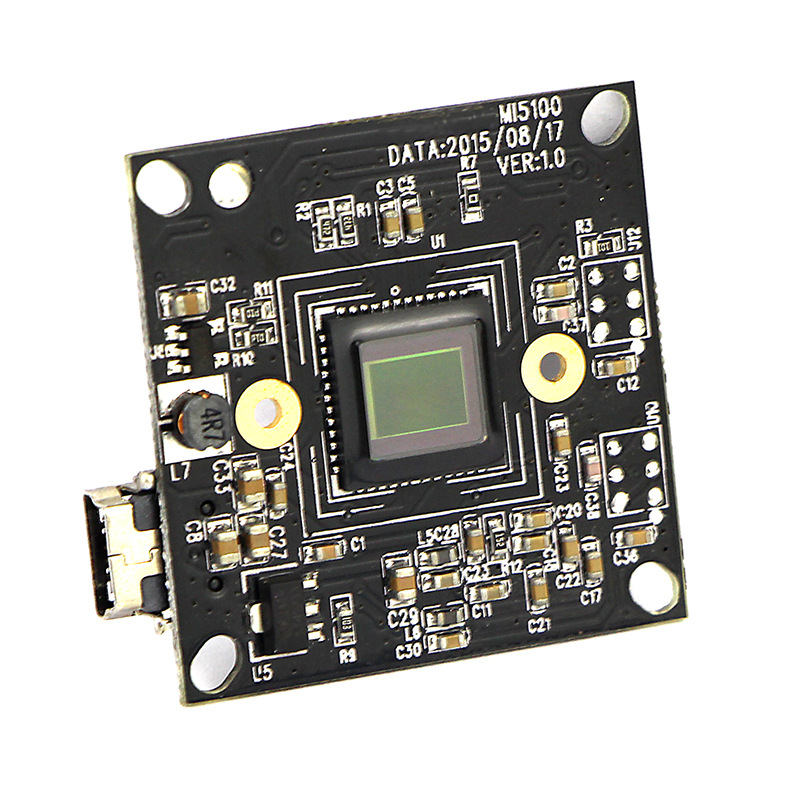

1/2.5" Micron MI5100 5MP USB2.0 Camera board YUY2 MJPEG
$39.50
Availability:
In stock
Out of stock
Variations
Product Description
Features
8MP 4K UHD USB3.0 camera with Sony 1/3.2" IMX179 Sensor
Auto Focus (AF), use 8MP CMOS sensor IMX179
USB2.0 interface. Usually using MJPEG, transmission speed to achieve the most ideal state
Speedy autofocus, with rapid stability
the focal length (F) adjustable, the focus can be selected from the 0-1023 value. With a special near distance at the same time, to ensure the operation of distance vision
| Product number | |||
| Sensor | Micron MI5100 | ||
| MAX effective pixels | 2592 * 1944 | ||
| Sensor Size | 1/2.5 inch | ||
| Pixel Size | 2.2μm x 2.2μm | ||
| Image area | 5.70mm(H) x 4.28mm(V) 7.13mm(D) | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| YUY2/MJGP | 5MP | 25fps | |
| input clock frequency | / | ||
| focusing | Fixed | ||
| max S/N ratio | 38dB | ||
| dynamic range | 70dB | ||
| dark current | 1.4V/lux-sec (550nm) | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
