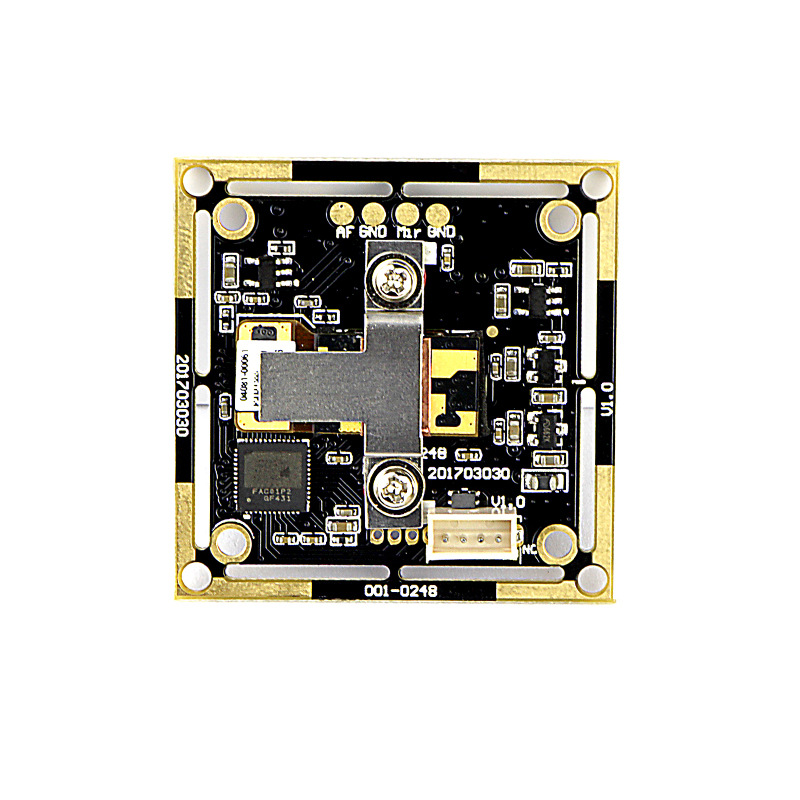

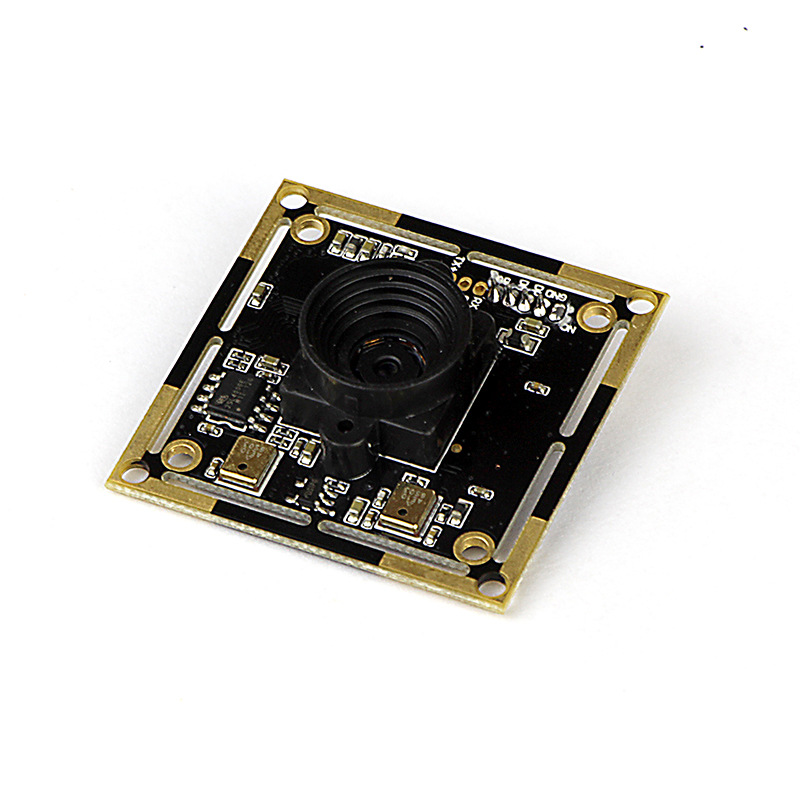

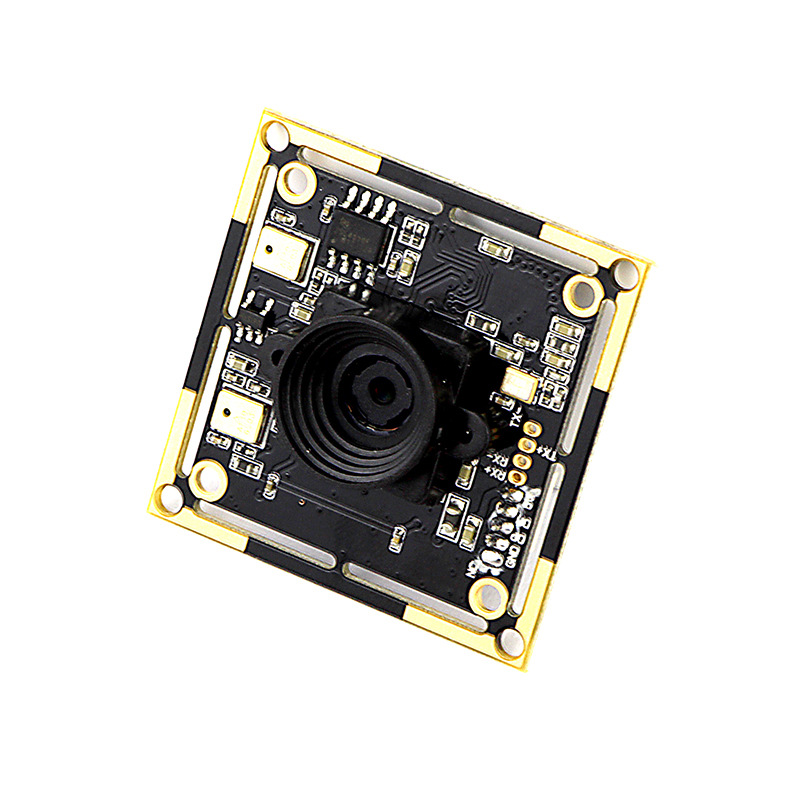

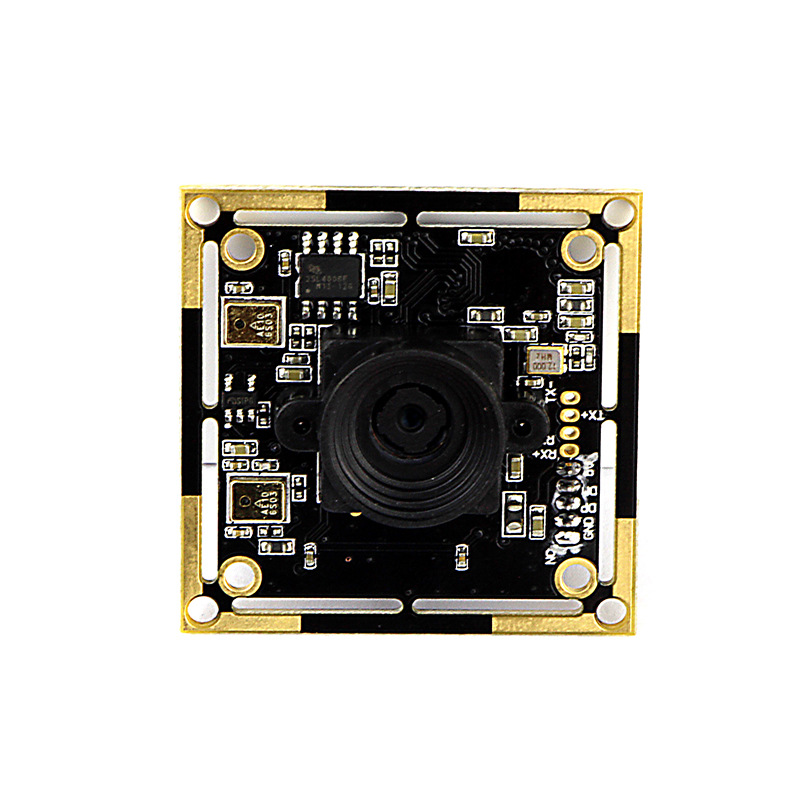

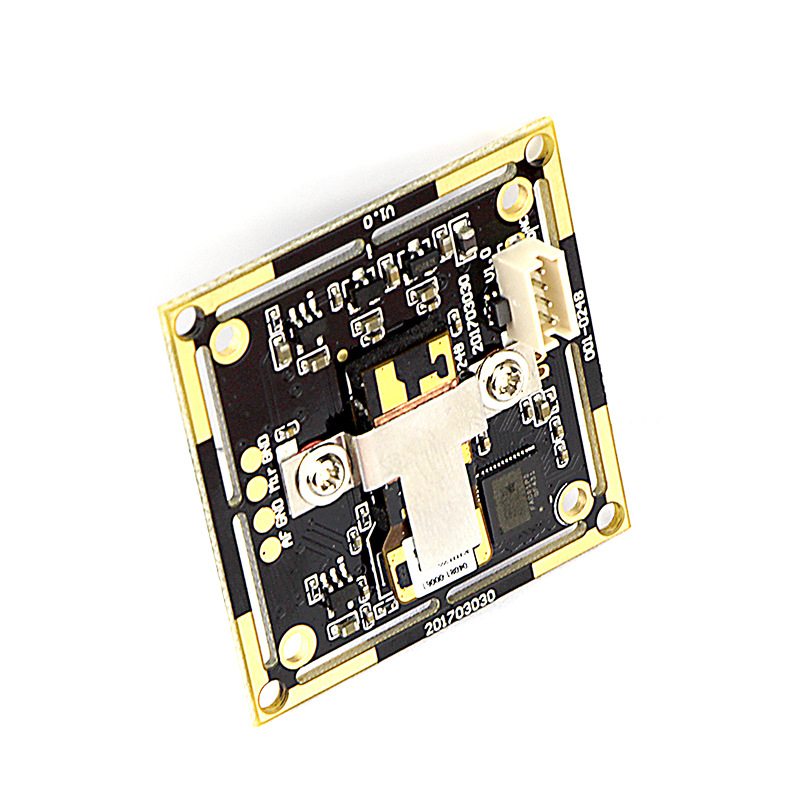

1/3.2" Sony IMX179 8MP USB2.0 Camera board YUY2 MJPEG Auto Focus
$58.80
Availability:
In stock
Out of stock
Variations
Product Description
Features
8MP 4K UHD USB3.0 camera with Sony 1/3.2" IMX179 Sensor
Auto Focus (AF), use 8MP CMOS sensor IMX179
-
USB2.0 interface. Usually using MJPEG, transmission speed to achieve the most ideal state
-
Speedy autofocus, with rapid stability
-
the focal length (F) adjustable, the focus can be selected from the 0-1023 value. With a special near distance at the same time, to ensure the operation of distance vision
| Product number | |||
| Sensor | IMX179 | ||
| MAX effective pixels | 3280 * 2464 | ||
| Sensor Size | 1/3.2 inch | ||
| Pixel Size | 1.4μm x 1.4μm | ||
| Image area | / | ||
| Output parameters | video format | Rosolution | Max Frame rate |
| YUY2,MJGP | < 8mp | 25fps | |
| input clock frequency | / | ||
| focusing | auto focus | ||
| max S/N ratio | 36dB | ||
| dynamic range | 60dB | ||
| dark current | / | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | / | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
