Mini EX-SDI/HD-SDI AHD TVI CVI CVBS 6 in 1 Pinhole Starlight CCTV Security Camera
$72.00
Availability:
In stock
Out of stock
Variations
Product Description

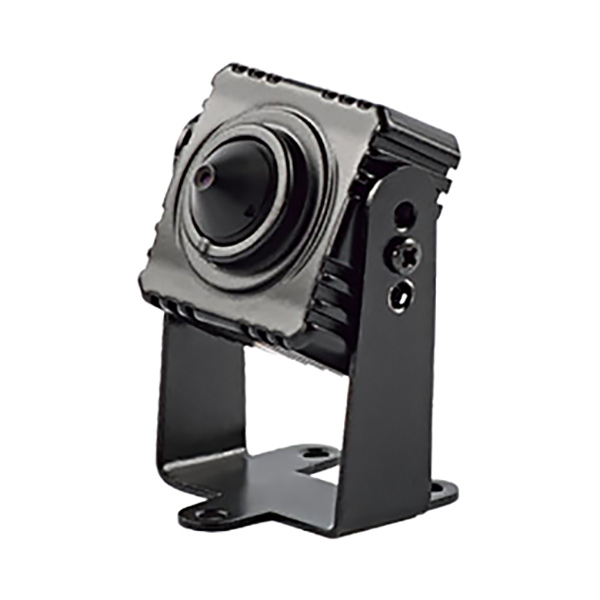

Mini EX-SDI/HD-SDI AHD TVI CVI CVBS 6 in 1 Pinhole Starlight CCTV Security Camera
Sensor: 1/3" Panasonic COMS (MN34229)
TVL: Digital:1080P (30fps) 720P (30fps)
Output: EX-SDI/HD-SDI or AHD/TVI/CVI/CVBS ( 6 in 1)
6 IN 1 Star Light Mini Cameras
Focal Length: 3.7mm
24h color image
1944(H)X1092(V) Approx.2.12M pixels
Min.Illumination: Color DSS:0.017LUX, BW DSS:0.0008LUX
WDR , 30fps , 3D-DNR, DEFOG ,Motion Detection, Privacy Zone, HLC, BLC, AGC
| Image Sensor | 1/3” Panasonic CMOS(MN34229) |
| Effective Pixels（MP） | 1944(H)X1092(VApprox.2.12M pixels |
| Resolution（TVL） | Digital:1080P(30fps),720P(30fps) |
| Minimum illumination（LUX） | Color DSS:0.017LUX, BW DSS:0.0008LUX |
| Electronic Shutter | AUTO/MANUAL(1/50/60-1/60,000set) |
| S/N Ratio（dB） | ＞48dB |
| White Balance（WB） | Auto/Auto ext/Preset/Manual |
| Wide Dynamic Range | Off/Low/Middle/High WDR SNR 120DB |
| Back Light Compensation（BLC） | Off/BLC |
| High Light Mask（HLI） | Off/HLC |
| Defog | Off/On, Low/Middle/High |
| 3D DNR | Off/Low/Middle/High |
| Mirror | Turn Left/Right/Down/Up |
| Sens-up | Off/X2/X4/X8/X16/X32 |
| Automatic Gain Control(AGC) | 0-10 steps |
| Language | Chinese/English |
| Video Output | AHD/TVI/CVI/CVBS-1Vp-p/EX-SDI |
| Lens | 3.7MM Pinhole lens |
| Power（V） | DC12V |
| Operation temperature（℃） | -10℃-+60℃ |
| Power Consumption（W） | 1.2W |
| Dimensions（mm） | L=40.4mm*W=35.6mm*H=22.8mm |
| Weight-Net（g） | 50g |
