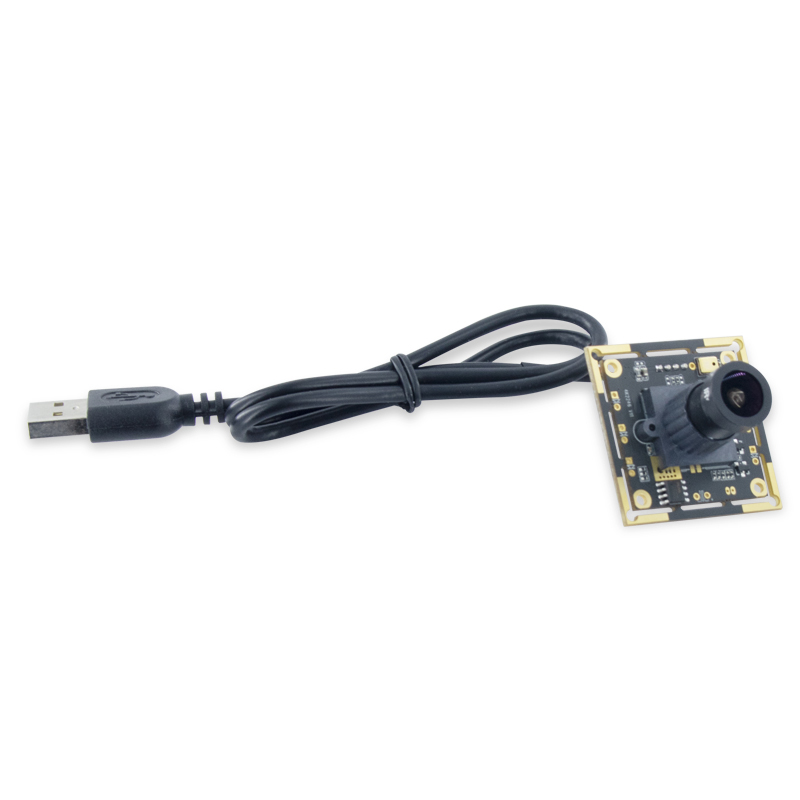

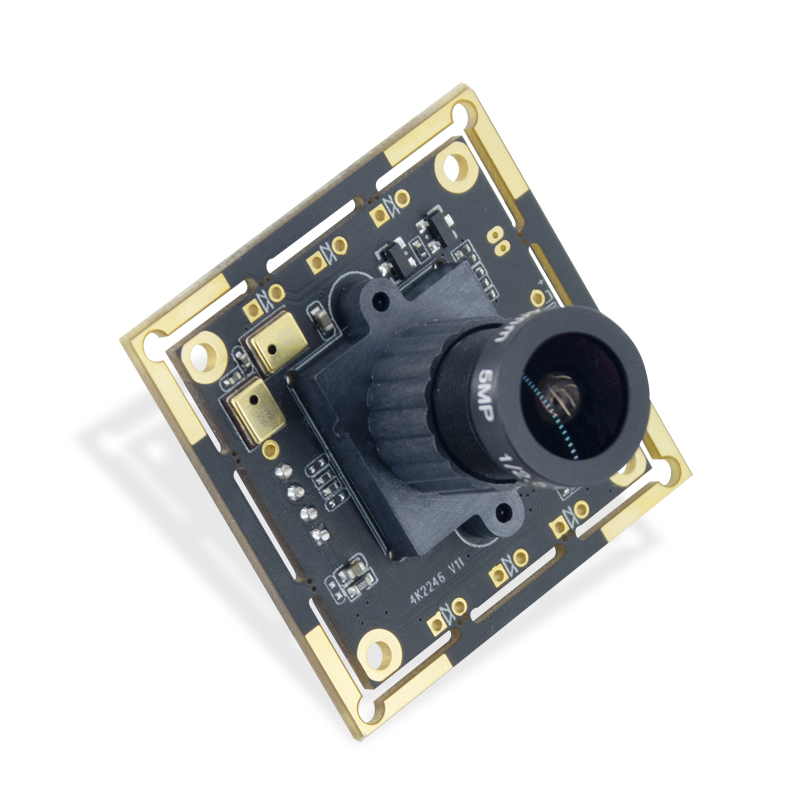

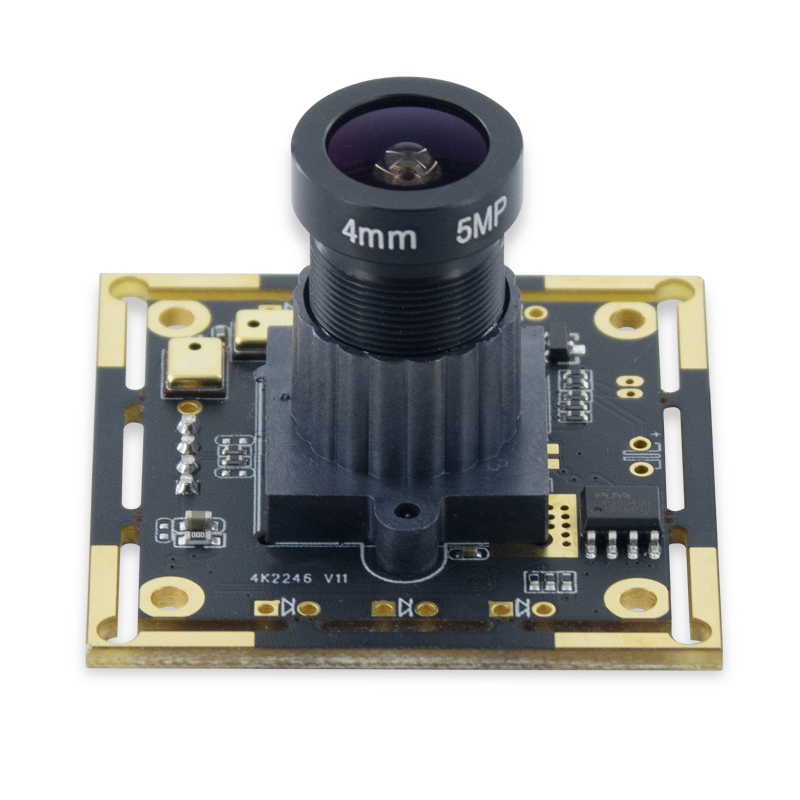

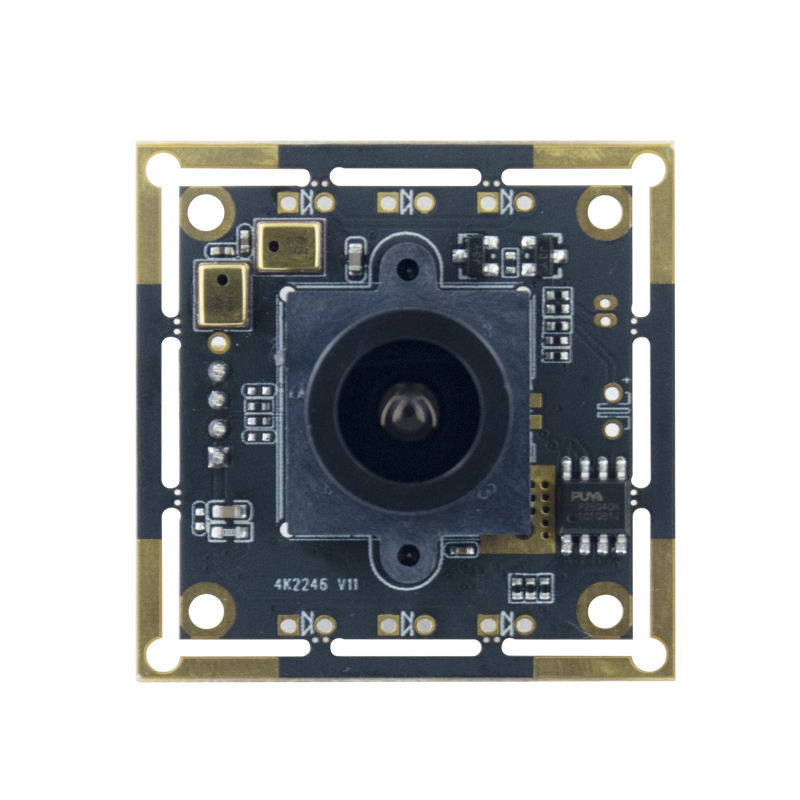

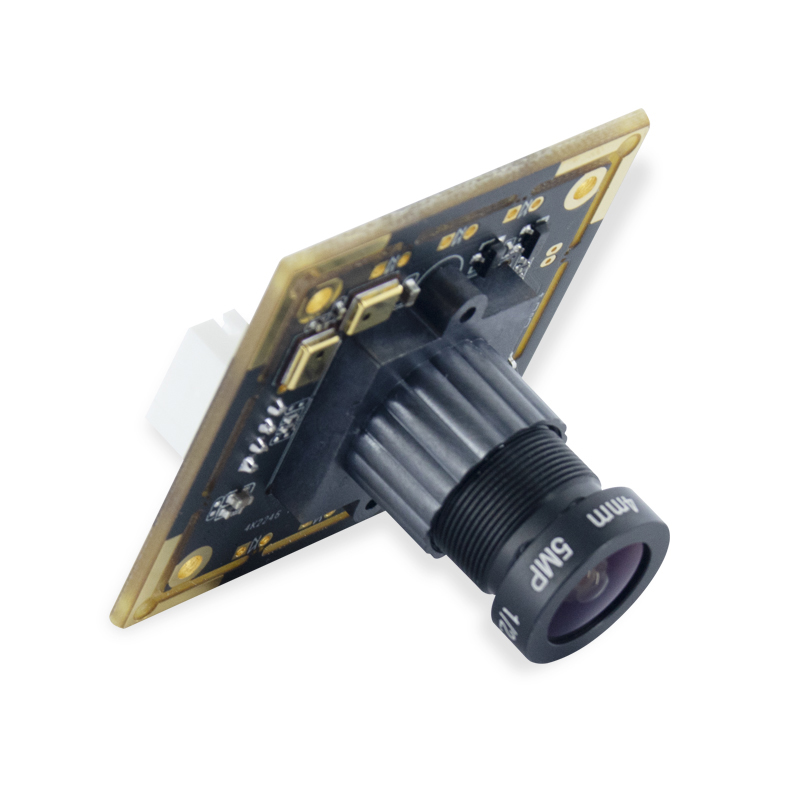

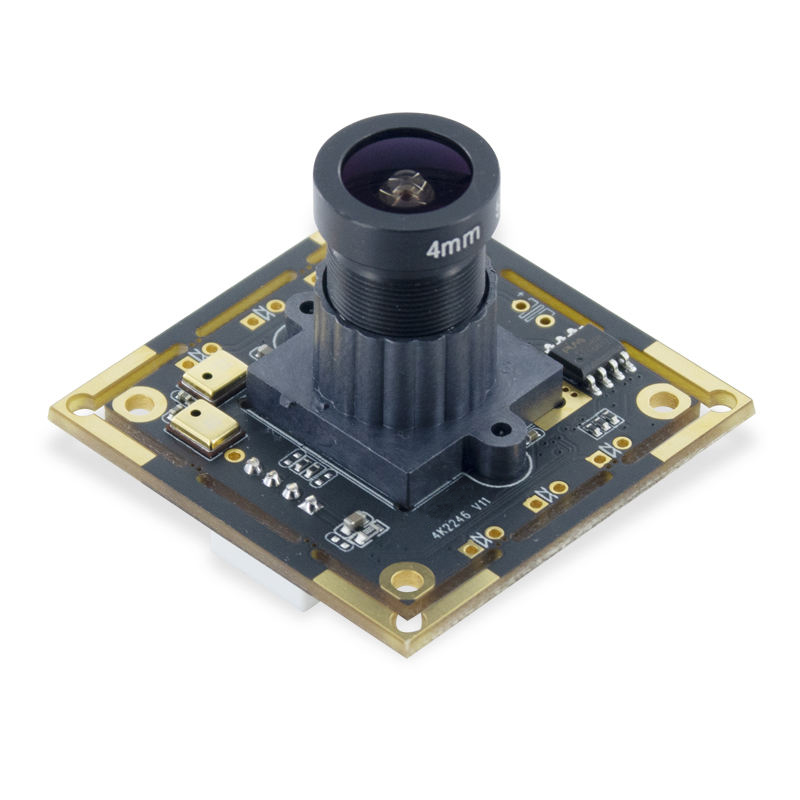

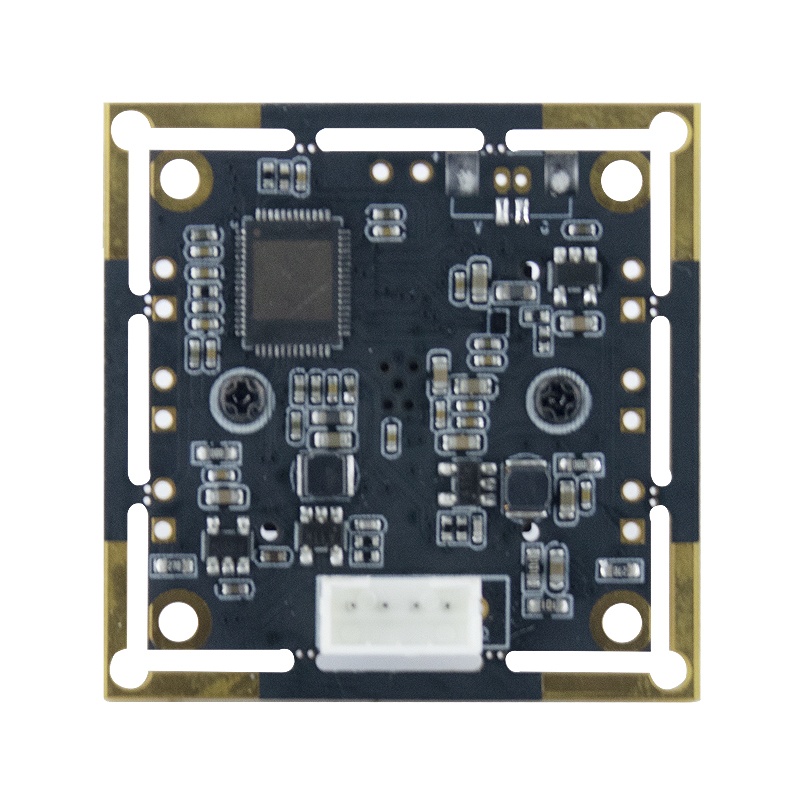

Professional Customized 8MP 4K IMX415 Camera Module Support Face Recognition
$37.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
Product Name | 8MP 4K IMX415 Camera Module |
Module No | HBVCAM-4K2246 V11-95 |
Module Size | 38mm × 38mm × 24.20mm±0.5MM |
specificities | 1. Standard industrial camera 38, 32mm plate structure 2. The main promotion has requirements for high pixel effect, large screen 4k screen, and live streaming camera 3. Integrated dual digital microphone 4. The new generation 4K camera module has better relative performance, price, and performance |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1330 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | IMX415 (1/2.8” ) |
Seneor Package | PLCC,Bare Die |
Maximum resolution | 3840*2160 |
Sensitivity | 2000mV /（lux-sec） |
Pixel Size | 1.0µm x 1.0µm |
Maximum Image Transfer Rate | MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 3FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2880x2160 30FPS / YUY2 2880x2160 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
S/N Ratio | 46db |
Max Dynamic Range | 72db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 6G |
F/No | 2.0 |
EFL | 4.0 mm |
FOV | 95° |
TV Distortion | <-13.5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROHS |
Packing&Shipping
We focus on environmental protection and balance the choice of product packaging between product safety and environmental impact.Of course, we can also accept your customized packaging requirements.For transportation.Air, express, land and sea transportation, we support.First of all, we will measure and recommend to you according to the quantity of the product, your acceptable arrival time, and the logistics price. Your own freight forwarder is also acceptable.
Company Profile
00:0002:00
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(41.00%),North America(15.00%),Eastern
Europe(13.00%),Eastern Asia(10.00%),Western Europe(5.00%),Oceania(5.00%),Southeast Asia(3.00%),Southern Europe(2.00%),South
America(2.00%),South Asia(2.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
USB Camera Module,Raspberry pi Camera Module,Endoscope Camera Module,Dual Camera Module,Webcam Camera Module.
4. why should you buy from us not from other suppliers?
Huiber Vision Technology Co., Limited is an outstanding CMOS camera module designer and manufacturer. We have first-class
technology development capability, advanced testing equipment, complete production lines and manufacturing process management.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese.
We are based in Guangdong, China, start from 2013,sell to Domestic Market(41.00%),North America(15.00%),Eastern
Europe(13.00%),Eastern Asia(10.00%),Western Europe(5.00%),Oceania(5.00%),Southeast Asia(3.00%),Southern Europe(2.00%),South
America(2.00%),South Asia(2.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
USB Camera Module,Raspberry pi Camera Module,Endoscope Camera Module,Dual Camera Module,Webcam Camera Module.
4. why should you buy from us not from other suppliers?
Huiber Vision Technology Co., Limited is an outstanding CMOS camera module designer and manufacturer. We have first-class
technology development capability, advanced testing equipment, complete production lines and manufacturing process management.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese.
