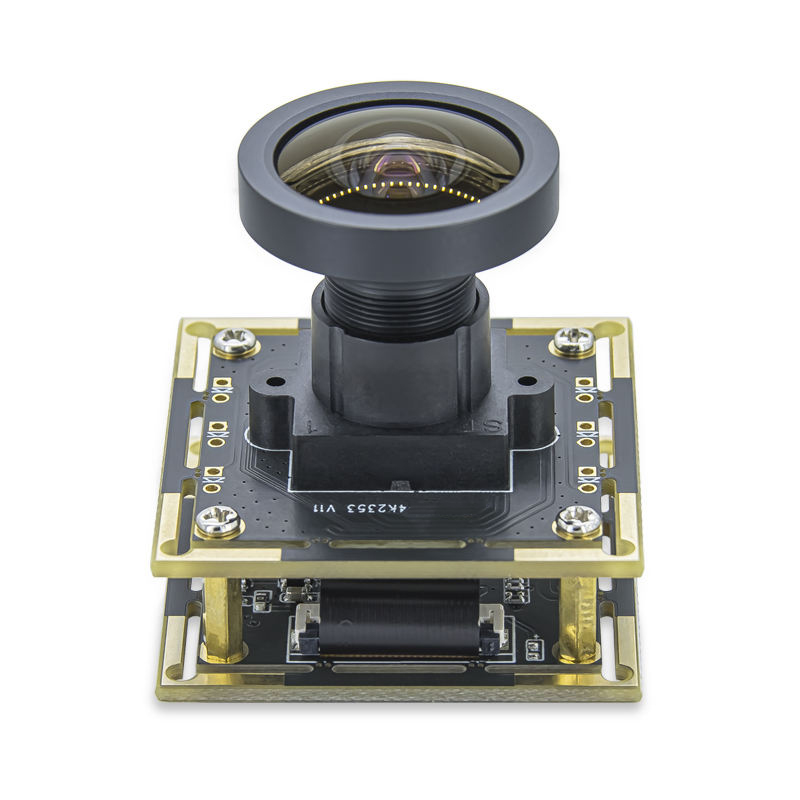

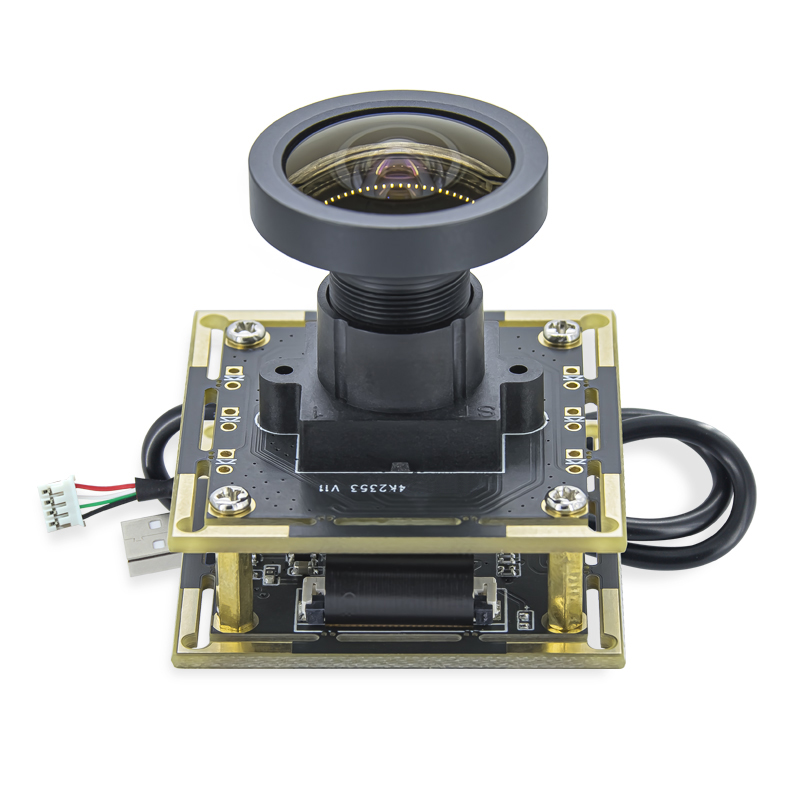

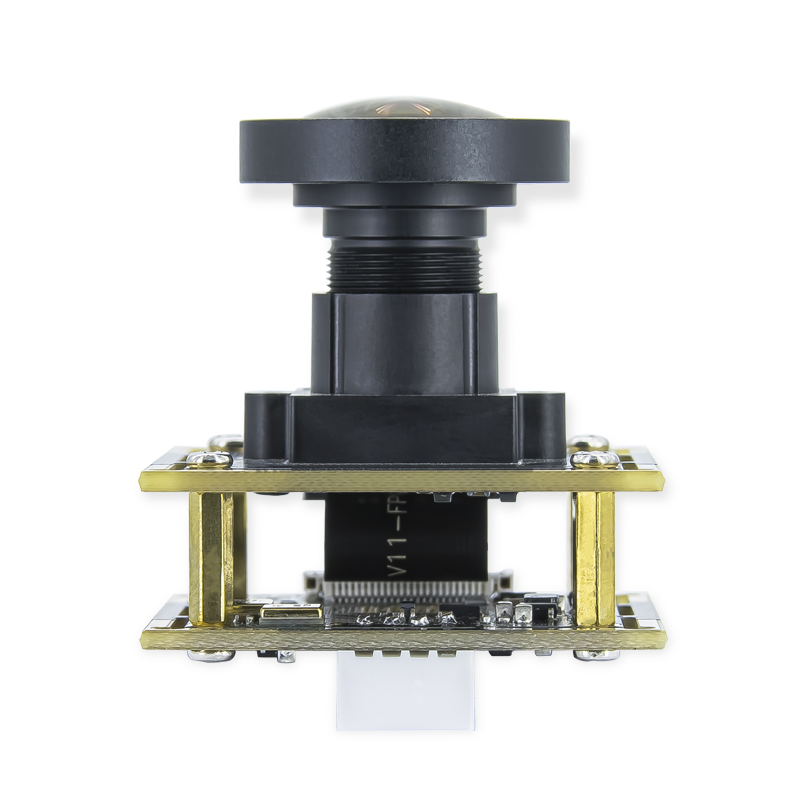

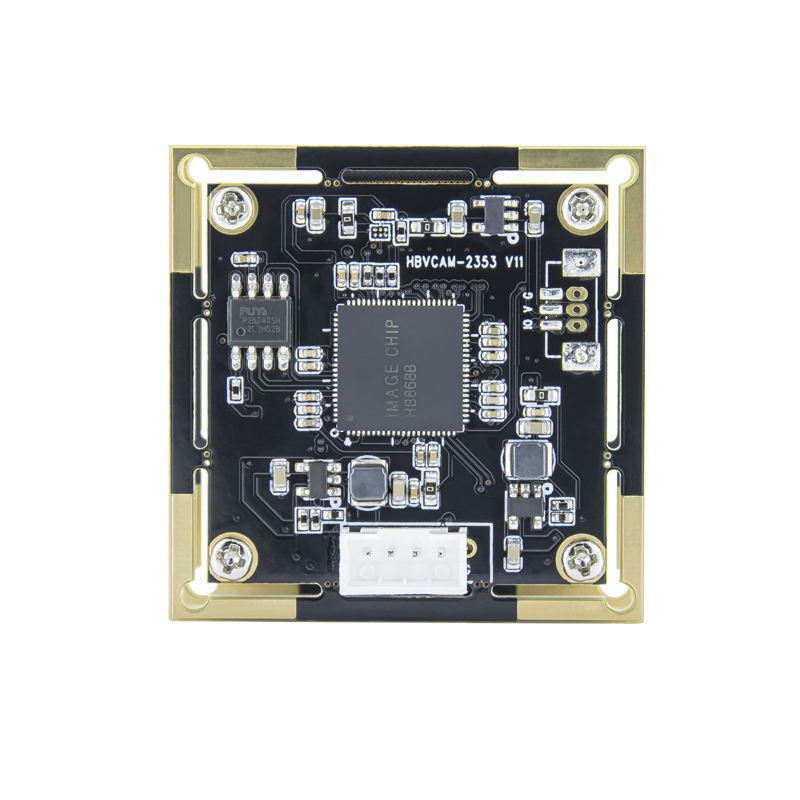

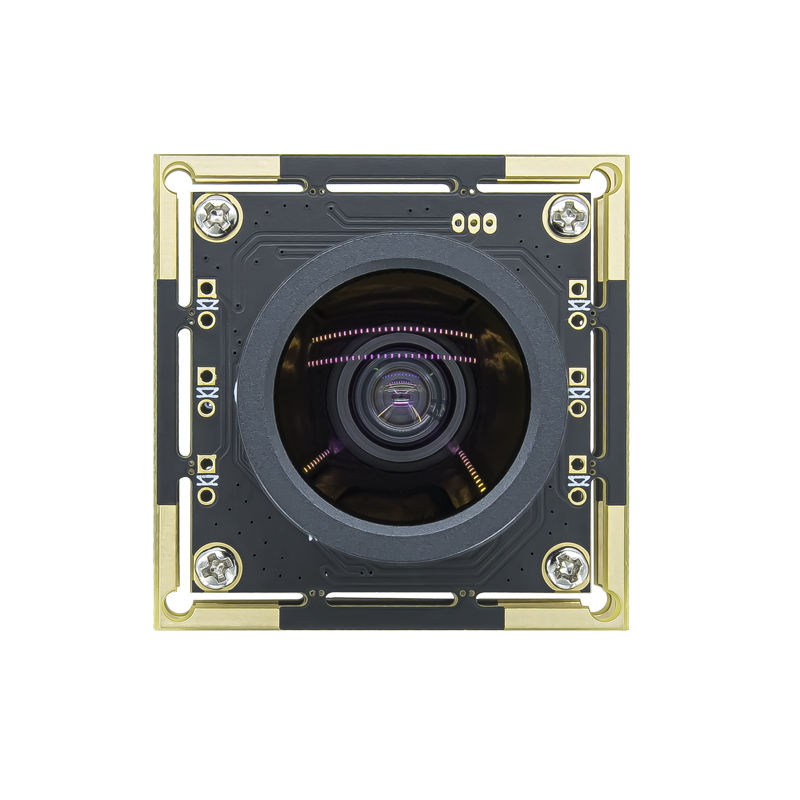

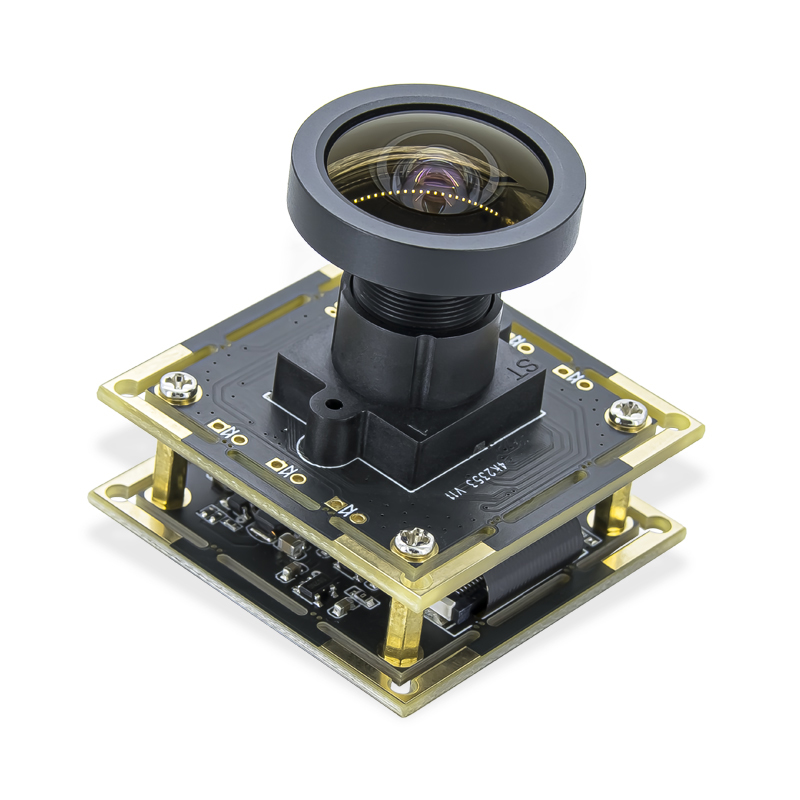

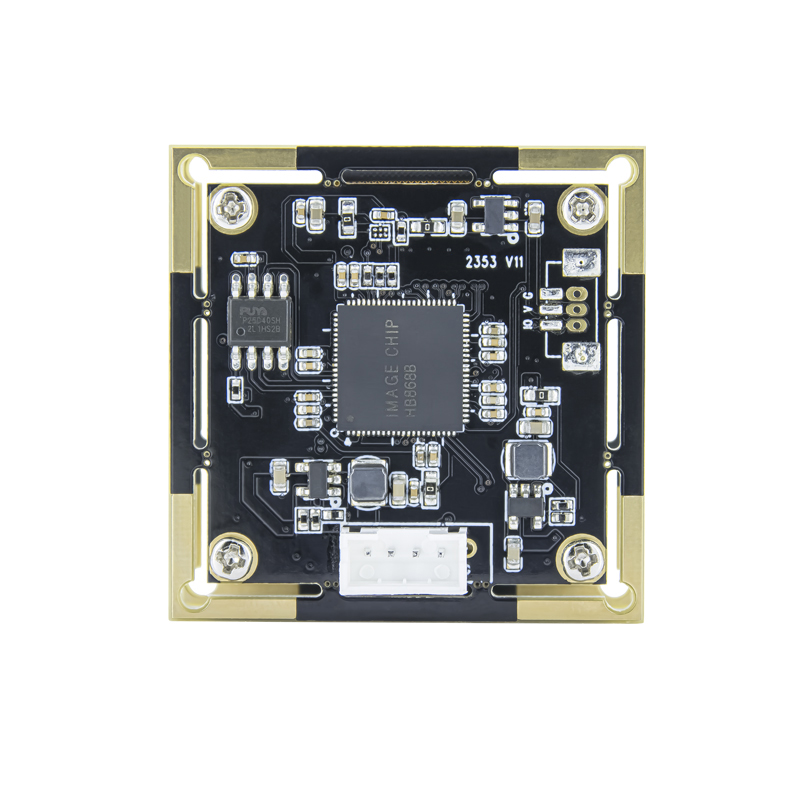

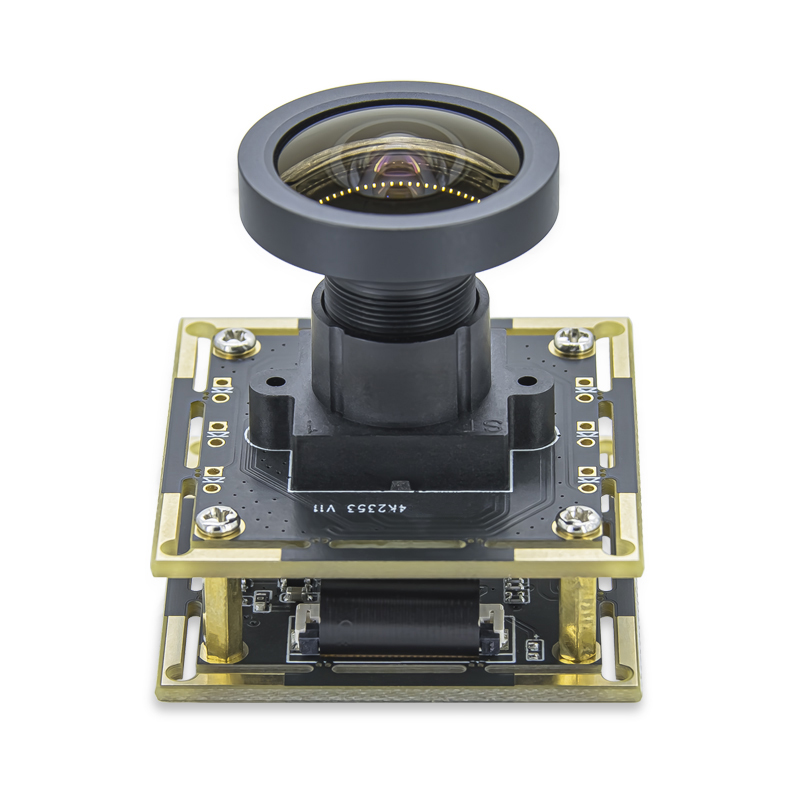

IMX678 Camera Module 8.29MP 4K large screen industrial equipment, all-in-one smart terminal camera module
$43.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 8mp High Resolution Smart Terminal camera module |
| Module No | BM4K2353 V11-95 |
| Module Size | 38mm × 38mm × 42.40mm±0.5MM |
| Product Features | 1. Standard industrial camera 38, 32mm board structure 2. IMX678-1/1.8 large pixel mainly promotes high-end, high pixel effect with requirements, large screen 4k screen, live streaming camera 3. Built in dual digital microphone 4. Can be used for night vision - expandable light board |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 950 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX678 (1/1.8" ) |
| Seneor Package | COB,Bare Die |
| Maximum resolution | 3840*3040 |
| Sensitivity | 50mV /（lux-sec） |
| Pixel Size | 1.55µm x 1.55µm |
| Maximum Image Transfer Rate | MJPEG 1280x720 60FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 1FPS MJPEG 2408x1536 30FPS / YUY2 2408x1536 1FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
| S/N Ratio | 40db |
| Max Dynamic Range | 83db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 5G2P |
| F/No | 2.8 |
| EFL | 4.0 mm |
| FOV | 95° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
