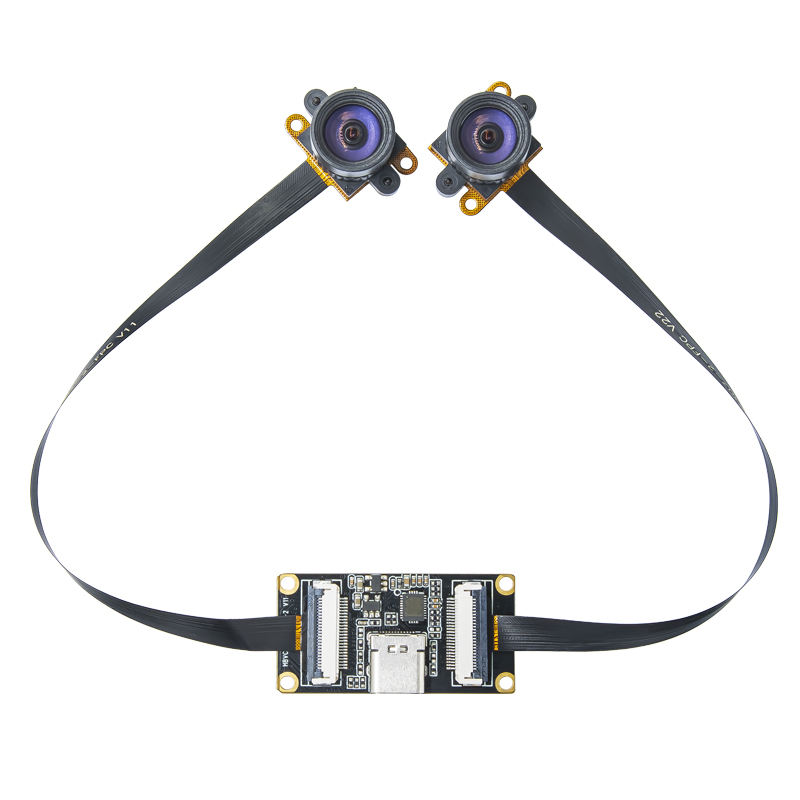

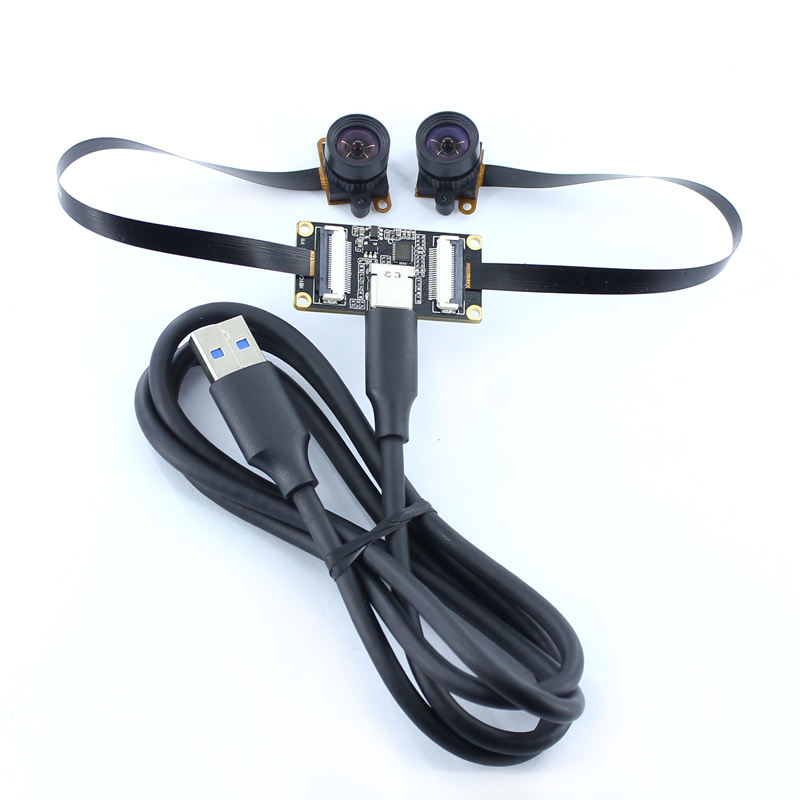

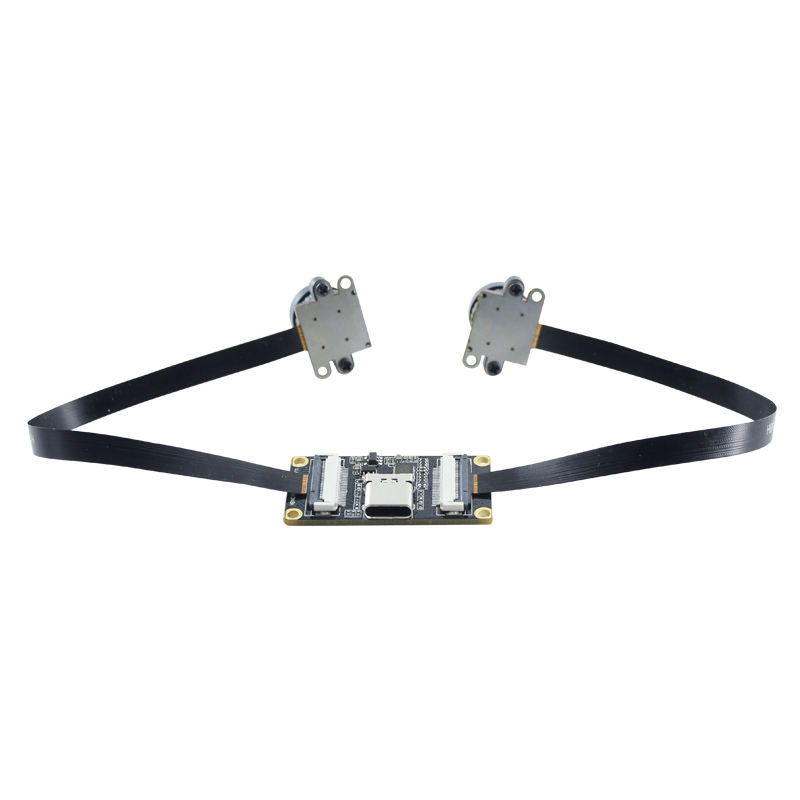

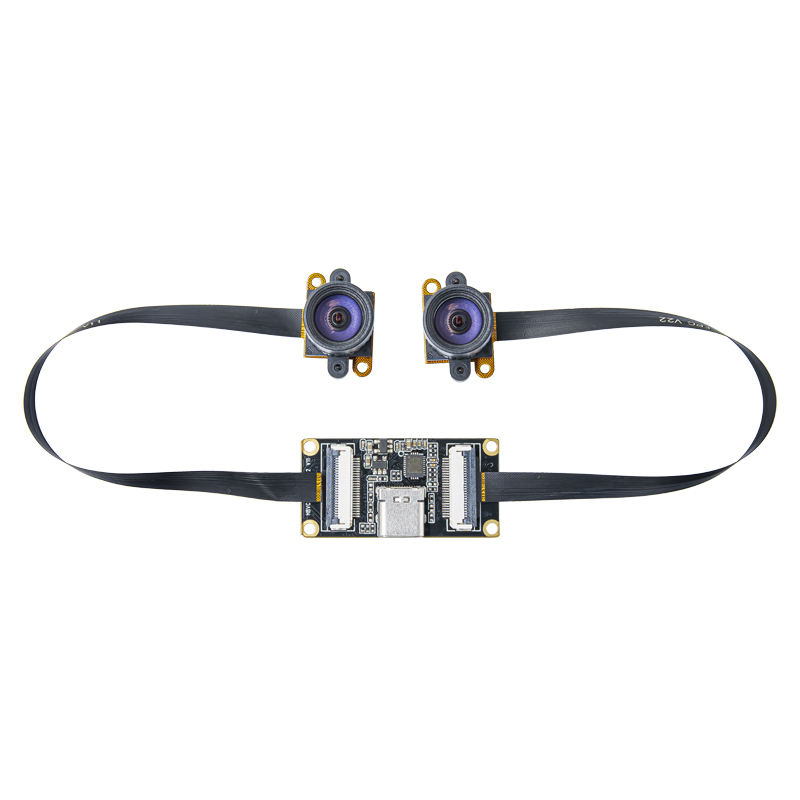

Global Exposure High Speed Dual 1MP 720P Camera Module Ranging, 3D Reconstruction Vision Applications
$43.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 1mp Global exposure dual camera module |
| Module No | BMW2307-2 V11-100 |
| Module Size | 295.60mm × 20mm × 14.80mm±0.5MM |

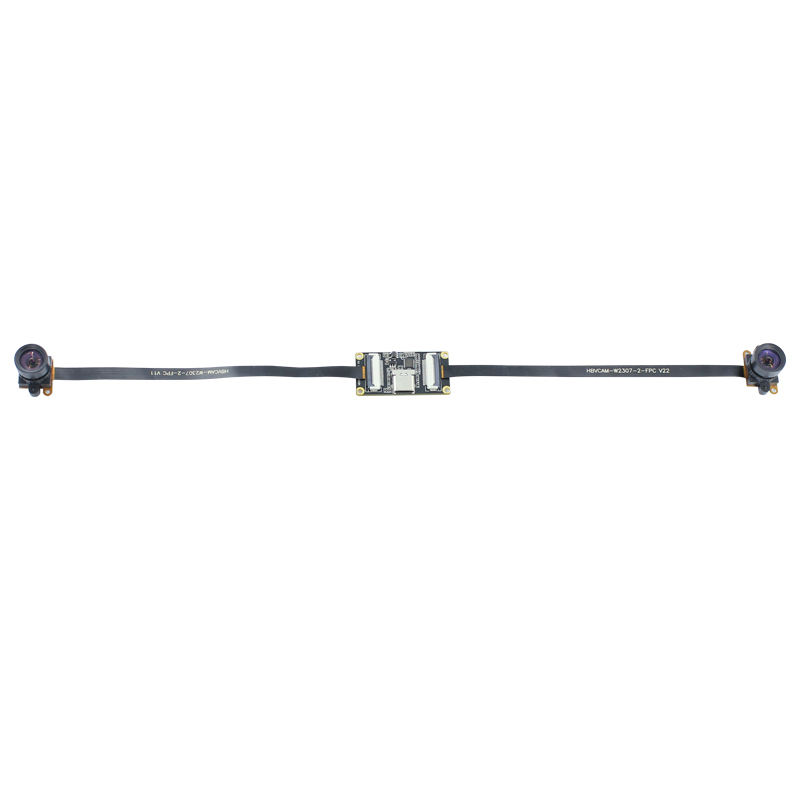

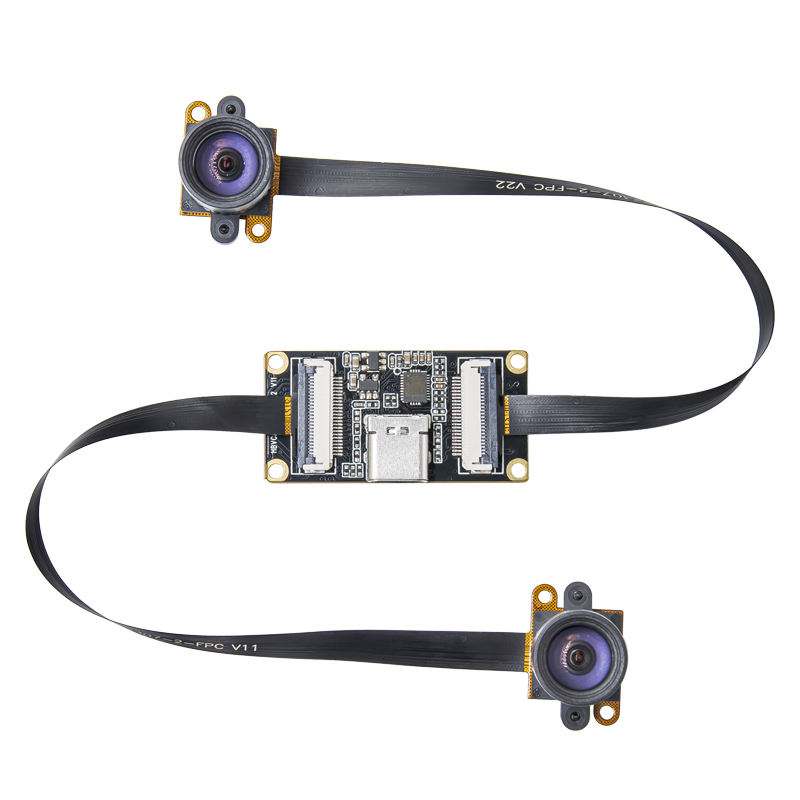

| Product Features | 1. The structural performance of this product is completely consistent with that of the W2237-2 V11 product. The lens of this product is part of the body design, and the configuration of the lens varies from different angles 2. The FPC of the head can be bent arbitrarily, and the distance between the two lenses can be freely adjusted 3. Dual camera spacing baseline: variable baseline |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 3.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9281 (1/4" ) |
| Seneor Package | COB,Bare Die |
| Maximum resolution | 2560*720 |
| Sensitivity | 1300mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 1280x400 120FPS / YUY2 1280x400 120FPS MJPEG 1280x480 100FPS / YUY2 1280x480 100FPS MJPEG 1600x600 100FPS / YUY2 1600x600 100FPS MJPEG 2560x720 60FPS / YUY2 2560x720 60FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 68 db |
| Shutter type | Global shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.2 |
| EFL | 2.1 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
