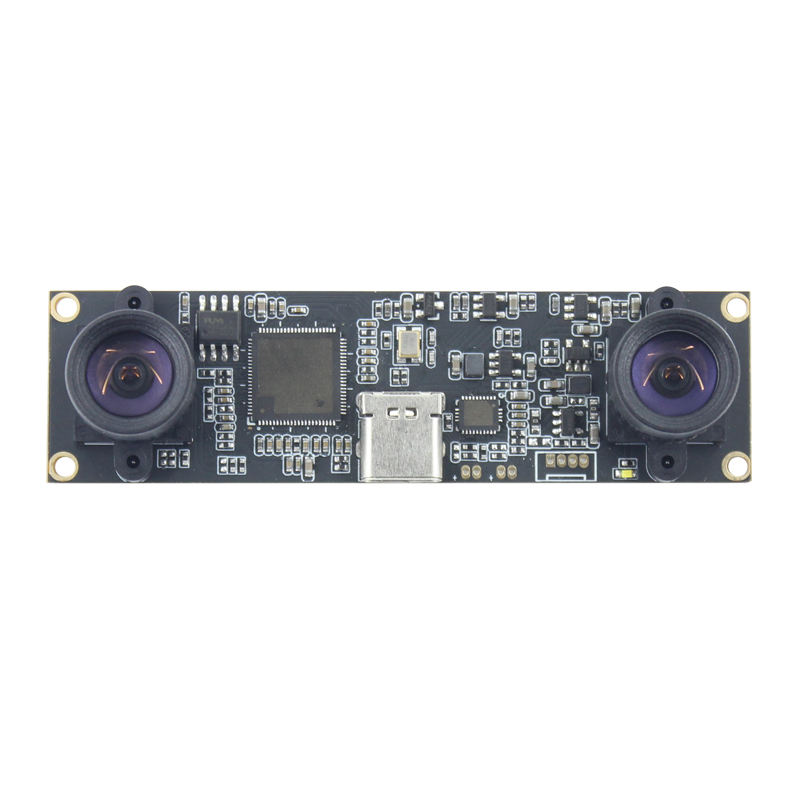

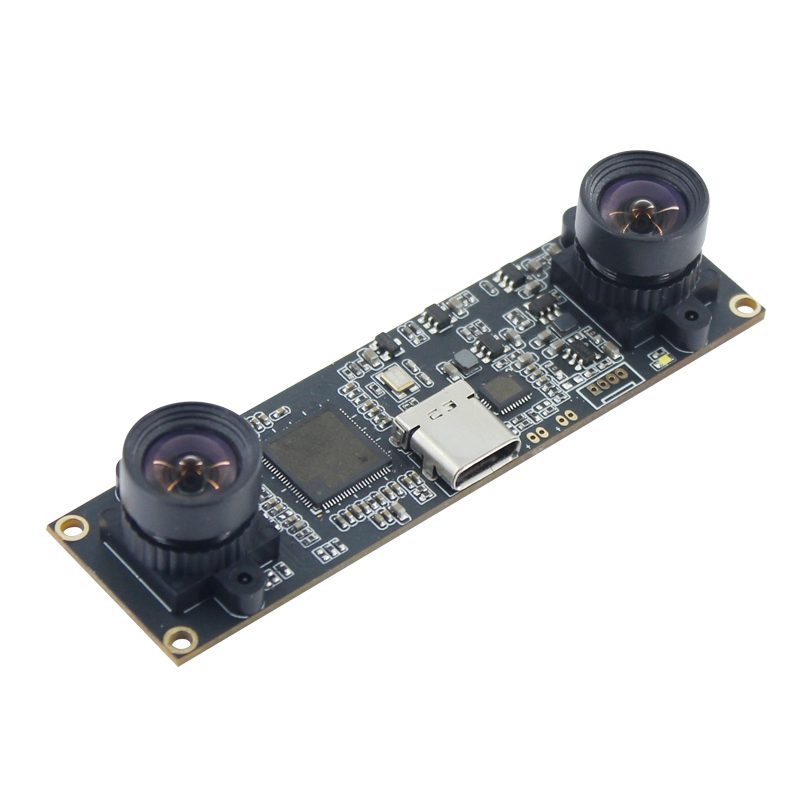

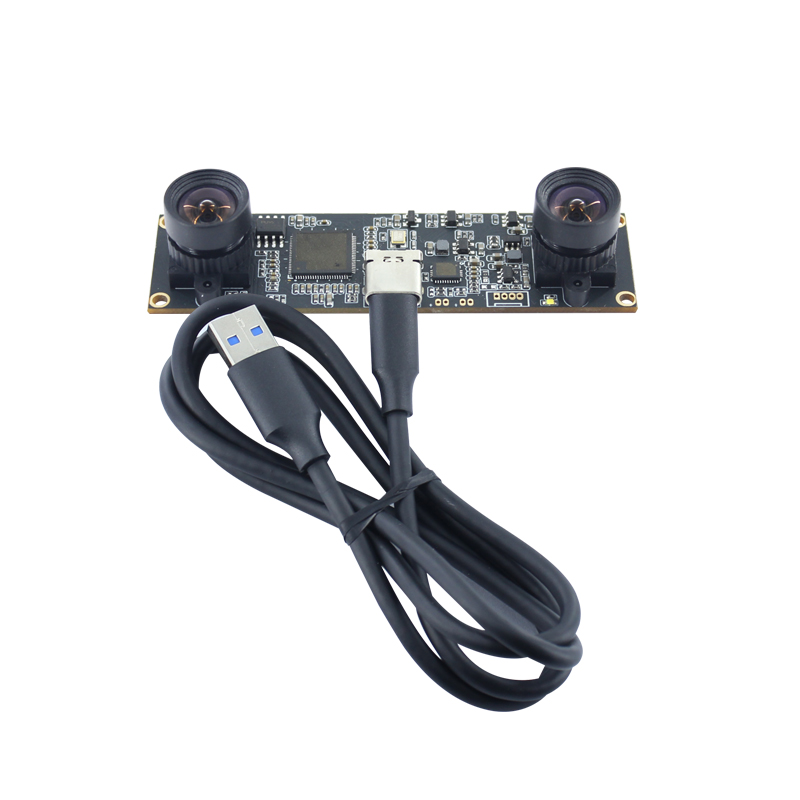

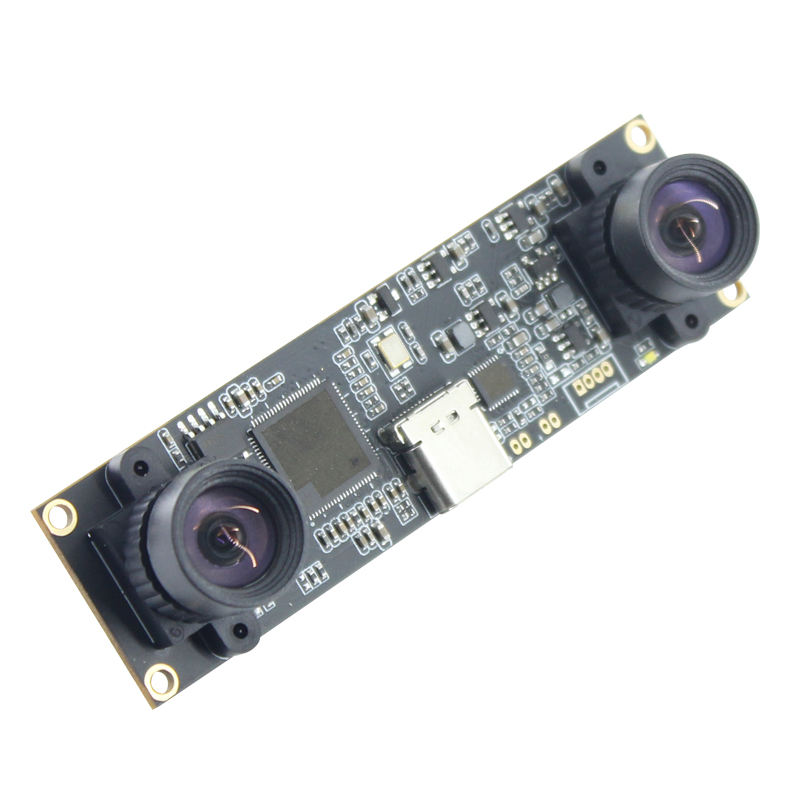

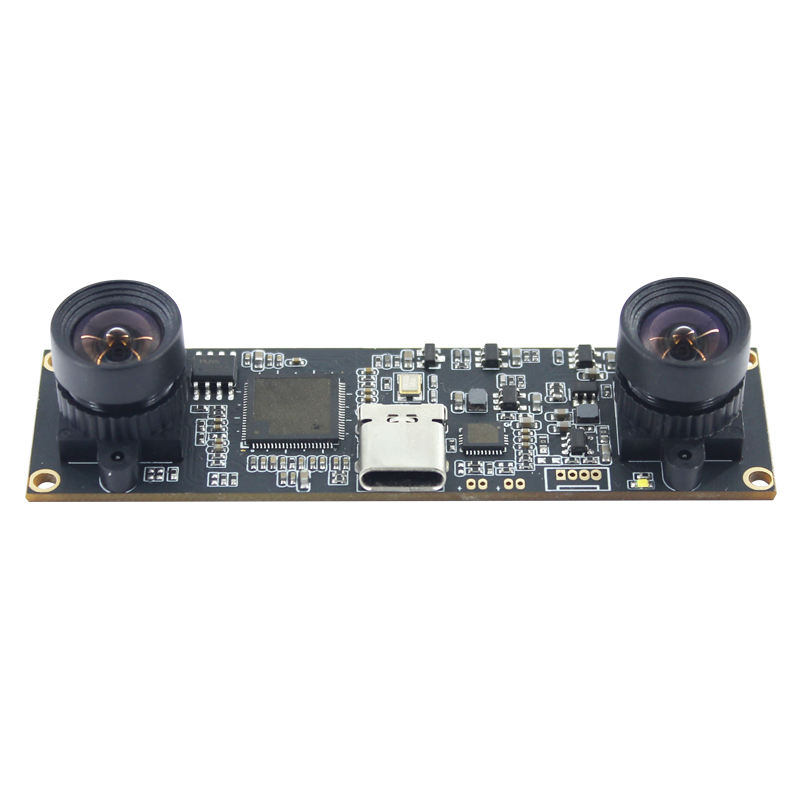

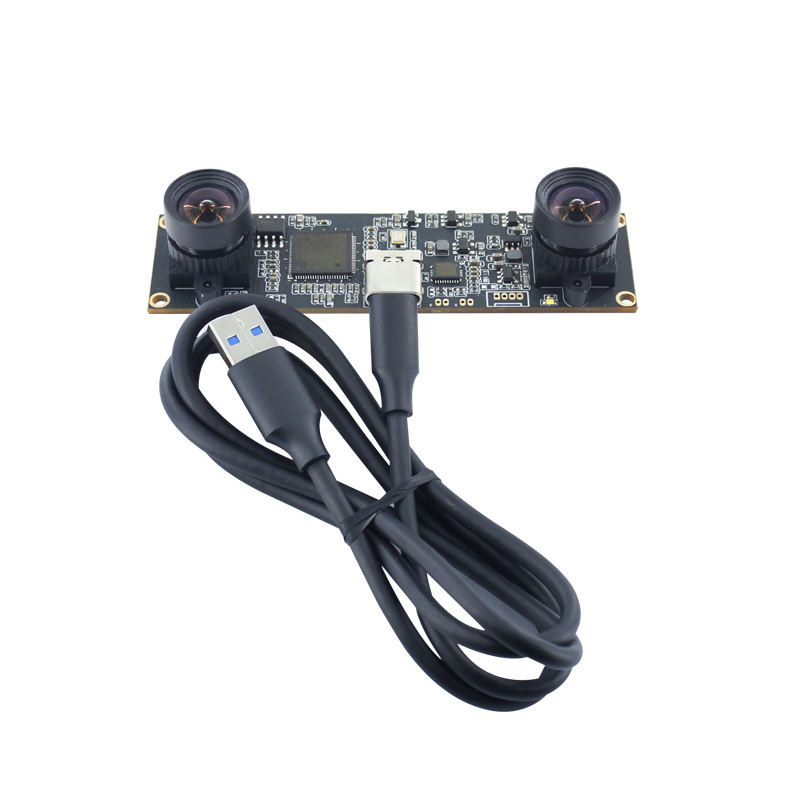

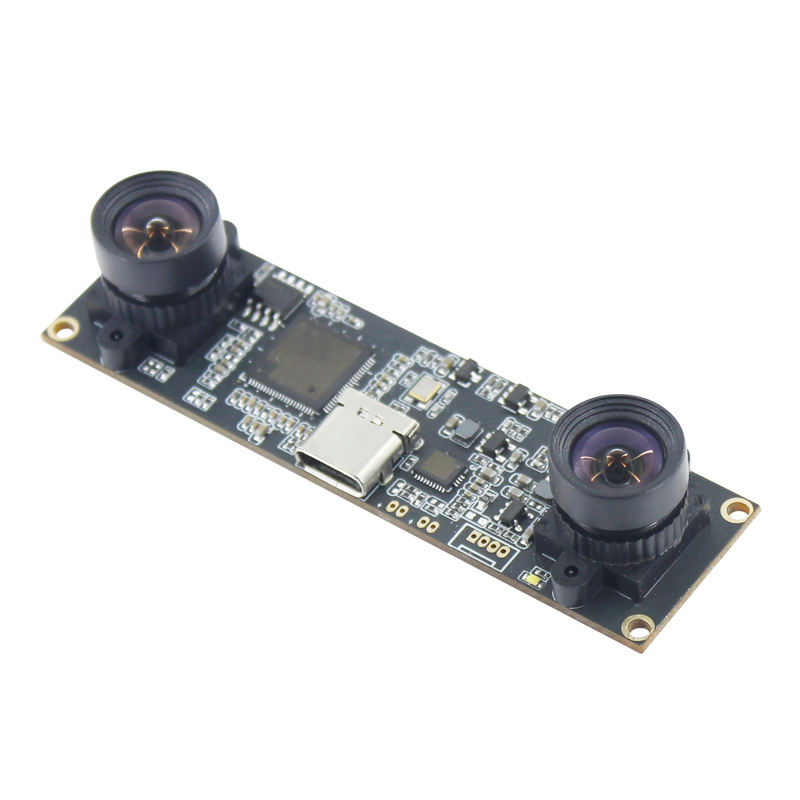

Dual Lens OV9732 1MP 720P Camera Module for VR, Ranging, 3D Reconstruction Vision Applications
$43.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 1mp usb3.0 dual camera module |

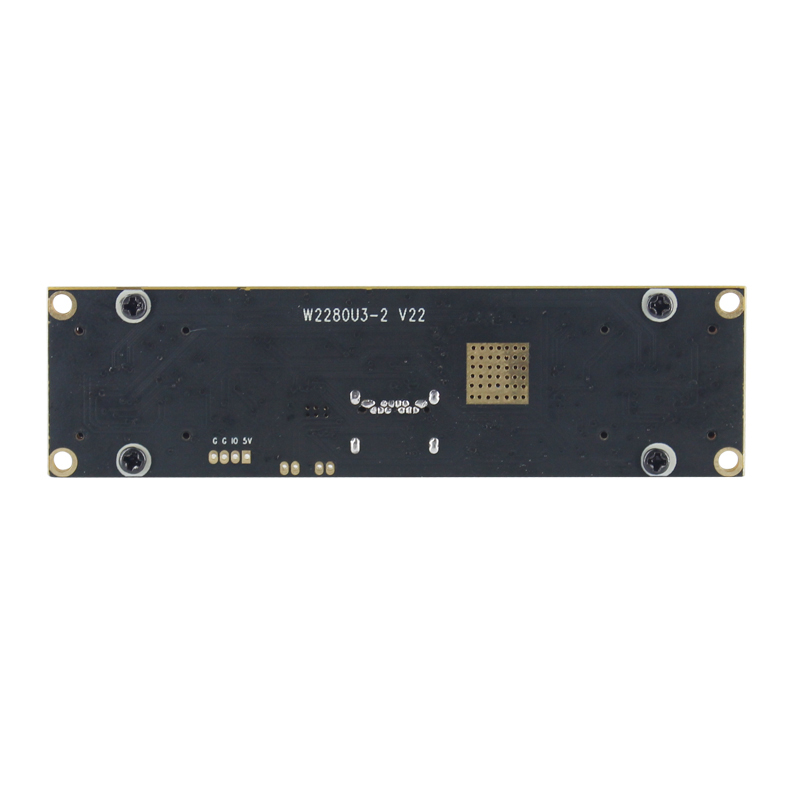

| Module No | BMW2280U3-2 V22-100 |
| Module Size | 80mm × 22mm × 16.20mm±0.5MM |
| Product Features | 1. Dual lens 1780 upgraded version, upgraded to USB3.0-YUY2 with the same frame rate as MJPEG, optimized color consistency between left and right cameras, and adjustable attribute parameters for dual cameras simultaneously 2. Real high frame rate: 1280x480 45fps 1280x360 55fps 3. Do not use other cables or mobile phone charging data cables at will - otherwise USB2.0-YUY2 will not have high frames, type C can be inserted in both directions |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 3.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 710 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9732 (1/4" ) |
| Seneor Package | COB,Bare Die |
| Maximum resolution | 2560*720 |
| Sensitivity | 2066mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 640x240 30FPS / MJPEG 1280x360 60FPS / MJPEG 1600x600 30FPS / MJPEG 2560x720 30FPS / YUY2 640x240 30FPS/ YUY2 1280x360 60FPS/ YUY2 1600x600 30FPS/ YUY2 2560x720 30FPS |
| S/N Ratio | 39 db |
| Max Dynamic Range | 72 db |
| Shutter type | Global shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 2.1 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
