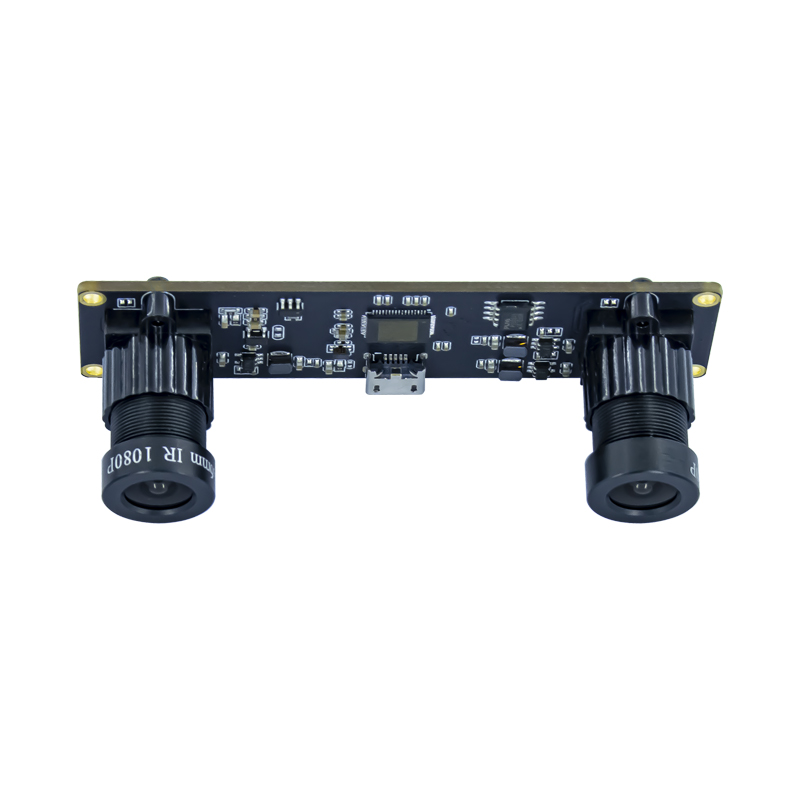

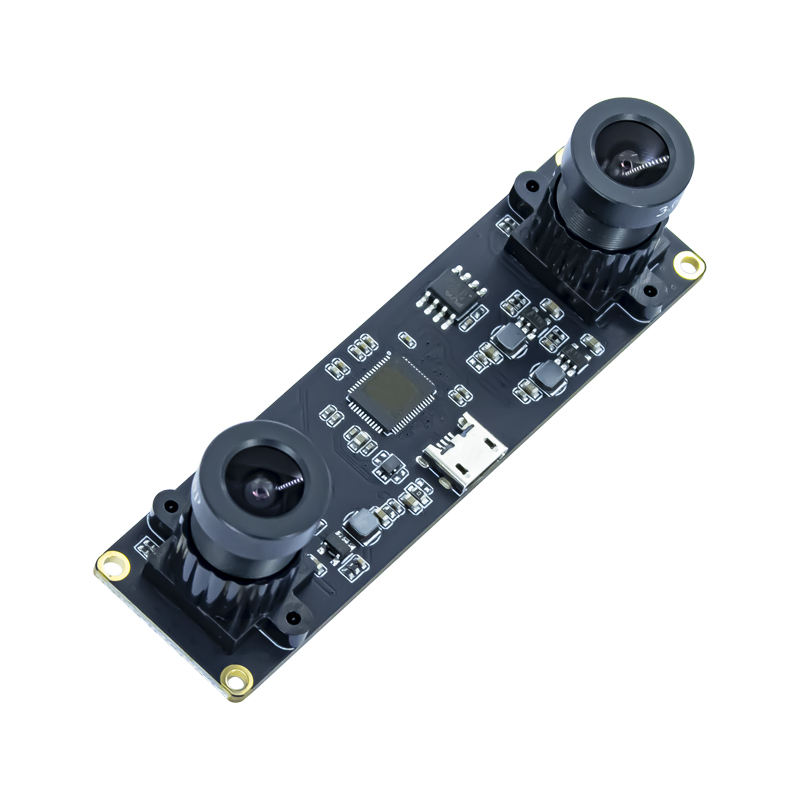

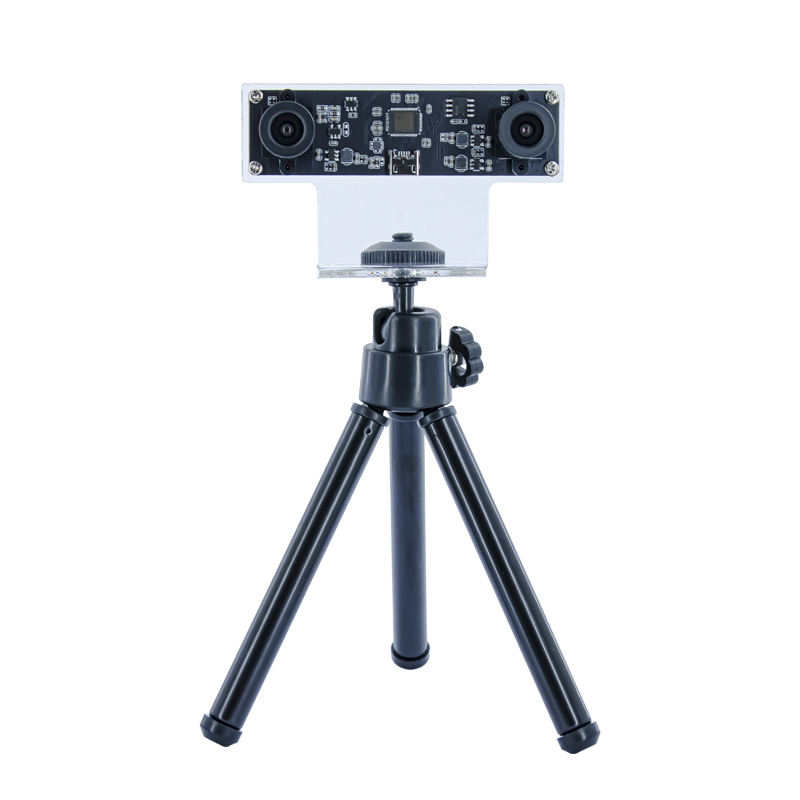

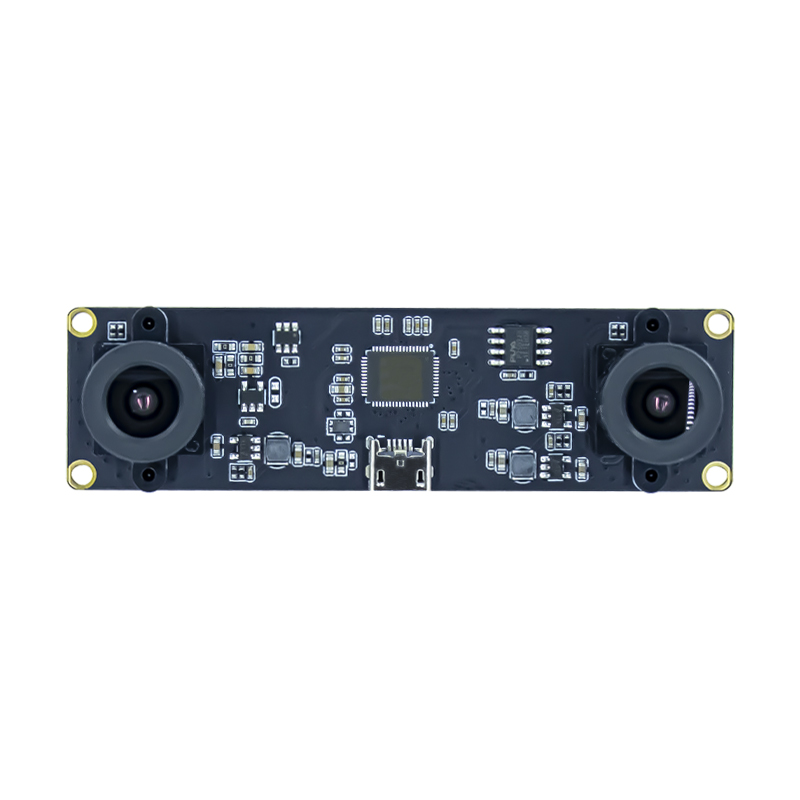

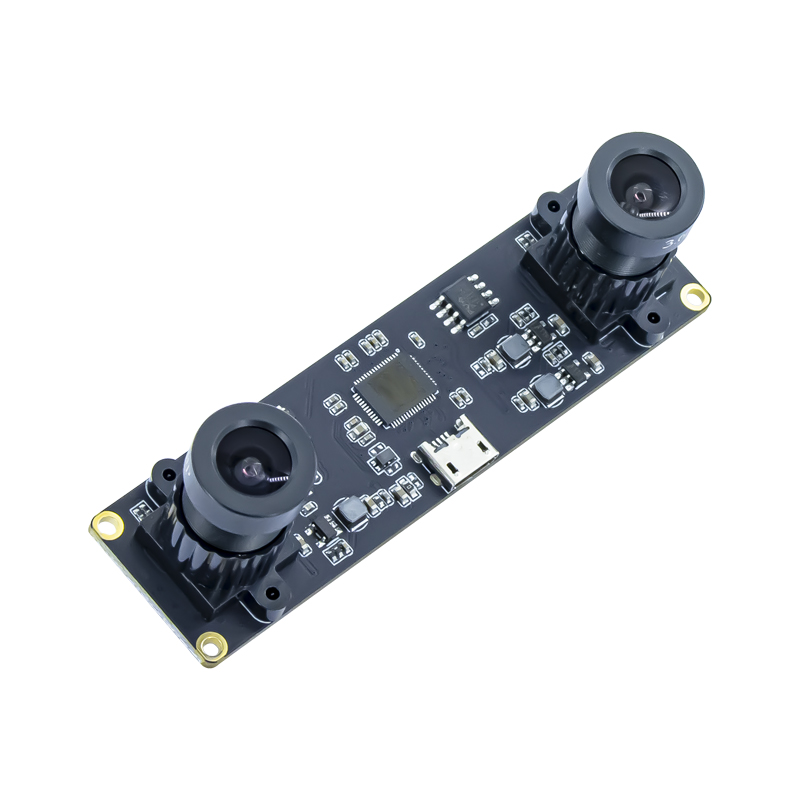

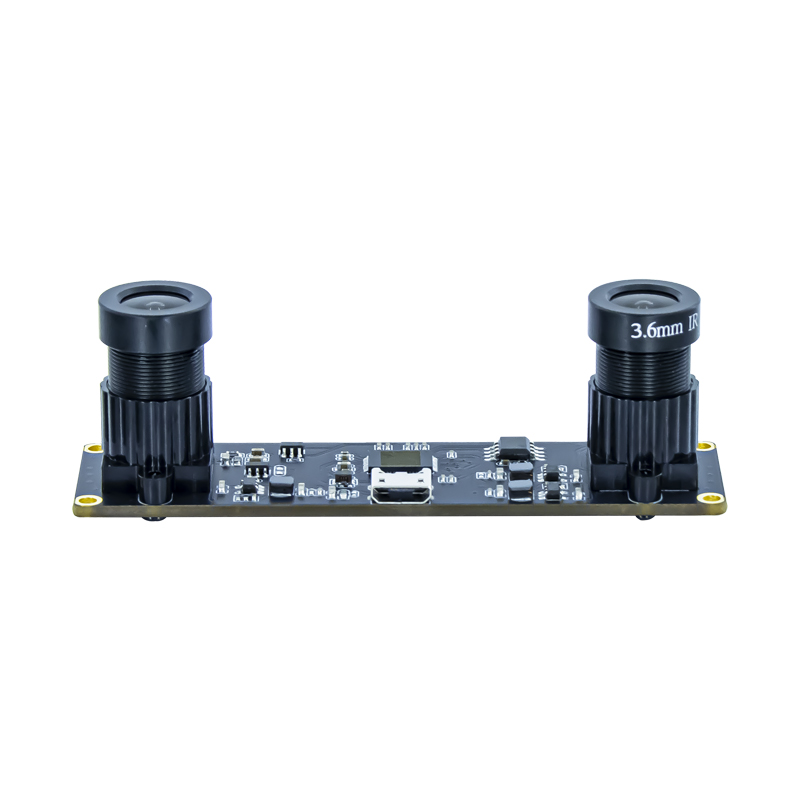

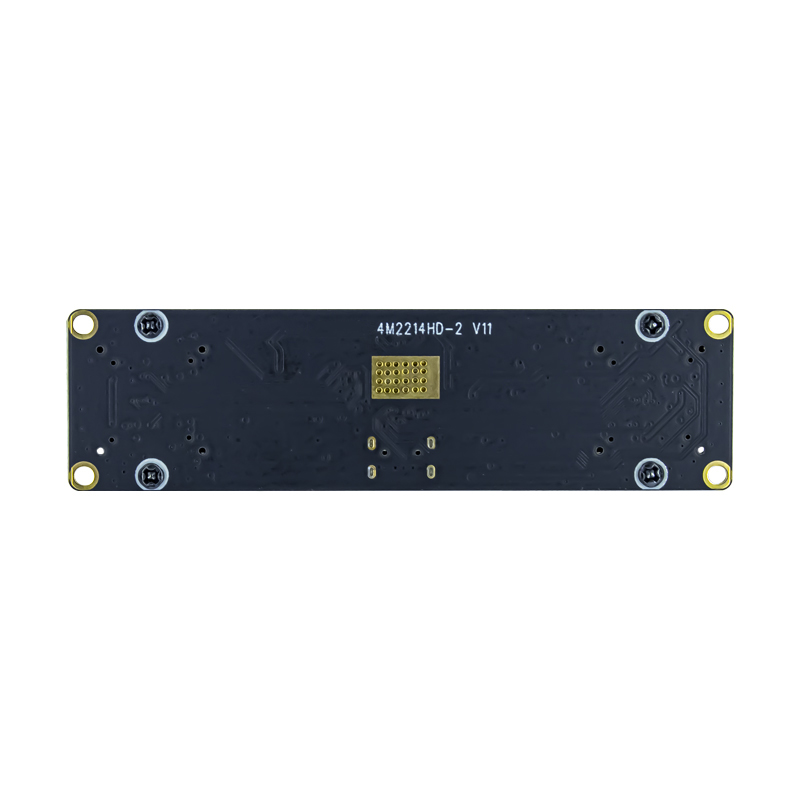

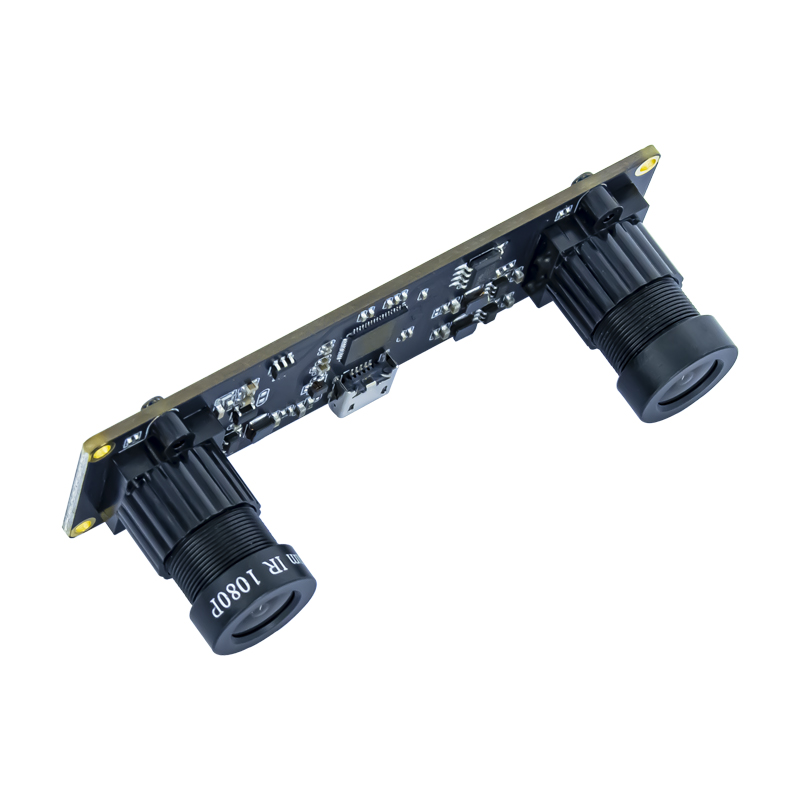

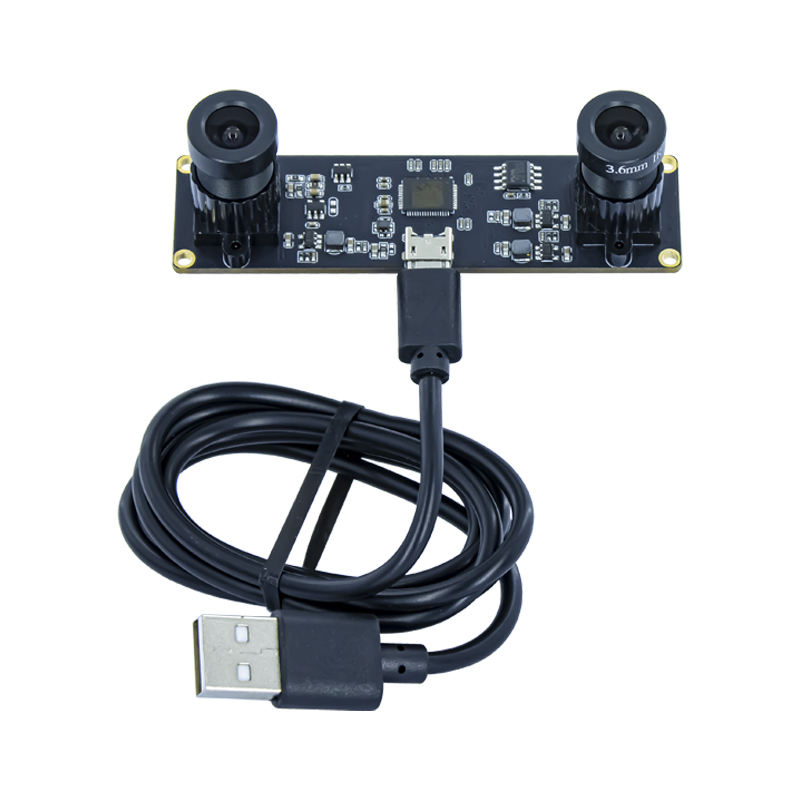

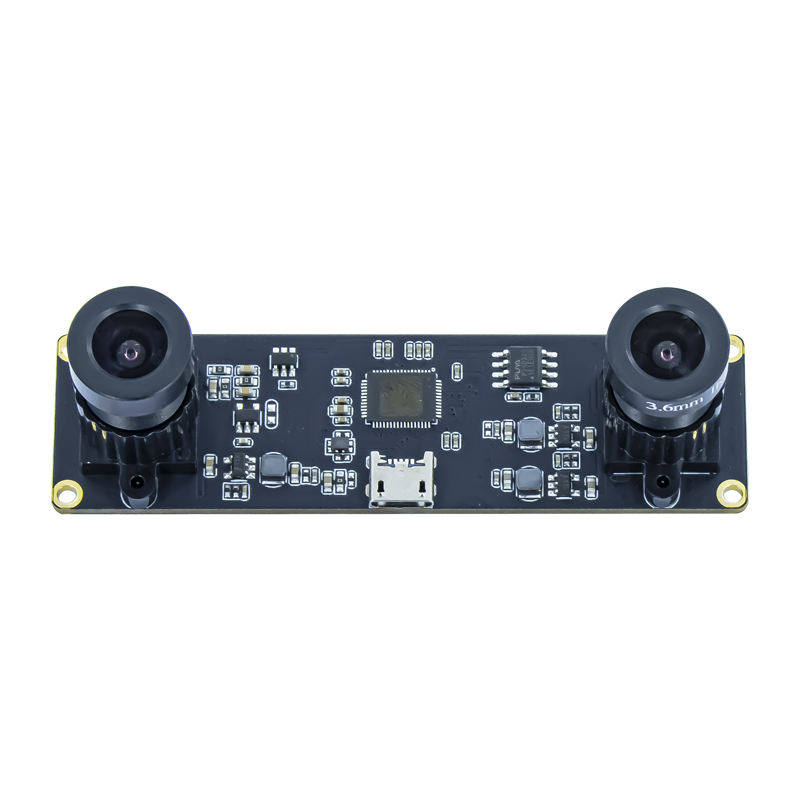

4MP 1080P binocular synchronous camera module 3D reconstruction camera module
$36.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 4MP Binocular Synchronized Camera Module |
| Module No | BM4M2214HD-2 V22-72 |
| Module Size | 80mm × 22mm × 24.5mm±0.5MM |
| Features | Dual 1080P HD VR, naked eye 3D, ranging, 3D reconstruction, vision applications and other embedded camera modules 1. Main performance dual 1080P High Definition 2. Can be customized to do with microphone (Charges apply) |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1100mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV4689(1/3") |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2688*1520 |
| Sensitivity | 1900mV /（lux-sec） |
| Pixel Size | 2µm x 2µm |
| Maximum Image Transfer Rate | MJPEG 1280x480 30FPS / YUY2 1280x480 10FPS MJPEG 2160x1080 30FPS / YUY2 2160x1080 3FPS MJPEG 2560x720 30FPS / YUY2 2560x720 3FPS MJPEG 3040x1520 30FPS / YUY2 3040x1520 1FPS MJPEG 3840x1080 30FPS / YUY2 3840x1080 1FPS MJPEG 3840x1520 30FPS / YUY2 3840x1520 1FPS |
| S/N Ratio | 38.3db |
| Max Dynamic Range | 64.6db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.6 mm |
| FOV | 72° |
| TV Distortion | <8% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
