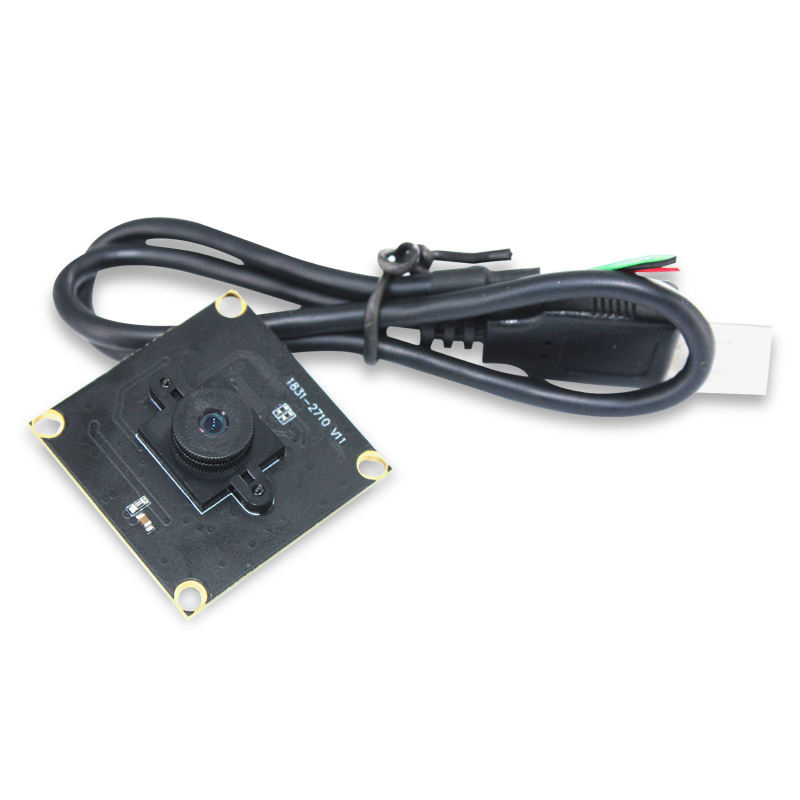

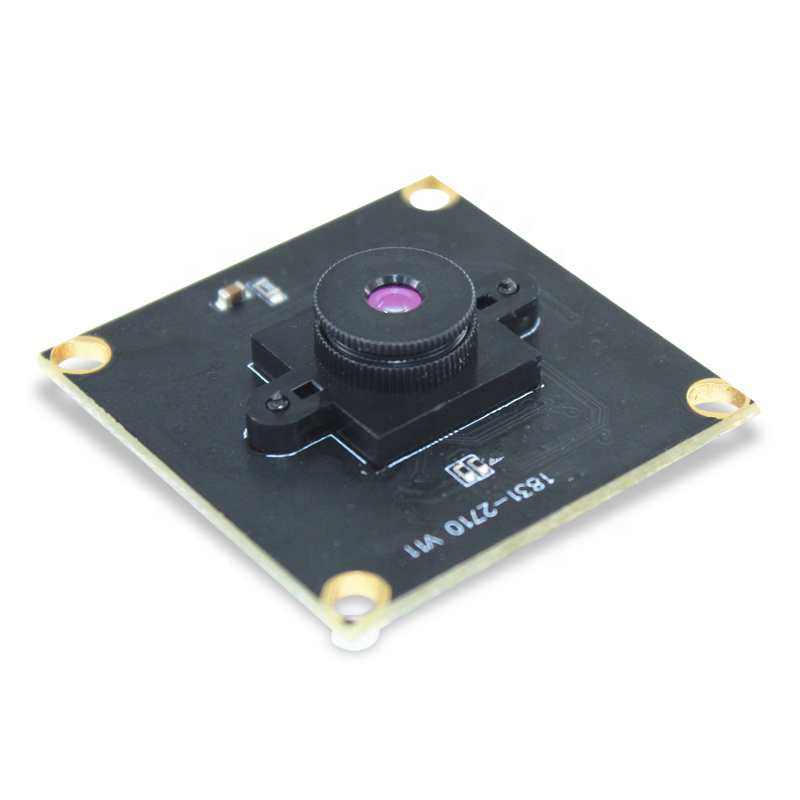

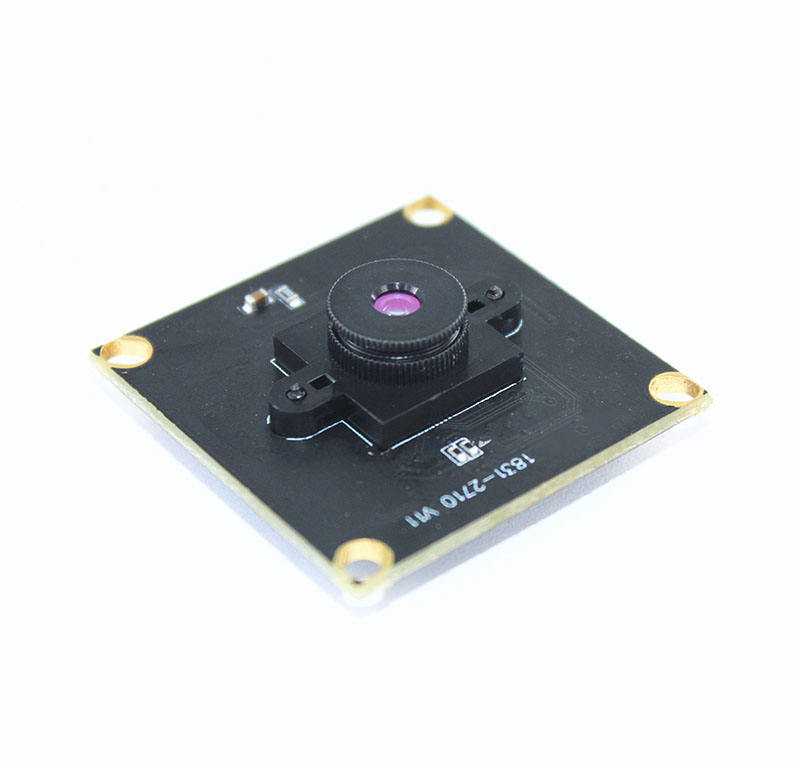

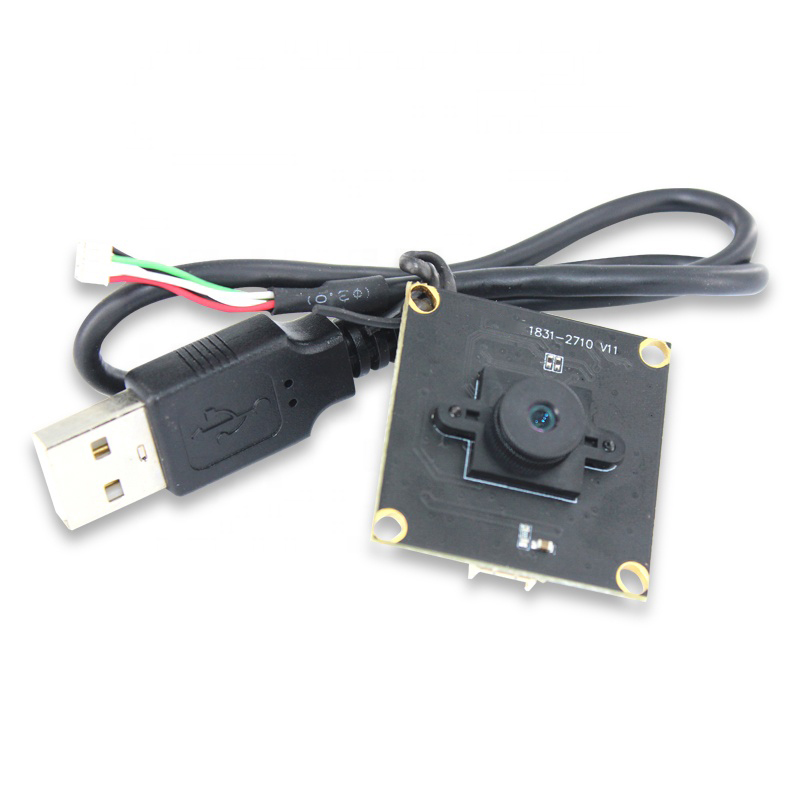

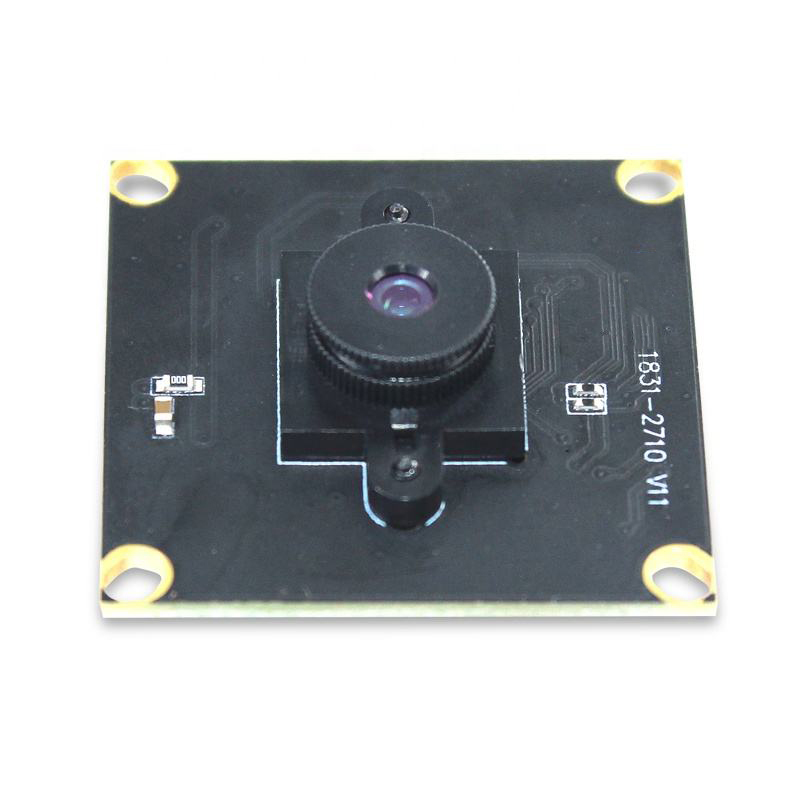

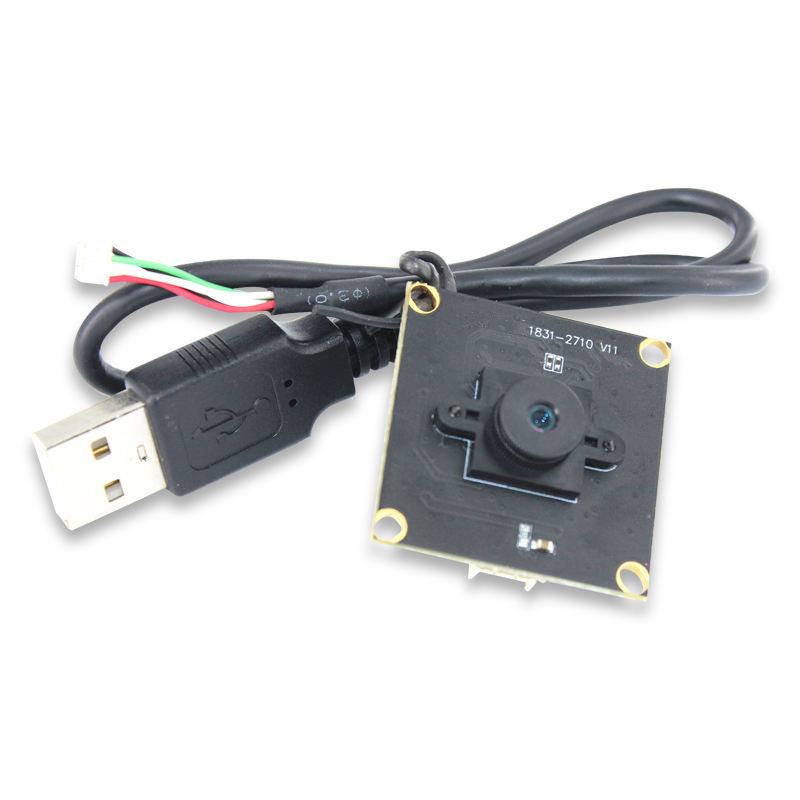

2MP 1080p high frame 120fps mini cctv usb camera module

$19.20

Availability:

In stock

Out of stock

SKU

216556

Product Description

Module No.	BM1831-2710 V11

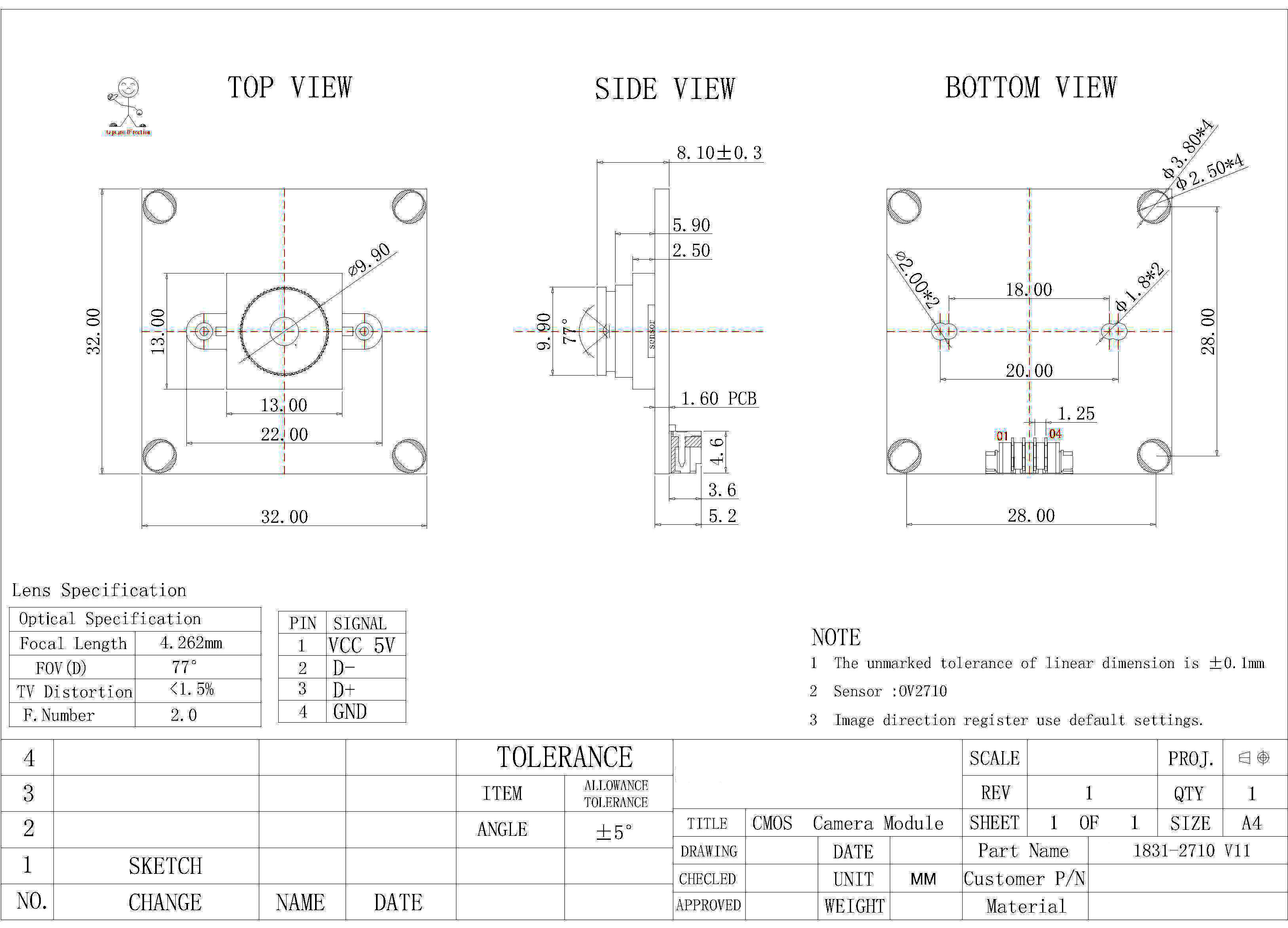

Module Size	32mm × 32mm × 8.1mm±0.3MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2710 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	10v /（lux-sec）
Pixel Size	3µm x 3µm

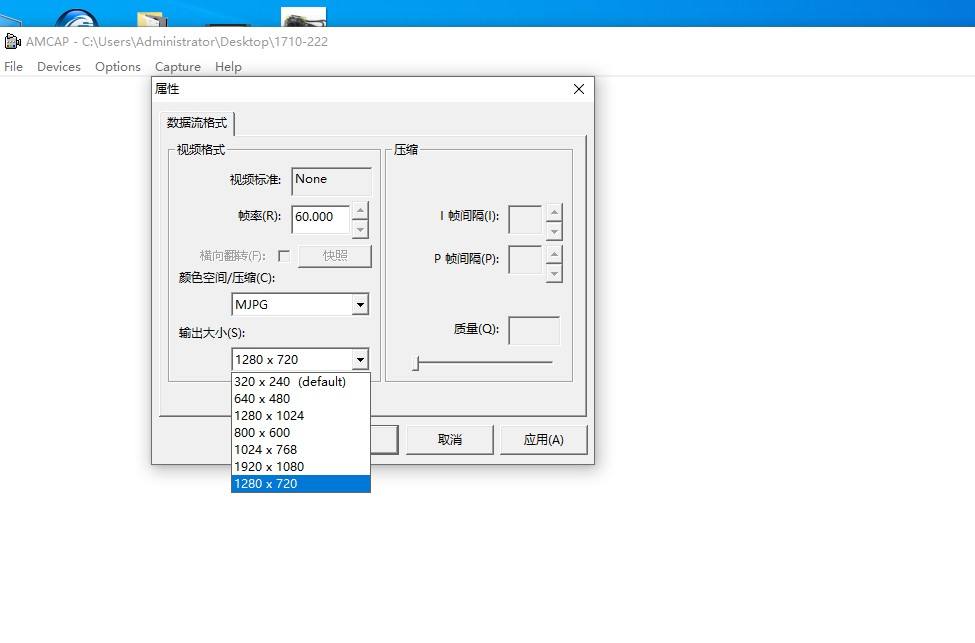

Maximum Image Transfer Rate	MJPEG 640x480 120FPS / YUY2 640X480 30FPS MJPEG 800x600 60FPS / YUY2 800X600 20FPS MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 60FPS / YUY2 1280X720 10FPS MJPEG 1280x1024 30FPS / YUY2 1920X1080 6FPS MJPEG 1920x1080 30FPS / YUY2 1920X1080 6FPS
S/N Ratio	39 db
Max Dynamic Range	69 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	6P
F/No	2.0
EFL	4.262 mm
FOV	77°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
Fixed Pattern Noise	< 0.03% of VPEAK-TO-PEAK
Package	LQFN-40pin
The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding.
