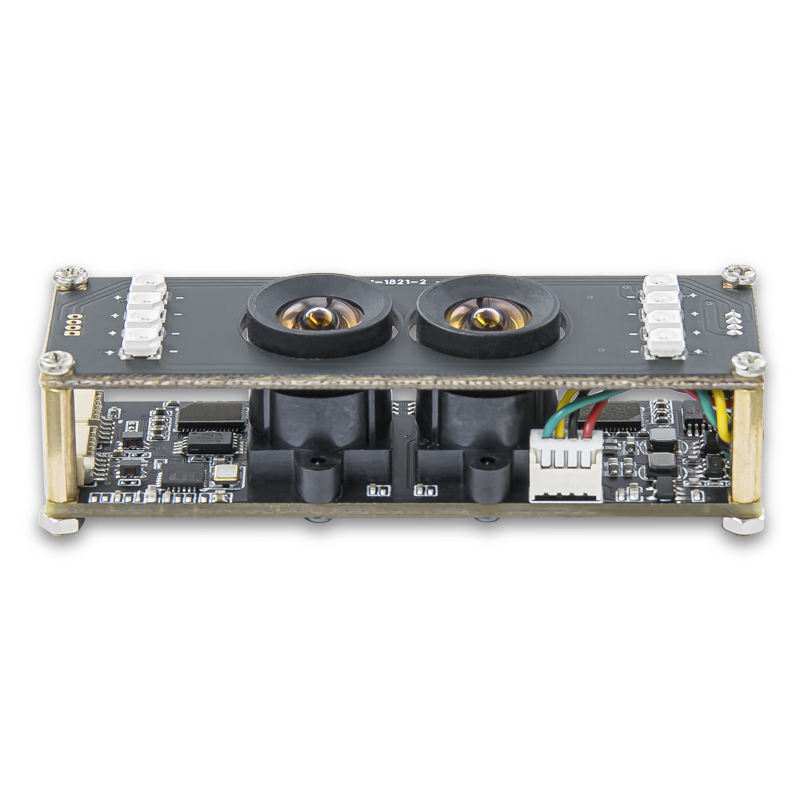

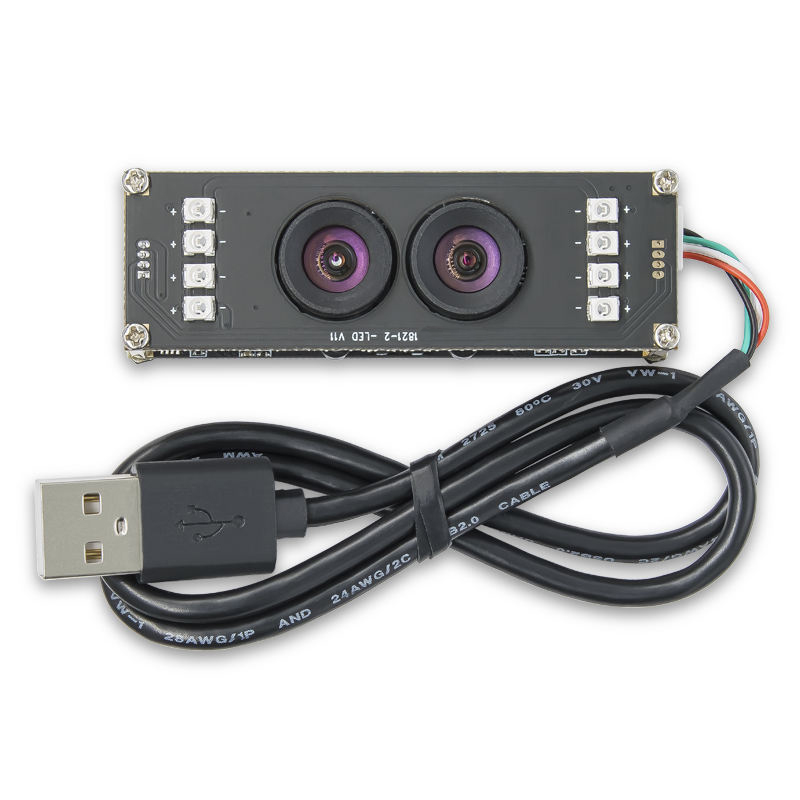

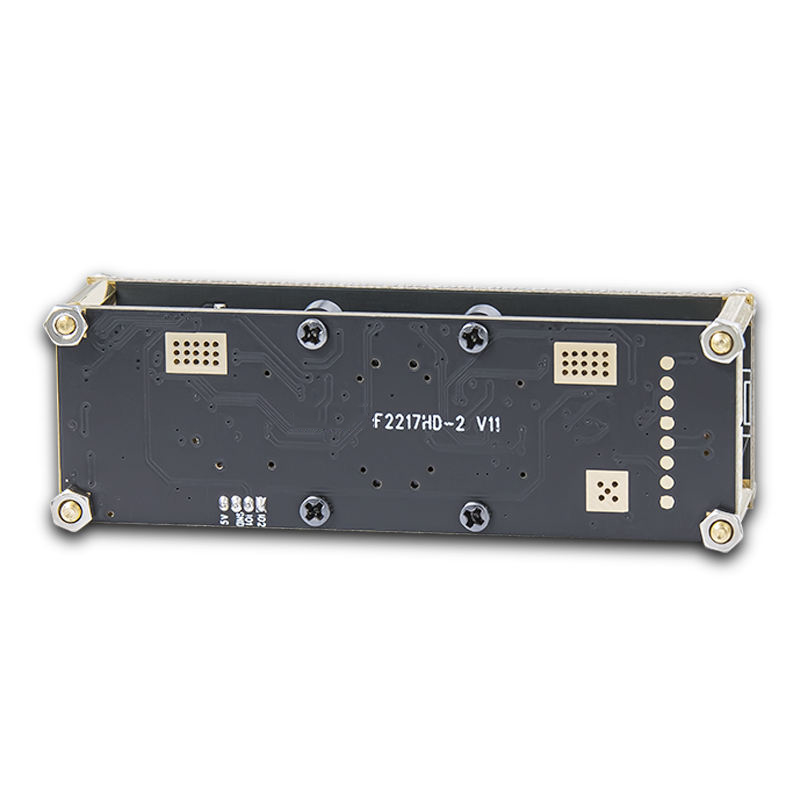

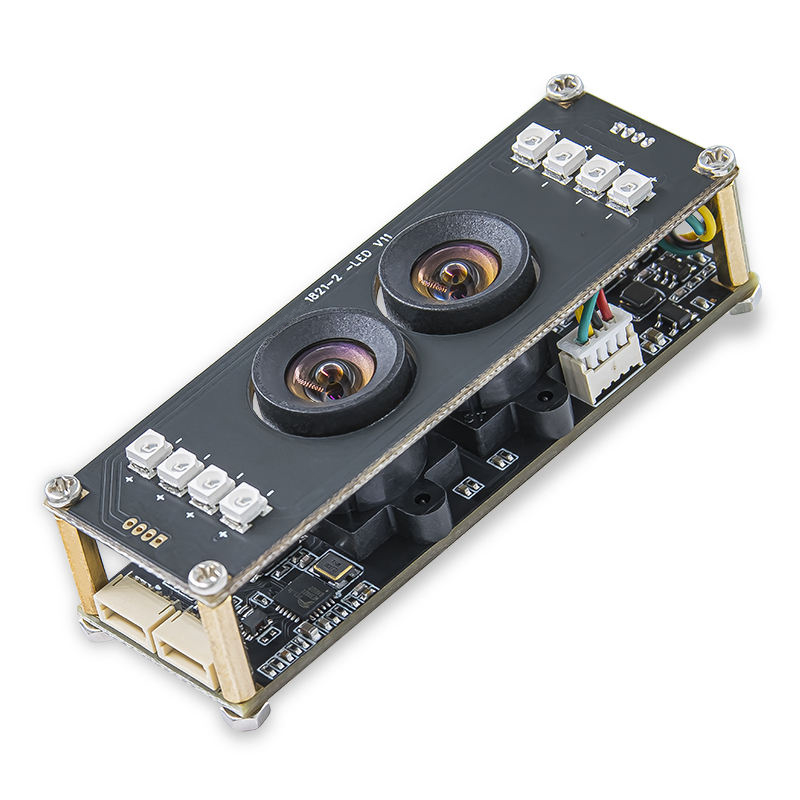

USB 2.0 2MP Dual Camera 1080P HD Portrait, Life Detection and Recognition Application Camera Module
$26.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 2MP Dual Camera Module |
| Module No | BMF2217HD-2 V11-100 |
| Module Size | 68mm × 22mm × 17.4mm±0.5MM |
| Product Features | 1. Standard binocular live detection+facial recognition module structure (main applications) 2. The module is equipped with dual 5p-1.0 terminal ports, which can be selected for one or two line outputs (default single line use, right input line with one port above for testing) 3. The left infrared is a narrowband single pass 850nm-IR lens, with a lamp panel emitting 850nm infrared light at 120 ° 4. Dynamic with microsoftware |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 2100mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | PS5260 (1/2.7" ) |
| Seneor Package | COB,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 4700mv /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 352x288 30FPS / YUY2 352x288 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS |
| S/N Ratio | 46 db |
| Max Dynamic Range | 83 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm 850±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
