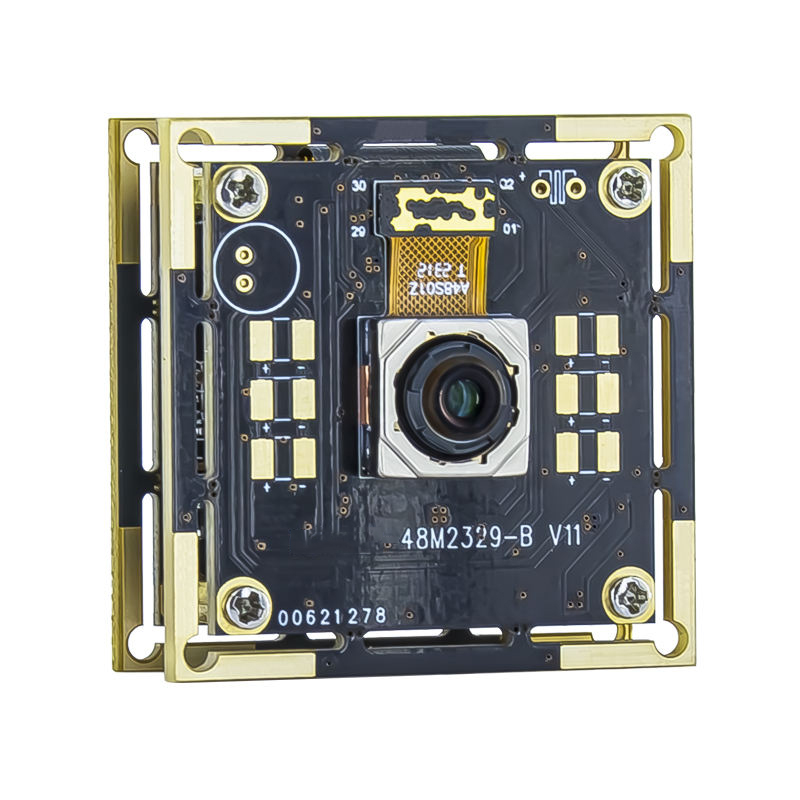

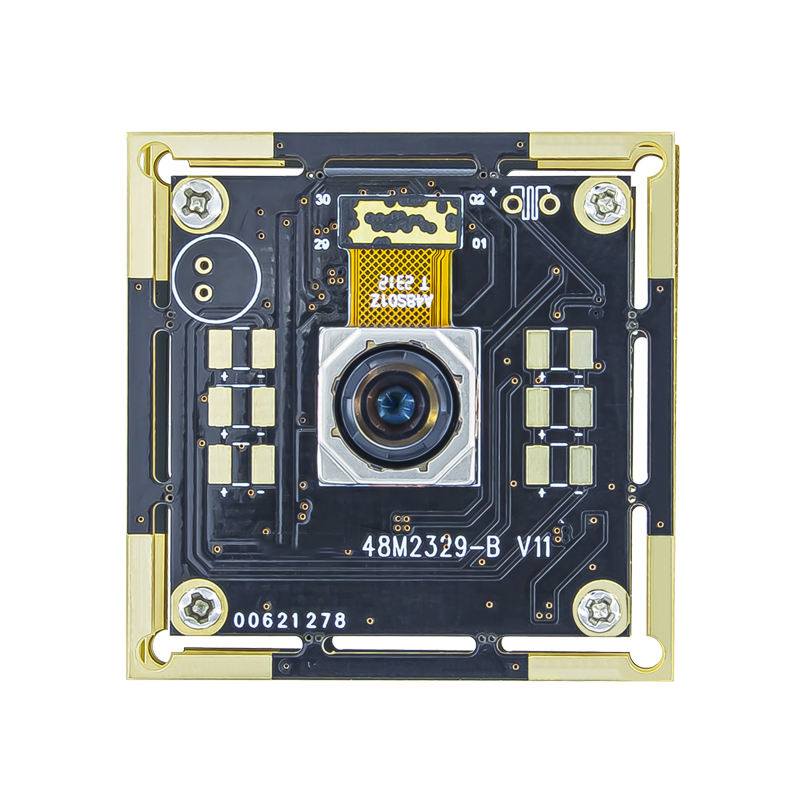

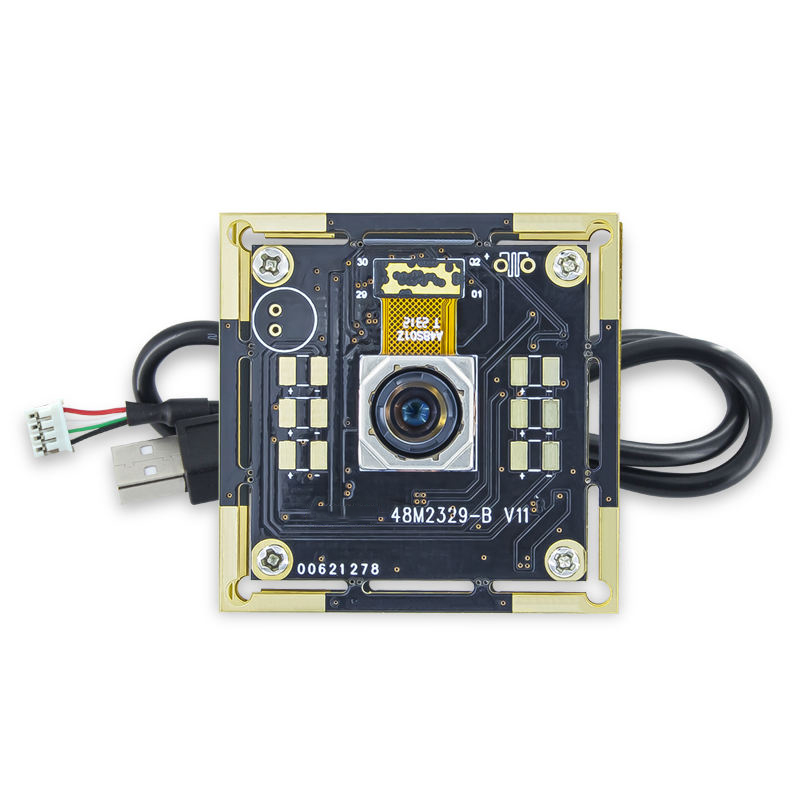

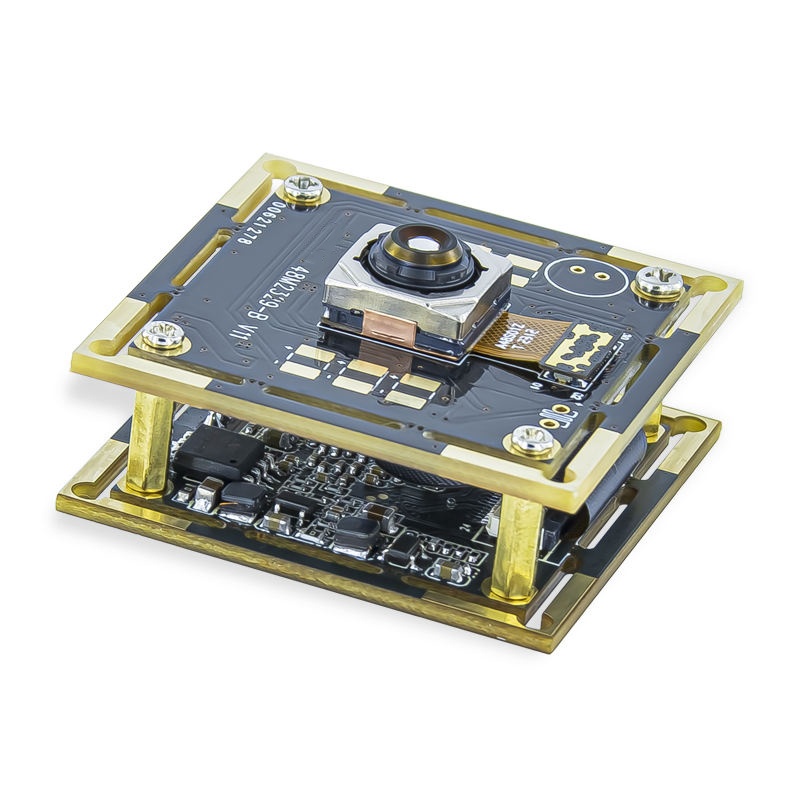

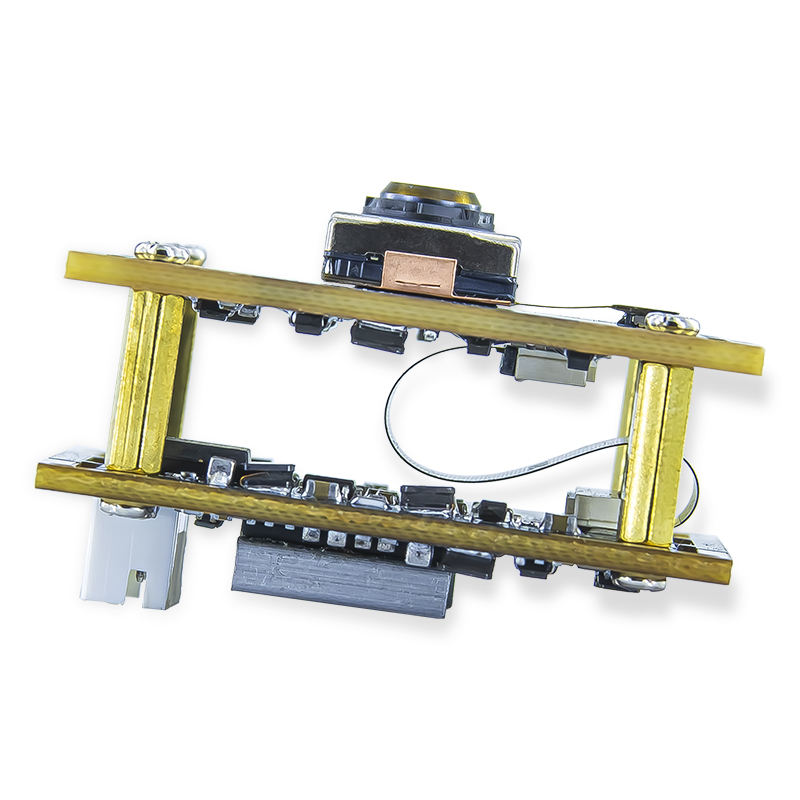

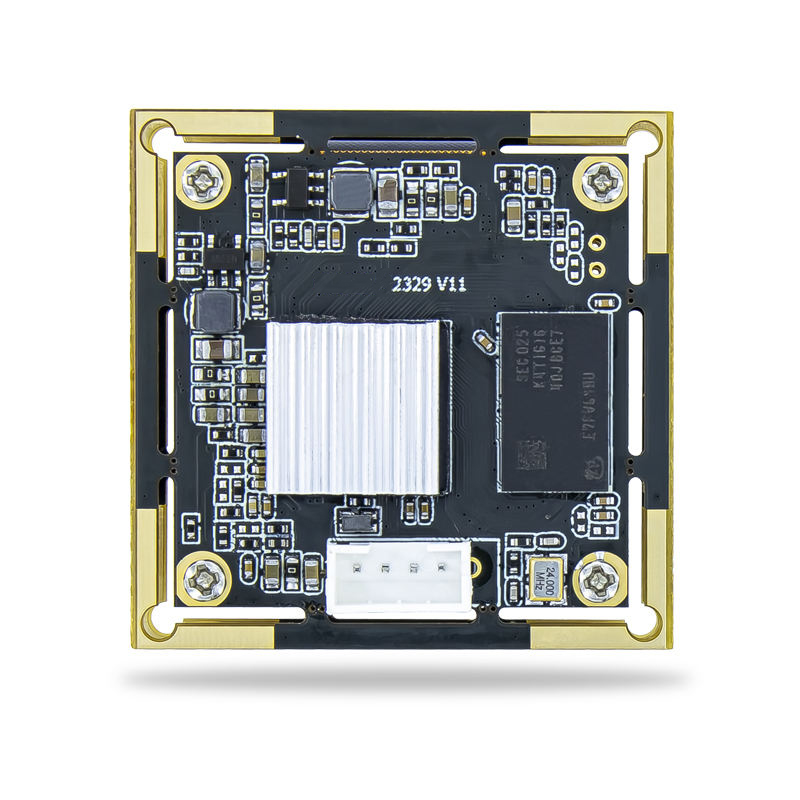

High-quality 48MP camera module MJPEG 8000*6000 30fps 200ms fast autofocus LED fill light can be added
$74.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 48MP 200ms fast autofocus Camera Module |
| Module No | BM48M2329-B V11-79 |
| Module Size | 38mm × 38mm × 25.60mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Auto |
| Object distance | 10CM-infinity |
| Resolution | 2000LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 2560 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | S5KGM1 (1/2.25" ) |
| Seneor Package | COB,Bare Die |
| Maximum resolution | 8000*6000 |
| Sensitivity | 1.4V /（lux-sec） |
| Pixel Size | 0.8µm x 0.8µm |
| Maximum Image Transfer Rate | MJPEG 1920x1080 30FPS / YUY2 640x480 25FPS MJPEG 2592x1944 30FPS / YUY2 800x600 25FPS MJPEG 3840x2160 30FPS / YUY2 1920x1080 6FPS MJPEG 4000x3000 15FPS / MJPEG 8000x6000 5FPS / |
| S/N Ratio | 36db |
| Max Dynamic Range | 82db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 6P |
| F/No | 1.79 |
| EFL | 4.71 mm |
| FOV | 79° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 940±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
