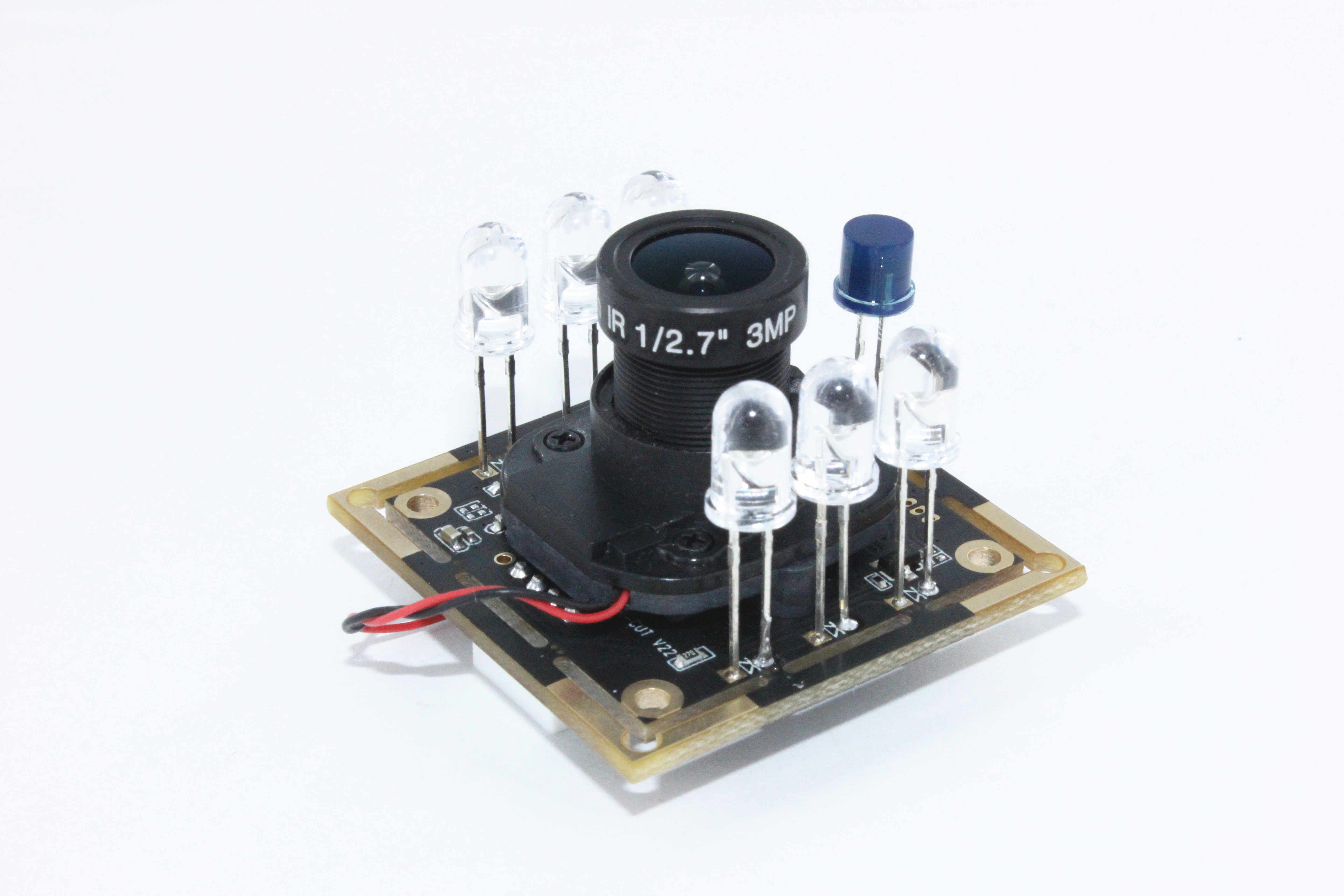

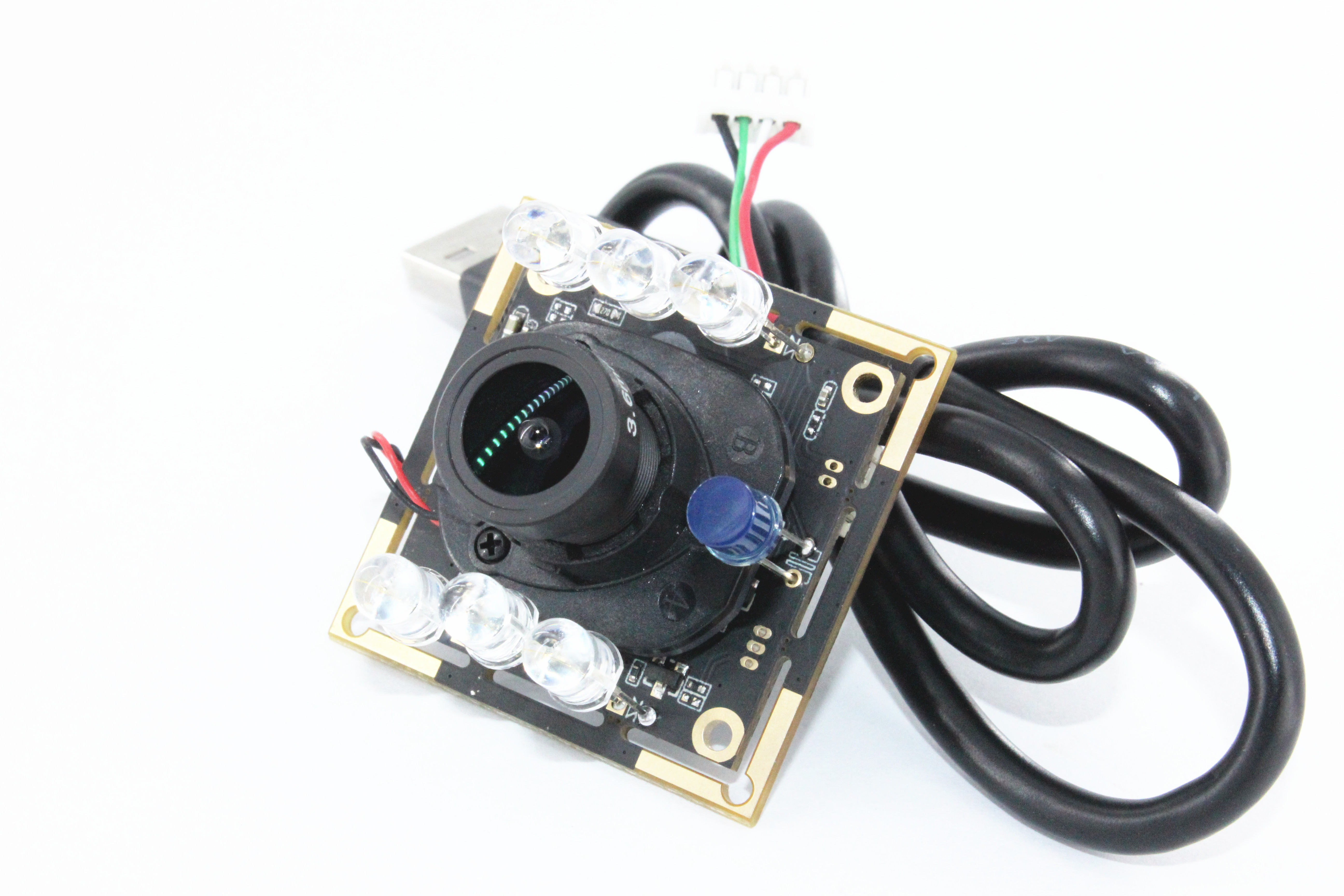

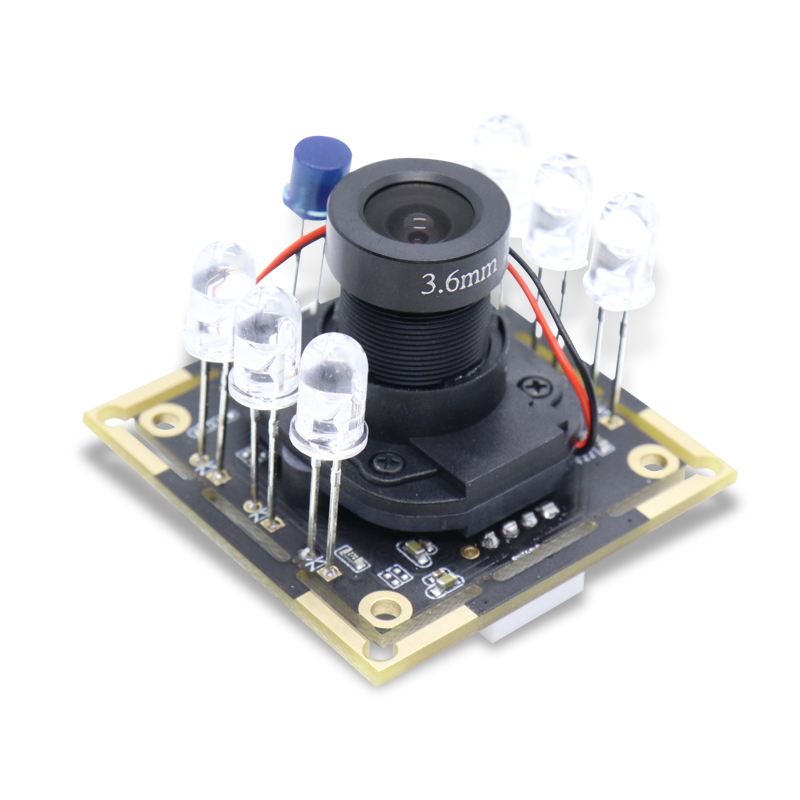

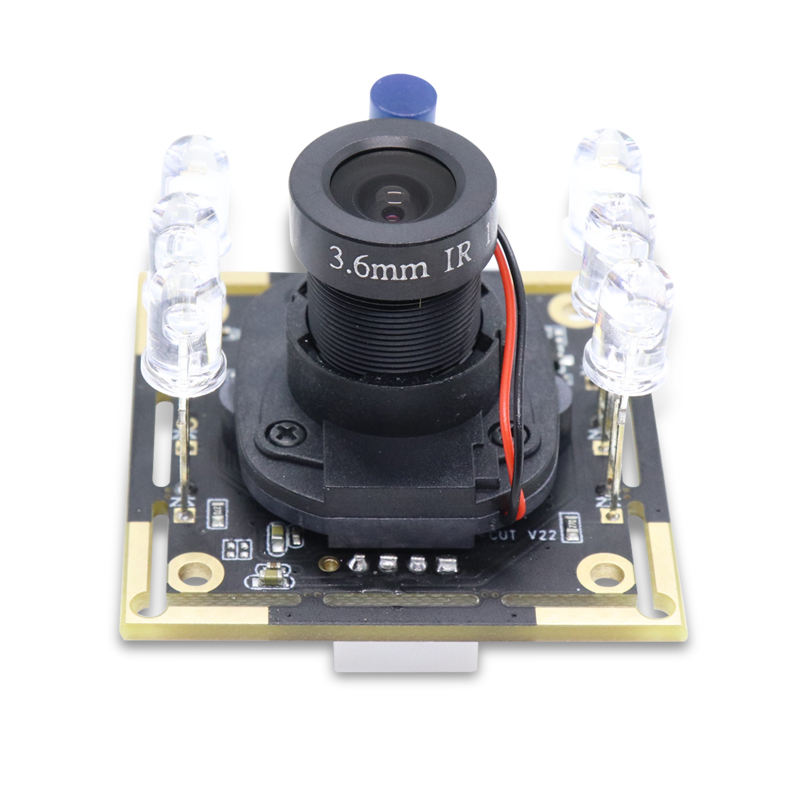

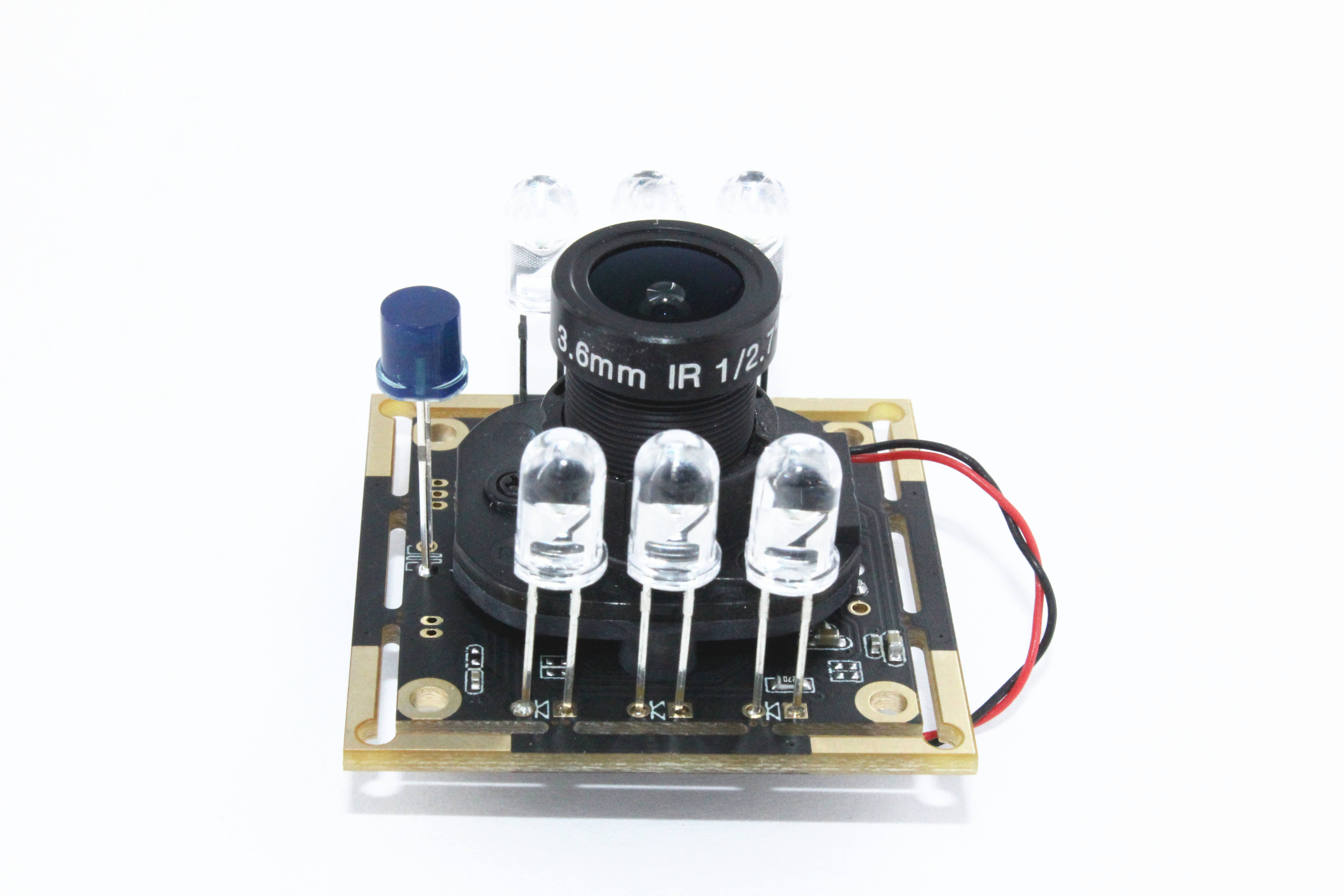

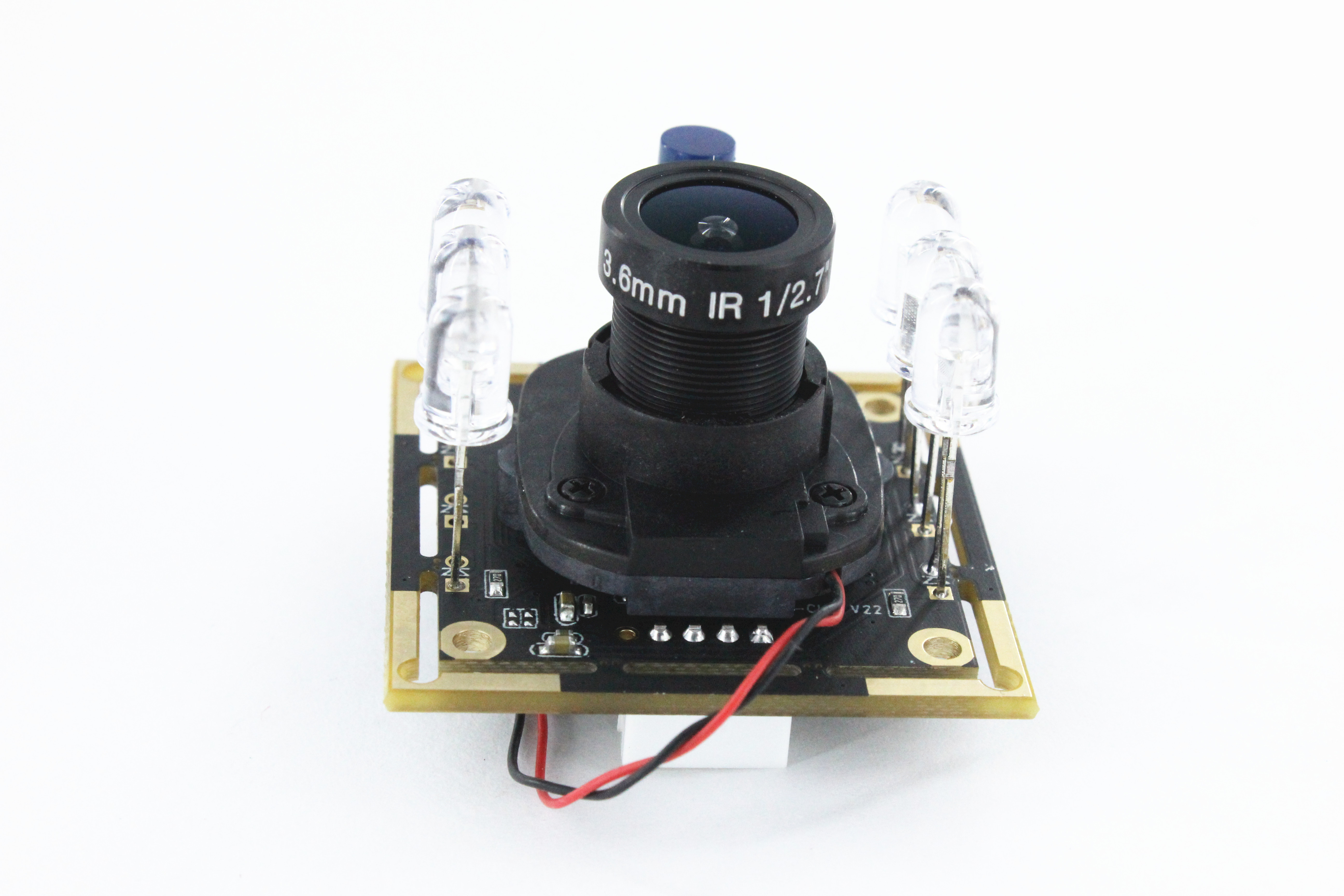

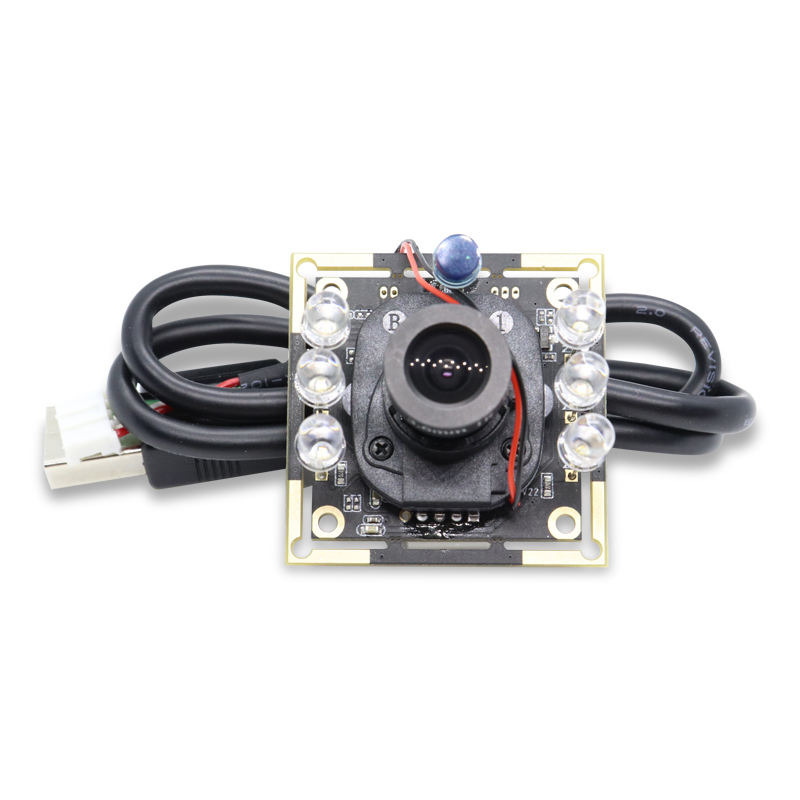

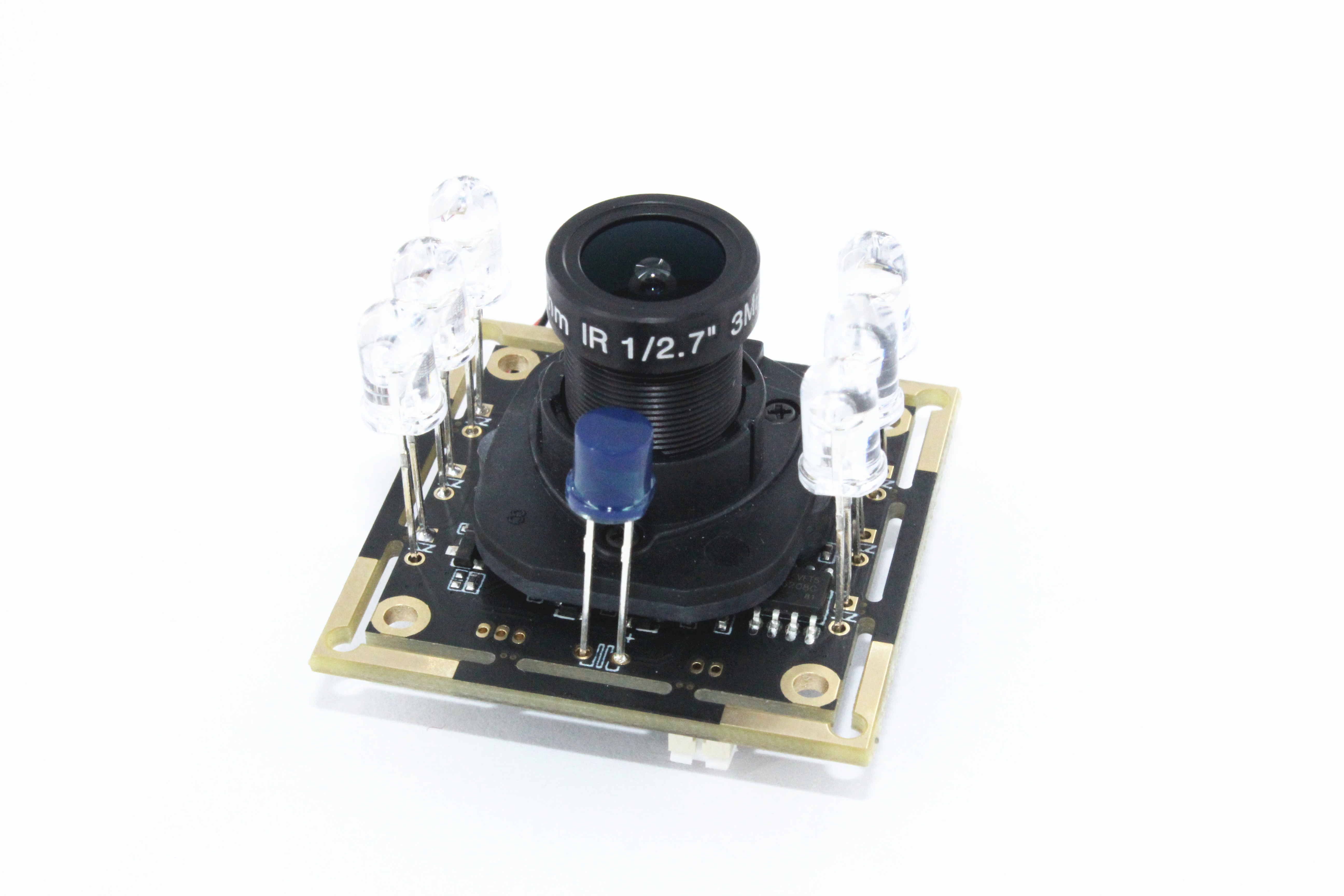

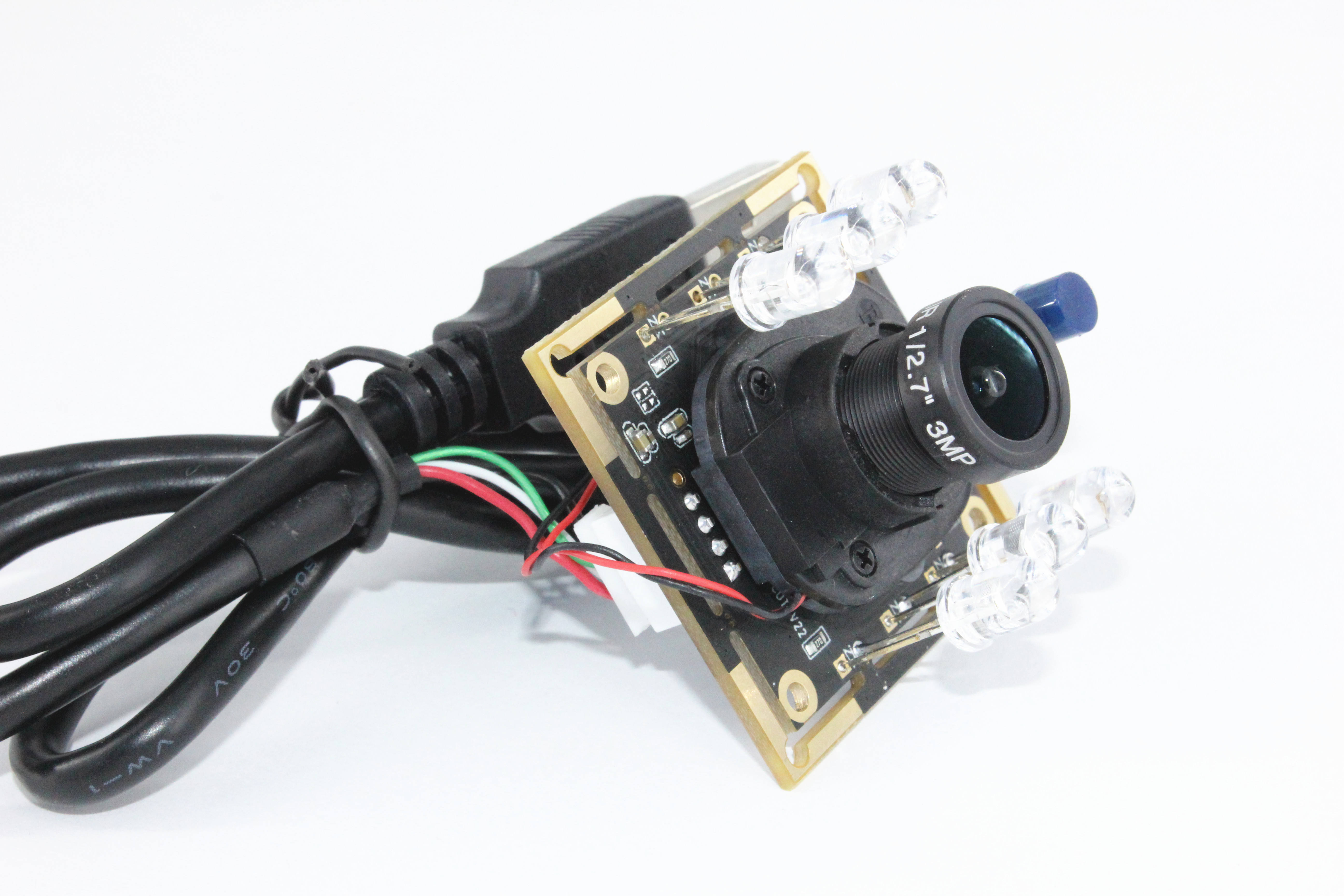

1MP HD IR-CUT infrared camera module Dual Digital Microphone Camera Module
$10.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 1MP HD IR-CUT infrared camera module |
| Module No | BM1920IR-CUT V22-72 |

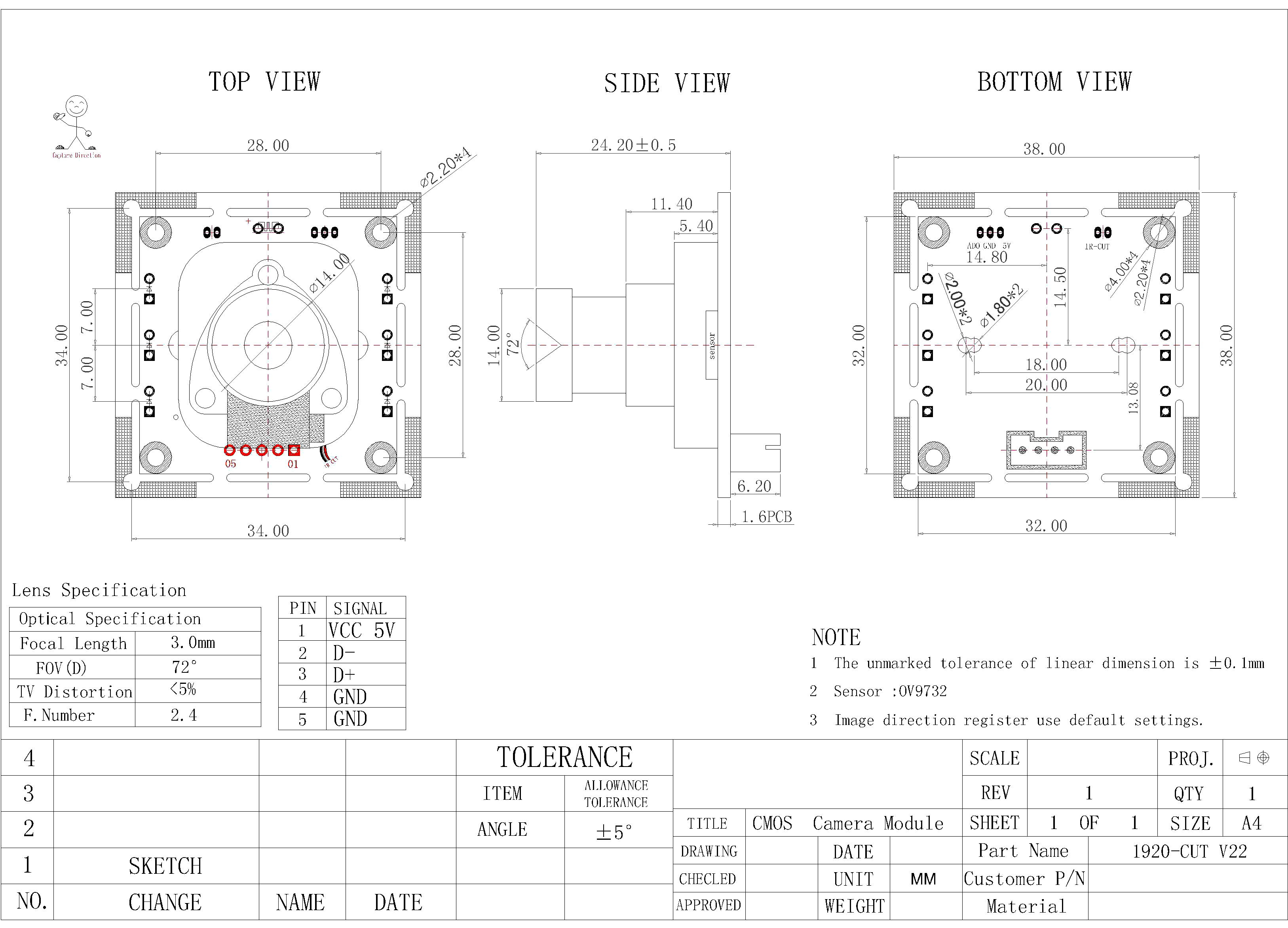

| Module Size | 38mm × 38mm × 24.2mm±0.5MM |
| Features | 1. Automatic switching between night and day 2. With dual digital microphone 3. with night vision infrared light 4. OTG, USB driver-free 5. Optional other configuration lens |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 840mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9732 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*720 |
| Sensitivity | 2066mv /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 320x180 30FPS YUY2 320x240 20FPS MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 39db |
| Max Dynamic Range | 72db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Yes |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.6mm |
| FOV | 72° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
