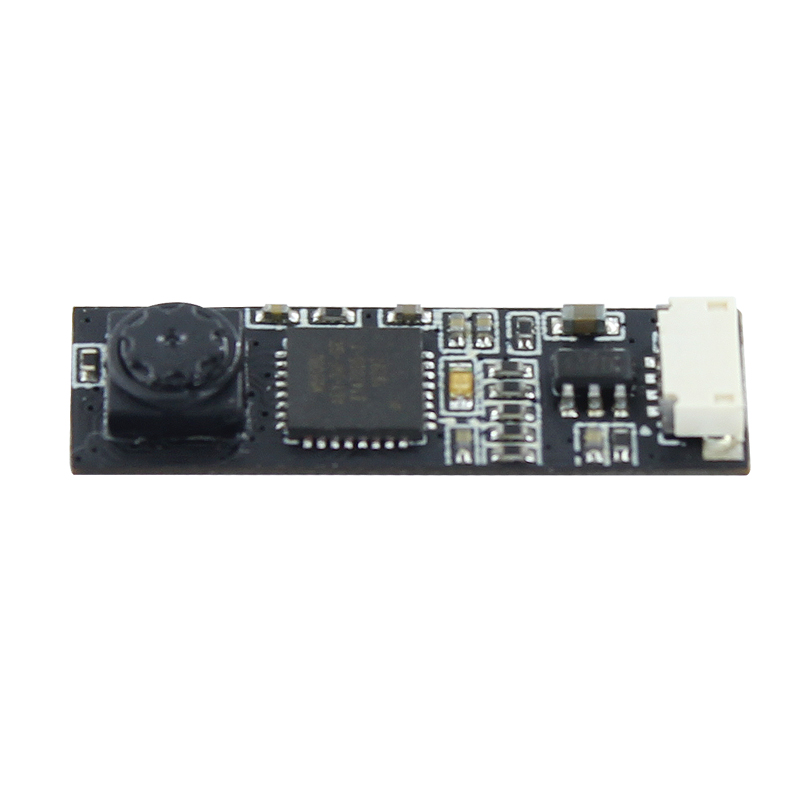

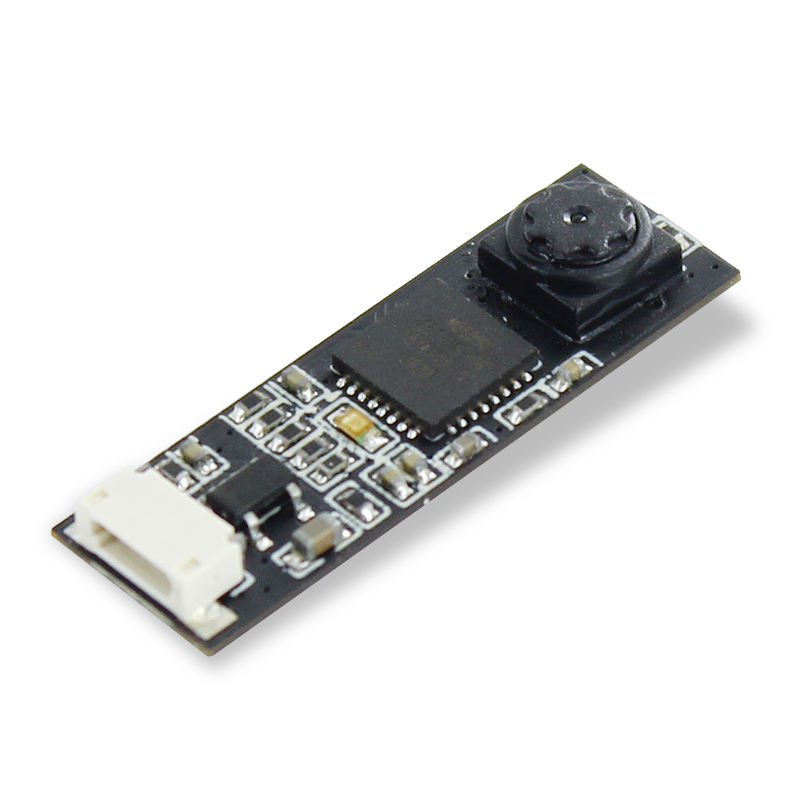

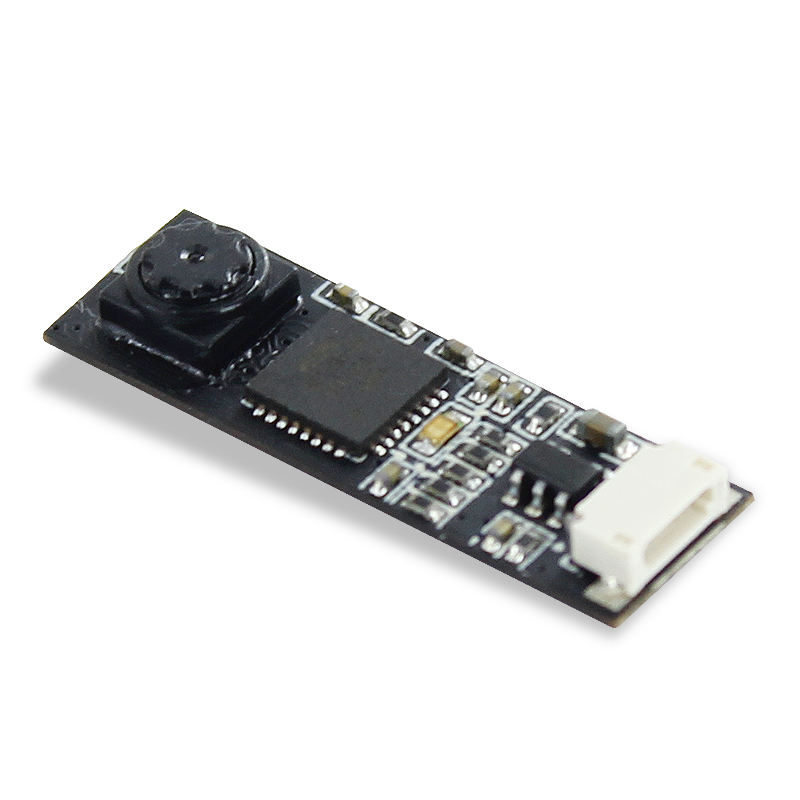

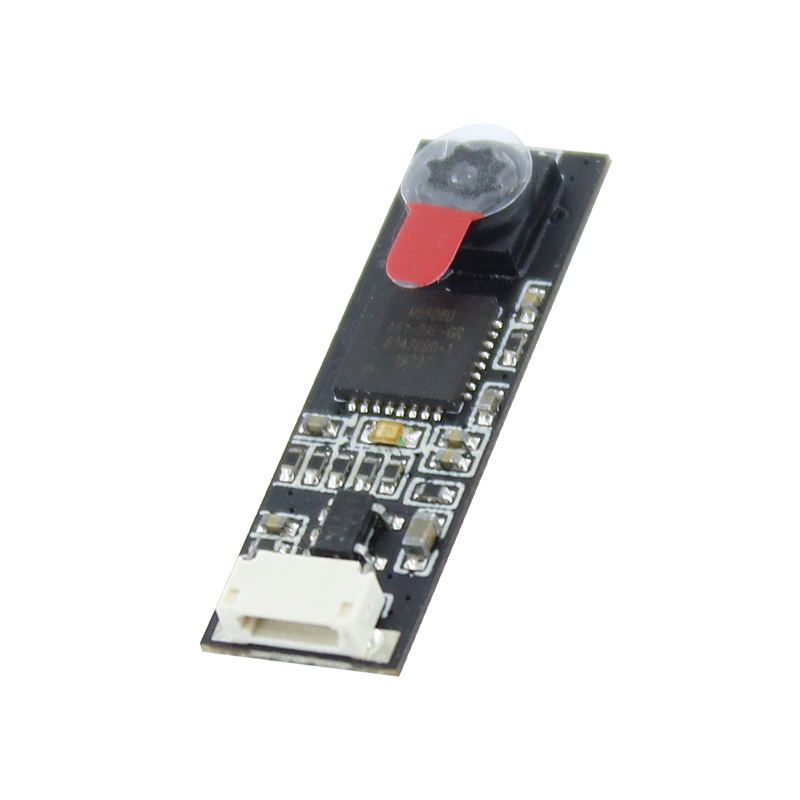

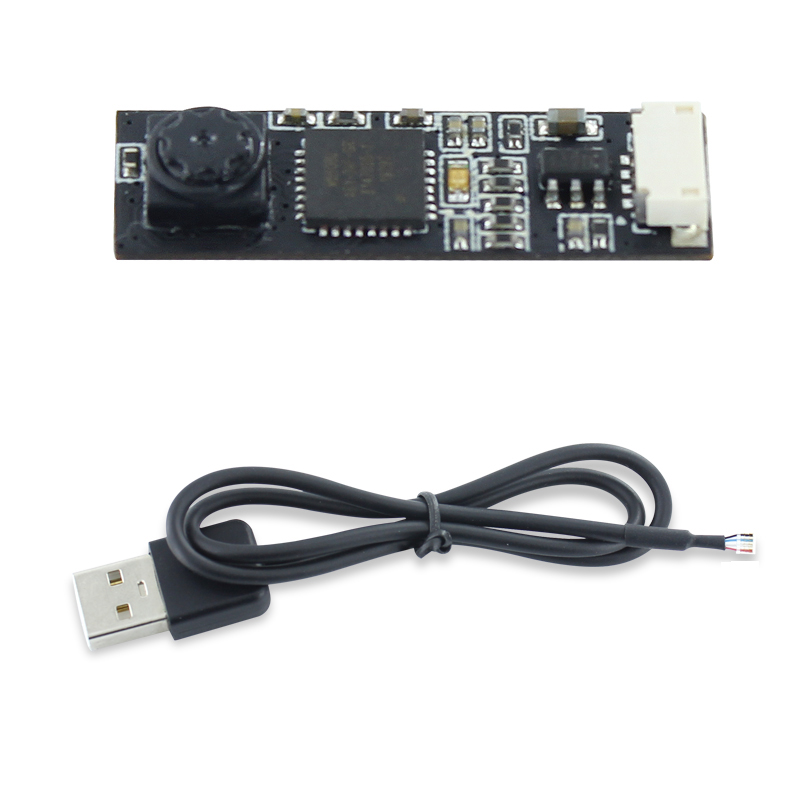

0.3MP All-in-One PC Notebook Camera Module
$9.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 0.3MP Notebook Built-in Camera Module |
| Module No | BM1939 V11-50 |

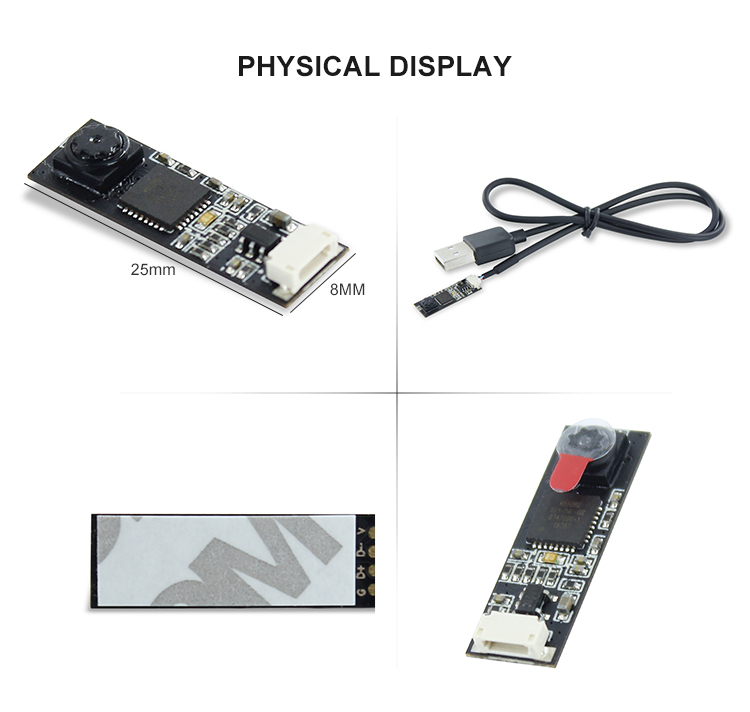

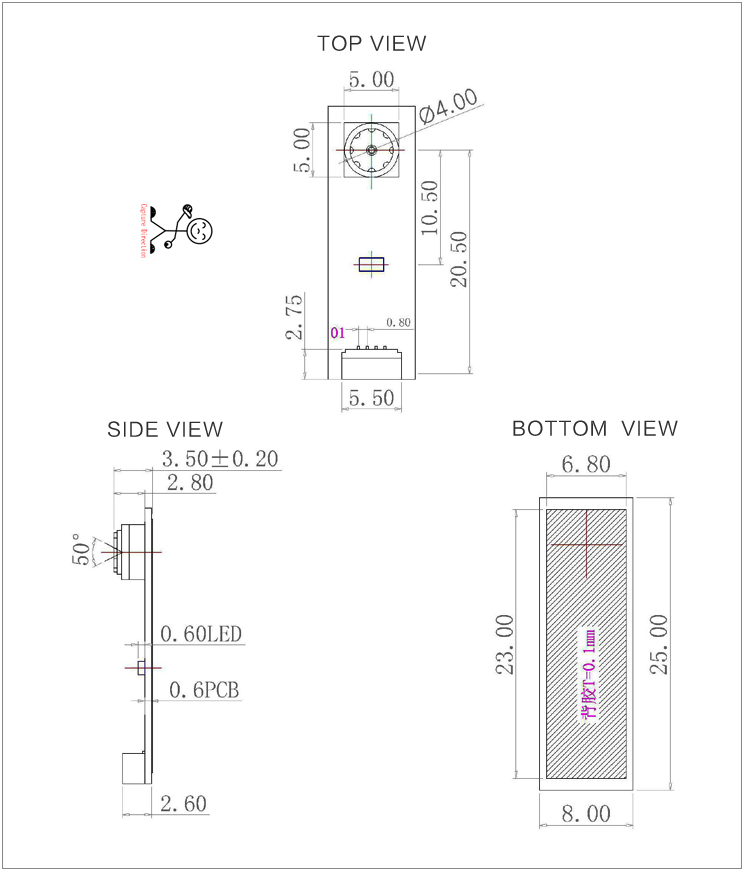

| Module Size | 25mm × 8mm × 3.5mm±0.2MM |
| Features | 1. Mainly used for brand machine refurbishment machine and modification machine 2. The product is small in size, flexible in structure and cost-effective |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 400LW/PH (Center) |
| PCB printing ink | Black |

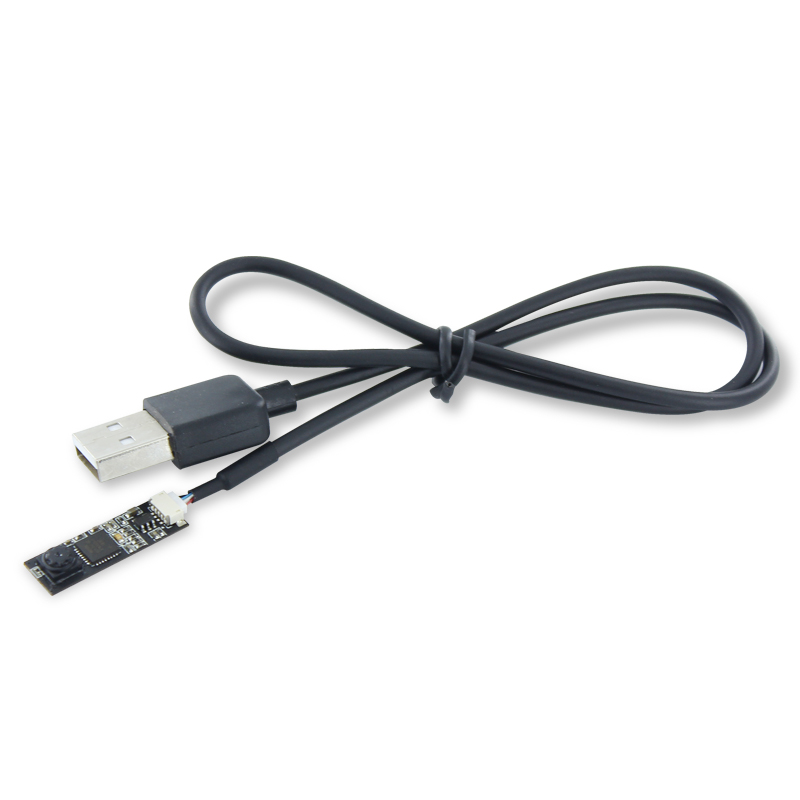

| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 290mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV7675 (1/9" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 1.8V /（lux-sec） |
| Pixel Size | 2.5µm x 2.5µm |
| Maximum Image Transfer Rate | YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 71 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2 |
| Microphone | NO |
| Lens Construction | 2P |
| F/No | 2.8 |
| EFL | 1.7mm |
| FOV | 50° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
