5MP HDR Camera Module QR Code Scanning Camera Module
$14.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 5MP QR Code Scanning camera module |
| Module No | BM5M20279HDR V22-125 |

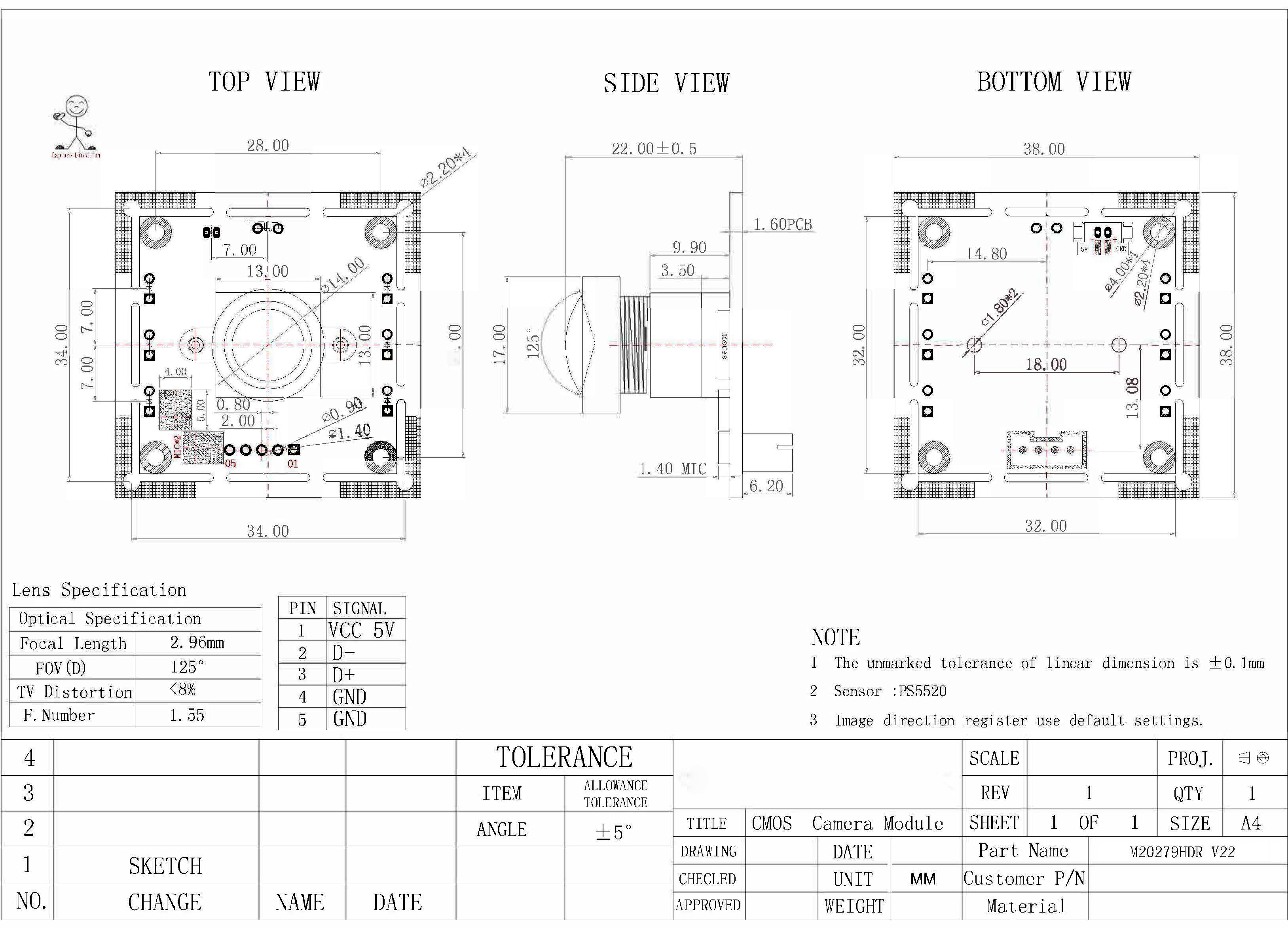

| Module Size | 38mm × 38mm × 22mm±0.5MM |
| specificities | 1. Standard industrial camera 38, 32mm plate structure 2. 1/2.5 " large pixel 3. Wide range of lens options 4. 6 plug-in lights can be soldered (infrared white light), which can be made into an on/off diagram or a photosensitive control light 5. MJPEG-2592x1944 can support 30 frames 6. Wide dynamic 85db with real hardware, backlight shooting |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | Fixed |
| Focus | Auto Focus |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | PS5520 (1/2.5" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 2400mV /（lux-sec） |
| Pixel Size | 2.2µm x 2.2µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 39db |
| Max Dynamic Range | 85db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 5G |
| F/No | 1.55 |
| EFL | 2.96 mm |
| FOV | 125° |
| TV Distortion | <8% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
