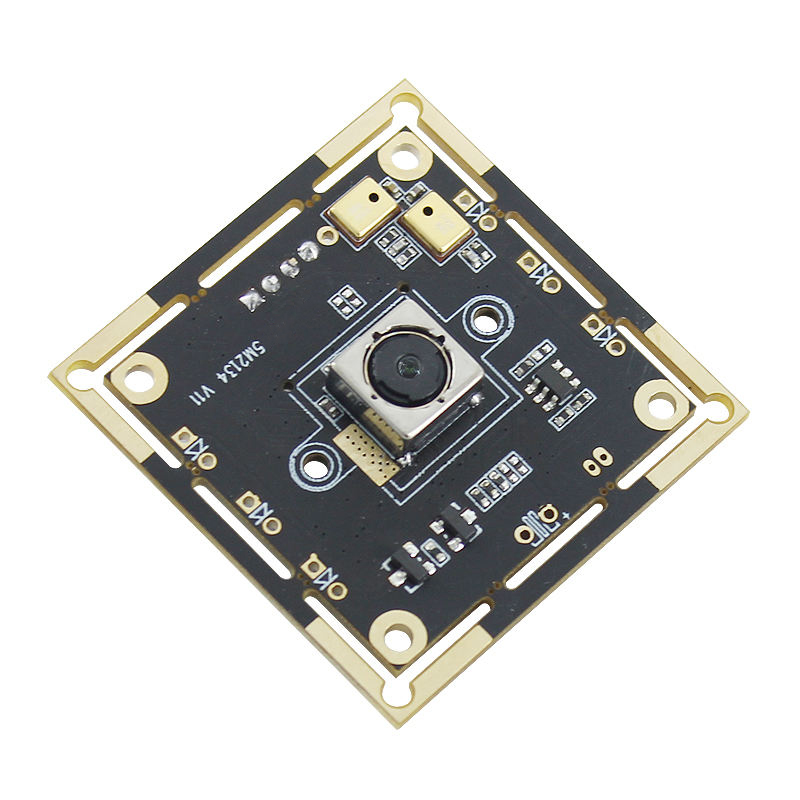

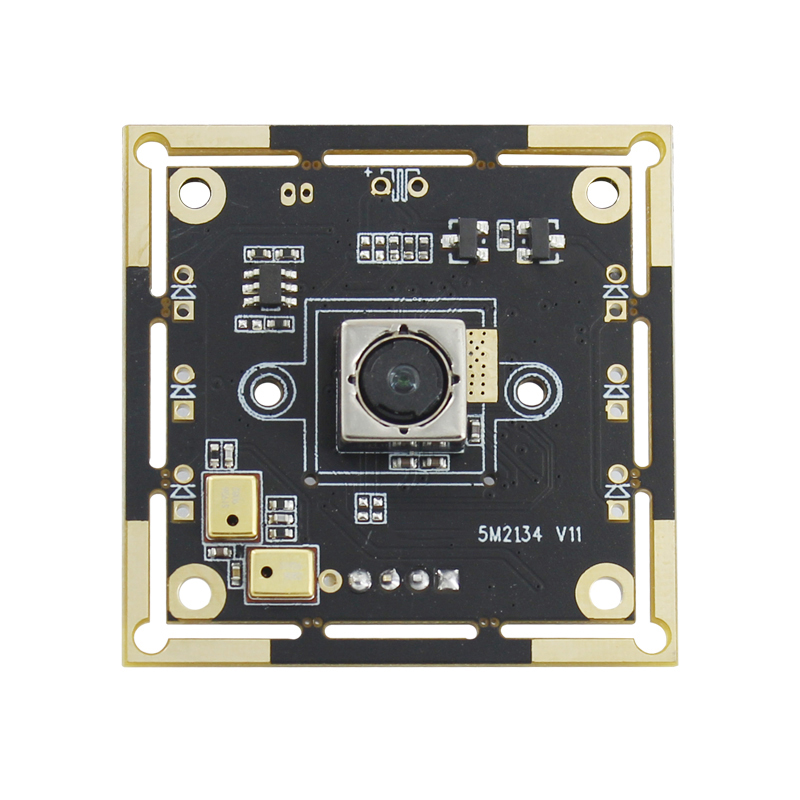

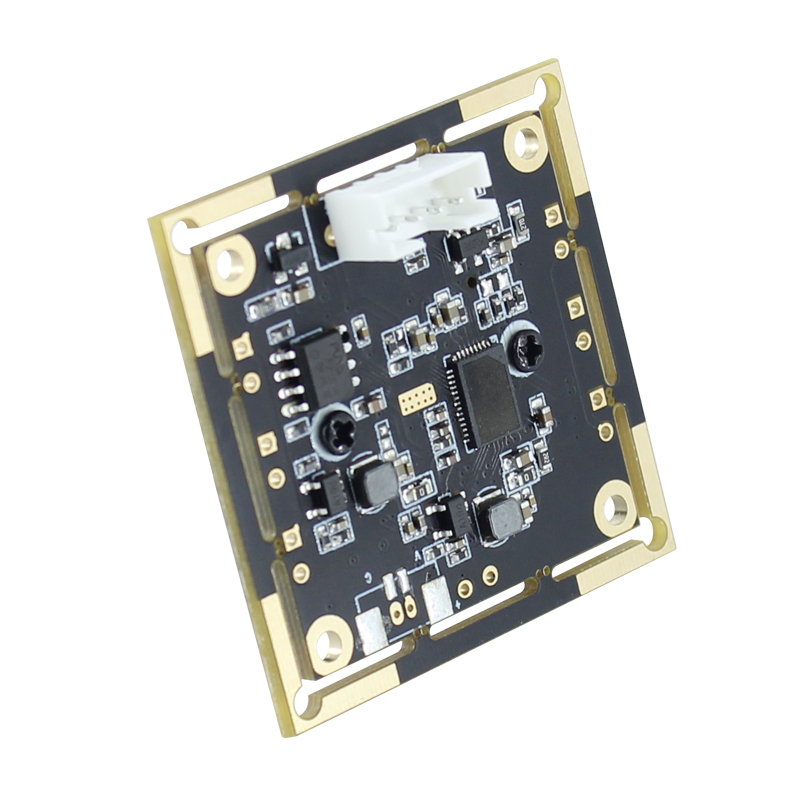

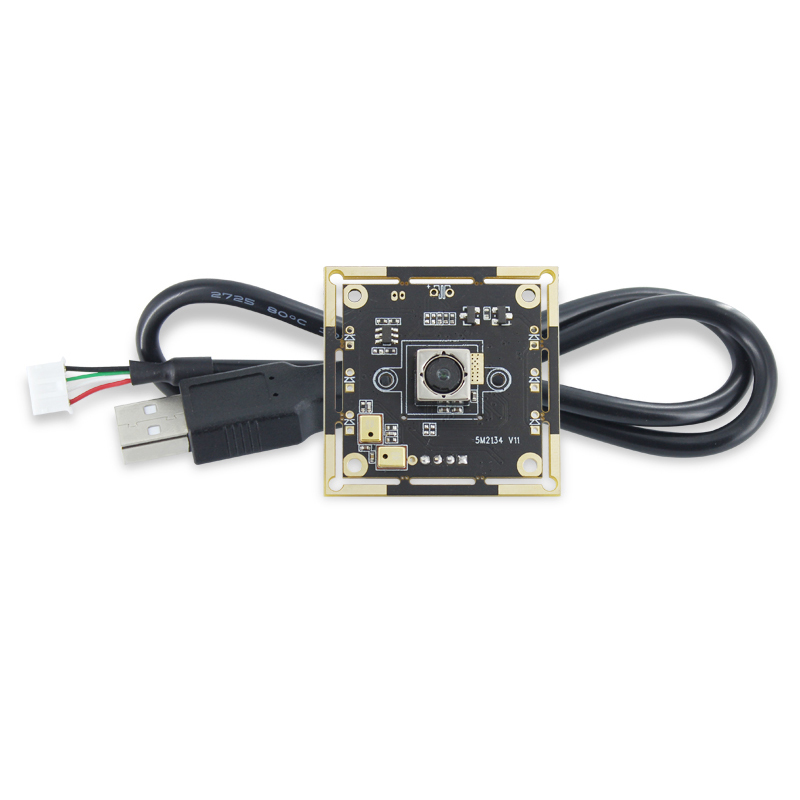

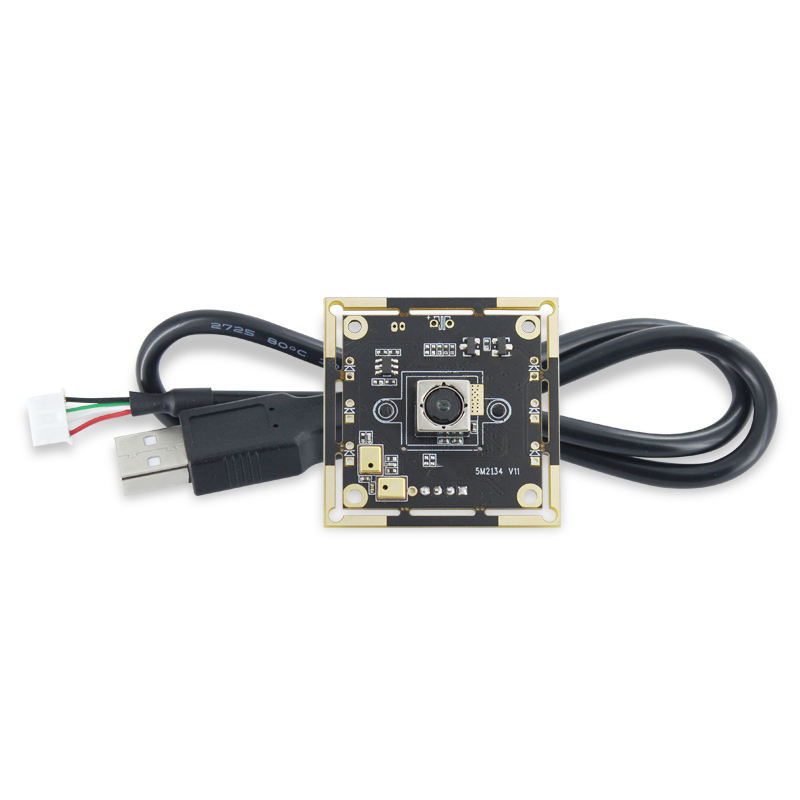

ODM Auto Focus Camera Module 5MP with Face Recognition
$7.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 5MP USB camera module |
| Module No | BM5M2134 V11-76 |

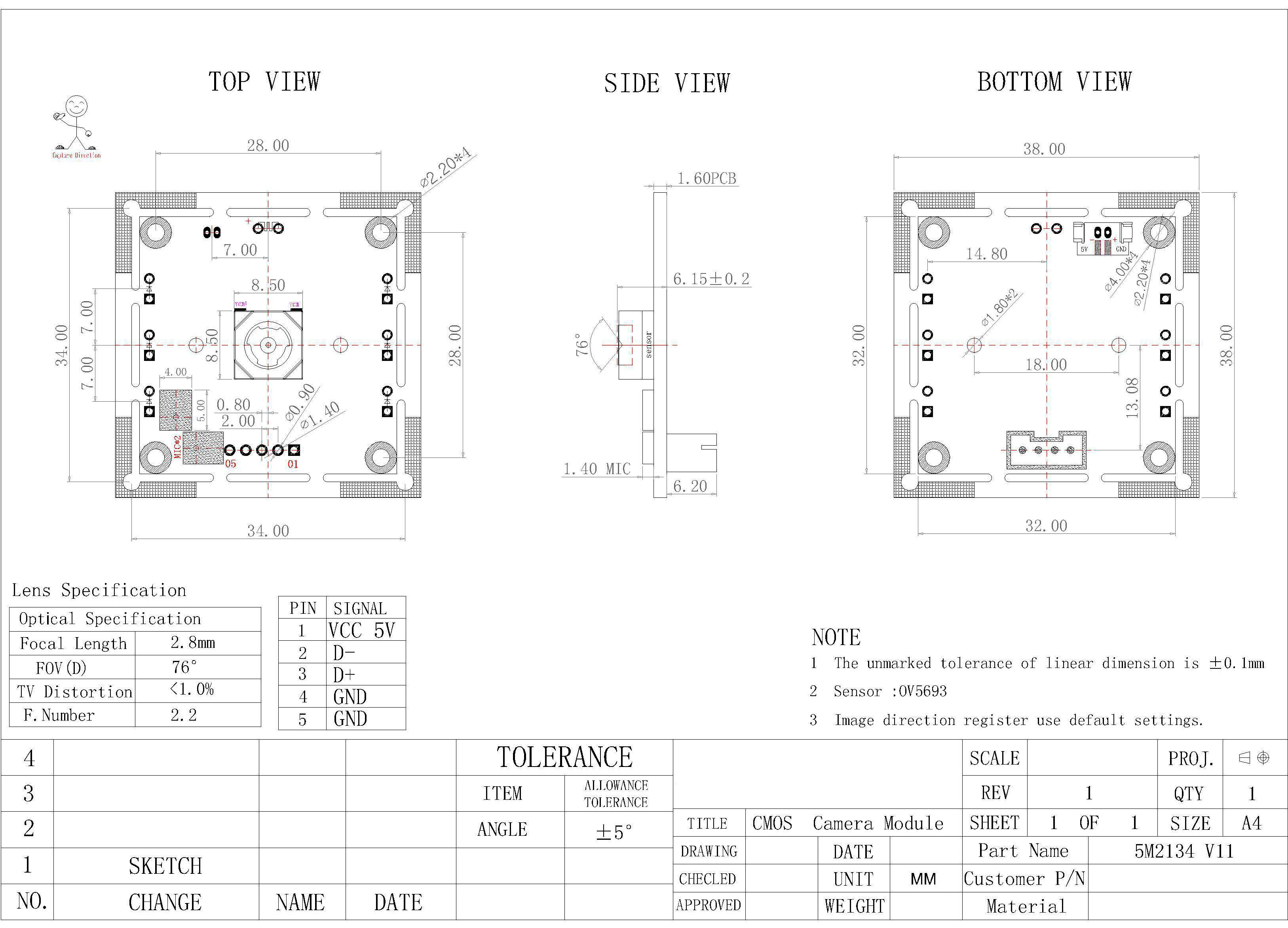

| Module Size | 38mm × 38mm × 6.15mm±0.2MM |
| specificities | 1. Standard size:38mm*38mm/32mm*32mm 2. The effect of portrait and recognition is relatively good 3. Wide range of lens options 4. 6 additional plugins can be soldered, and the white light can be made into an on/off diagram. The diagram can also be turned off or the light can be photosensitive controlled 5. MJPEG-2592x1944 can support 30 frames 6. With 2k resolution 7. Disadvantage: It is not possible to weld infrared lights |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto Focus |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |

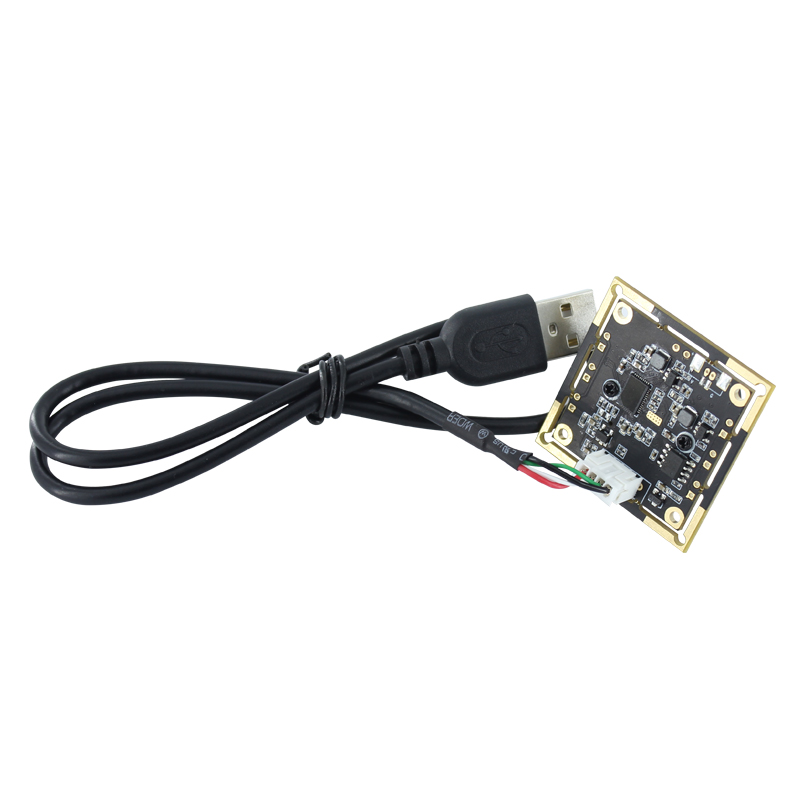

| interface | USB2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5693 (1/4" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 780mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 36db |
| Max Dynamic Range | 71.6db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4P |
| F/No | 2.2 |
| EFL | 2.8 mm |
| FOV | 76° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
