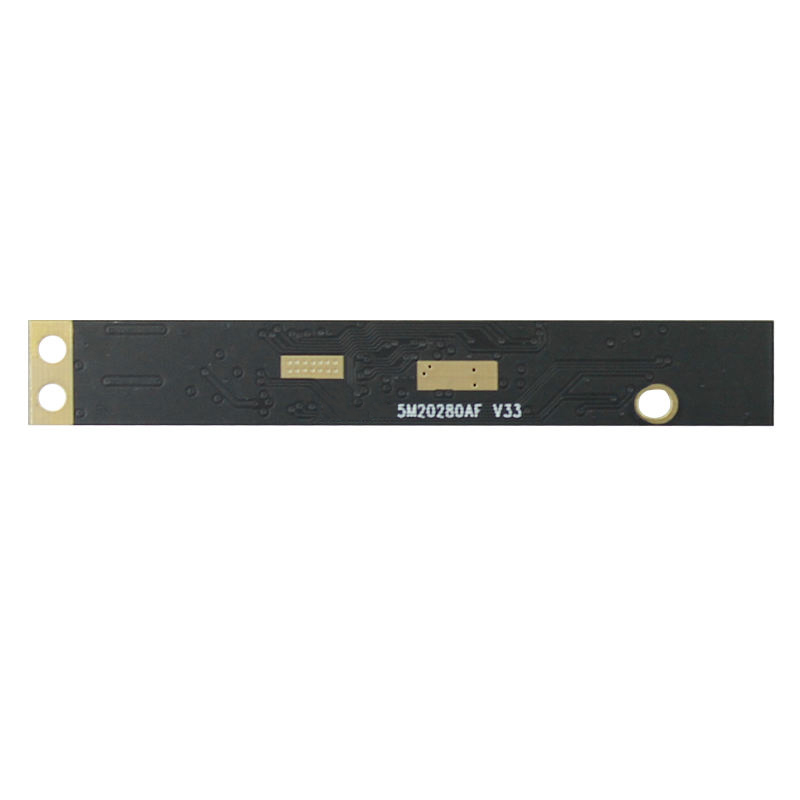

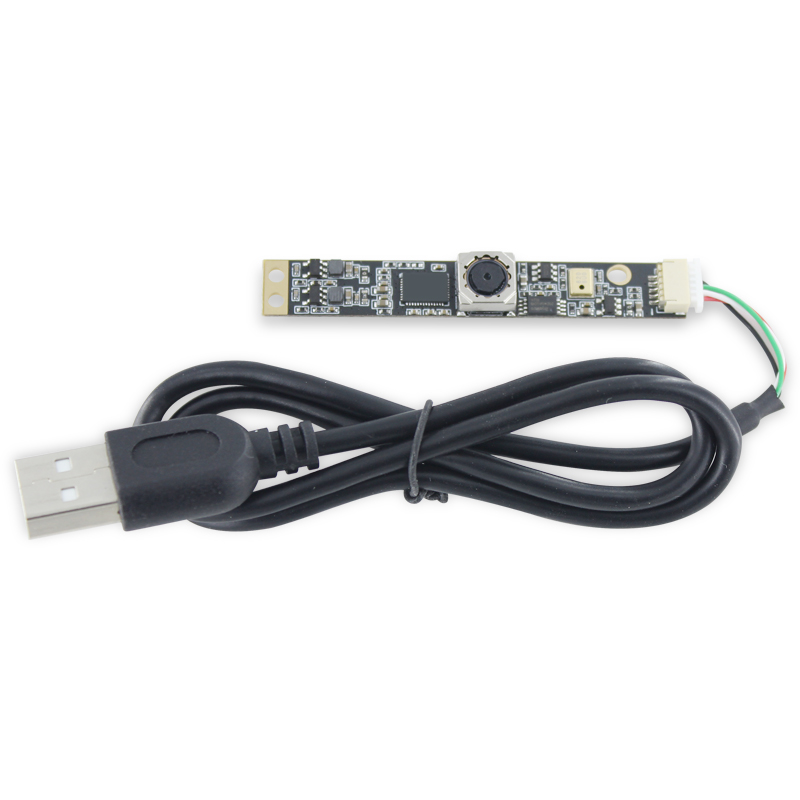

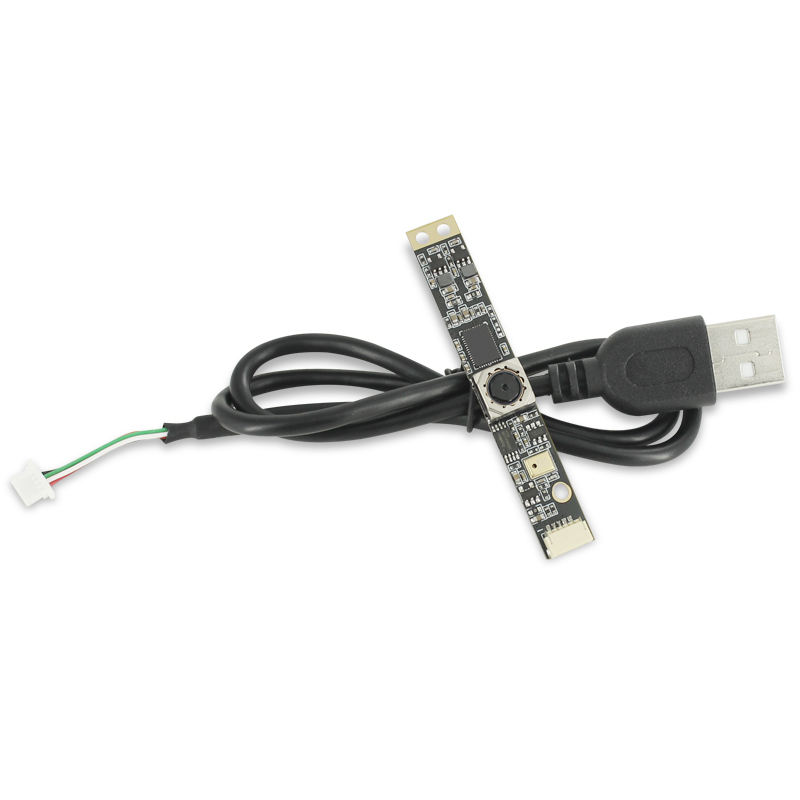

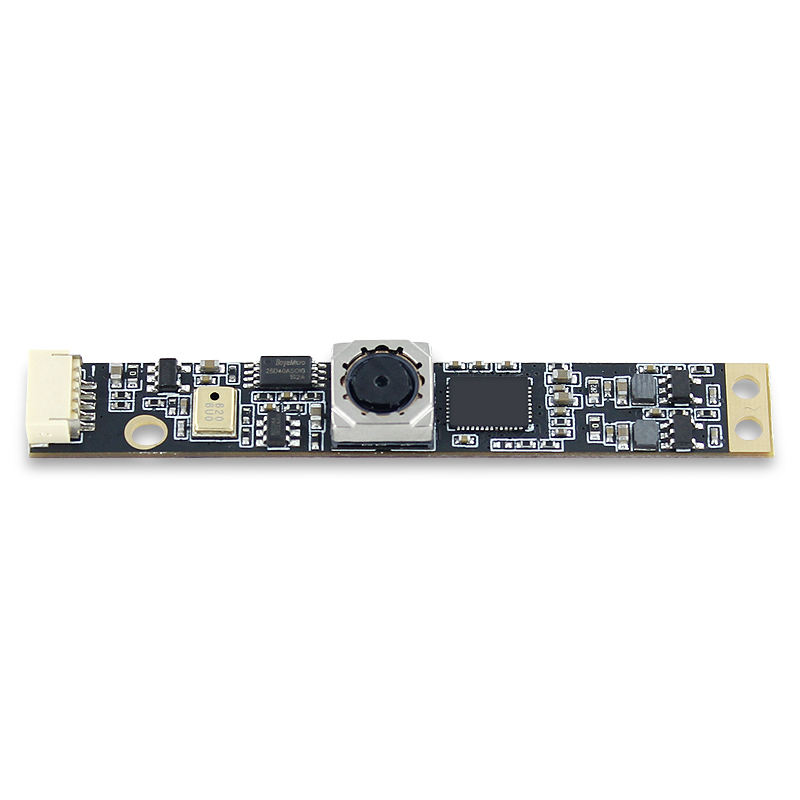

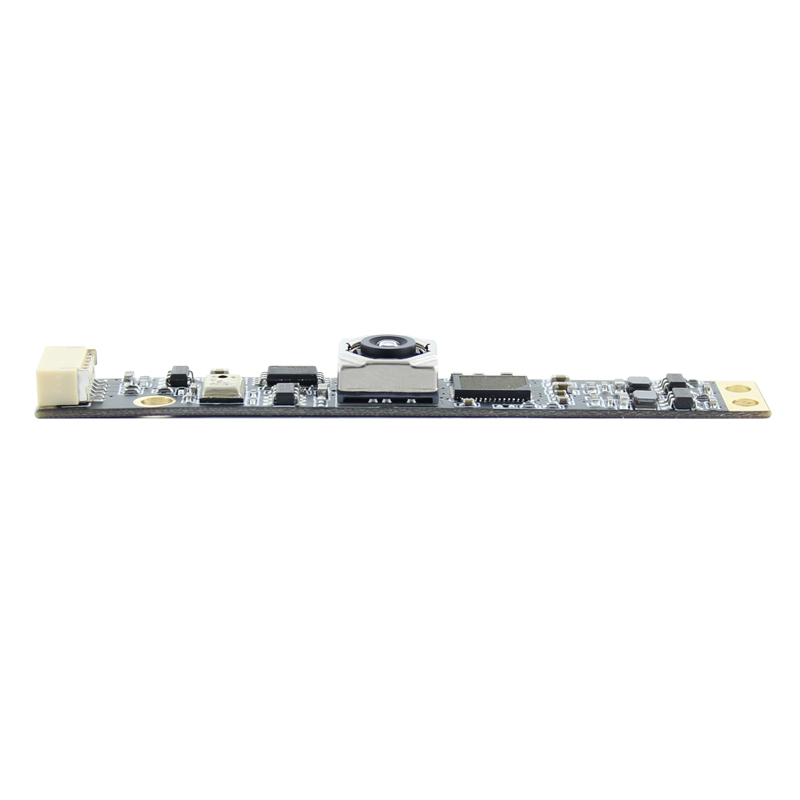

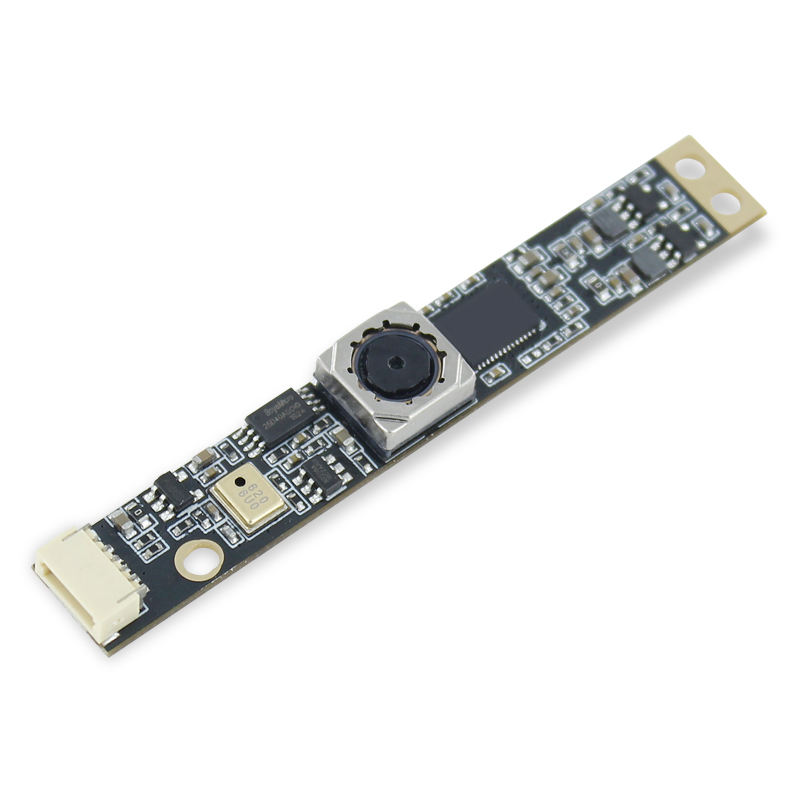

OV5647 PC all-in-one computer camera module 2K HD autofocus
$18.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 5MP Laptop Webcam Module |
| Module No | BM5M20280AF V33-78 |

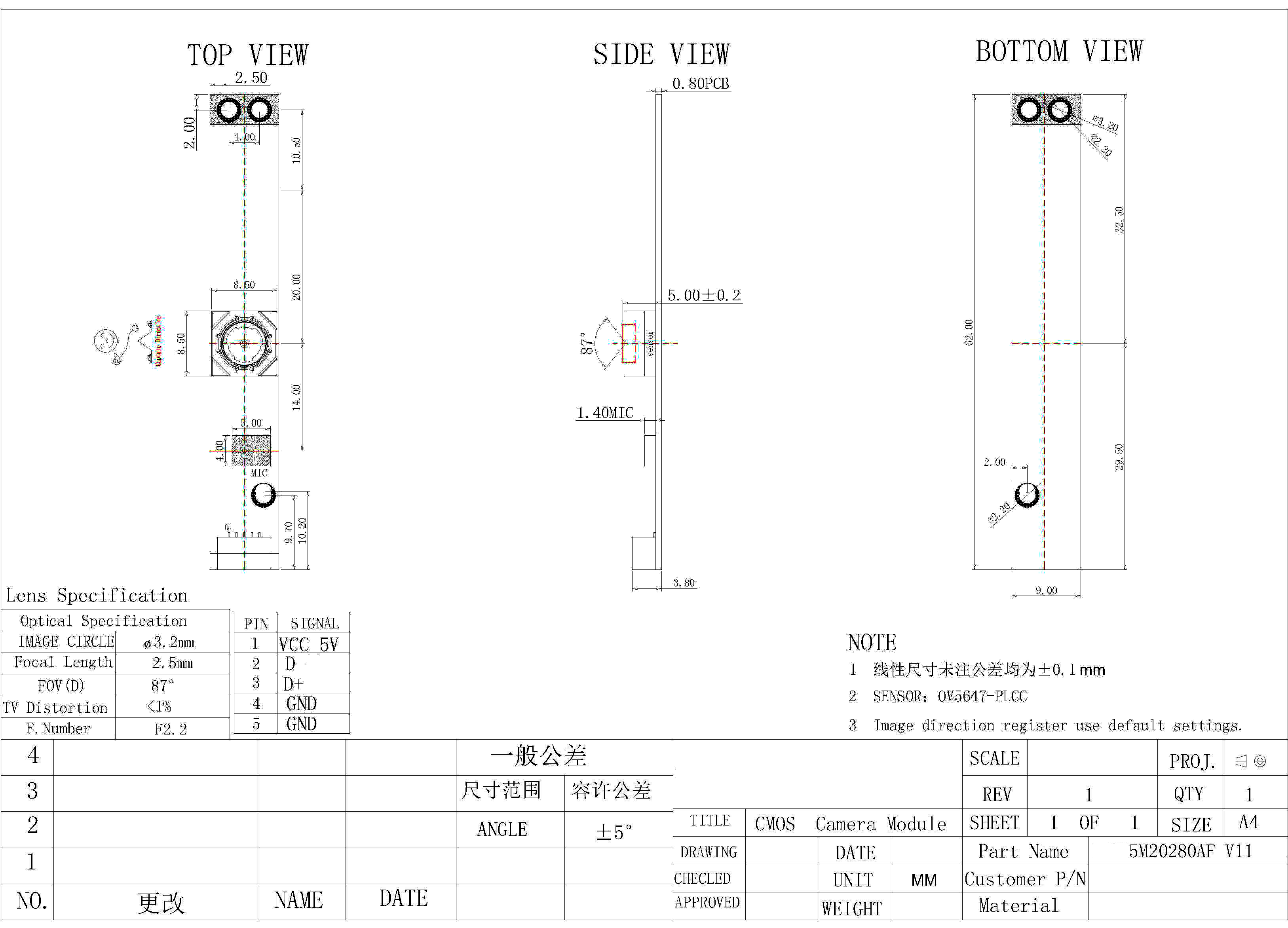

| Module Size | 62mm × 9mm × 5.50mm±0.2MM |
| specificities | 1. Standard advertising machine integrated machine structure and hole position 2. With 2k resolution 3. Integrated digital microphone 4. Upgraded on the 1825-5640 product, the focusing algorithm is more sensitive and precise, with better results compared to no flash 5. Multiple camera options available |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 740 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5647 (1/4" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 600mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 34db |
| Max Dynamic Range | 67db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4P |
| F/No | 2.2 |
| EFL | 2.5 mm |
| FOV | 87° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
