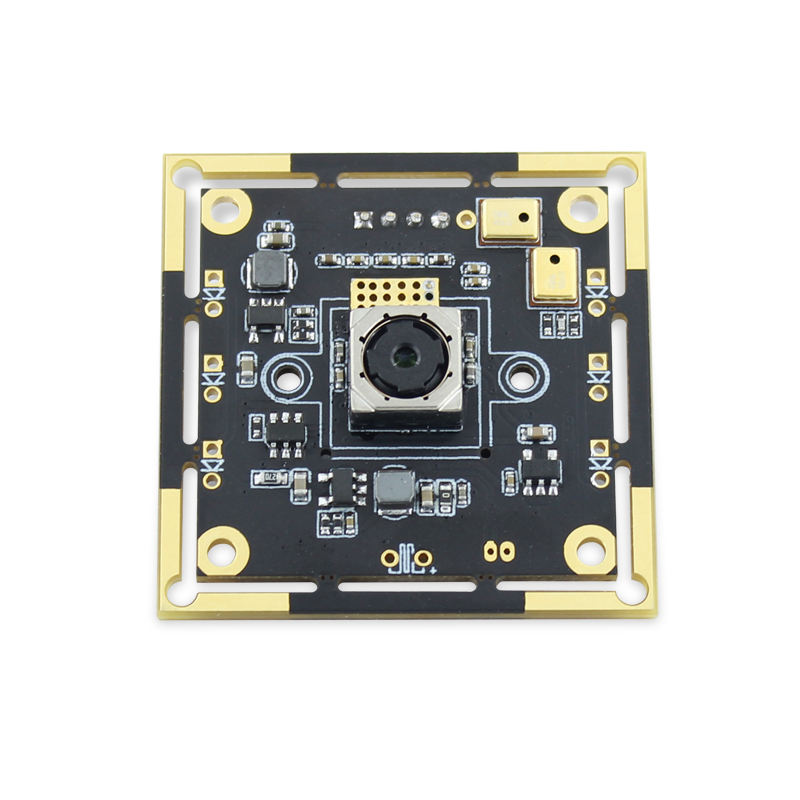

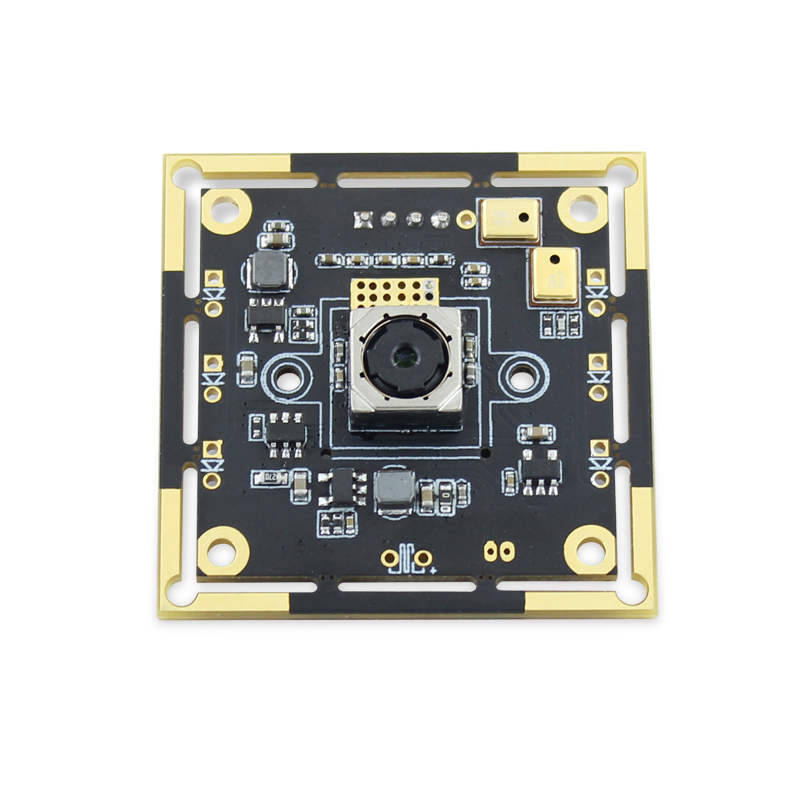

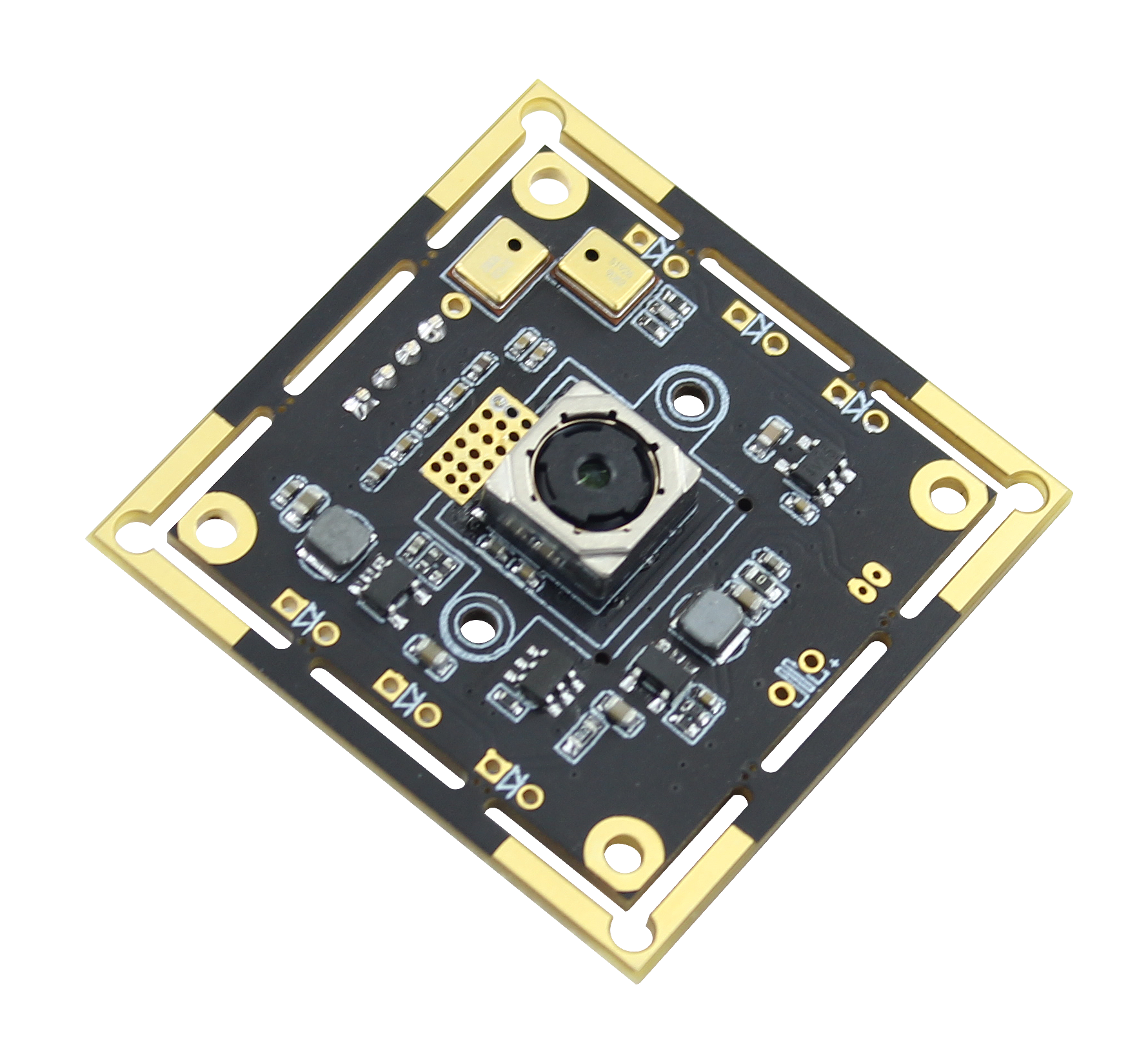

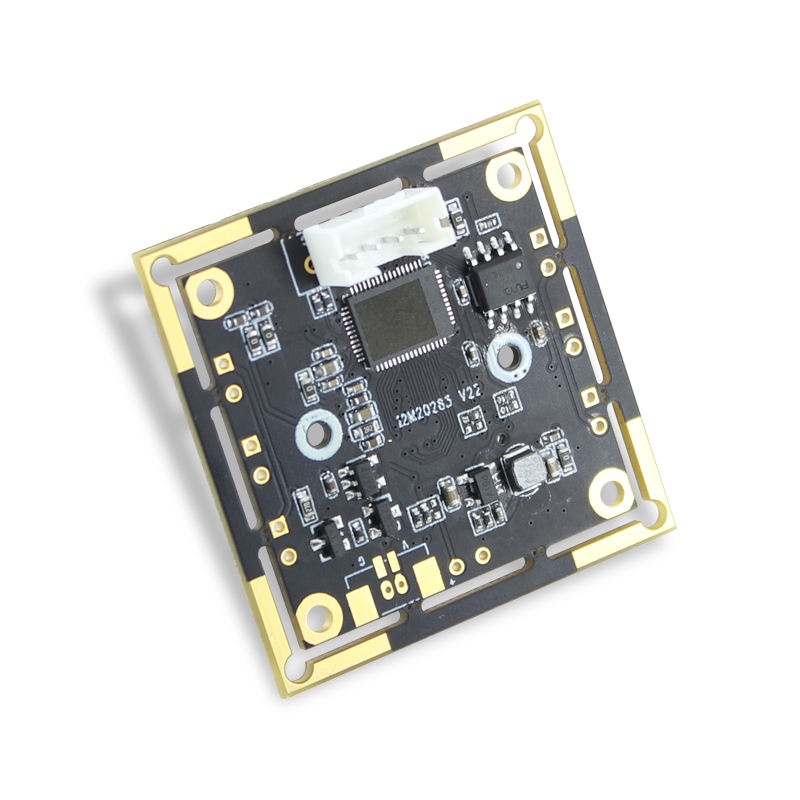

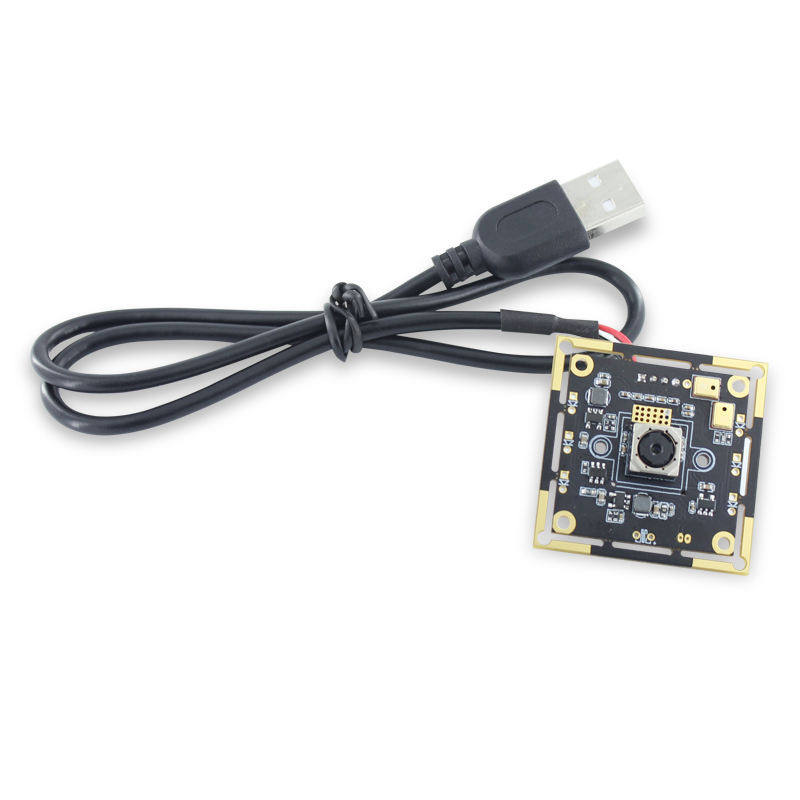

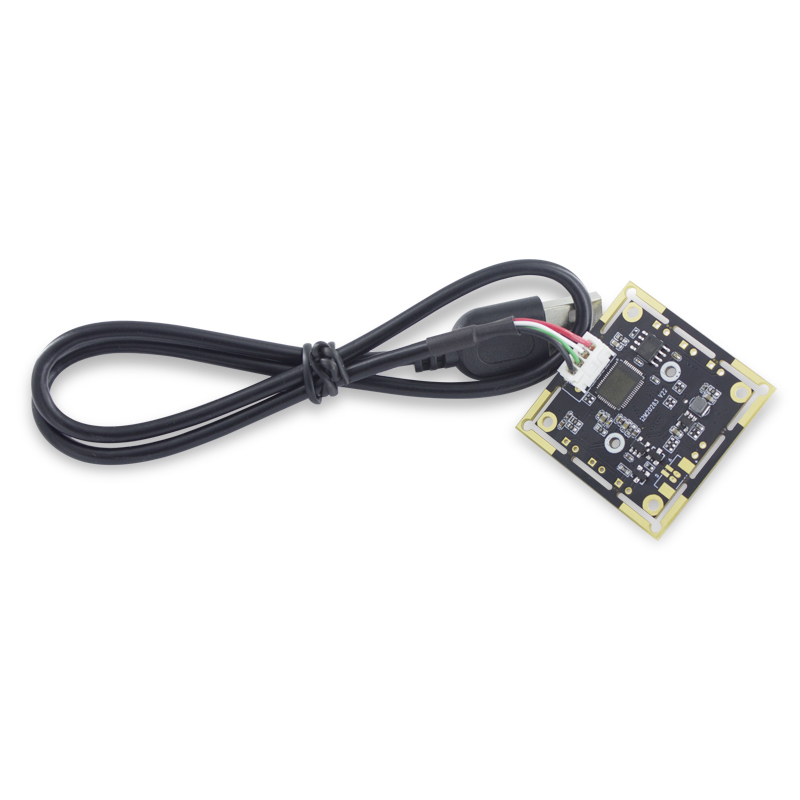

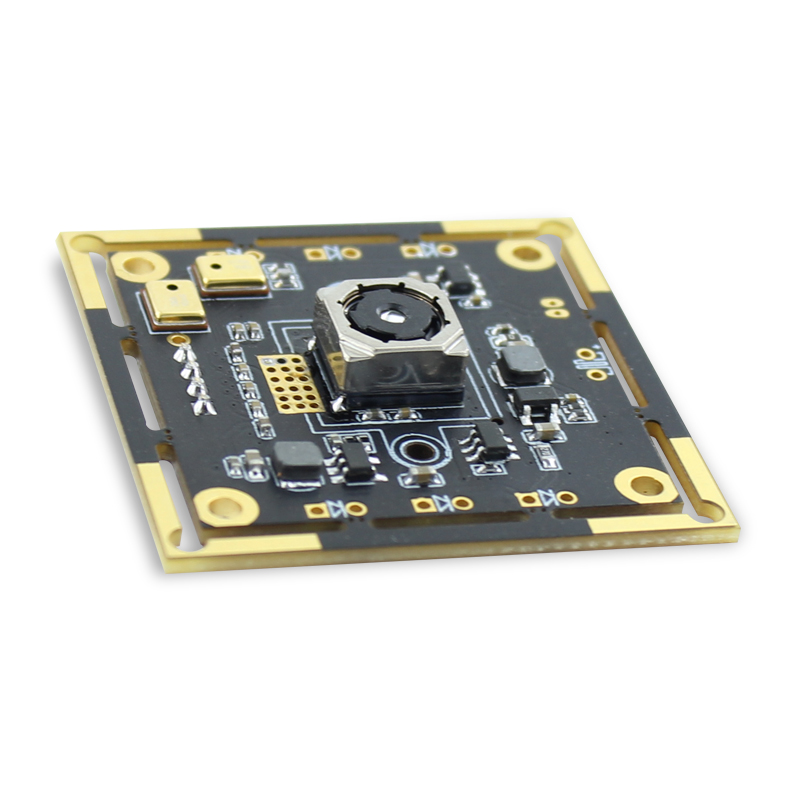

12MP 4K Ultra HD Camera Module for Document Scanning Equipment
$28.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 12MP 4K Camera Module |
| Module No | BM12M20283 V22 - 78 |
| Module Size | 38mm × 38mm × 6.4mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX258 (1/3.06" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3840*3104 |
| Sensitivity | 50mV /（lux-sec） |
| Pixel Size | 1.12µm x 1.12µm |
| Maximum Image Transfer Rate | MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2448 30FPS / YUY2 3264x2448 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS MJPEG 3840x3104 15FPS / YUY2 3840x3104 1FPS |
| S/N Ratio | 40db |
| Max Dynamic Range | 83db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 6P |
| F/No | 2.0 |
| EFL | 3.57 mm |
| FOV | 78° |
| TV Distortion | <1.5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 940±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
