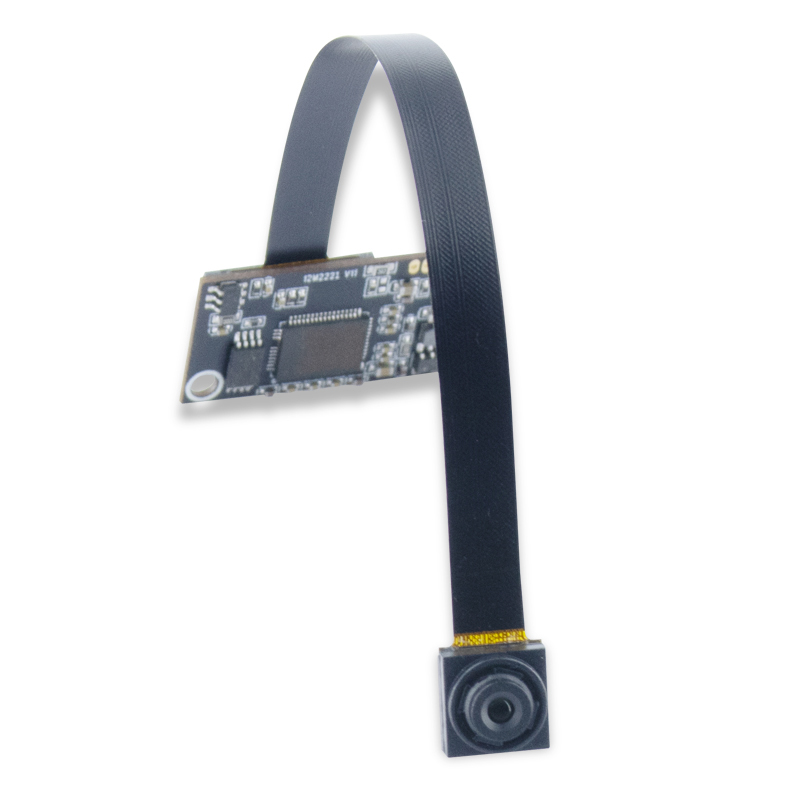

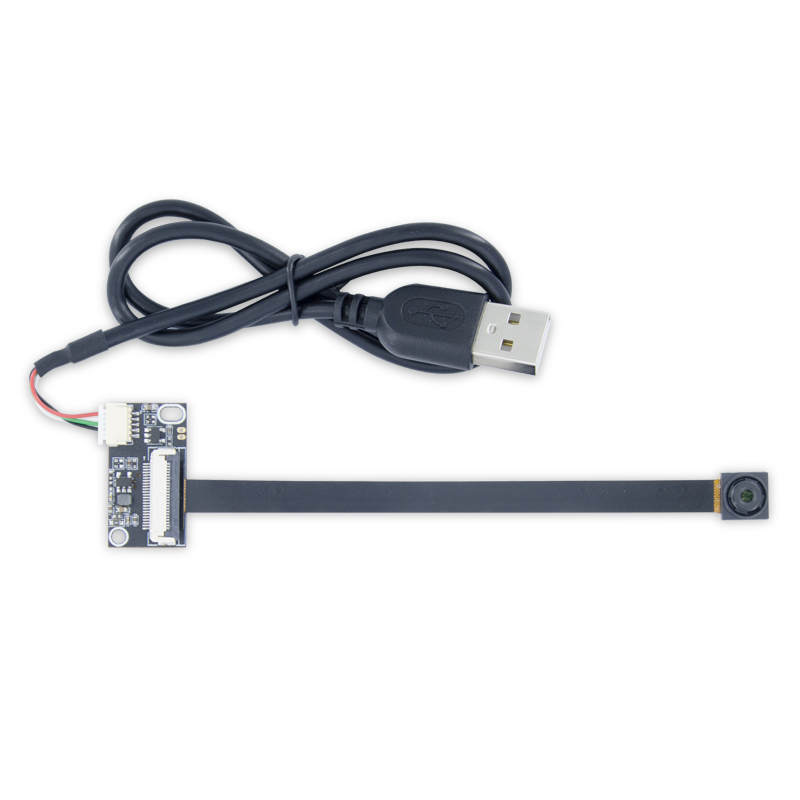

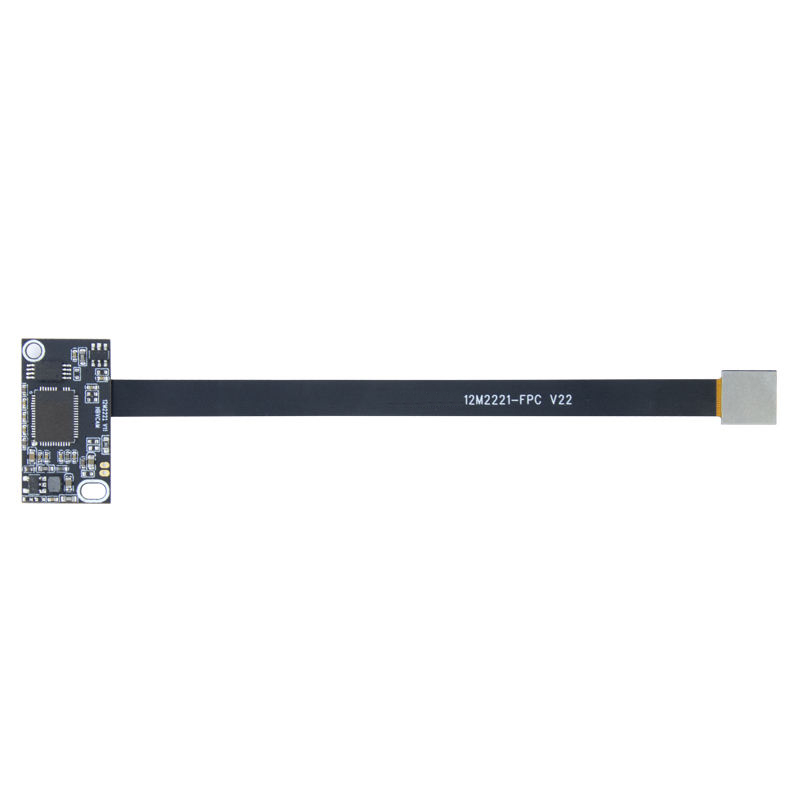

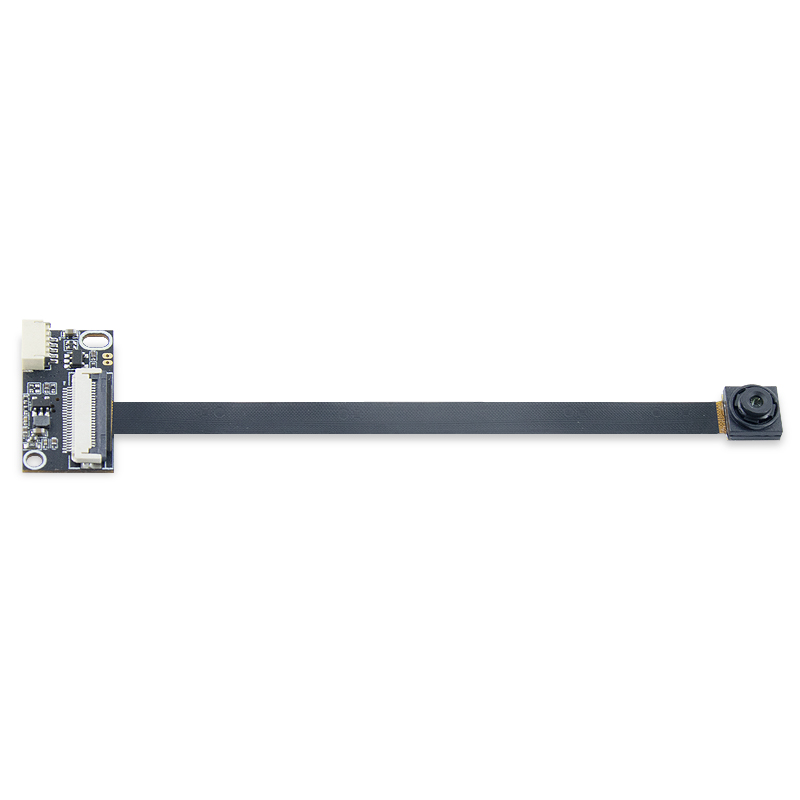

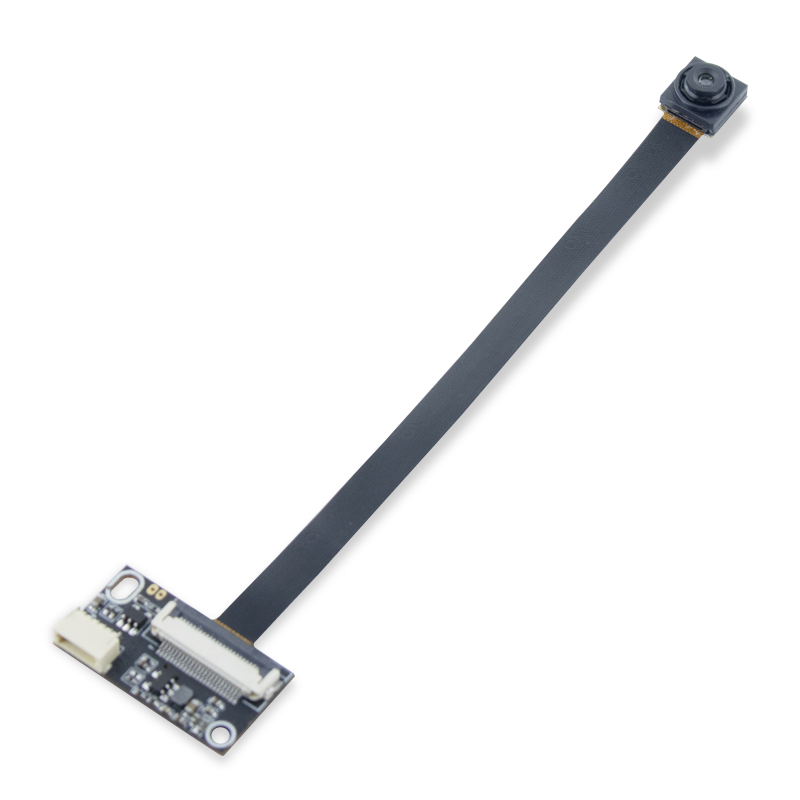

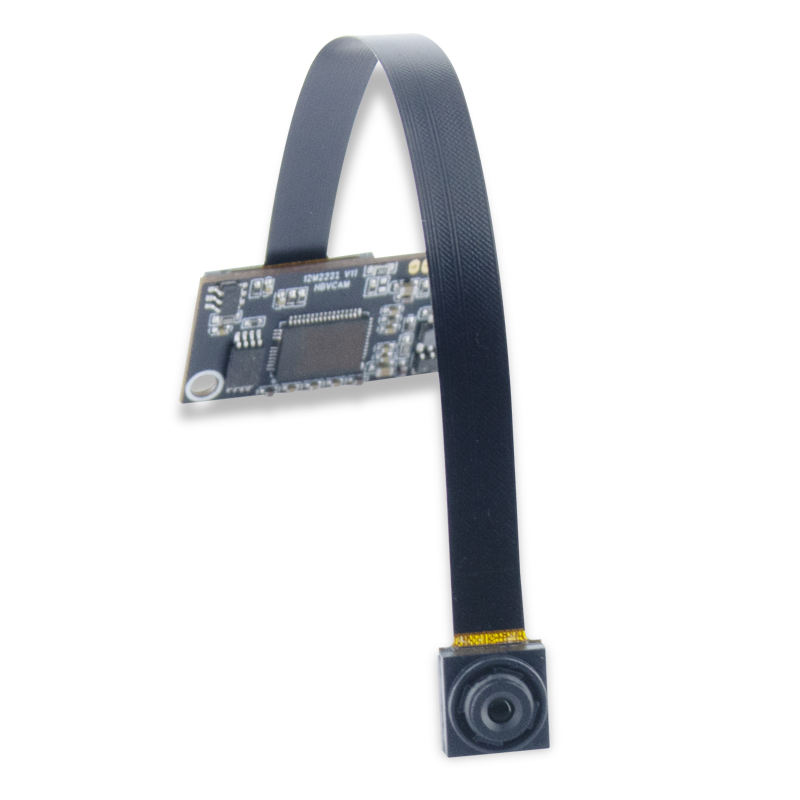

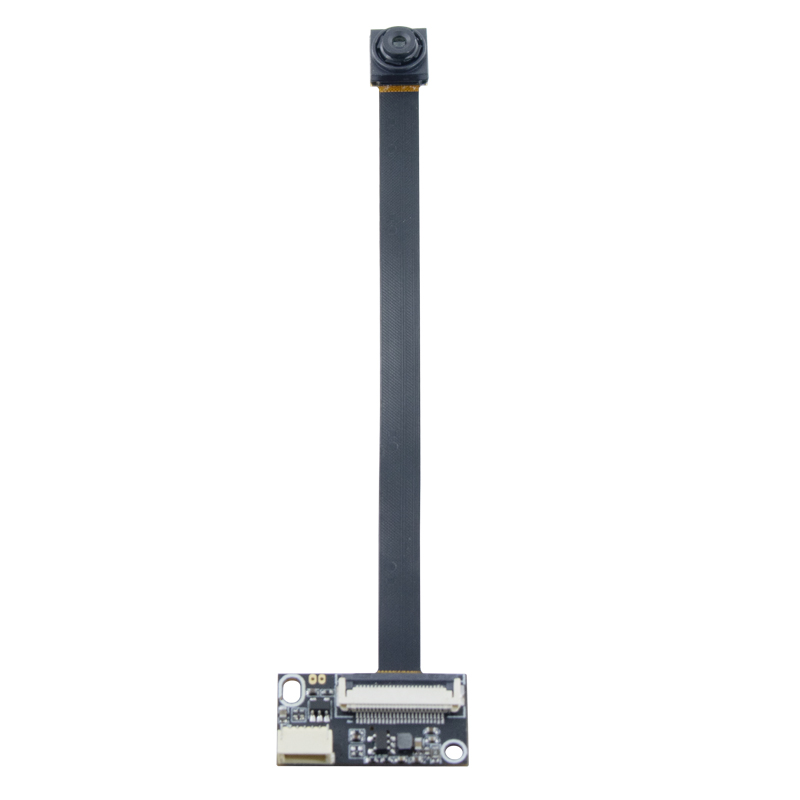

12MP industrial camera module integrated computer camera module
$28.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 12MP 4K Industrial Equipment Camera Module |
| Module No | BM12M2221 V22-80 |
| Module Size | 118.30mm × 26.00mm × 5.50mm±0.2MM |
| Features | 1. Flexible structure and small volume of split soft and hard boards 2. The FPC part can be customized in length and shape 3. Default 4K resolution 3840x2160 mjpeg 30 frames 4. Installation hole position compatible with 1466 product structure |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX258 (1/3.06" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3840*3104 |
| Sensitivity | 50mV /（lux-sec） |
| Pixel Size | 1.12µm x 1.12µm |
| Maximum Image Transfer Rate | MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2448 30FPS / YUY2 3264x2448 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS MJPEG 3840x3104 15FPS / YUY2 3840x3104 1FPS |
| S/N Ratio | 40db |
| Max Dynamic Range | 83db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 6P |
| F/No | 1.8 |
| EFL | 3.95 mm |
| FOV | 80° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
