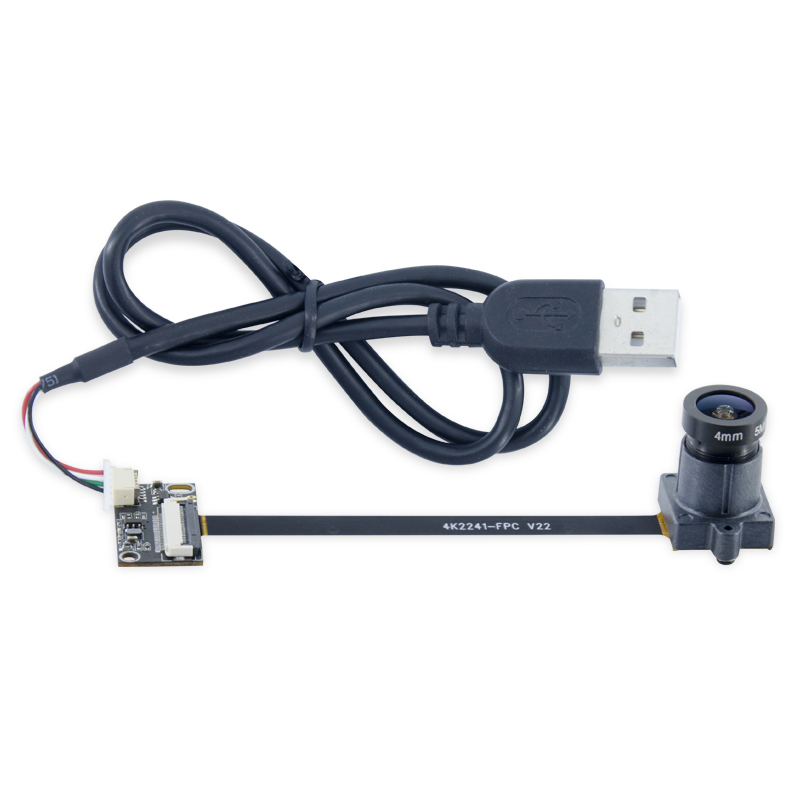

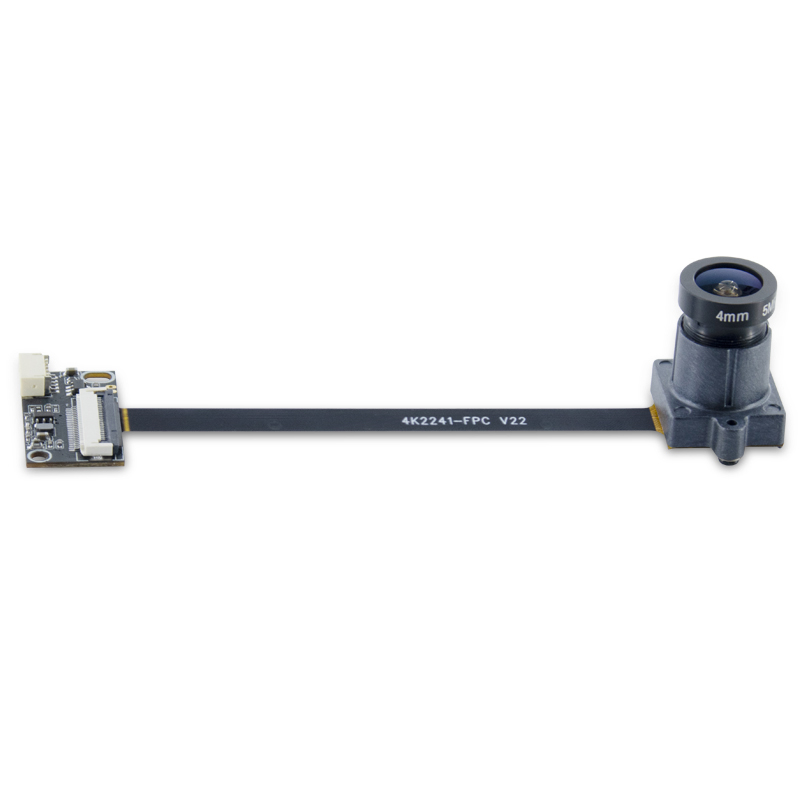

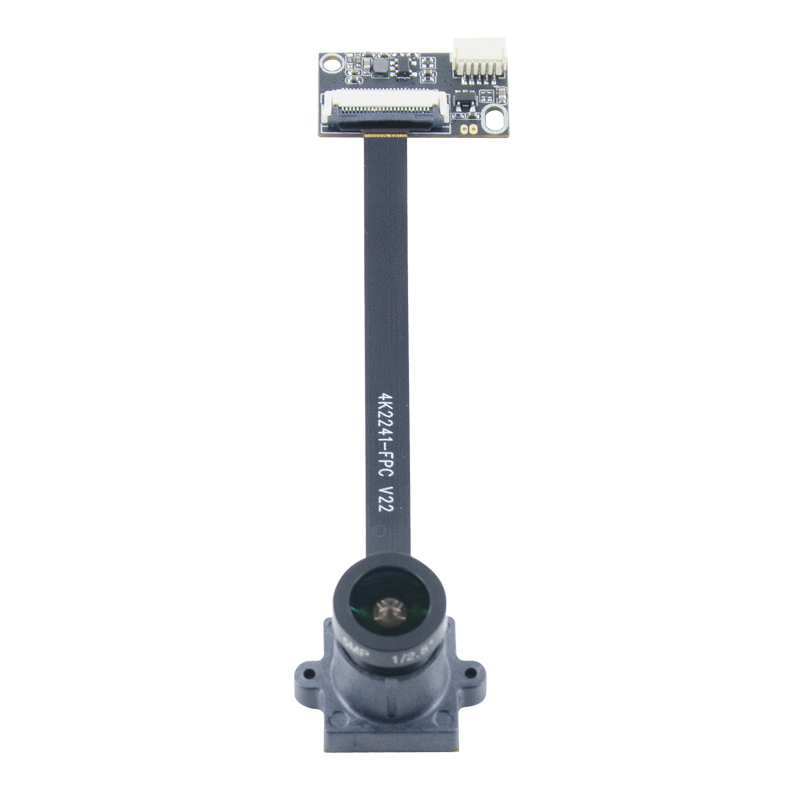

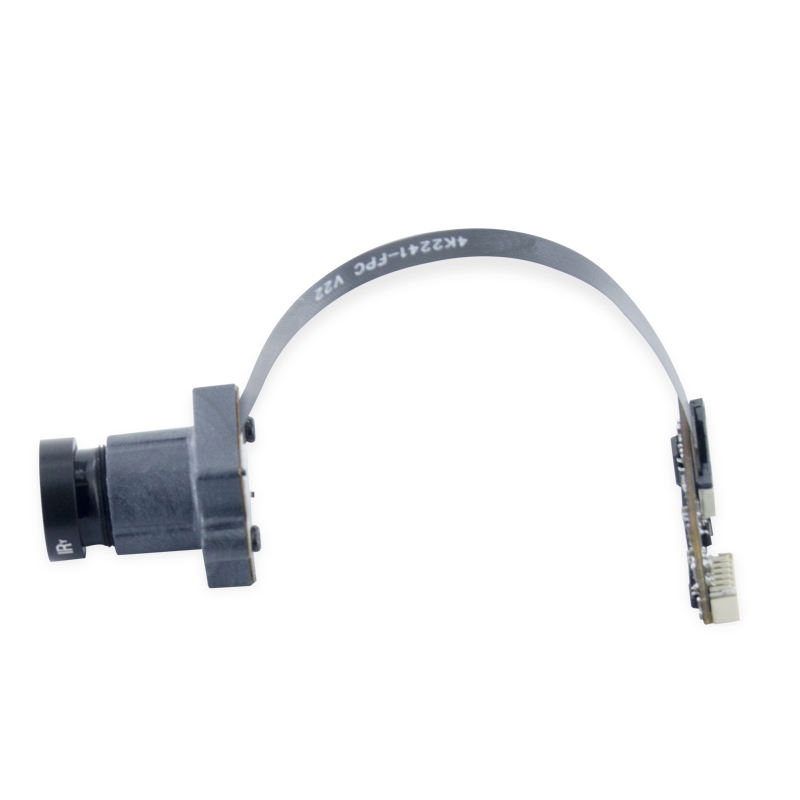

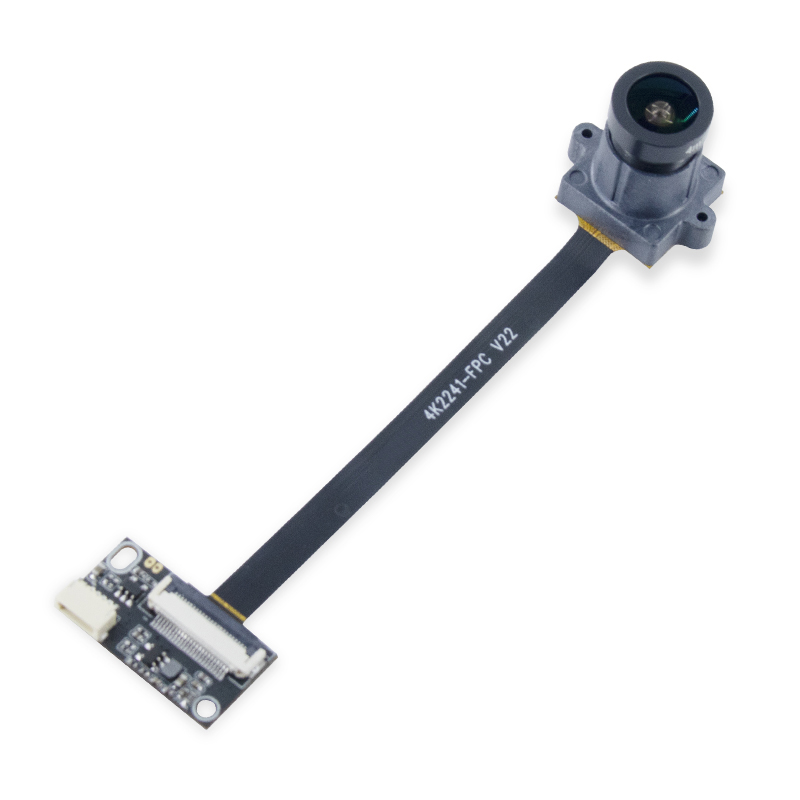

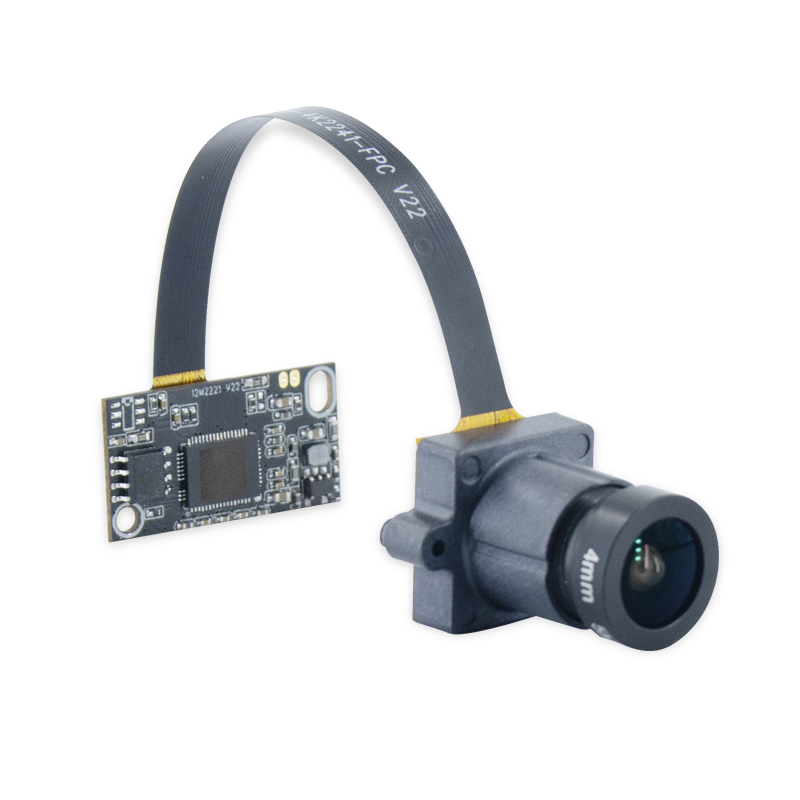

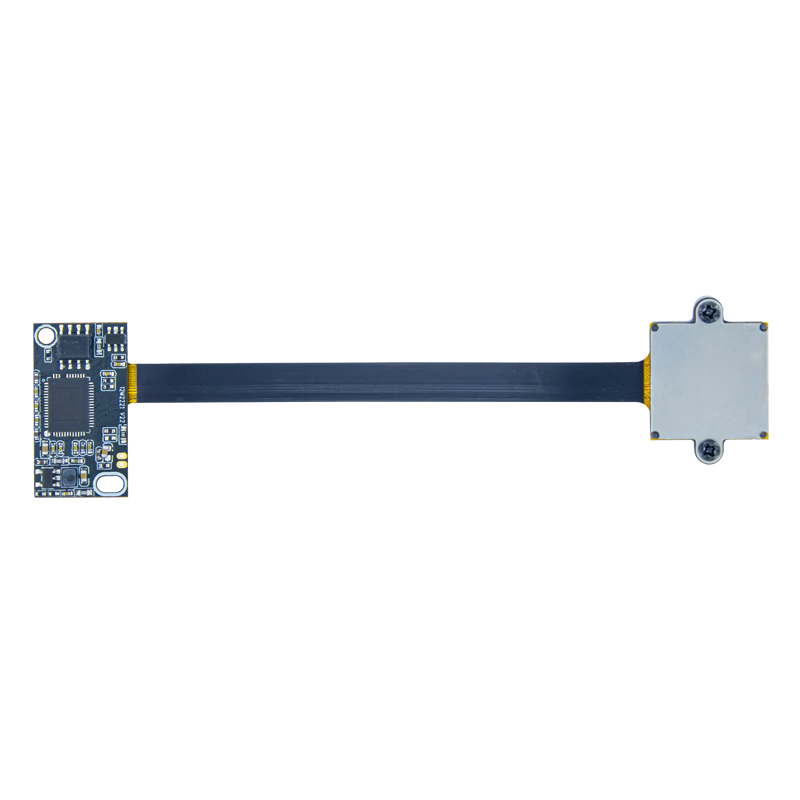

8MP 4K camera module intelligent terminal equipment camera module
$31.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Product Name | 8.29MP 4K Embedded Camera Module |
| Module No | BM4K2241 V22-95 |
| Module Size | 109.70mm × 26.00mm × 23mm±0.5MM |
| Features | 1. Flexible structure and small volume of split soft and hard boards 2. The FPC part can be customized in length and shape 3. The same effect and performance as 4K2246, and the installation hole position is compatible with the 1466 product structure 4. Split version without microphone |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1330 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX415 (1/2.8" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 2000mV /（lux-sec） |
| Pixel Size | 1.0µm x 1.0µm |
| Maximum Image Transfer Rate | MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 3FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2880x2160 30FPS / YUY2 2880x2160 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
| S/N Ratio | 46db |
| Max Dynamic Range | 72db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 6G |
| F/No | 2.0 |
| EFL | 4.0 mm |
| FOV | 95° |
| TV Distortion | <-13.5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
