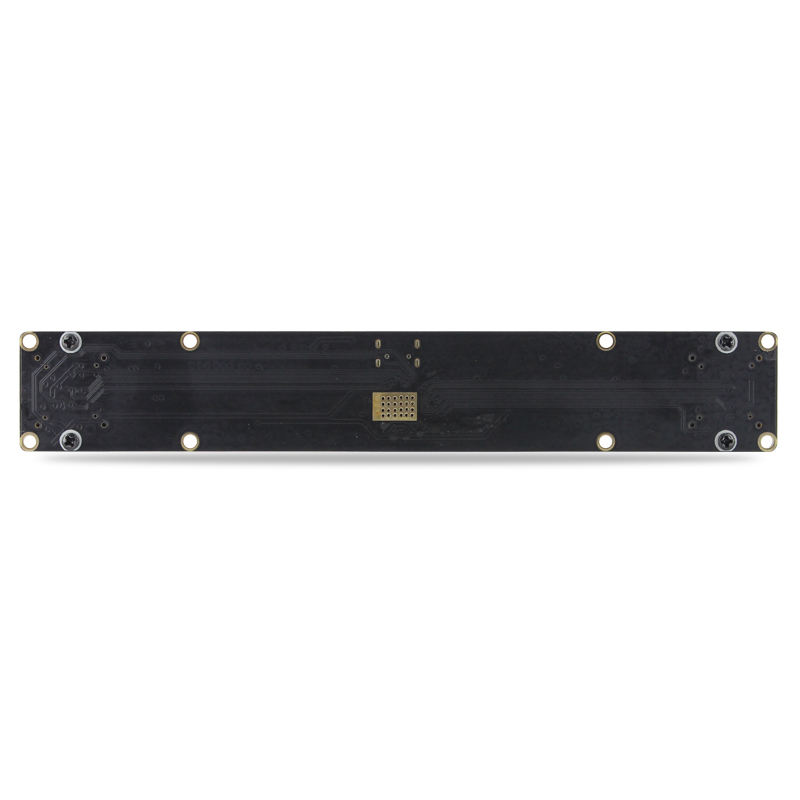

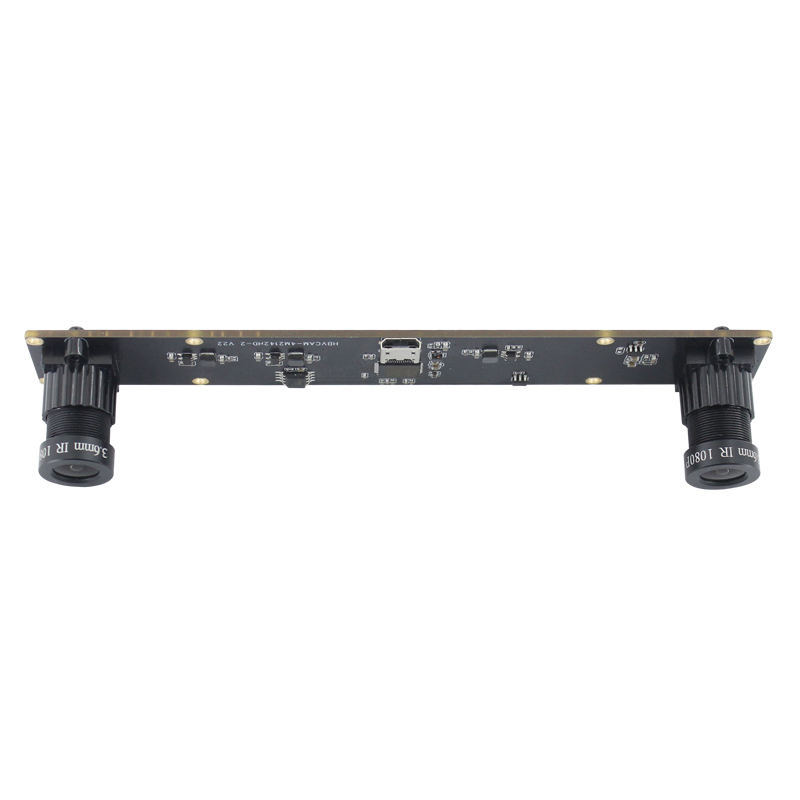

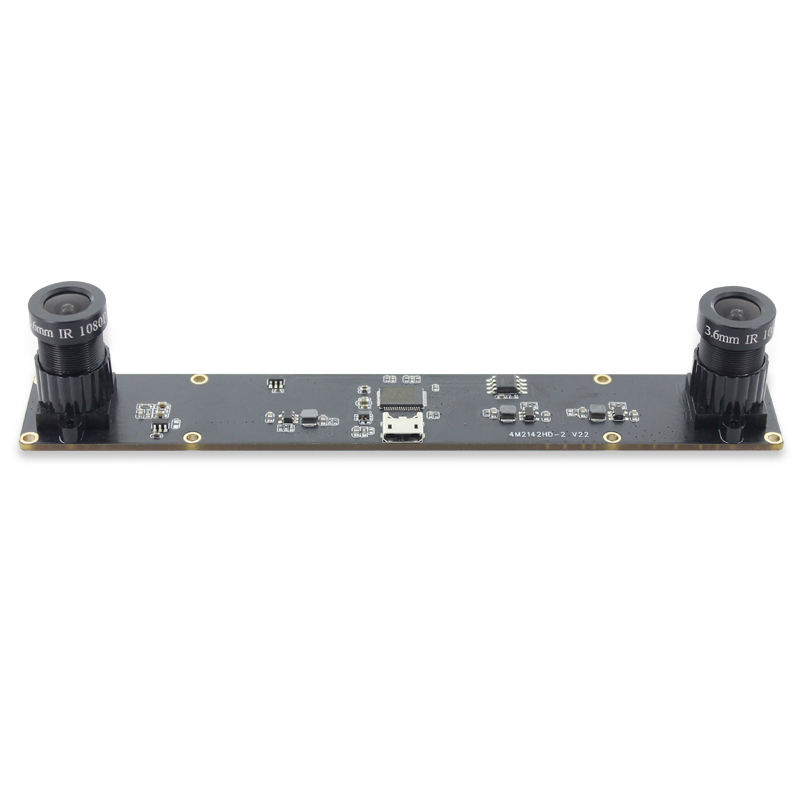

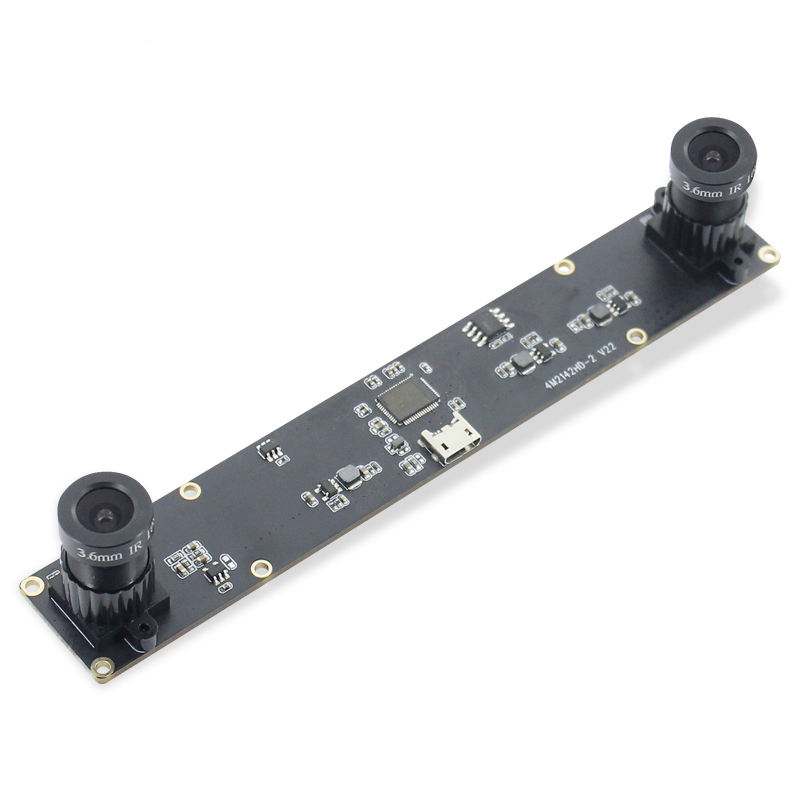

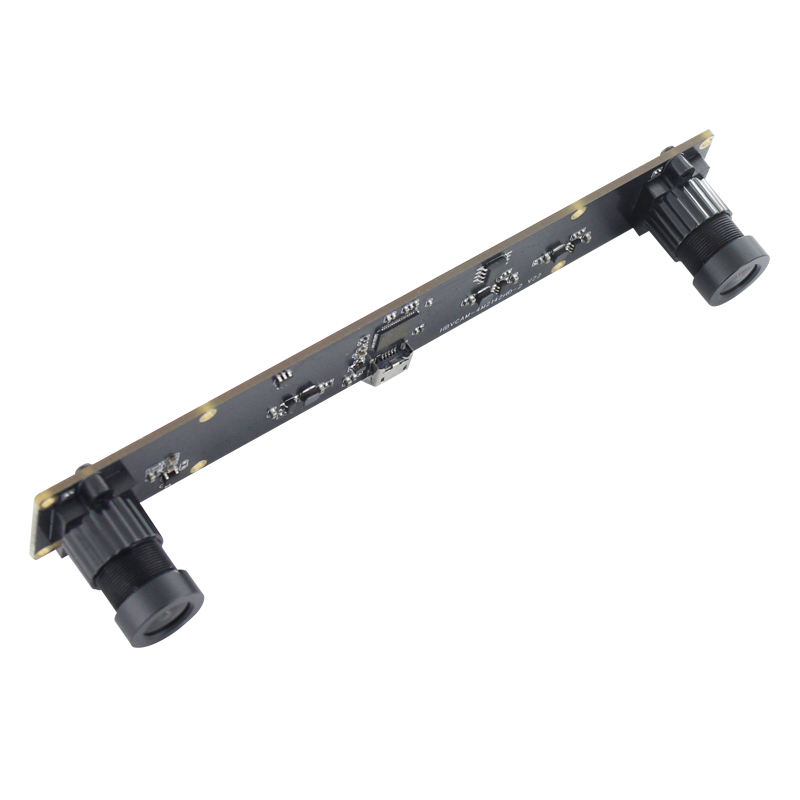

Cmos Sensor Ov4689 4Mp 3D Dual Lens Camera Module 3840*1080 Binocular Camera Module
$55.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 4MP dual 1080P 3D, VR ranging 3D reconstruction binocular synchronous camera module | ||
| Module No. | 4M2142HD-2 V22 | ||

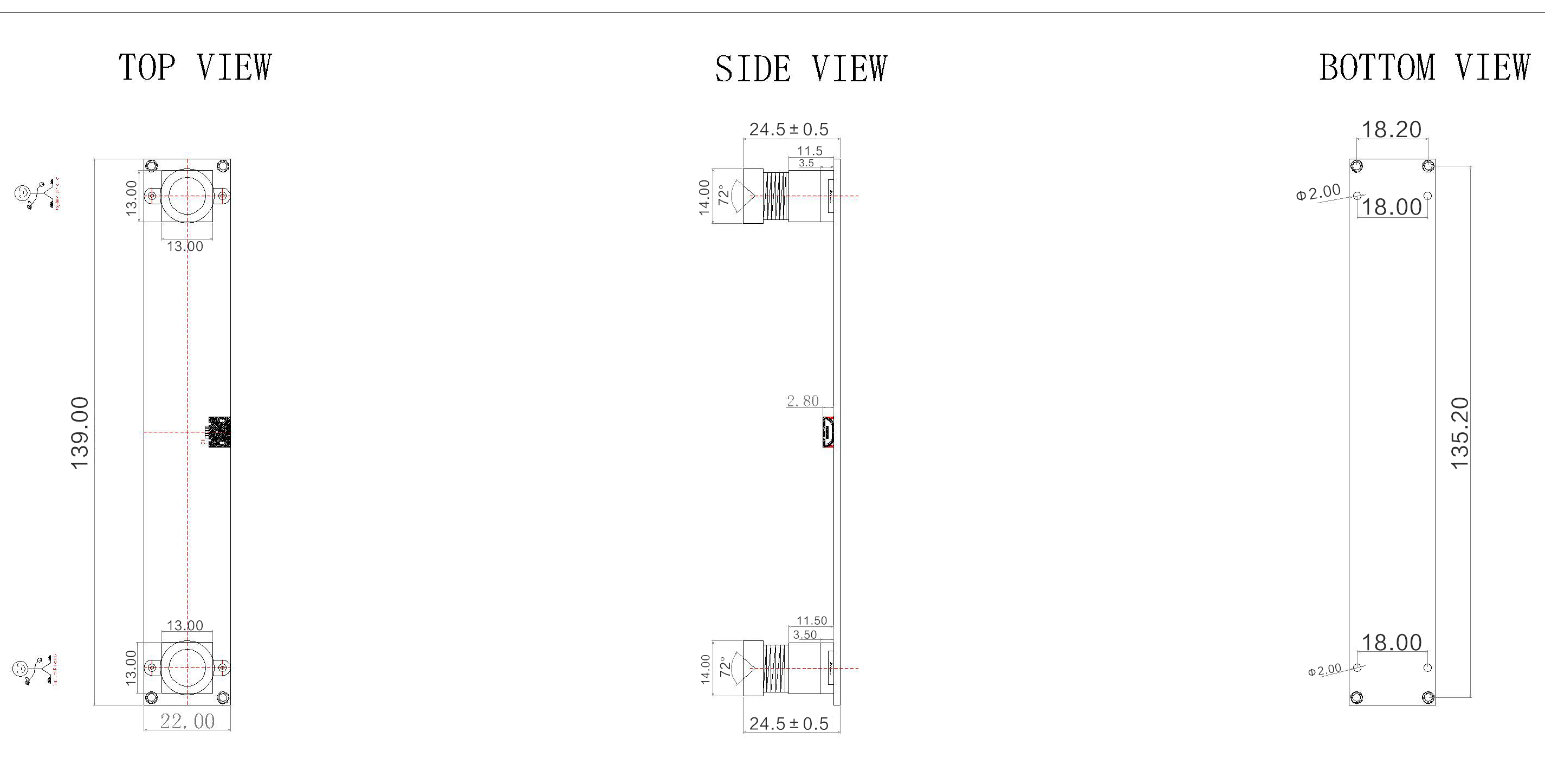

| Module Size | 139mm × 22mm × 24.5mm±0.5MM | ||
| Features | 1.VR ranging 2. 3D reconstruction | ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

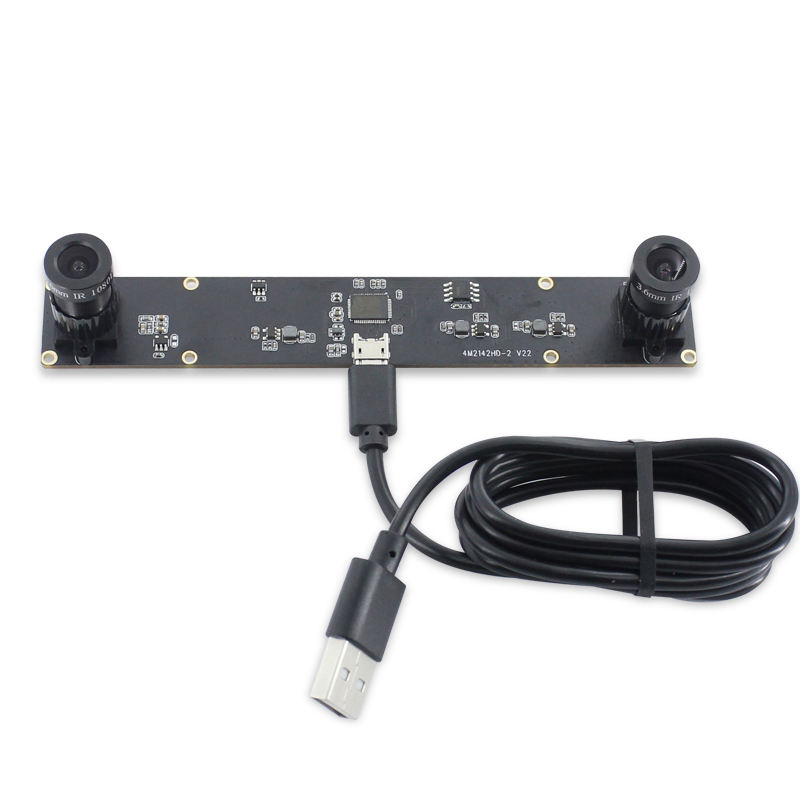

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 840 mW | ||
| Operating system request | Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV4689 (1/3" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 3840*1520 | ||
| Sensitivity | 1900mV /(lux-sec) | ||
| Pixel Size | 2µm x 2µm | ||
| Maximum Image Transfer Rate | MJPEG 1280x480 30FPS / YUY2 1280x480 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 3FPS MJPEG 2160x1080 30FPS / YUY2 2160x1080 3FPS MJPEG 2560x720 30FPS / YUY2 2560x720 3FPS MJPEG 3840x1080 30FPS / YUY2 3840x1080 1FPS MJPEG 3840x1520 30FPS / YUY2 3840x1520 1FPS | ||
| S/N Ratio | 38.3db | ||
| Max Dynamic Range | 64.6db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 2G2P | ||
| F/No | 2.4 | ||
| EFL | 3.6 mm | ||
| FOV | 72° | ||
| TV Distortion | <8% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
Detailed Images
