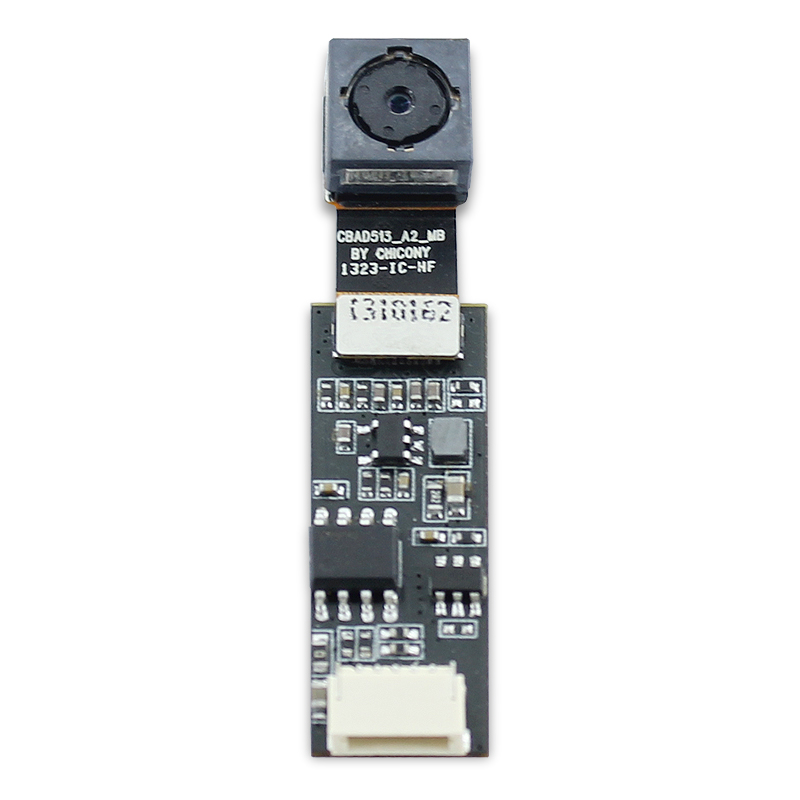

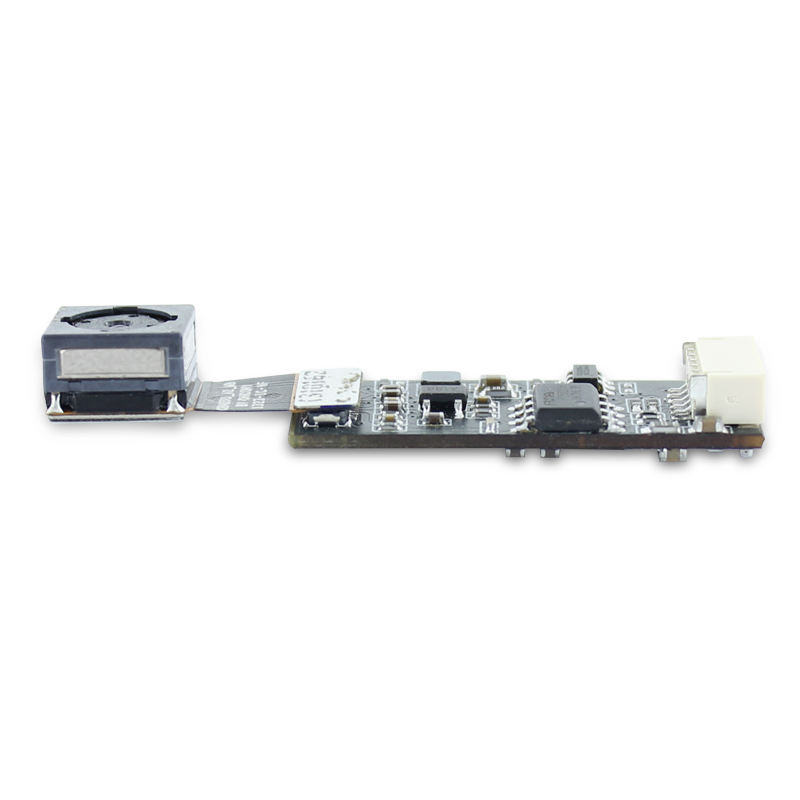

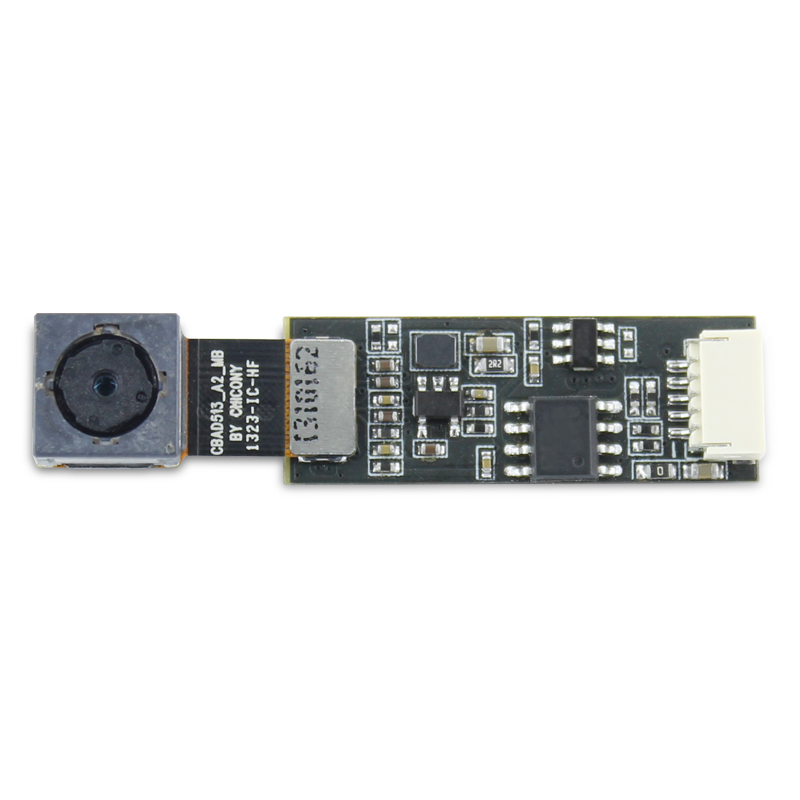

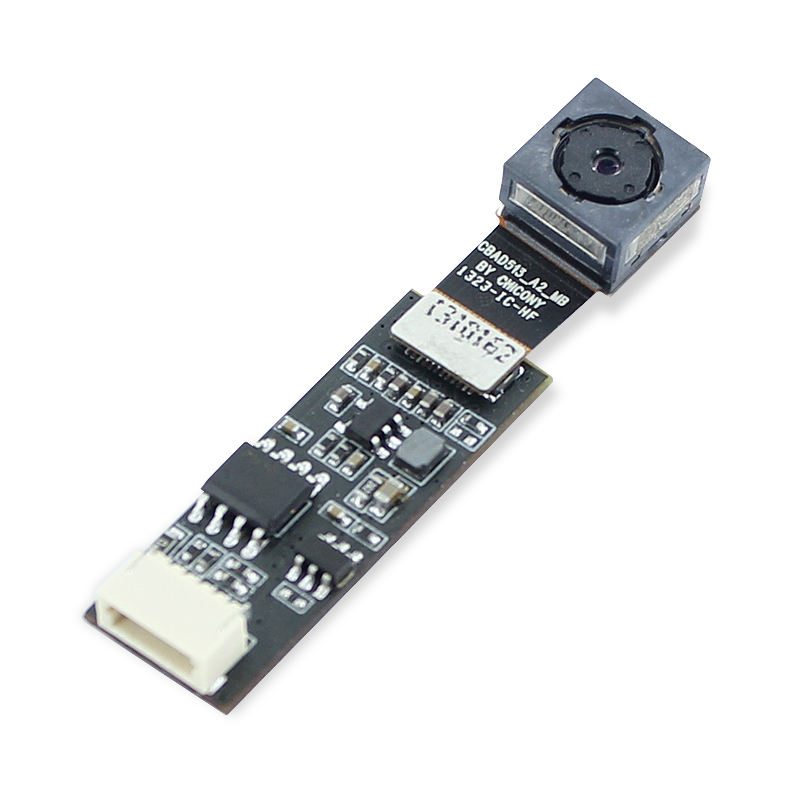

OV5648 5MP auto focus camera module Laptop Camera Module
$21.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Product Name | OV5648 5MP Mini USB camera module |

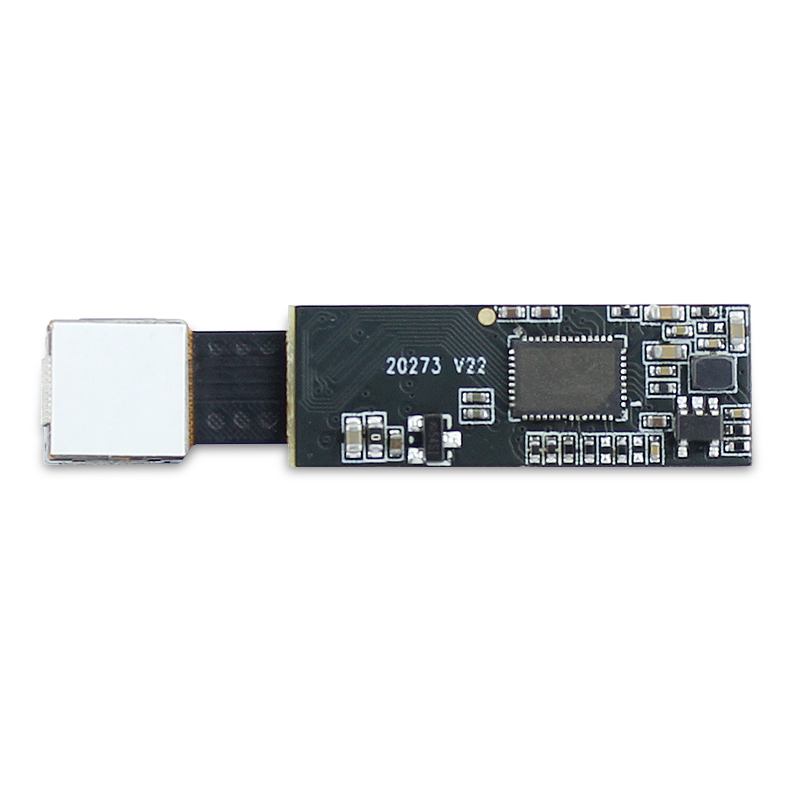

| Module No | BM5M20273 V22 - 65.4 |

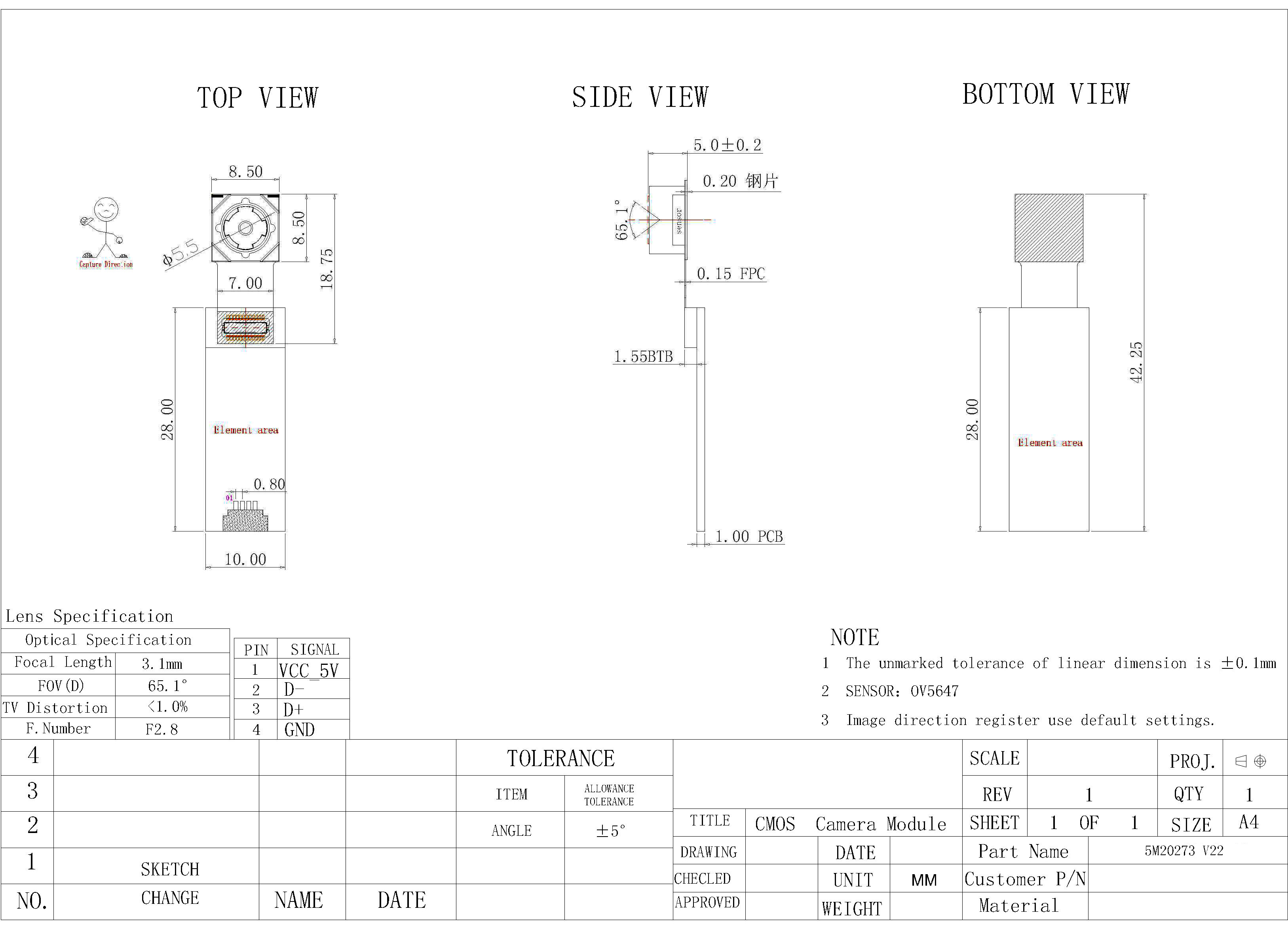

| Module Size | 42.25mm × 10mm × 5.0mm±0.2MM |
| Specificities | 1. Small and flexible structure 2. The head can be customized in terms of structure, size, length, etc 3. The main application can be connected to mobile OTG for use |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |

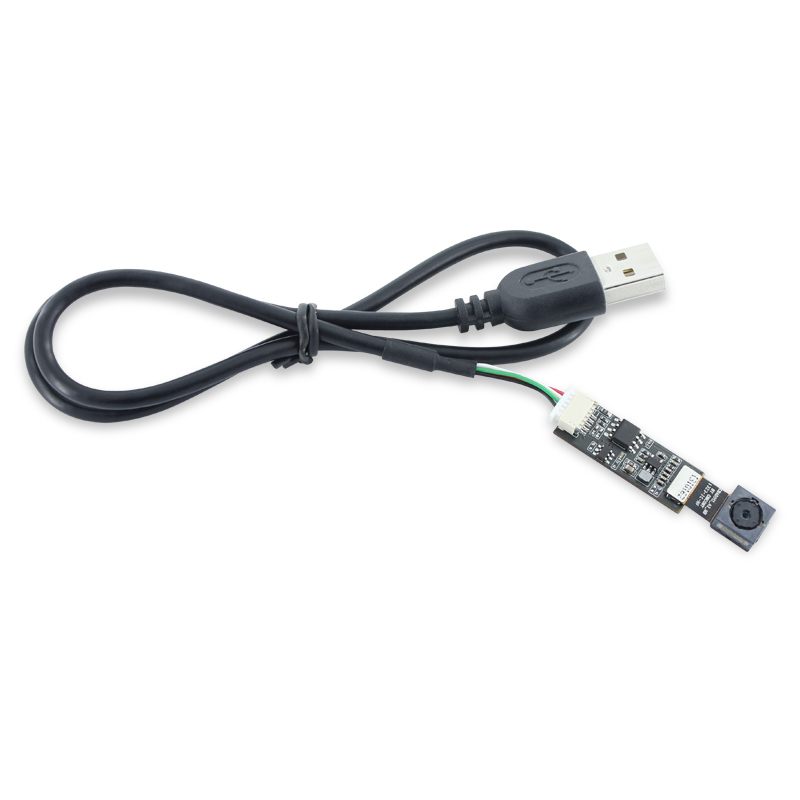

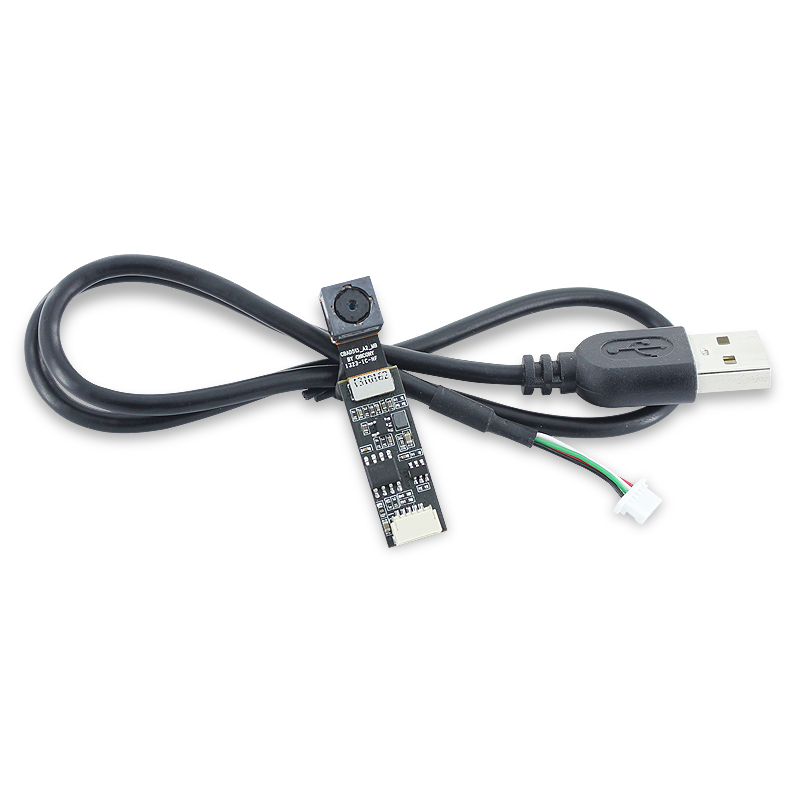

| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5648 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 600mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 34db |
| Max Dynamic Range | 67db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P+IR |
| F/No | 2.8 |
| EFL | 3.1 mm |
| FOV | 65.4° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
