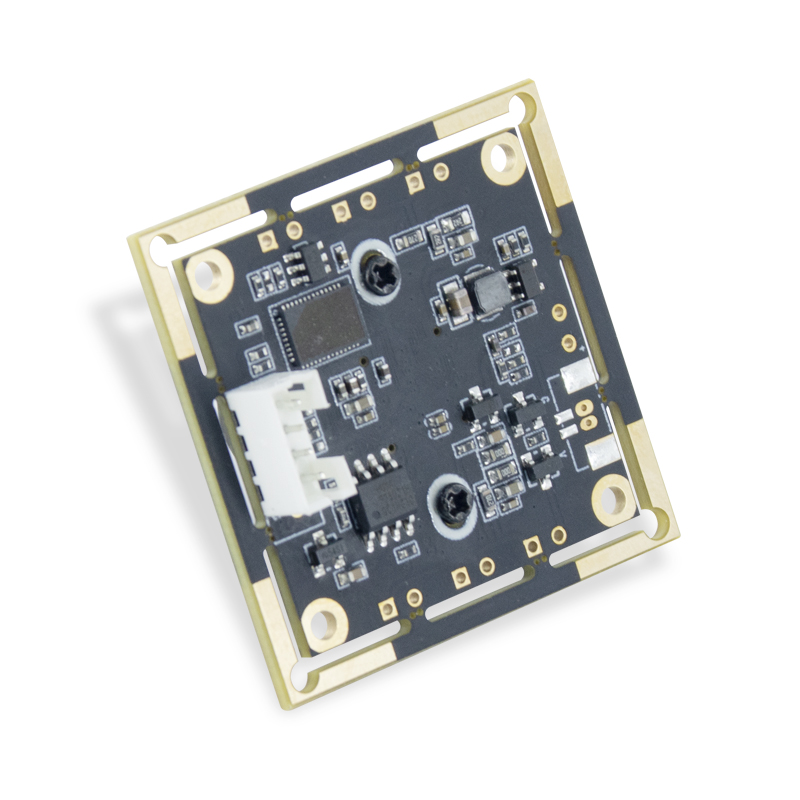

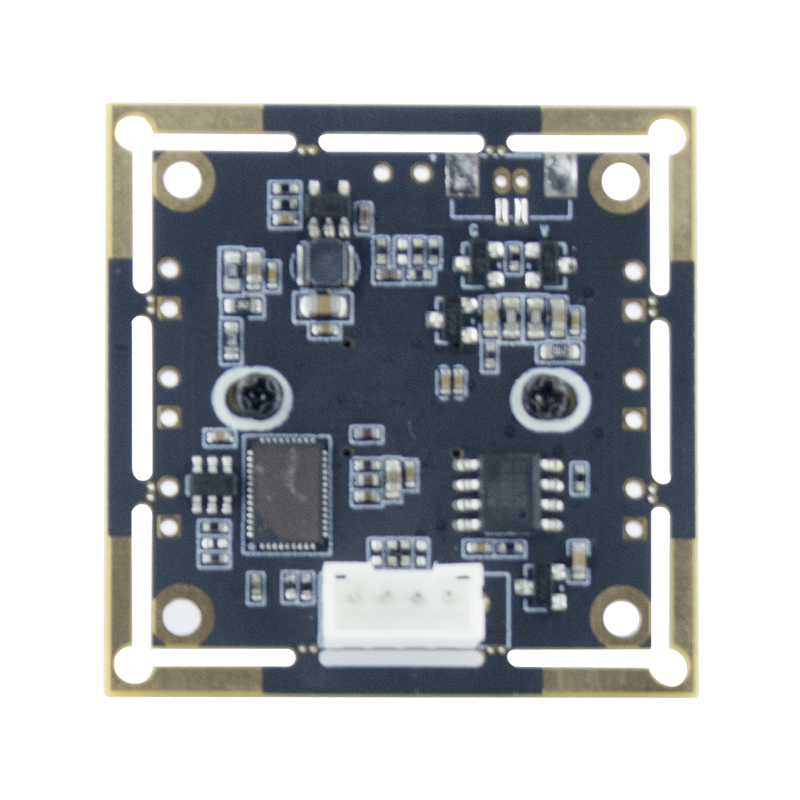

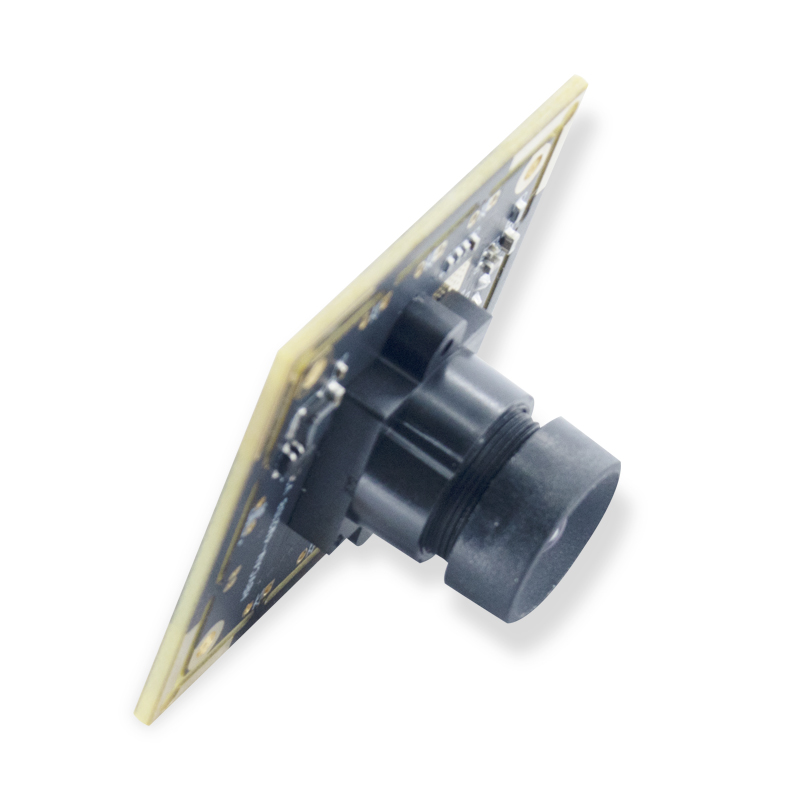

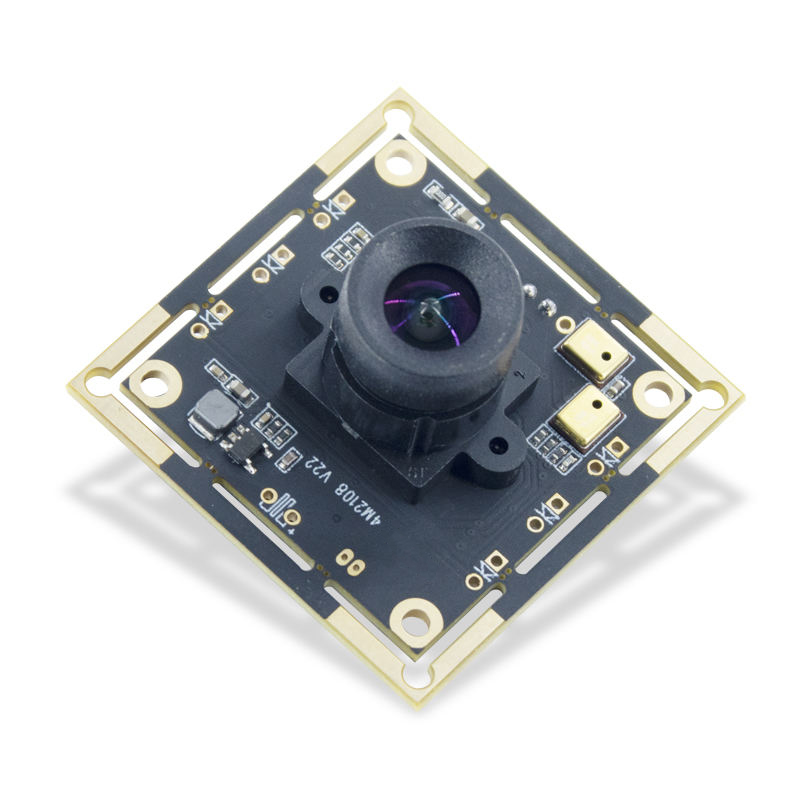

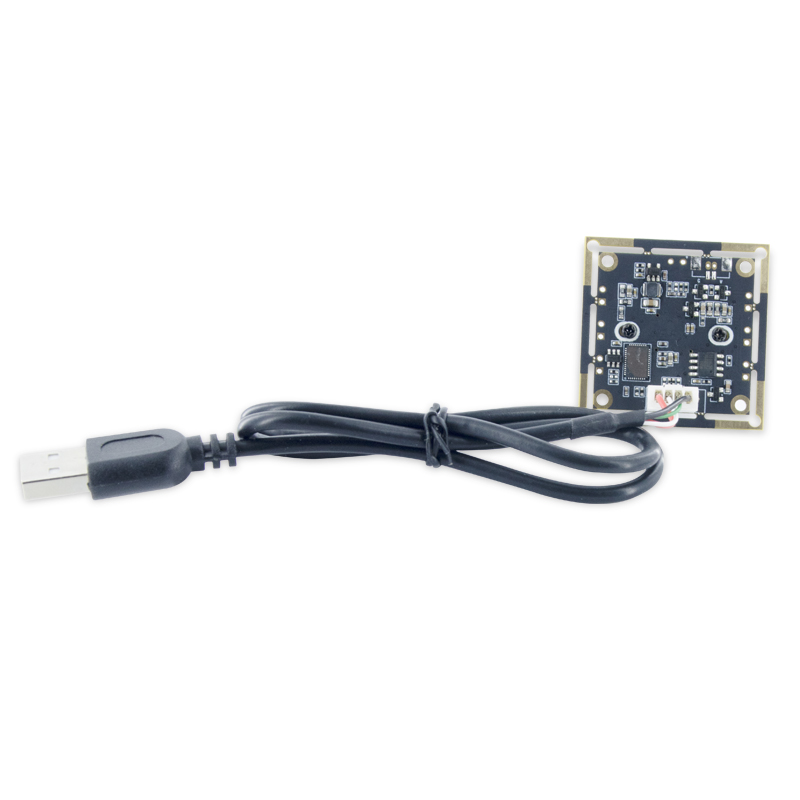

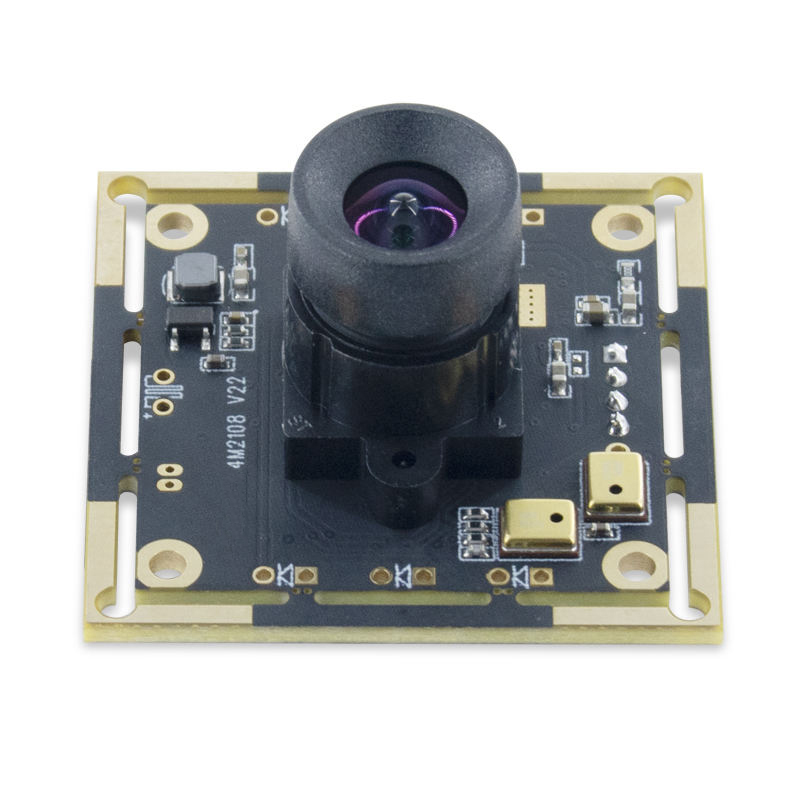

4 megapixel 2K ov4689 camera module industrial camera built-in module
$24.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Product Name | 4MP 2K Industrial Camera Camera Module |
| Module No | BM4M2108 V22-100 |
| Module Size | 38mm × 38mm × 18.30mm±0.5MM |
| Features | 1. Standard industrial camera 38, 32mm plate structure 2. Multiple lenses available for selection 3. 6 plug-in lights can be added and welded (with infrared white light), which can be made into an on/off image or photosensitive control 4. Integrated digital microphone 5. CS port large lens can be installed 6. 640x480-110 frames |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 890 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV4689 (1/3" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2560*1440 |
| Sensitivity | 1900mV /（lux-sec） |
| Pixel Size | 2.0µm x 2.0µm |
| Maximum Image Transfer Rate | MJPEG 320x240 120FPS / YUY2 320x240 30FPS MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 1280x720 120FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 5FPS MJPEG 2560x1440 30FPS / YUY2 2560x1440 5FPS |
| S/N Ratio | 38.3db |
| Max Dynamic Range | 64.6db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
