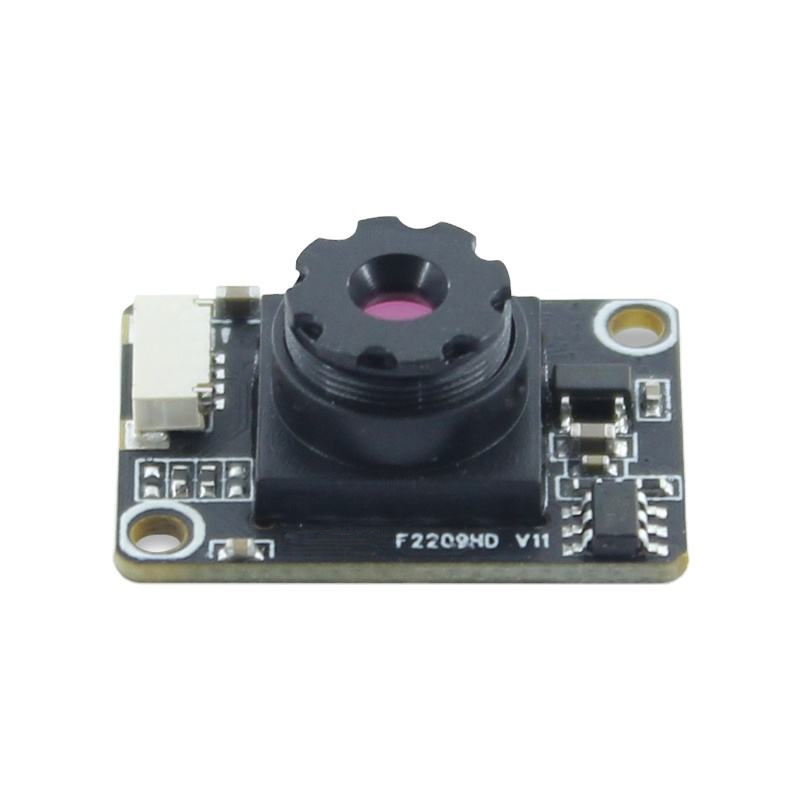

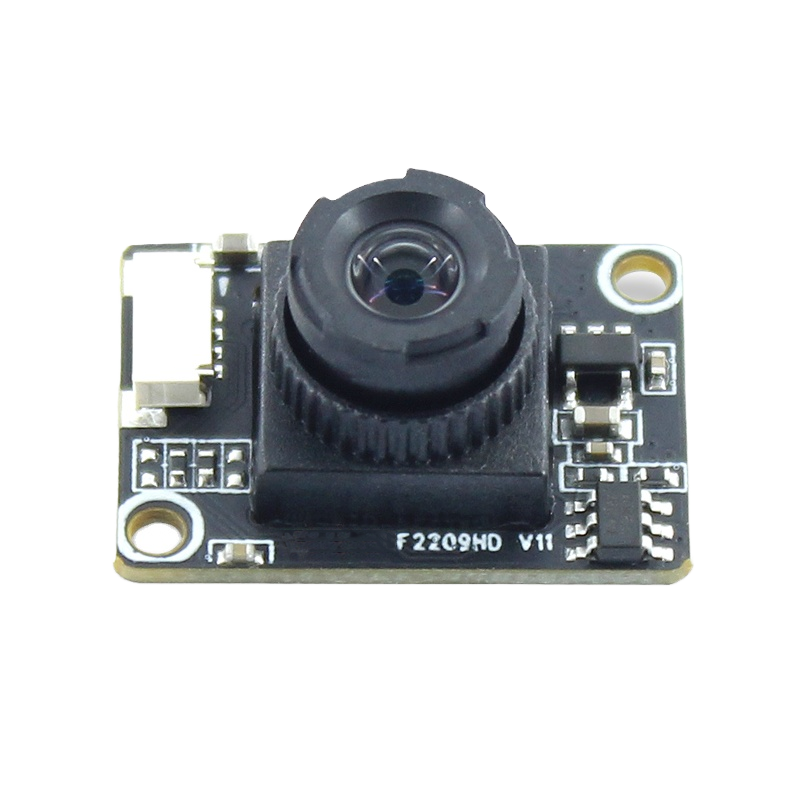

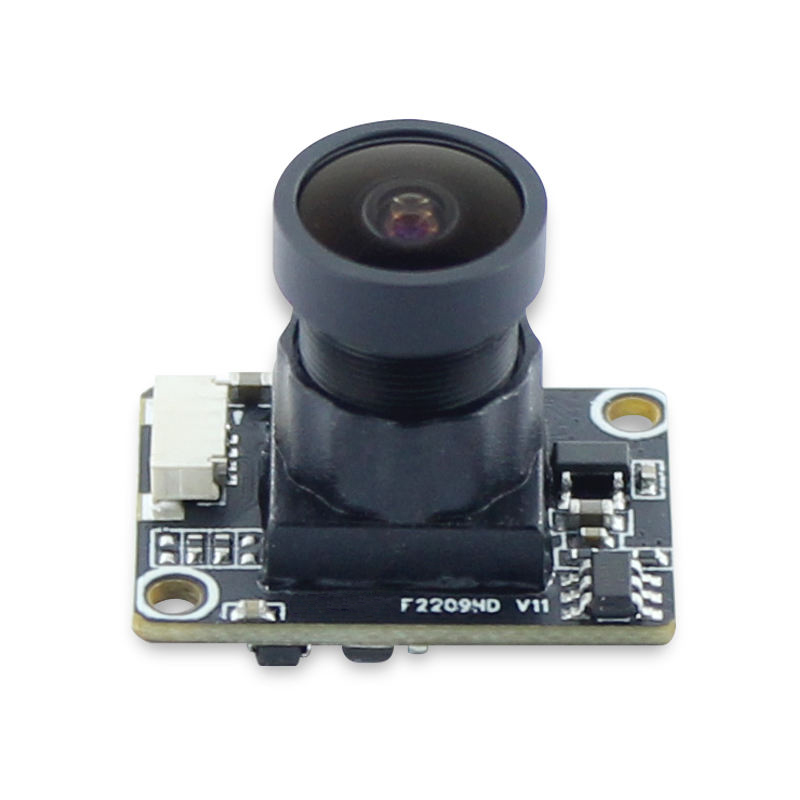

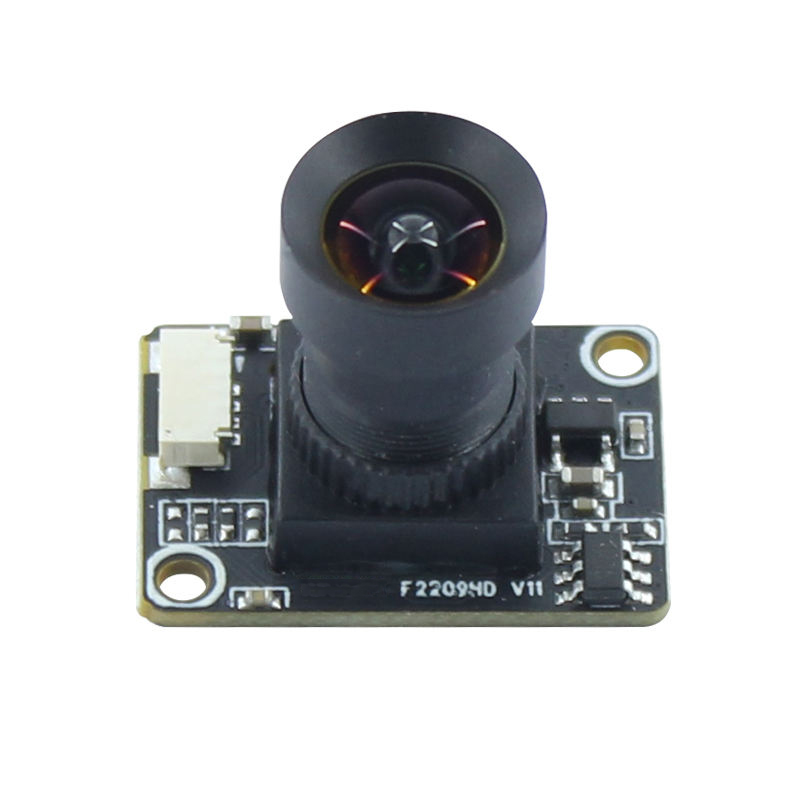

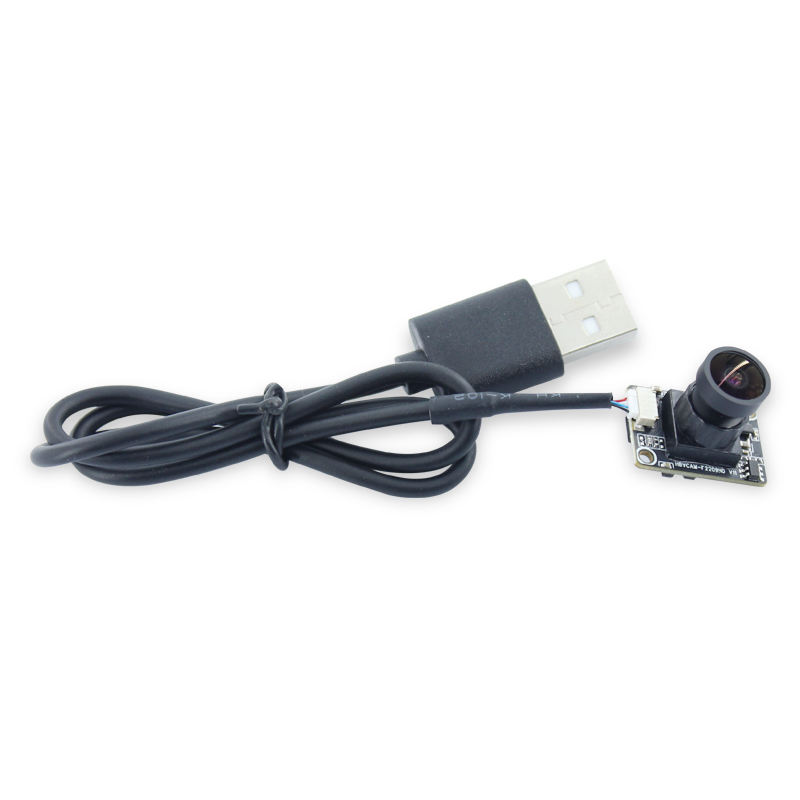

PS5268 Mini Video Digital Camera Module 2MP 1080P 30FPS WDR for Indoor Kiosks
$28.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BMF2209HD V11 |

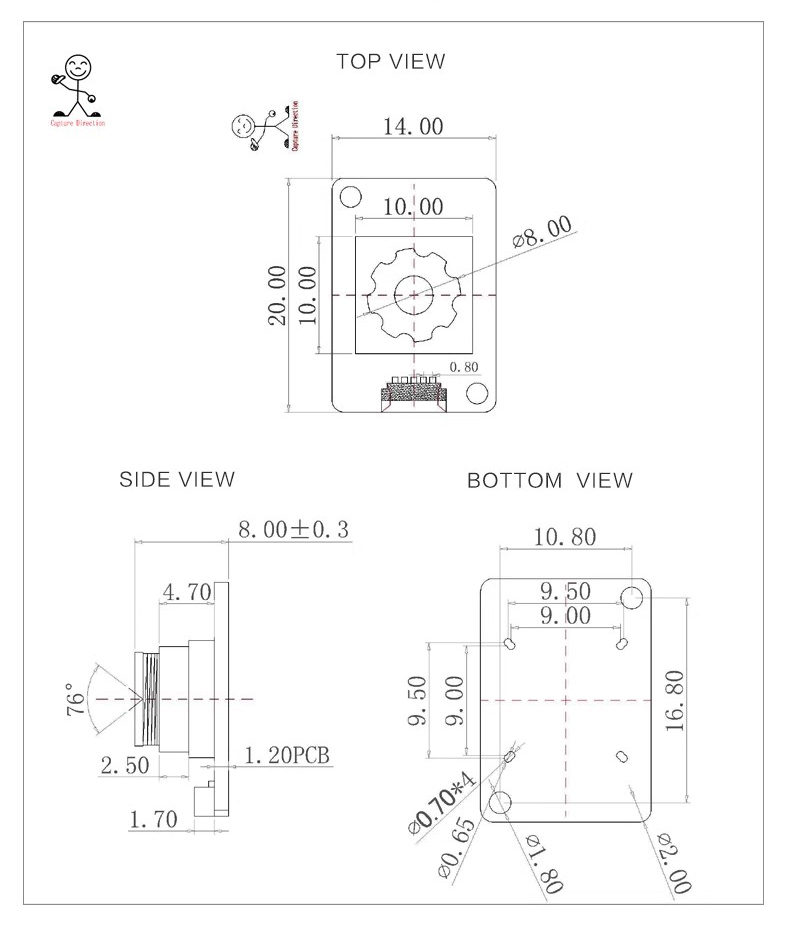

| Module Size | 20mm × 14mm × 8.0mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | PS5268 (1/2.7" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 5800mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS |
| S/N Ratio | 41 db |
| Max Dynamic Range | 85 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.4 |
| EFL | 2.8mm |
| FOV | 76° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
2MP 1080P MINI Camera Module
1.it is can be used in glasses
2. it is free driver, with standard UVC protocol for window /Linux/Android system.
Product Usage
Product usage introduction
it is can be used in 3D VR glasses
Description of product use effect
it is also can be used in retail machine

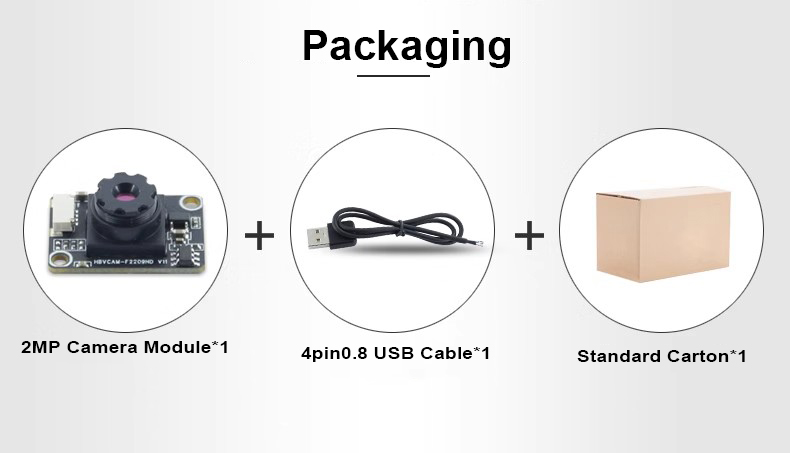

Packing&Shipping
