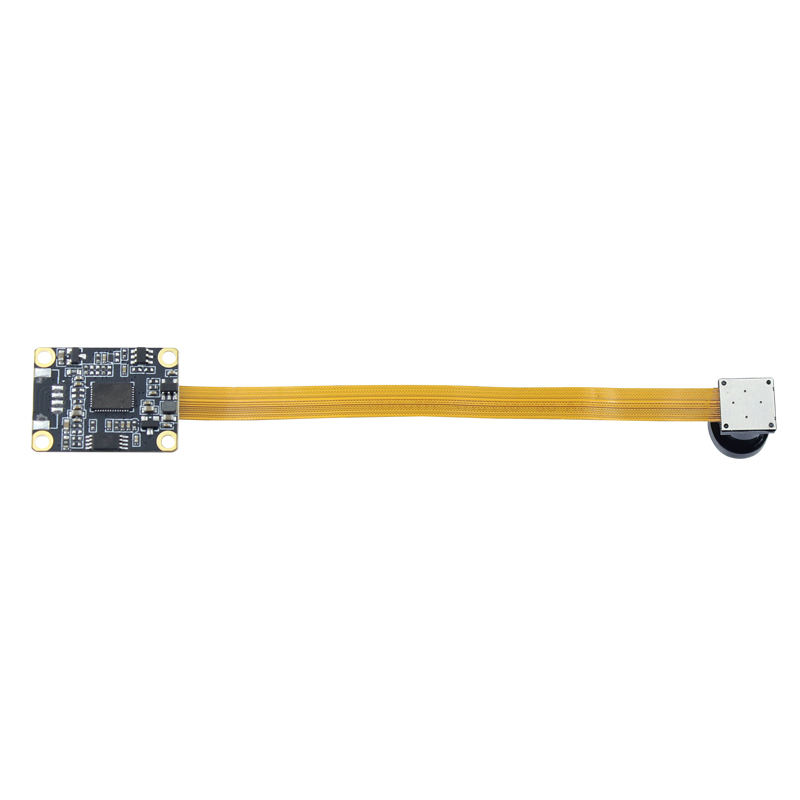

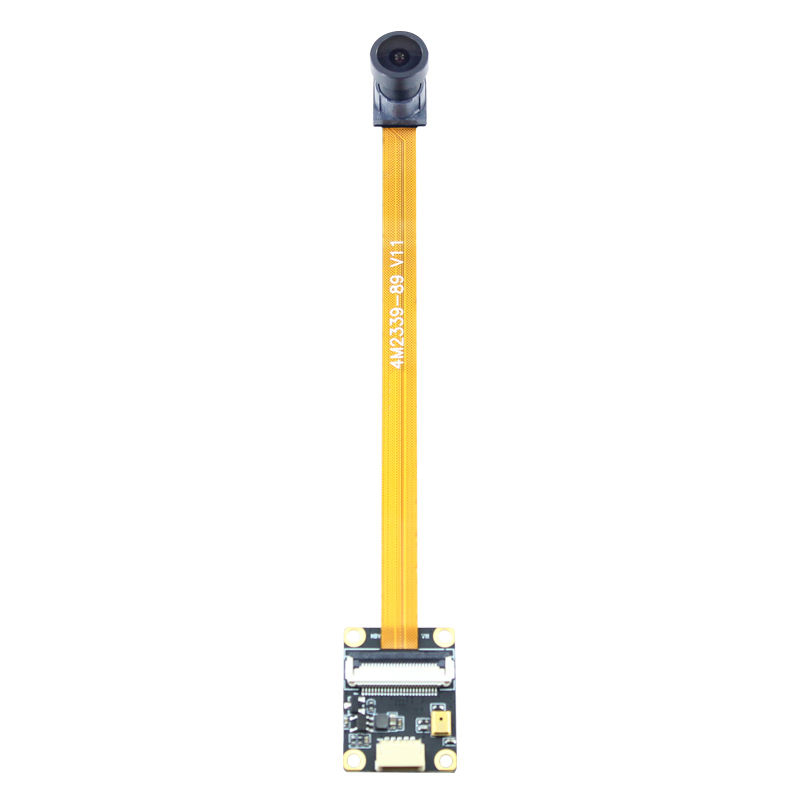

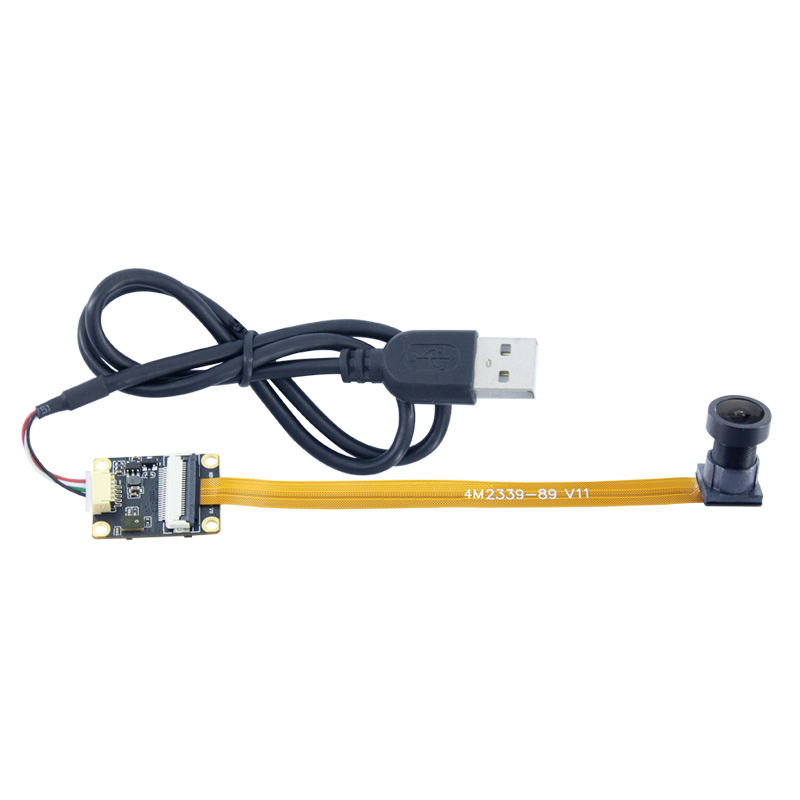

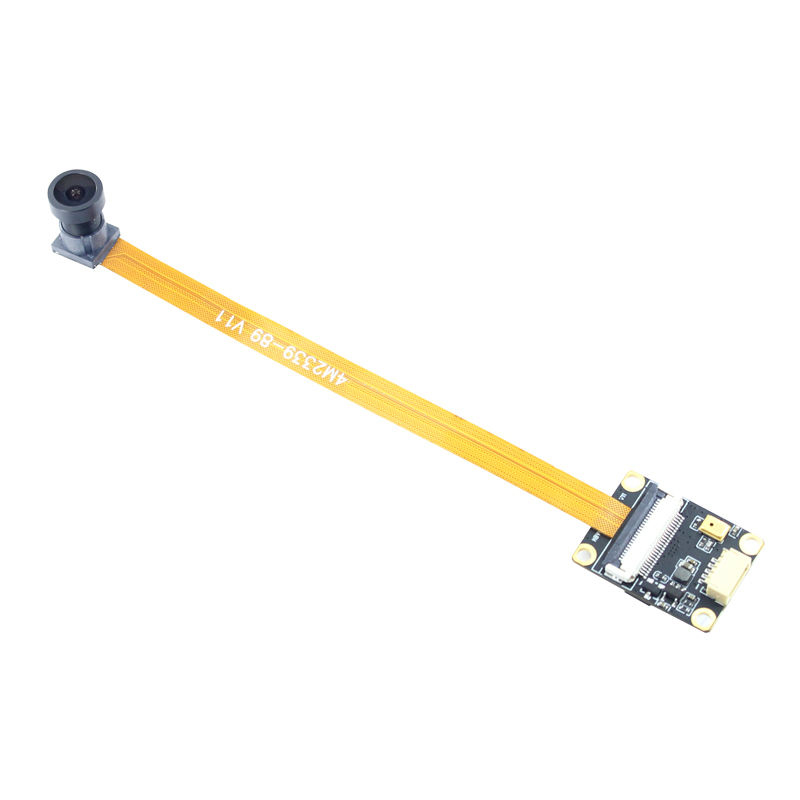

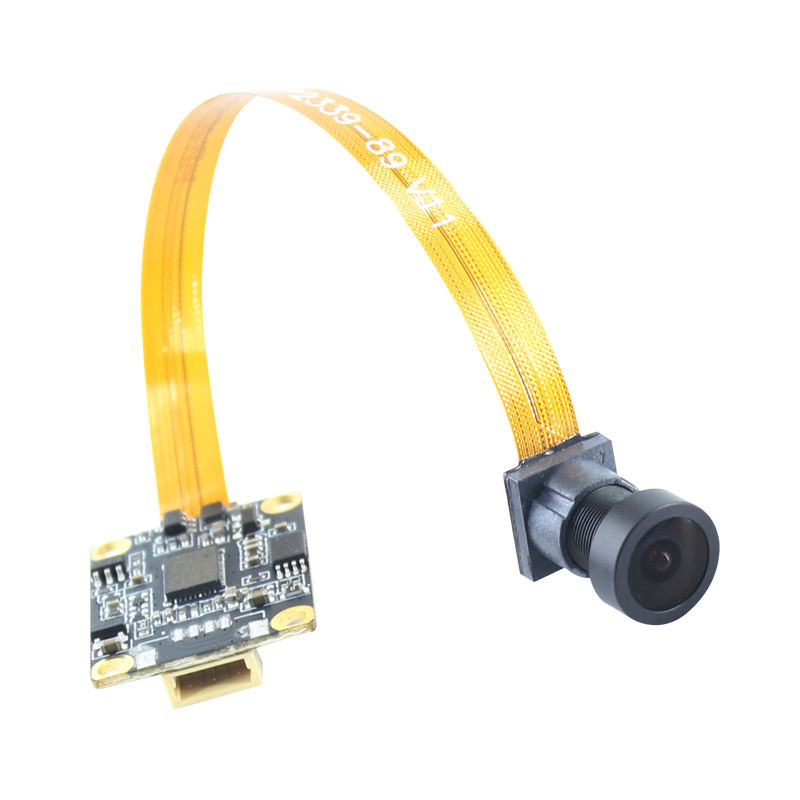

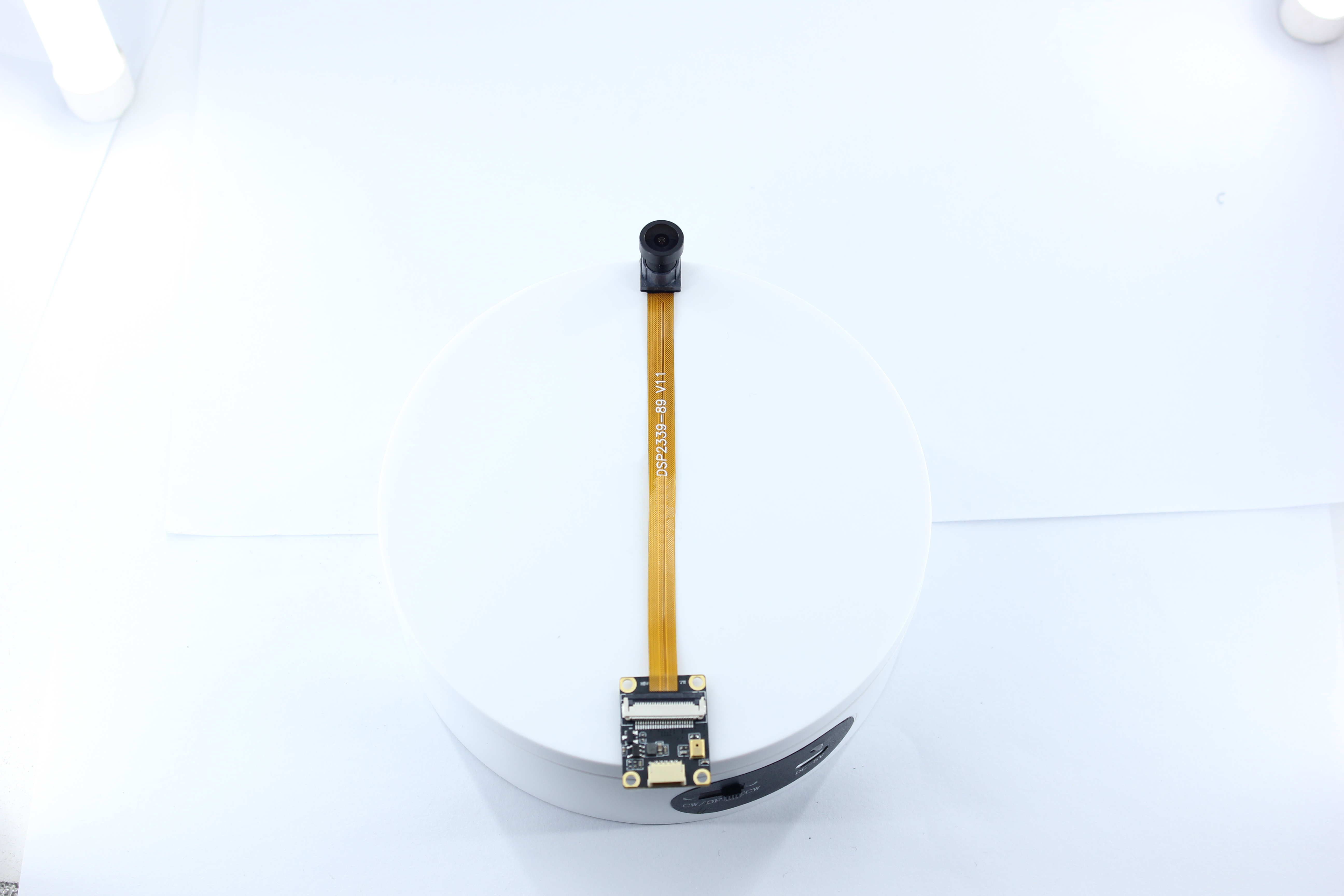

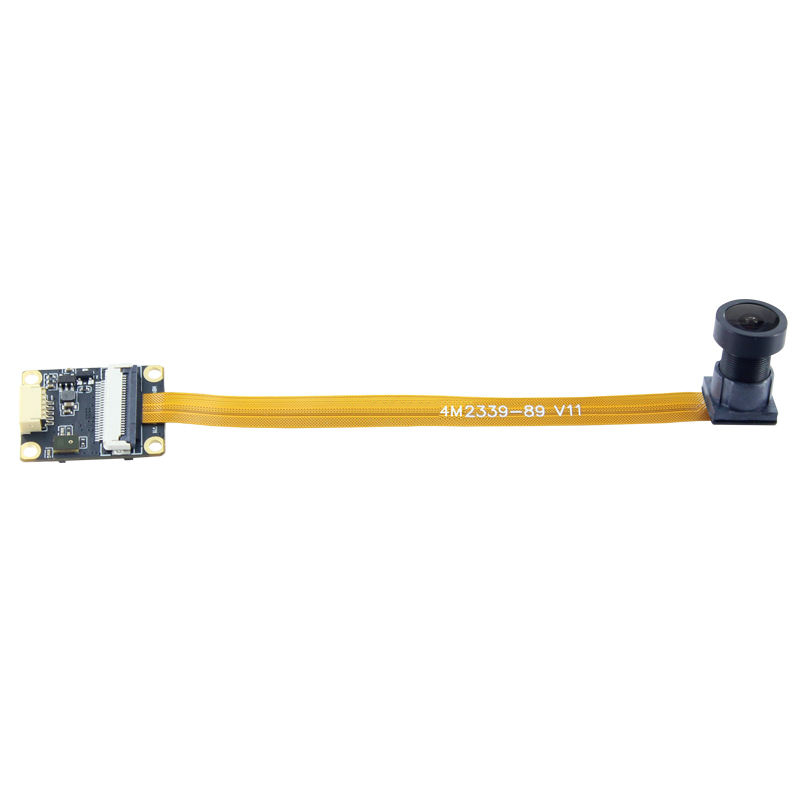

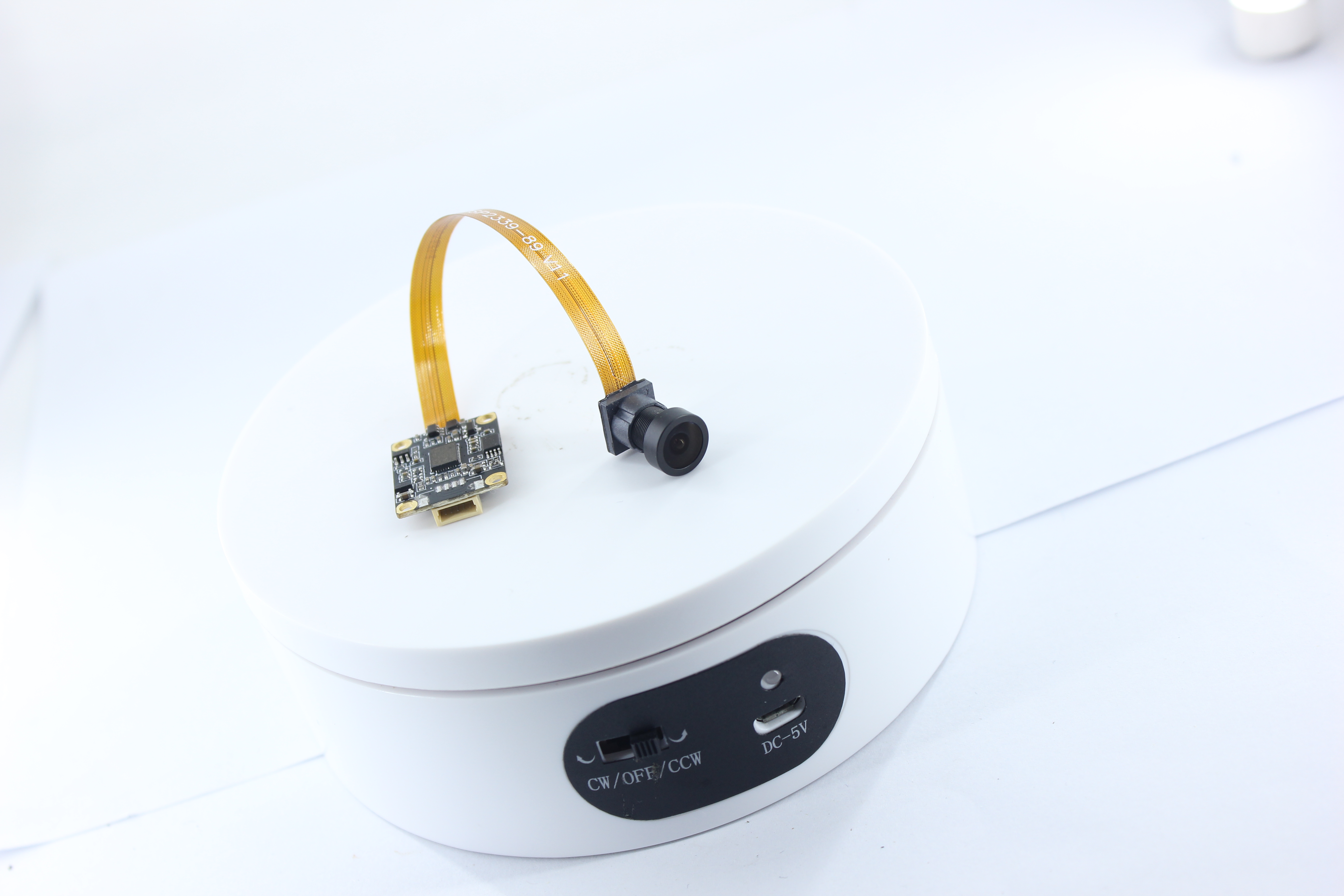

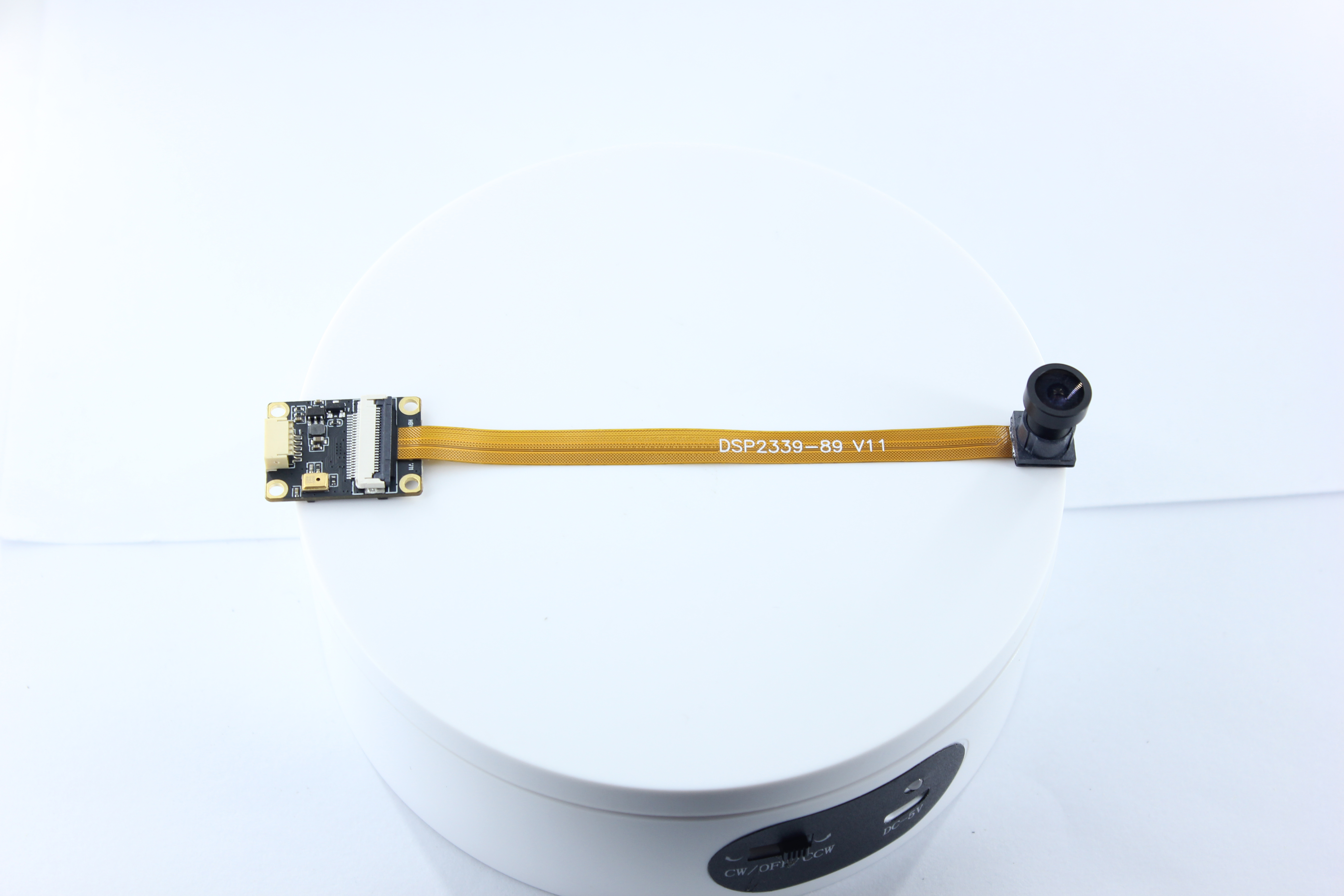

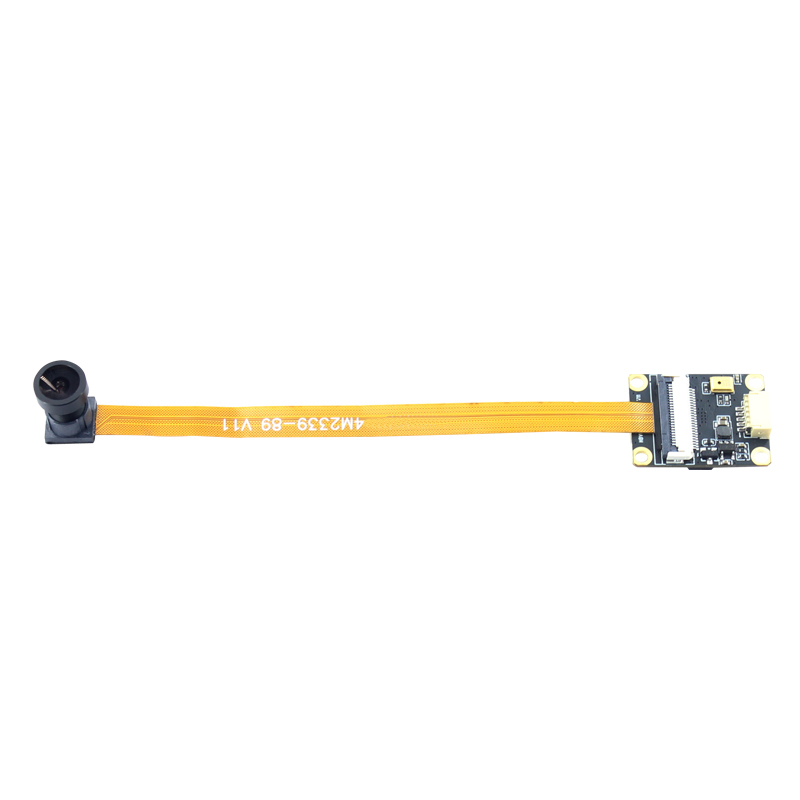

4MP High Frame Rate Camera Module Pinhole Level Card Scanning Embedded Camera Module
$32.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Product Name | 4 megapixel 2K pinhole type built-in camera module |
| Module No | BM4M2339 V22-160 |
| Module Size | 124.80mm × 18mm × 15.30mm±0.3MM |
| Features | 1. Flexible structure with split soft and hard boards 2. The FPC part can be customized in length and shape 3. Lens can be equipped with tapered pinholes 4. Can be used for night vision standard lenses 5. High frame resolution (actual frame rate) 640x480 110FPS 1280X720 110FPS 1920X1080 60FPS 6. Recommended by customer groups with high frame rates for non global exposure (pinhole, card scanning, mahjong) 7. With built-in digital microphone |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 890 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV4689 (1/3" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2560*1440 |
| Sensitivity | 1900mV /（lux-sec） |
| Pixel Size | 2.0µm x 2.0µm |
| Maximum Image Transfer Rate | MJPEG 320x240 120FPS / YUY2 320x240 30FPS MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 1280x720 120FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 5FPS MJPEG 2560x1440 30FPS / YUY2 2560x1440 5FPS |
| S/N Ratio | 38.3db |
| Max Dynamic Range | 64.6db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 5G |
| F/No | 2.4 |
| EFL | 2.9 mm |
| FOV | 160° |
| TV Distortion | <-78% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
