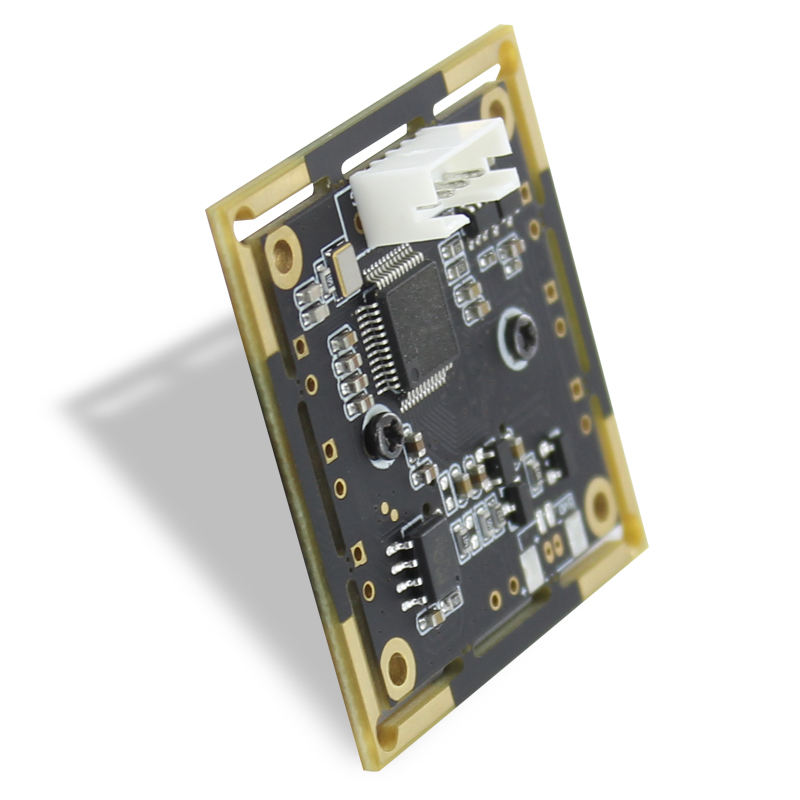

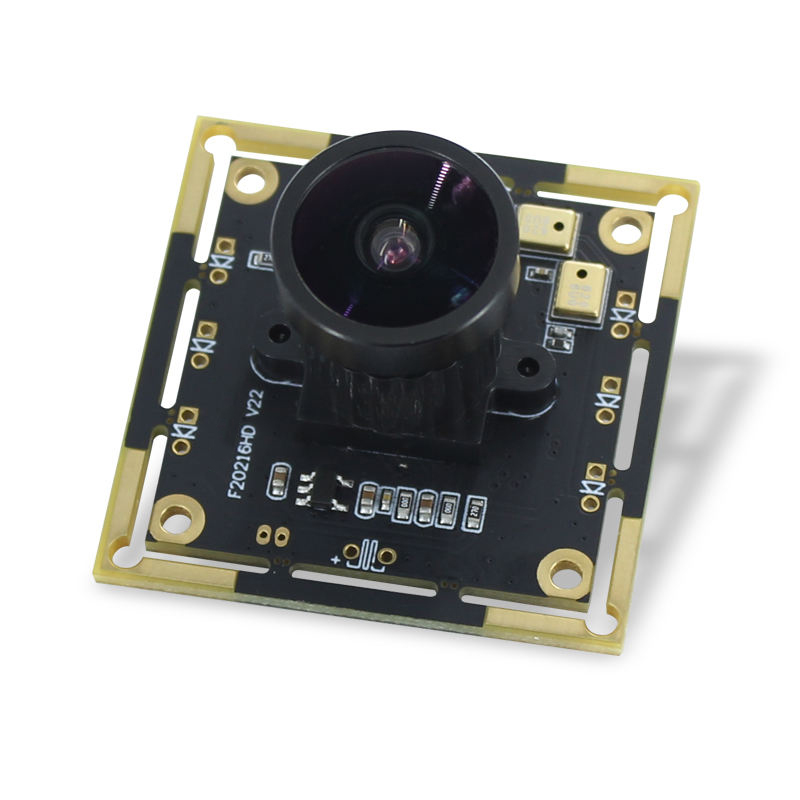

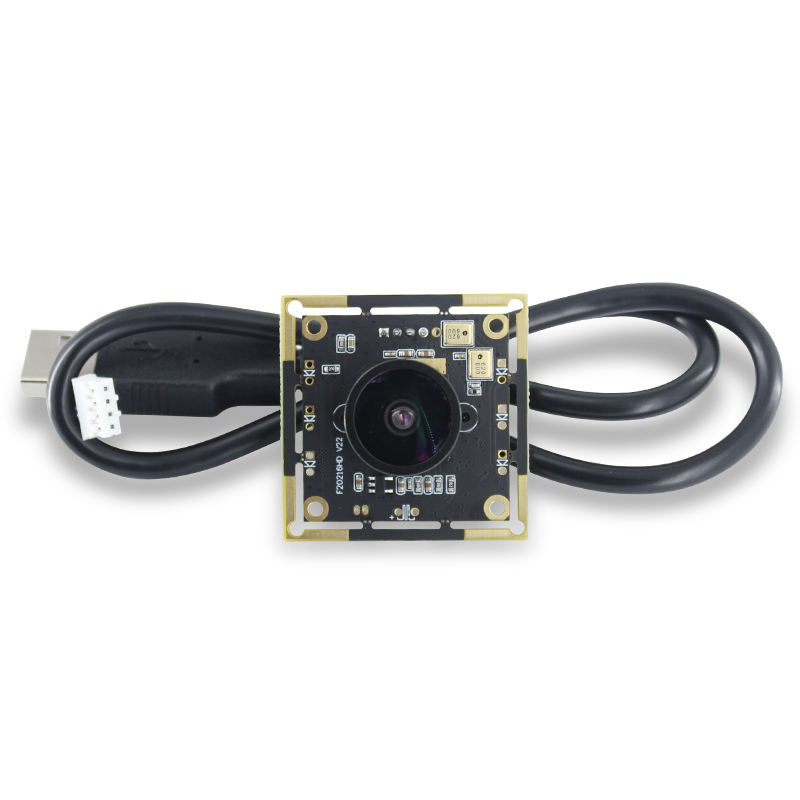

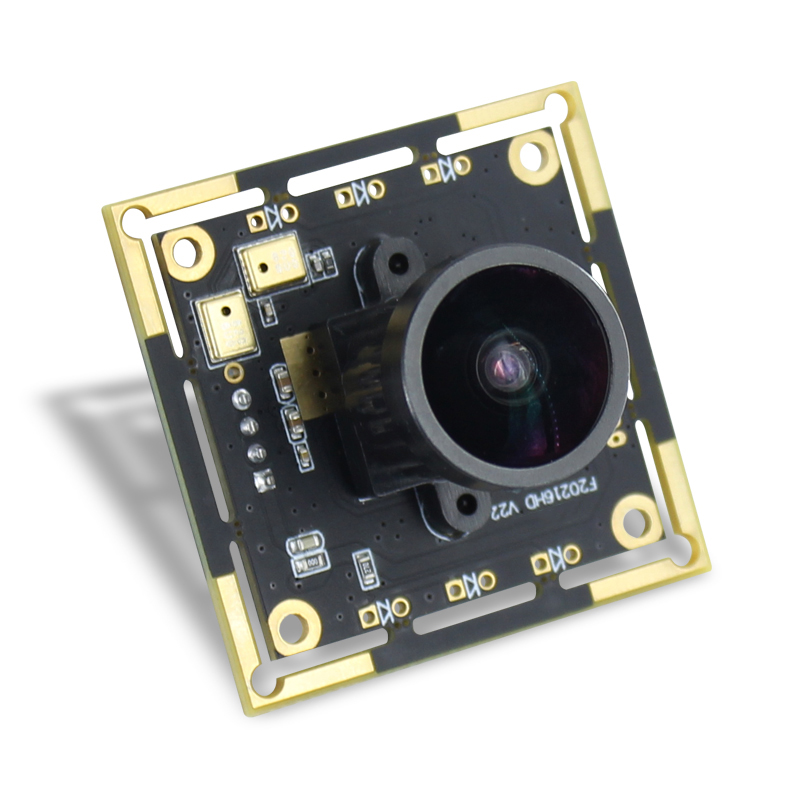

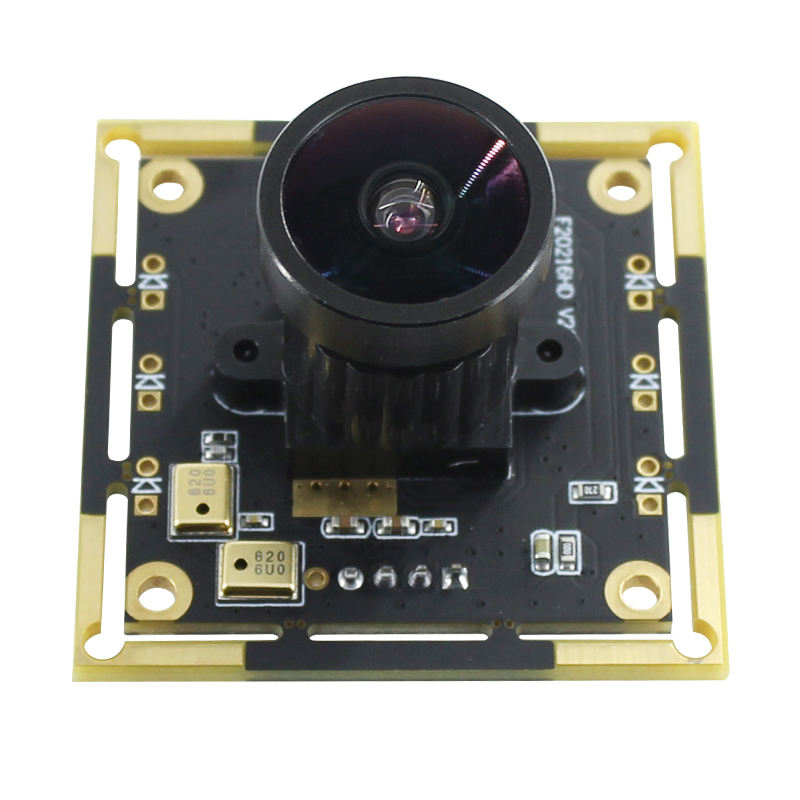

2MP 1080P with microphone camera module QR code scanning camera module
$56.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 2MP QR code scanning camera module Camera Module |
| Module No | BMF20216HD V33 - 145 |

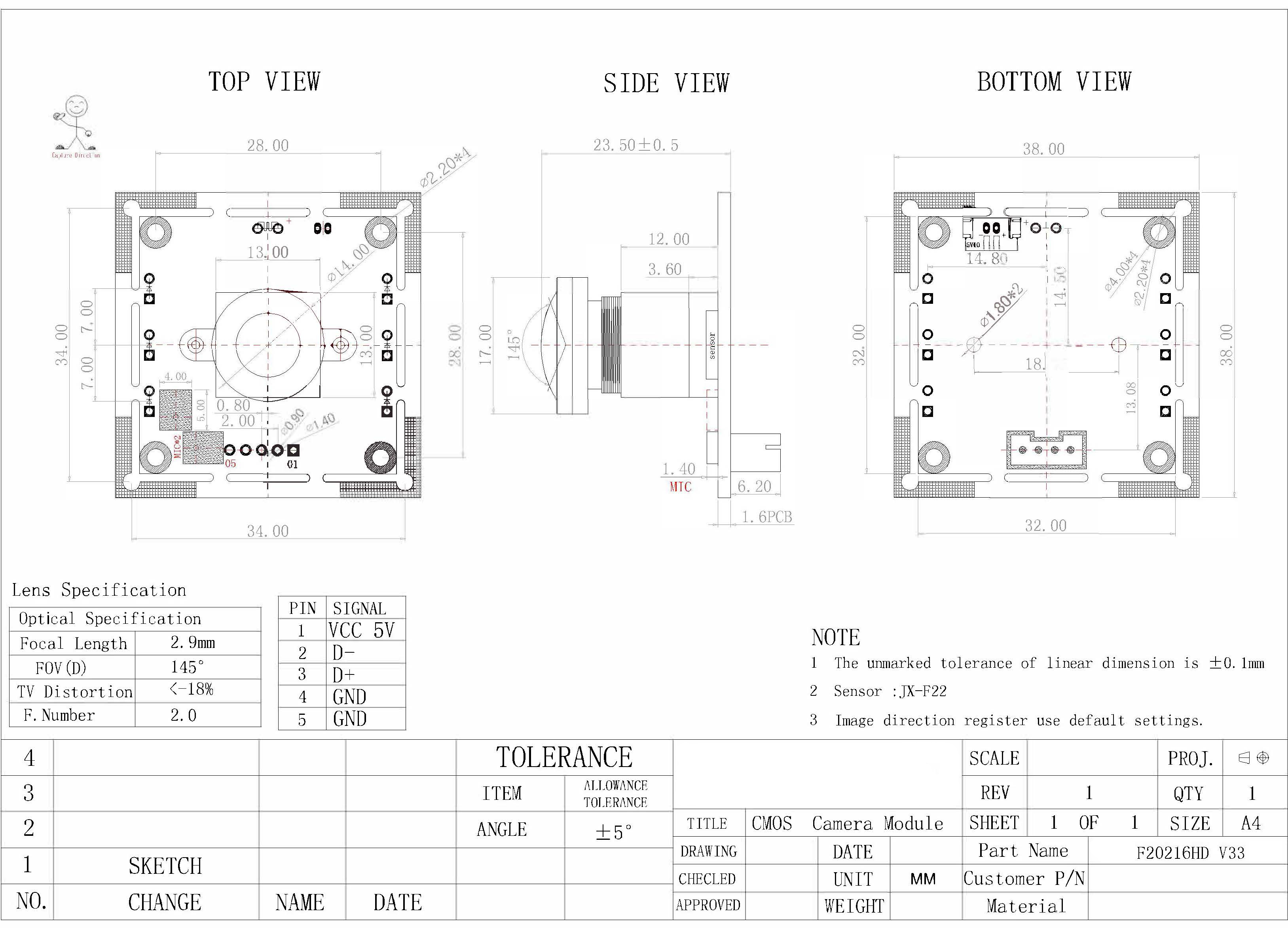

| Module Size | 38mm × 38mm × 23.5mm±0.5MM |
| Features | 1. Standard industrial camera 38, 32mm plate structure 2. Wide range of lens options , cost-effective 3. It can be welded 6 plug-in lamps (infrared white light), which can be made into an open picture, bright and off, and can also be controlled by photosensitivity |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 800mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | JX-F22 (1/2.7" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 3900mV /（lux-sec） |
| Pixel Size | 3.0µm x 3.0µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 800x600 30FPS MJPEG 1280x720 30FPS / YUY2 1024x768 30FPS MJPEG 1280x960 30FPS / MJPEG 1600x960 30FPS / MJPEG 1920x1080 30FPS / |
| S/N Ratio | 38 db |
| Max Dynamic Range | 73 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4G |
| F/No | 2.0 |
| EFL | 2.9mm |
| FOV | 145° |
| TV Distortion | <-18% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
