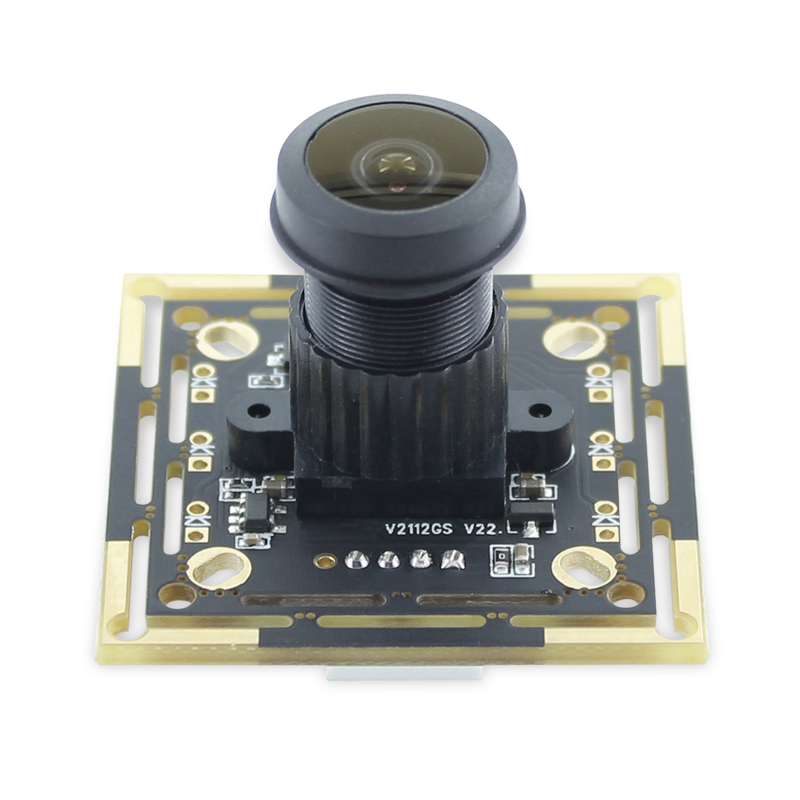

0.3MP Camera Module Global Shutter Black &White High-Speed Scanning Camera Module
$15.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 0.3MP global shutter camera module |
| Module No | BMV2112GS V22 - 90 |
| Module Size | 38mm × 38mm × 25.5mm±0.5MM |
| Features | 1.Standard industrial camera structure 38-32 is compatible with 28mm board at the same time 2. Global shutter camera, exposure time can be manually adjusted 3. Mainly used in high-speed scanning and code scanning applications 4. It can be followed by night vision light board 850-940mm |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV7251 (1/7.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 2800mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 160x120 120FPS / YUY2 160x120 30FPS MJPEG 320x240 120FPS / YUY2 320x240 30FPS MJPEG 352x288 120FPS / YUY2 352x288 30FPS MJPEG 640x480 120FPS / YUY2 640x480 30FPS |
| S/N Ratio | 39db |
| Max Dynamic Range | 69.6db |
| Shutter type | Global shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.2 mm |
| FOV | 90° |
| TV Distortion | <8% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
