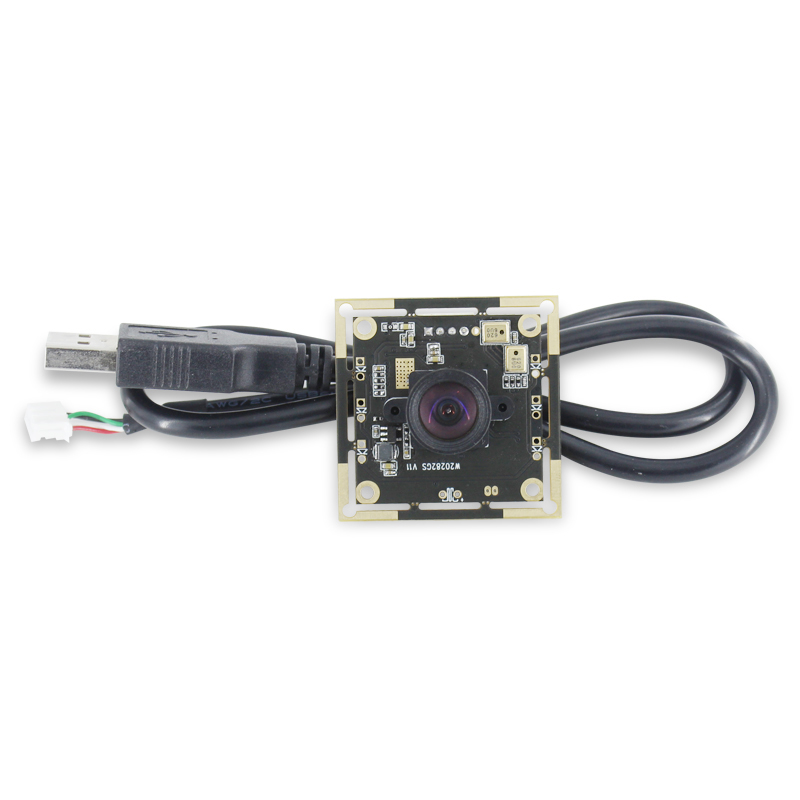

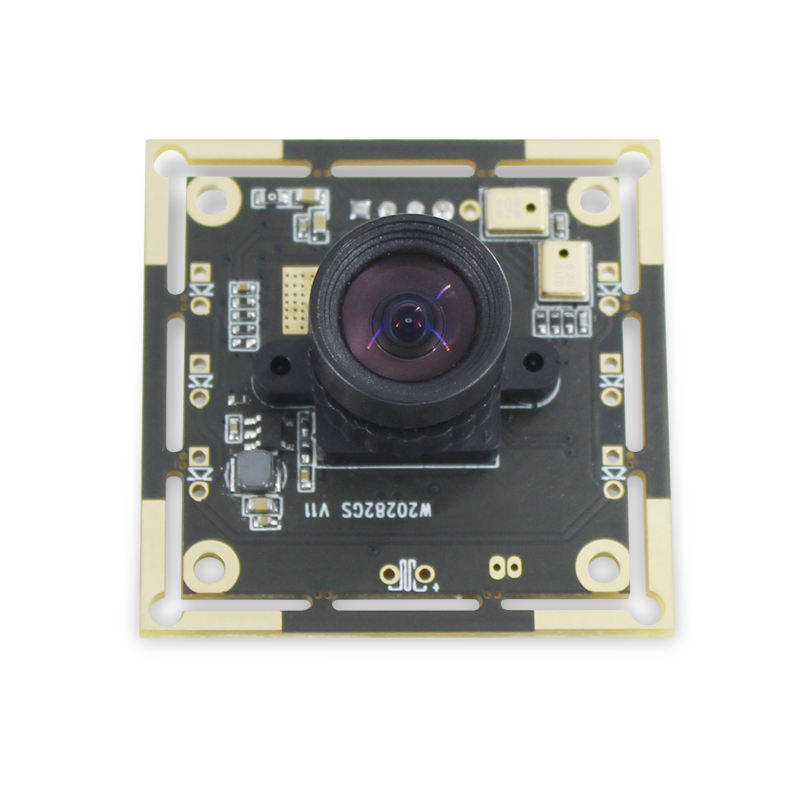

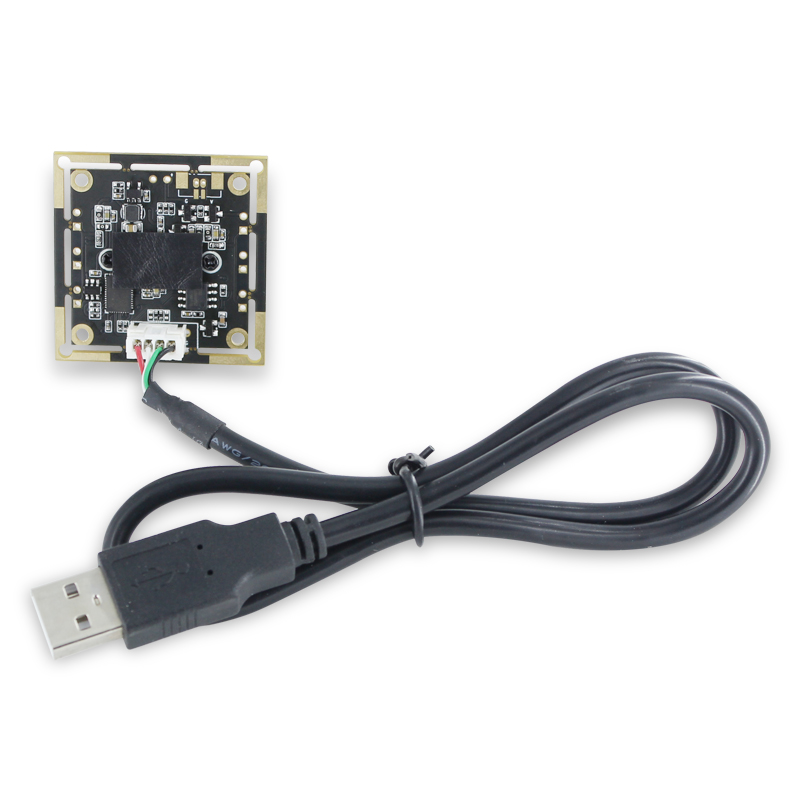

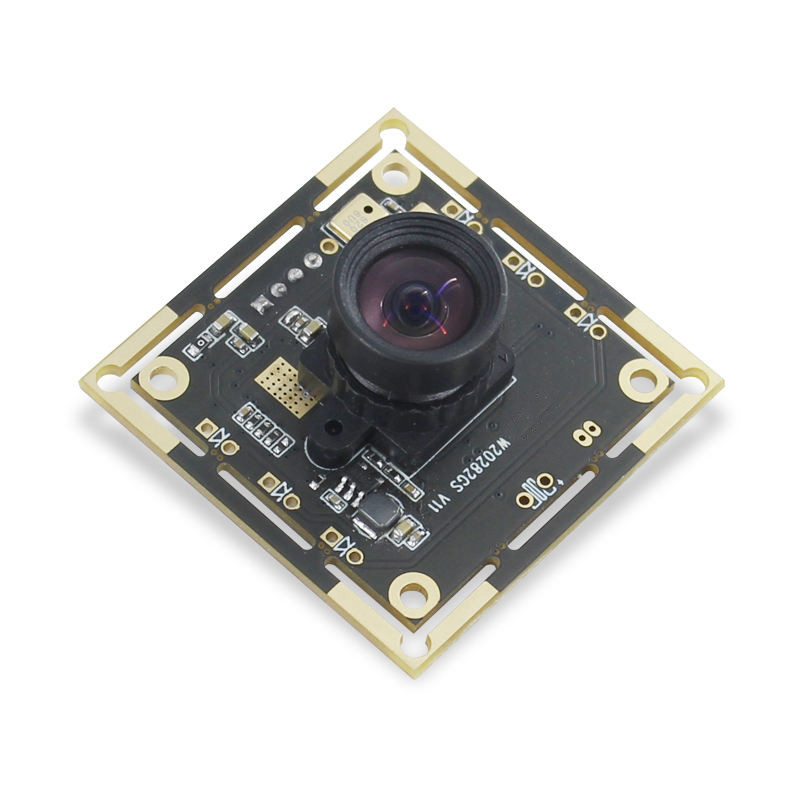

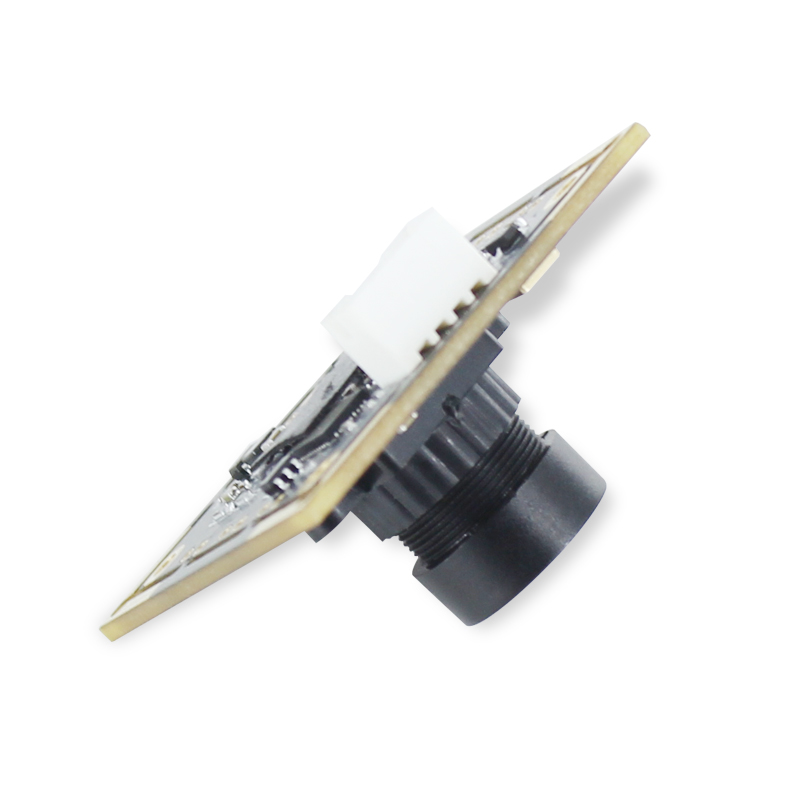

1MP Global Shutter Black and White High-speed Scanning Camera Module
$15.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 1MP global shutter camera module |
| Module No | BMW20282GS V22 - 100 |

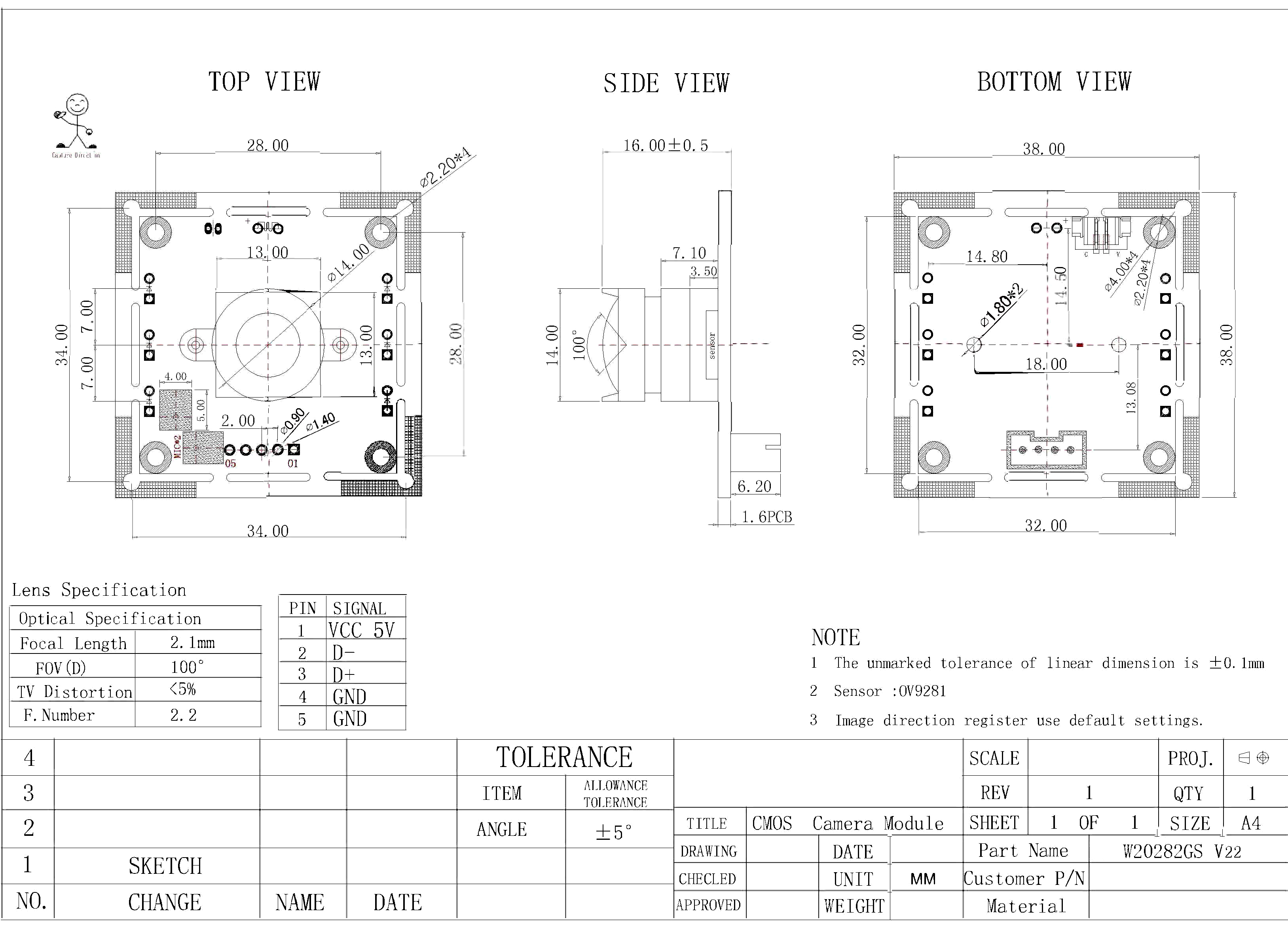

| Module Size | 38mm × 38mm × 16mm±0.5MM |
| Features | 1.Standard industrial camera structure 38-32 is compatible with 28mm board at the same time 2. Global shutter camera, exposure time can be manually adjusted 3. Mainly used in high-speed scanning and code scanning applications 4. It can be followed by night vision light board 850-940mm |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROHS) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9281 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*720 |
| Sensitivity | 1300mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 1280x720 120FPS / |
| S/N Ratio | 38 db |
| Max Dynamic Range | 68 db |
| Shutter type | Global shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.2 |
| EFL | 2.1 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 850±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
