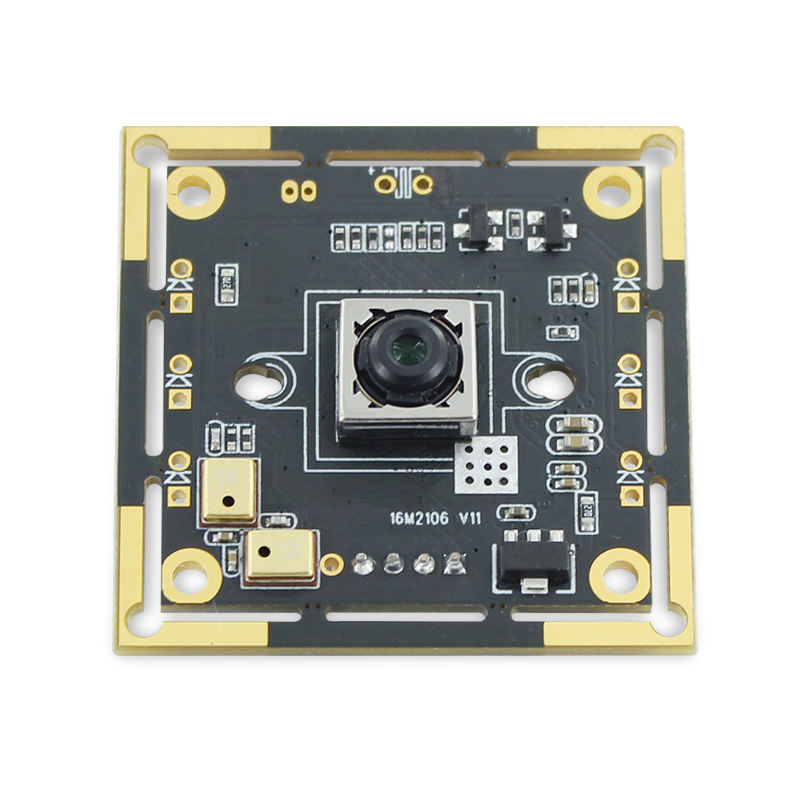

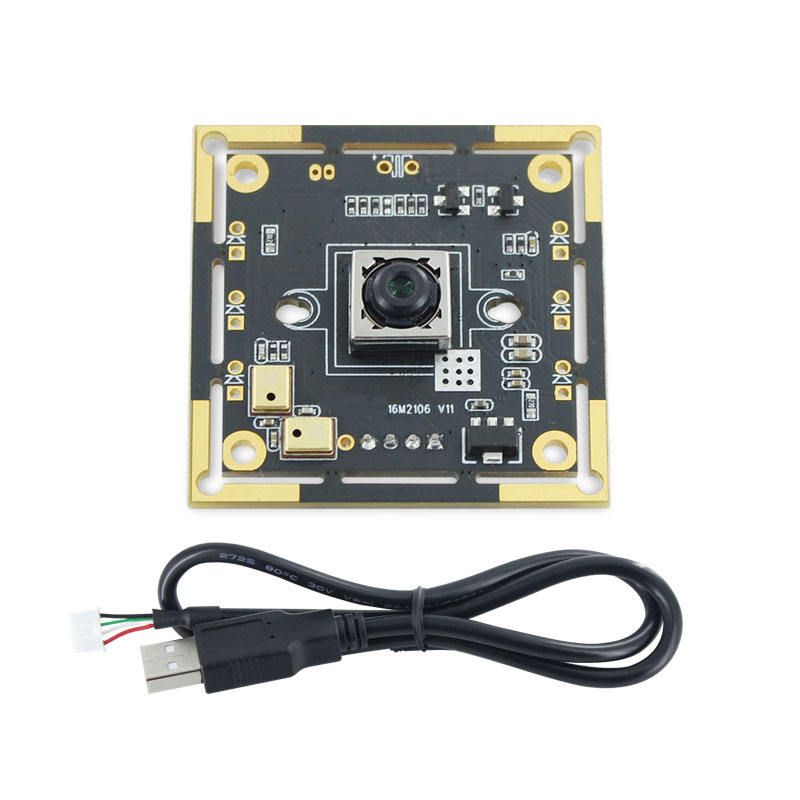

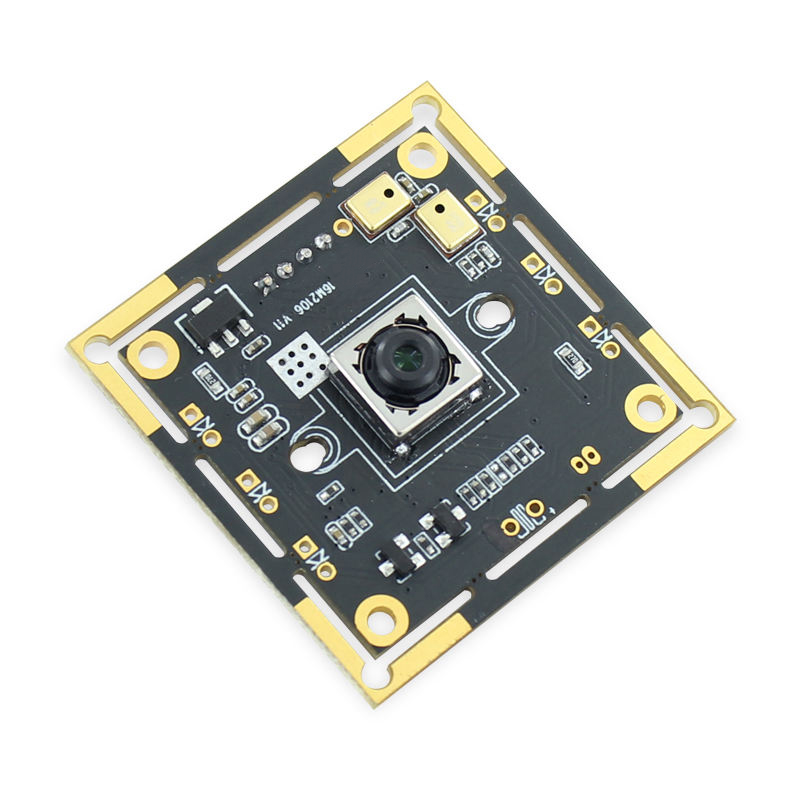

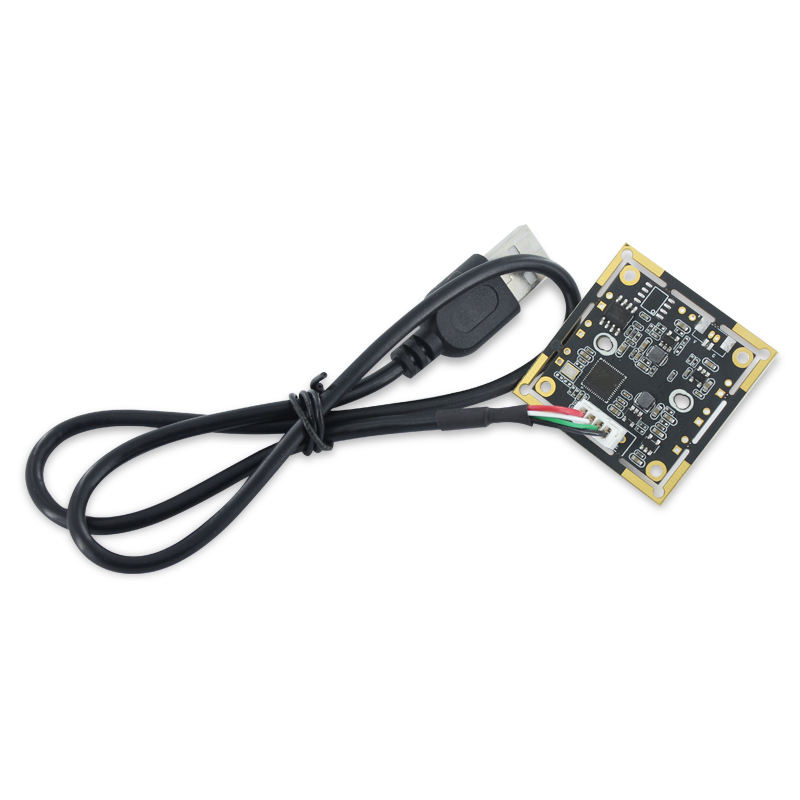

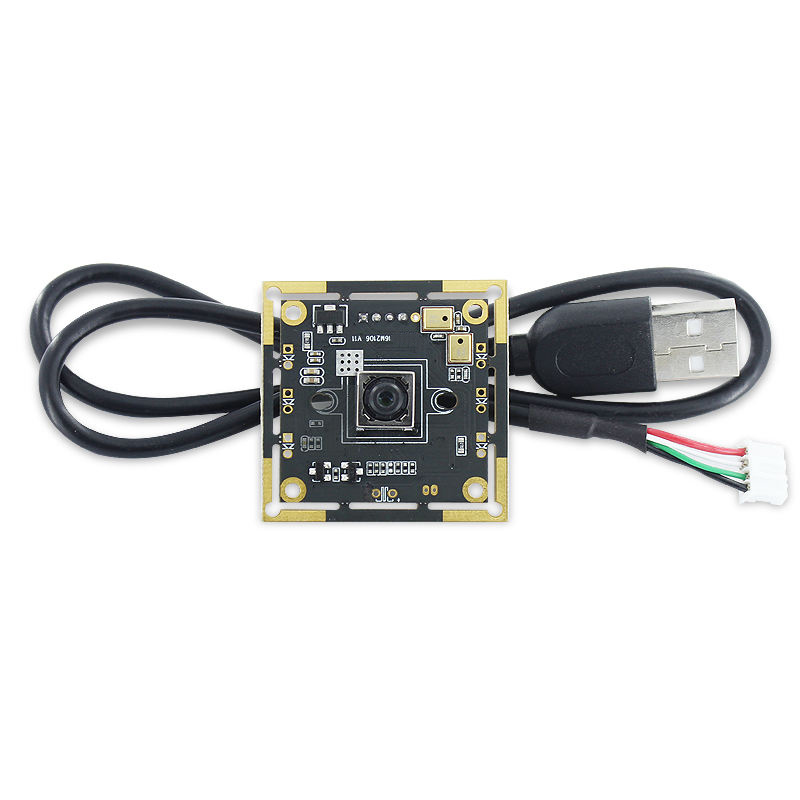

16MP Ultra HD Auto Focus Camera Module high speed camera module
$48.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 12MP High speed Camera Module |
| Module No | BM16M2106 V11 - 78 |
| Module Size | 38mm × 38mm × 6.9mm±0.2MM |
| specificities | 1. 38mm *38mm/ 32mm*32mm size for industrial camera 2. 6 additional plugin white led can be soldered, and the white light can be made into an on/off diagram. The diagram can also be turned off or the light can be photosensitive controlled |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX298 (1/2.8" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 4656*3496 |
| Sensitivity | 780mV /（lux-sec） |
| Pixel Size | 1.12µm x 1.12µm |
| Maximum Image Transfer Rate | MJPEG 1920x1080 30FPS / YUY2 2320x1744 1FPS MJPEG 2592x1944 10FPS / YUY2 4656x3496 1FPS MJPEG 3264x2448 10FPS / MJPEG 4208x3120 10FPS / MJPEG 4656x3496 10FPS / |
| S/N Ratio | 40db |
| Max Dynamic Range | 83 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 6P |
| F/No | 2.2 |
| EFL | 2.6 mm |
| FOV | 78° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
