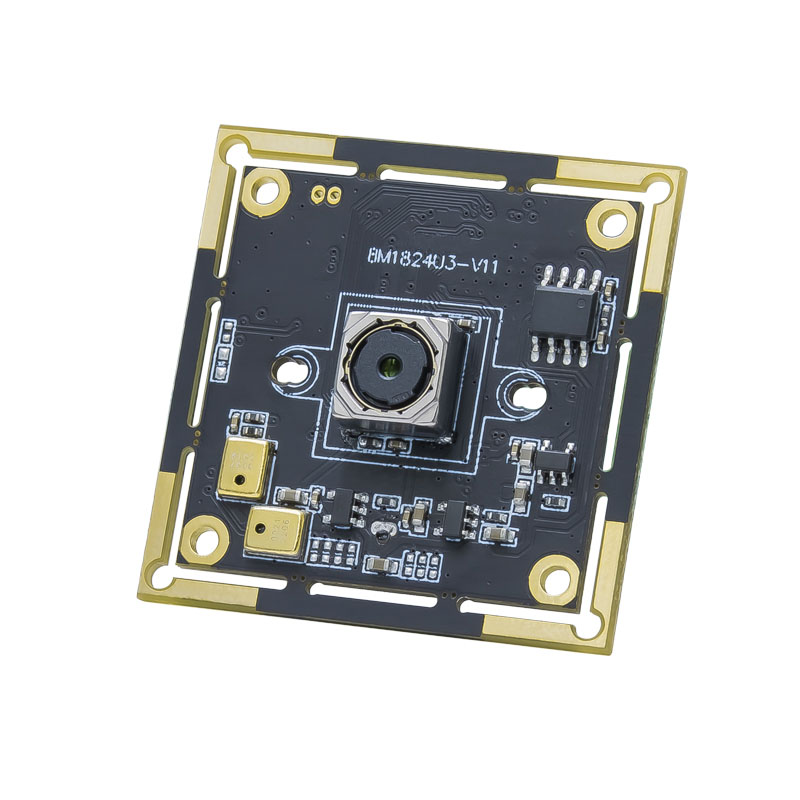

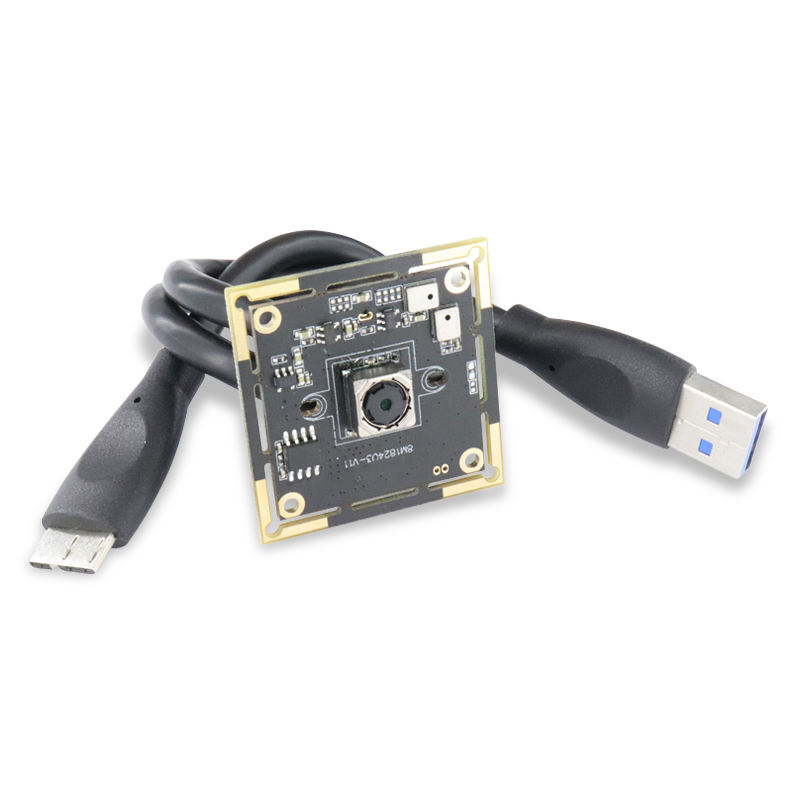

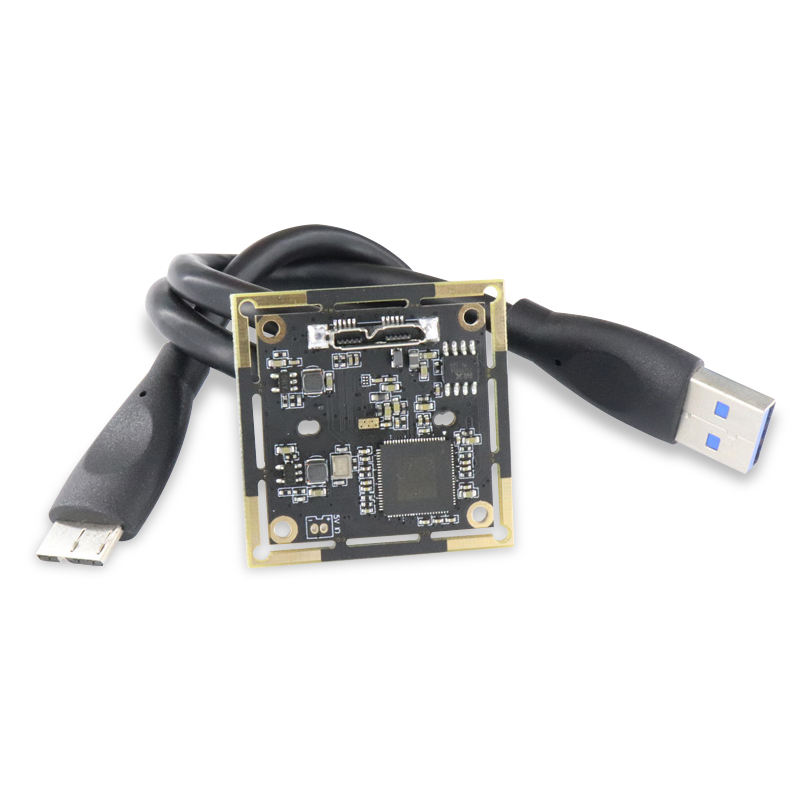

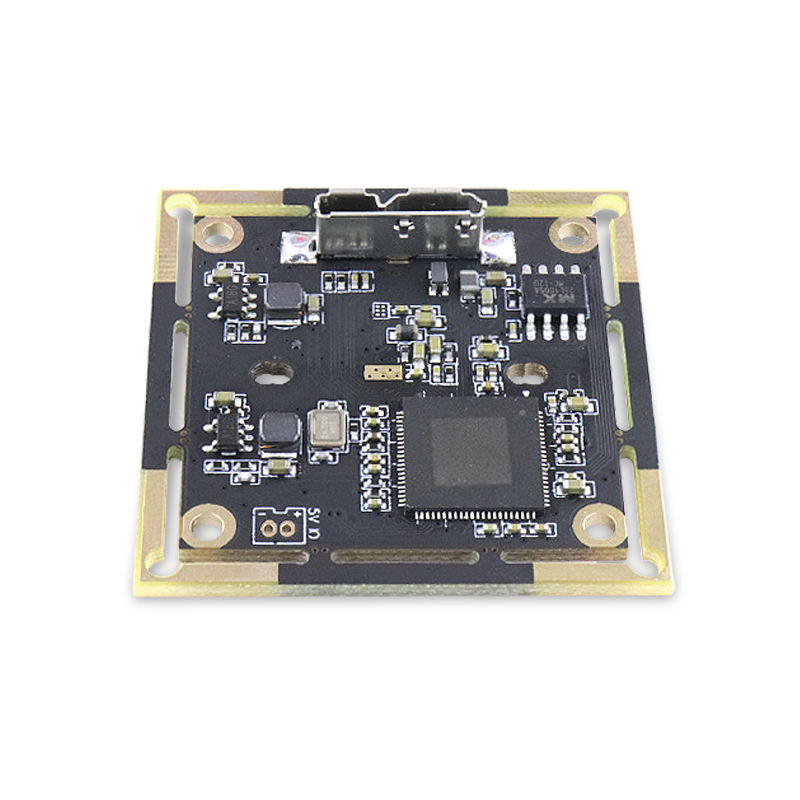

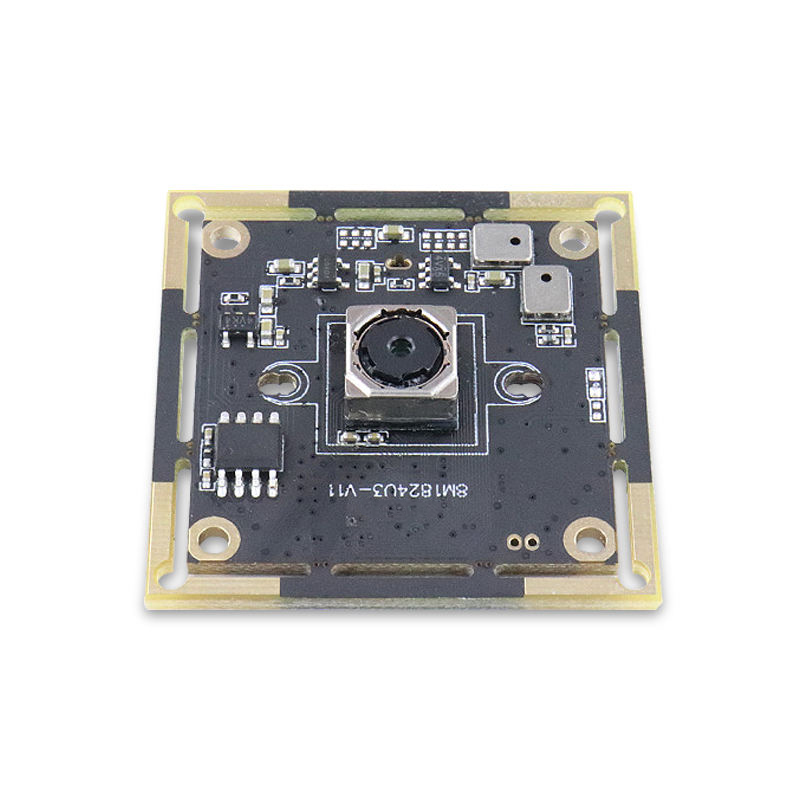

8MP high speed camera module for Document Shooting
$16.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 8MP high speed camera module |
| Module No | BM8M1824U3 V11-77.2 |
| Module Size | 38mm × 38mm × 6.75mm±0.2MM |
| specificities | 1. Standard industrial camera 38, 32mm board structure 2. Advantages: USB3.0 MJPEG-8mp 20 frames YUY2-8mp 15 frames 3. Limited lens selection range 4. Externally expandable white light board 5. Adjustable Altimeter Effect |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | AUTO |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 3.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX179 (1/3.2" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3264*2448 |
| Sensitivity | 700mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 20FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 20FPS / YUY2 2592x1944 2FPS MJPEG 3264x2448 20FPS / YUY2 3264x2448 1FPS |
| S/N Ratio | 44 db |
| Max Dynamic Range | 83 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 5P |
| F/No | 2.2 |
| EFL | 3.5 mm |
| FOV | 77.2° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
