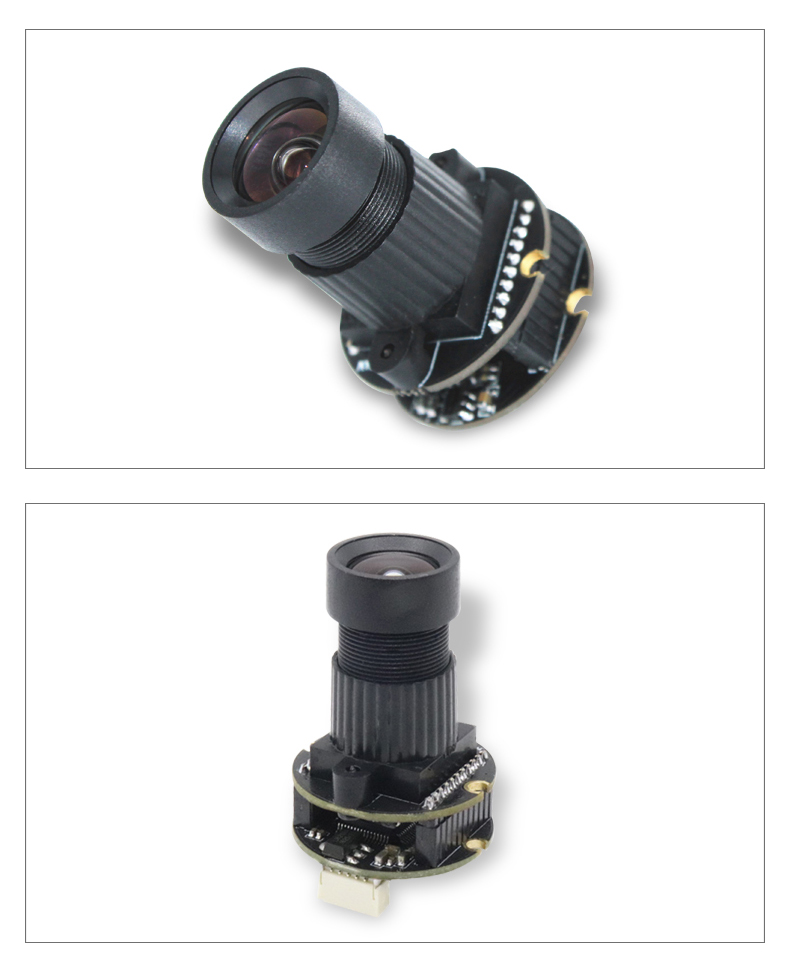

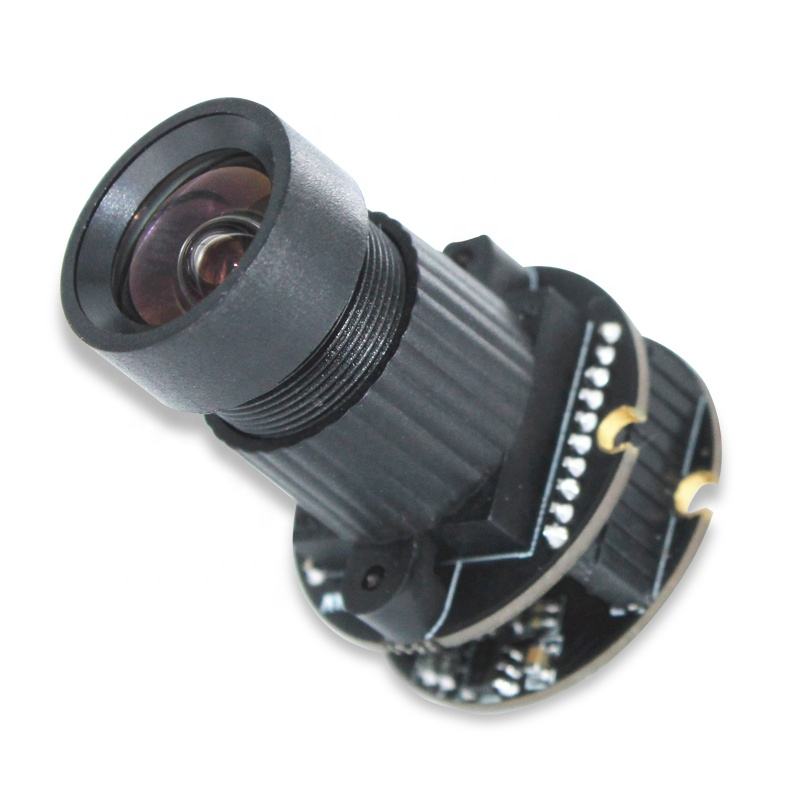

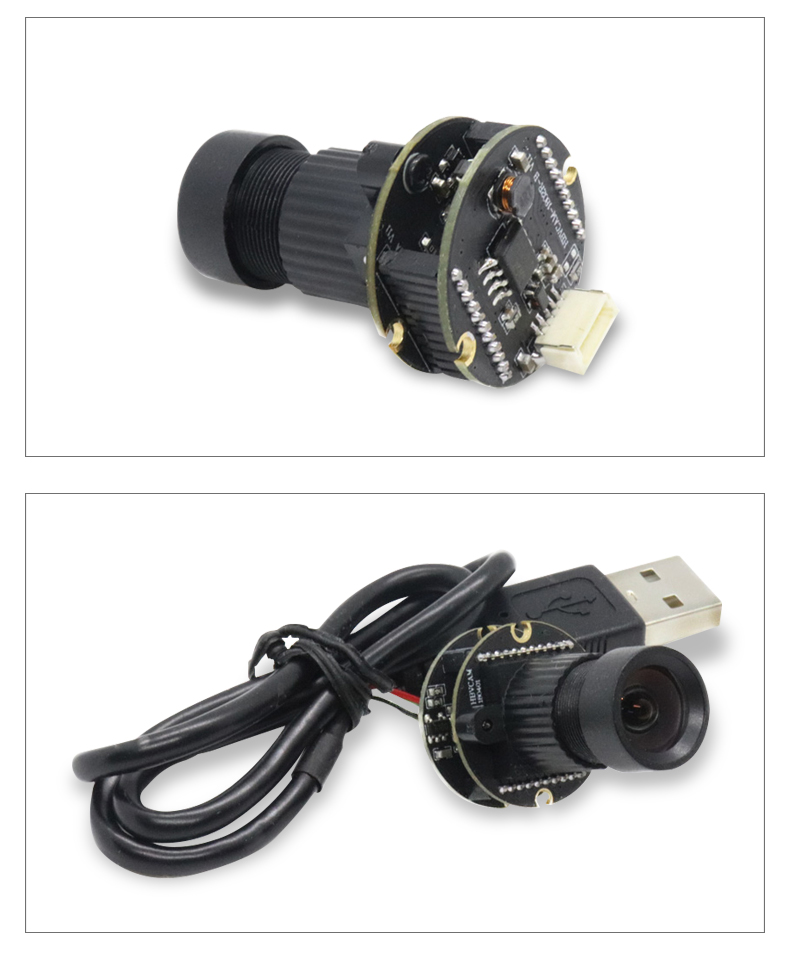

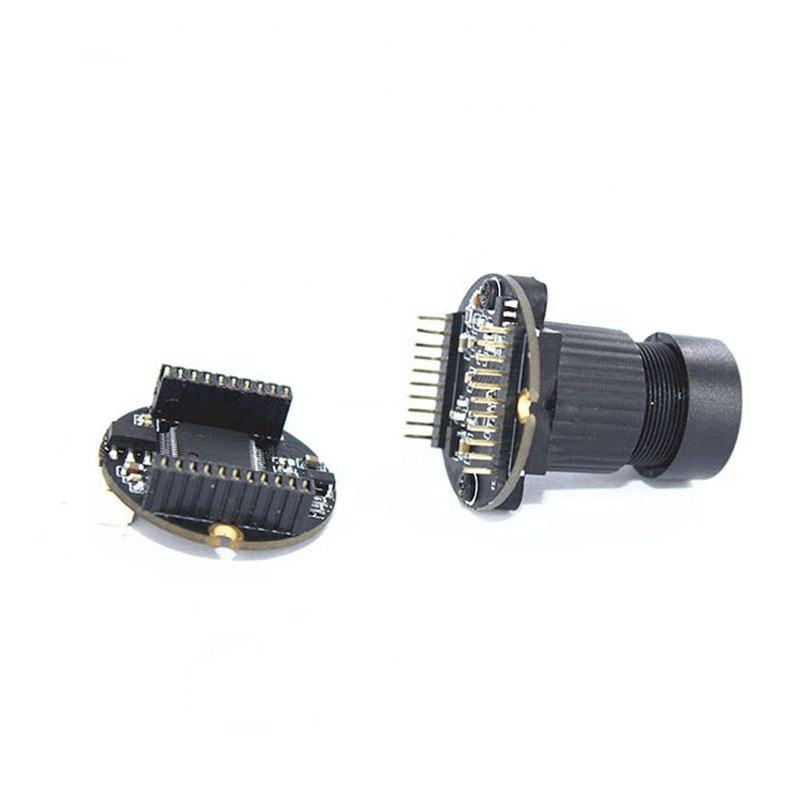

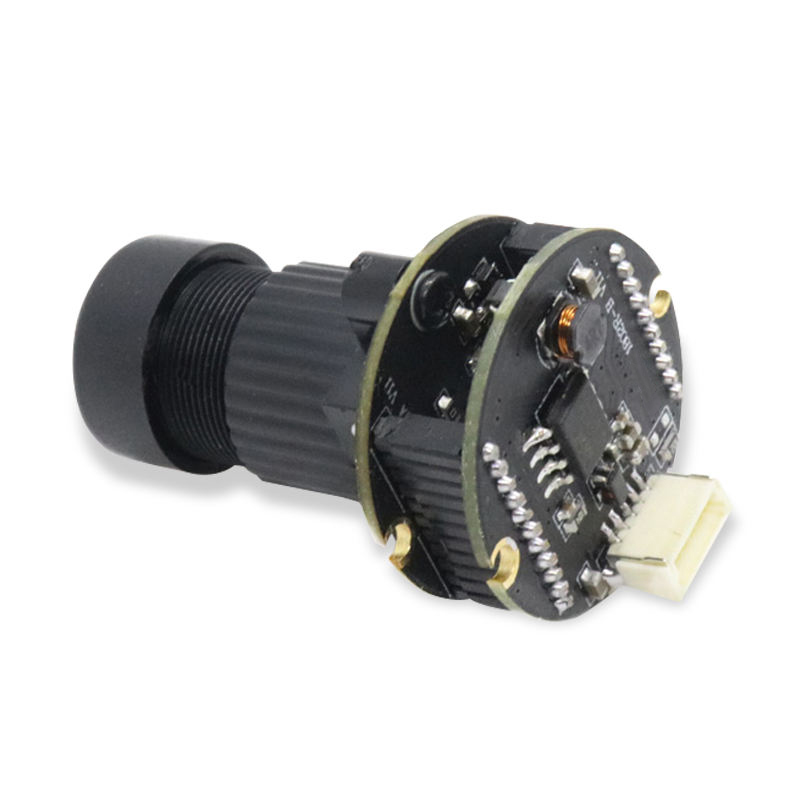

5mp uvc usb camera module Cylindrical Industrial Camera Module
$45.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
5mp usb camera module
5mp uvc usb endoscope camera module with free driver usb 2.0

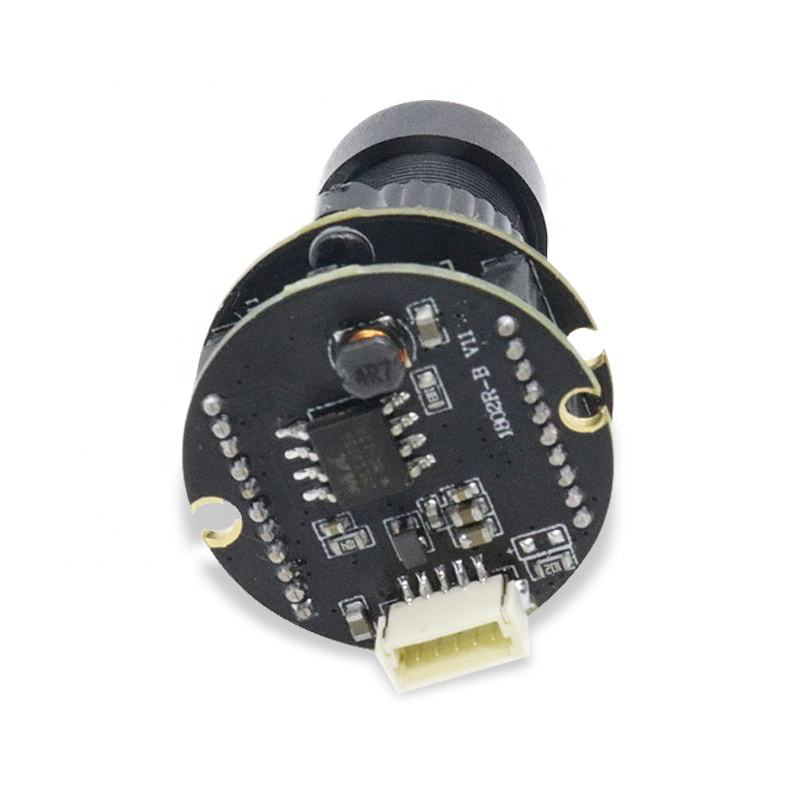

| Model No. | BM1802R V11 |

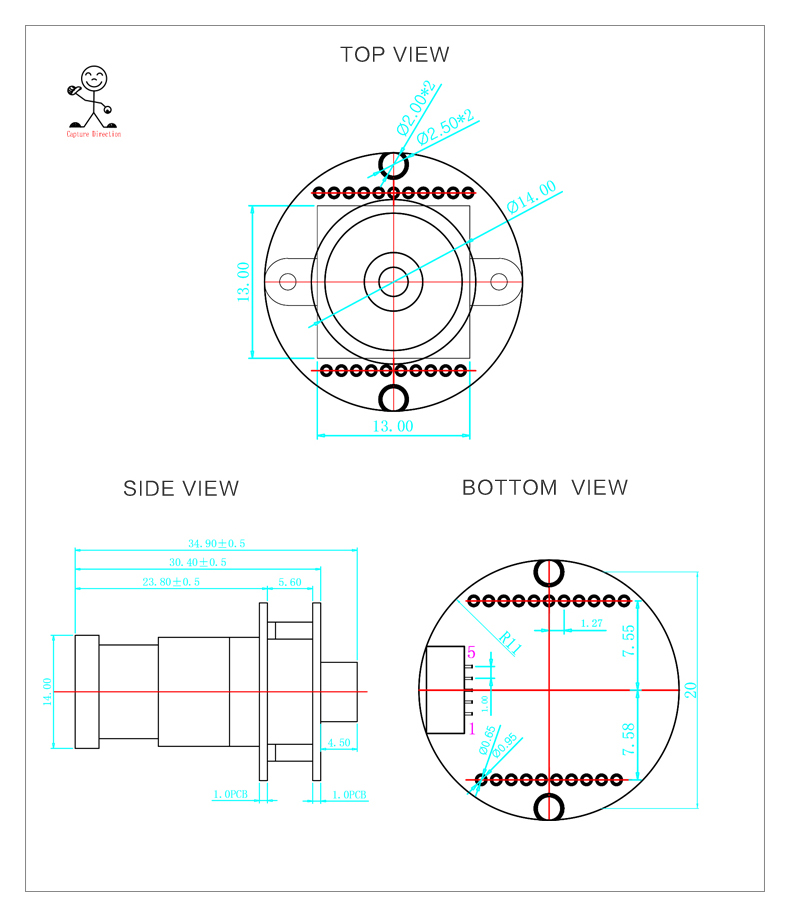

| Model Size | Φ22 × 30.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | auto |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 1000 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | MI5100 (1/2.5" ) |
| Seneor Package | CSP,Bare Die |
| Active Array Size | 2592*1944 |
| Sensitivity | 0.51V /(lux-sec) |
| Pixel Size | 2.2m x2.2µm |
| Maximum Image Transfer Rate | MJPEG 1280x1024 15FPS / YUY2 1280x1024 9FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 15FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS |
| S/N Ratio | 40.5db |
| Dynamic Range | 67.4db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Lens Construction | 2G2P |
| Microphone | Support |
| F/No | 2.4 |
| EFL | 4.2m |
| FOV | 77° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| Module Package | Anti-electrostatic tray |
| Package | LQFN-40pin |
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player

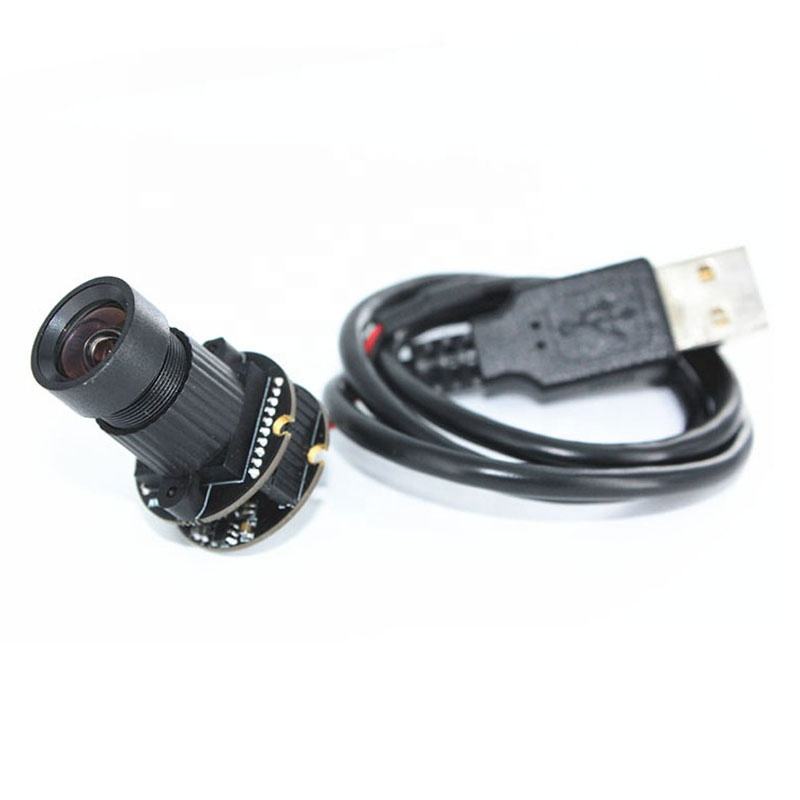

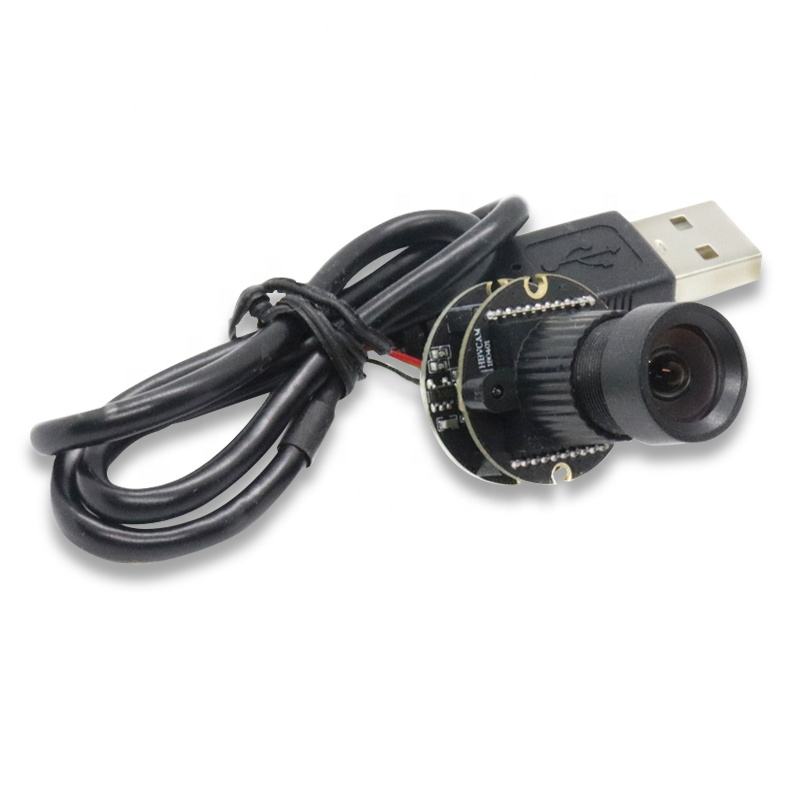

♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
