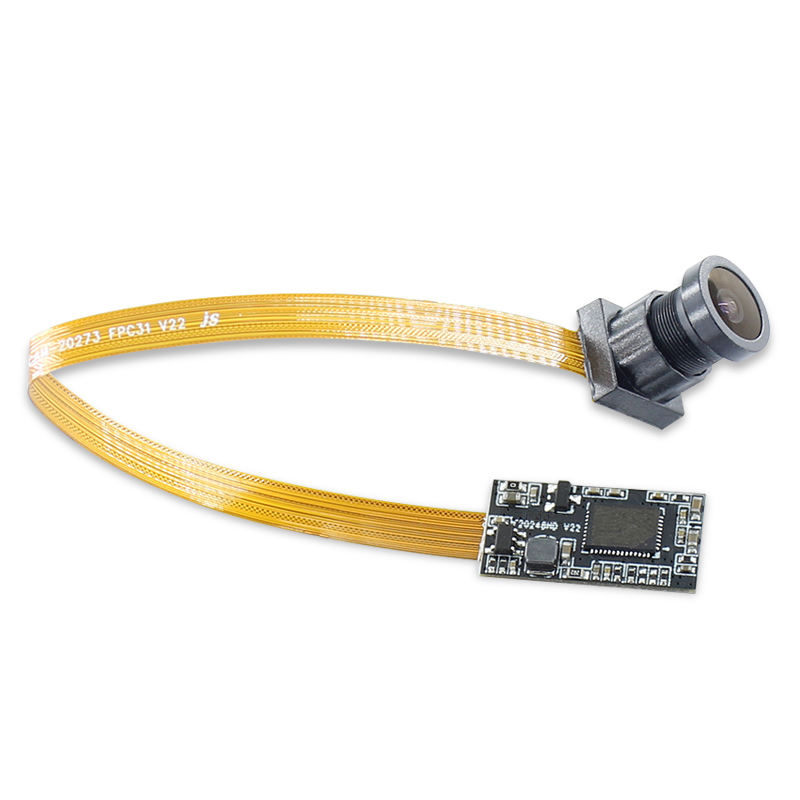

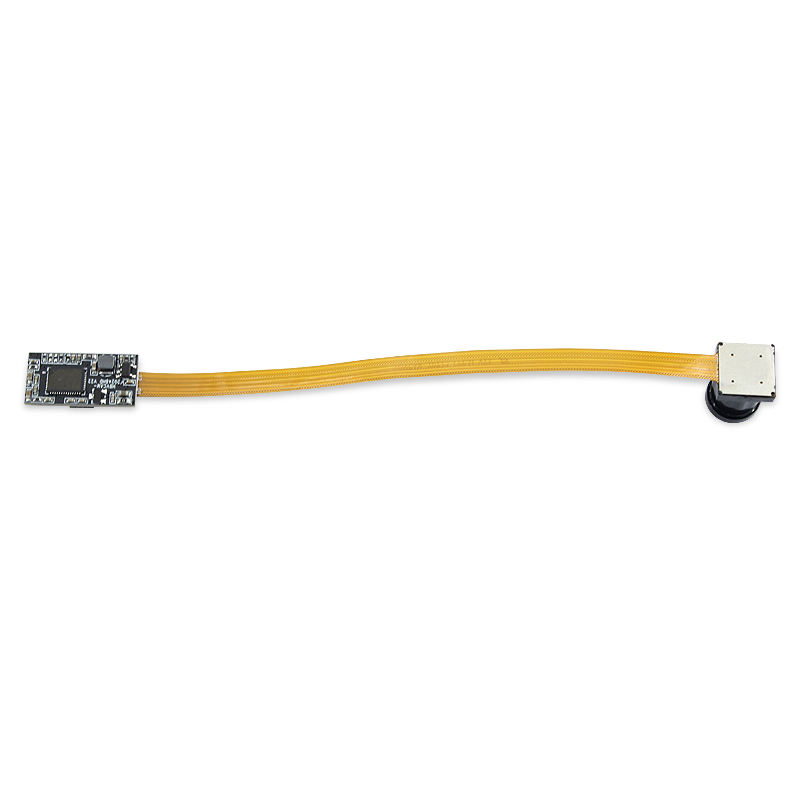

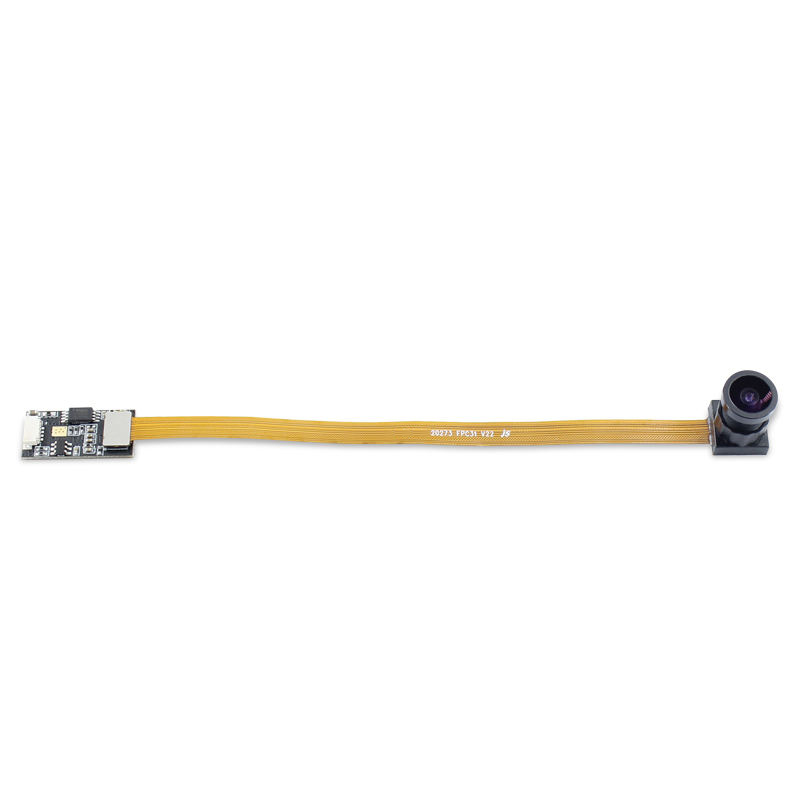

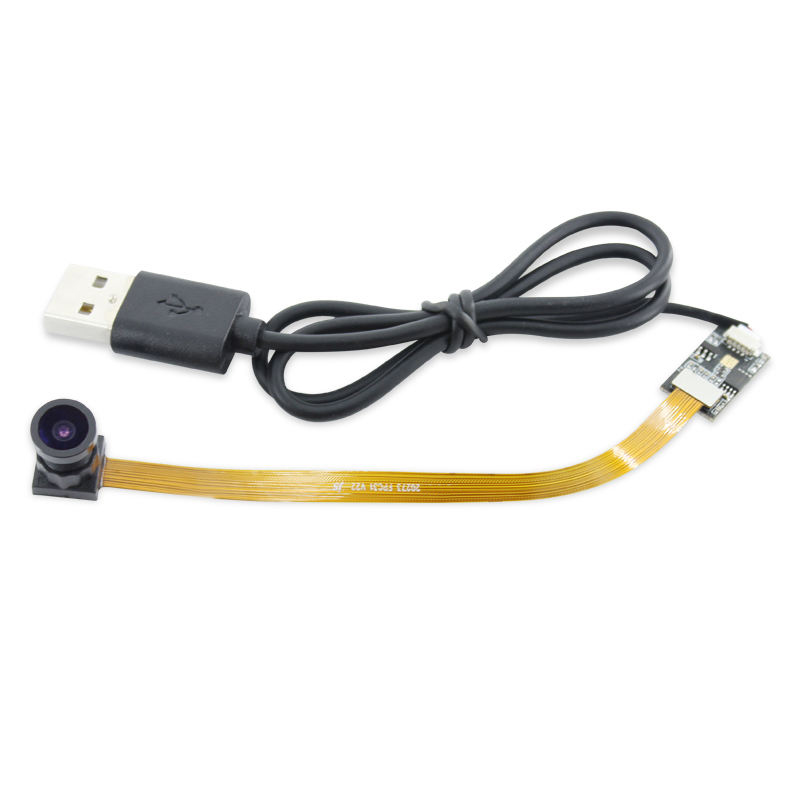

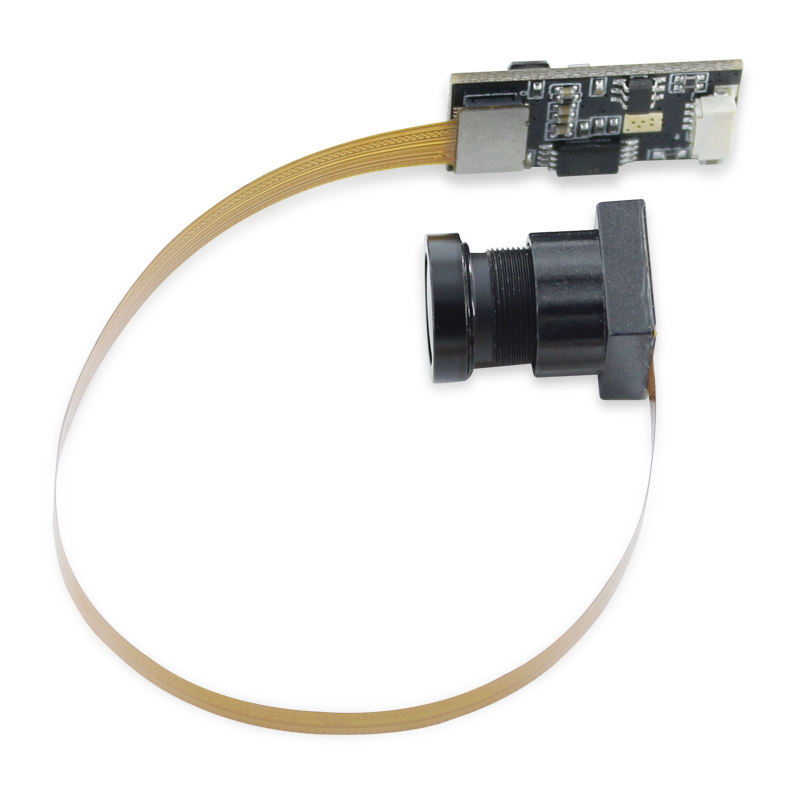

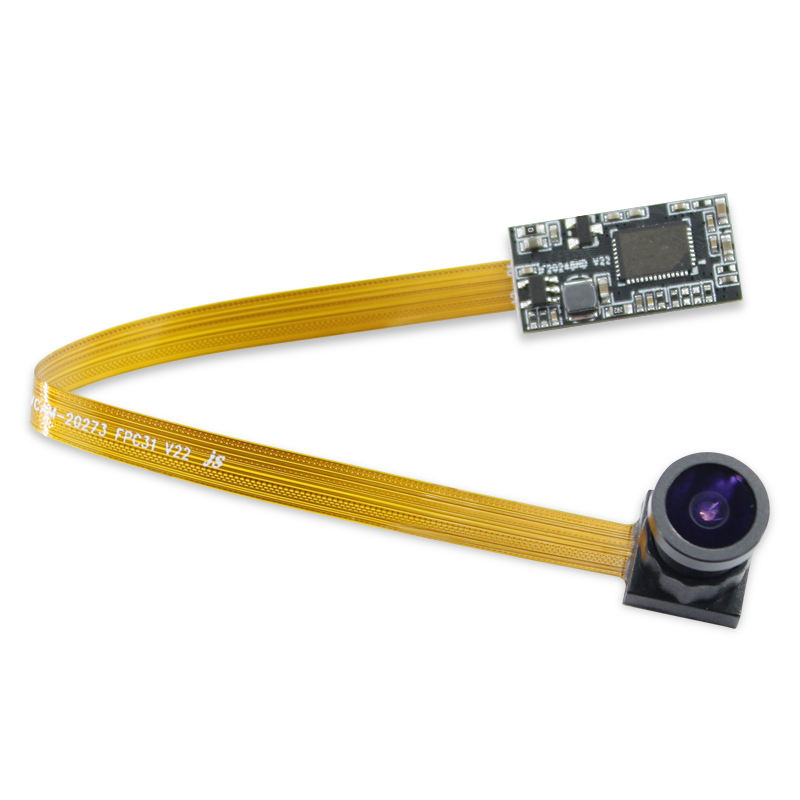

2MP FPC camera module OV2735(1/2.7") ultrawide angle lens
$30.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 2 MP soft hard board separation docking flexible structure device embedded built-in camera module | ||
| Module No. | BMF20248HD V22 | ||

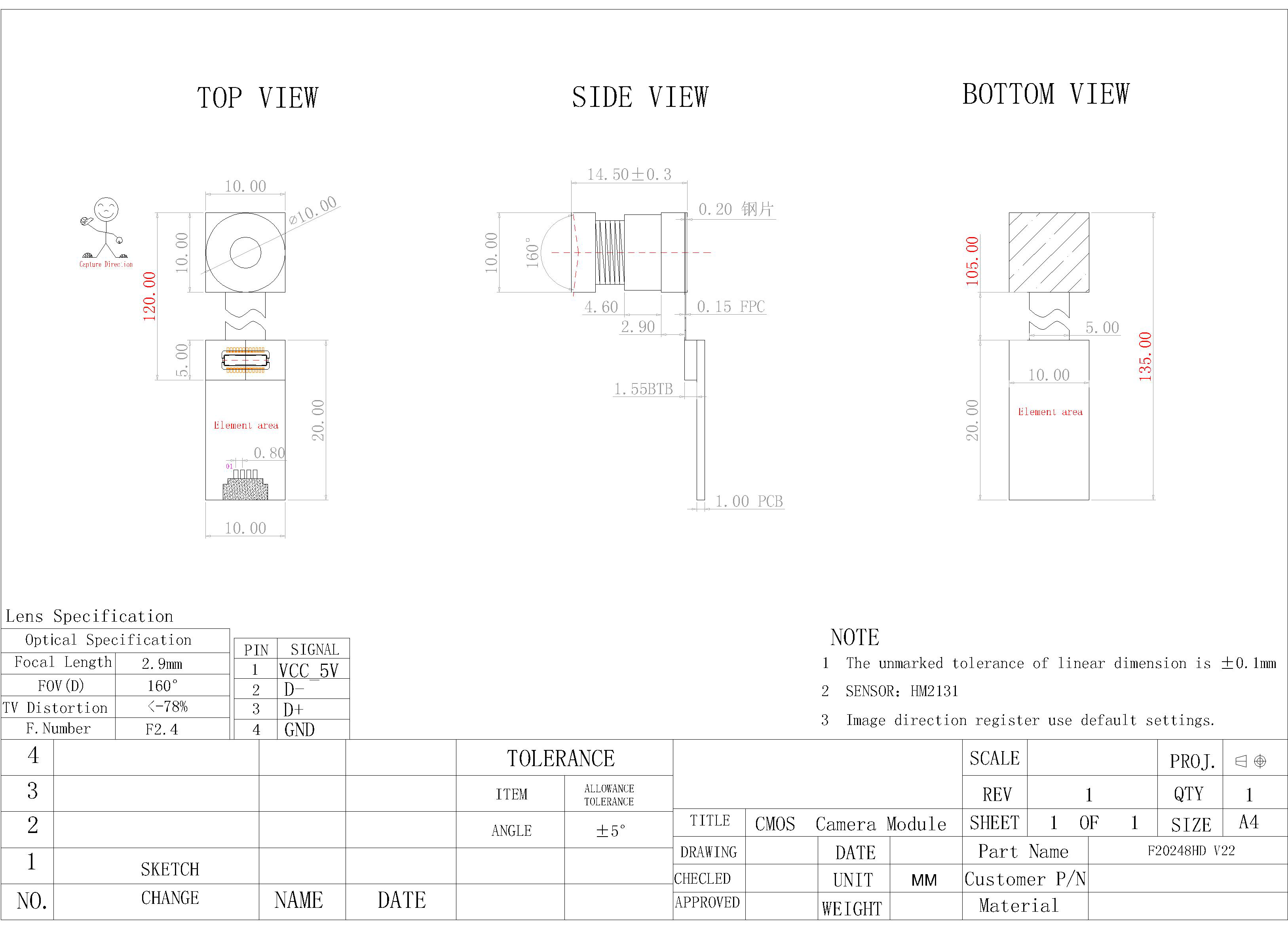

| Module Size | 135mm * 10mm * 14.5mm±0.3MM | ||
| Features | 1. Soft and hard board split flexible structure, large image surface, h135mm × 10mm × 14.5mm±0.3MMigh-definition effect, small volume
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 400mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV2735(1/2.7") | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 1920*1080 | ||
| Sensitivity | 4600mV /(lux-sec) | ||
| Pixel Size | 3µm x 3µm | ||
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS YUY2 320x240 30FPS MJPEG 640x480 30FPS YUY2 640x480 30FPS MJPEG 1280x720 30FPS YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS YUY2 1920x1080 5FPS | ||
| S/N Ratio | 38.6 db | ||
| Max Dynamic Range | 72 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 5G | ||
| F/No | 2.4 | ||
| EFL | 2.9mm | ||
| FOV | 160° | ||
| TV Distortion | <-78% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROHS |

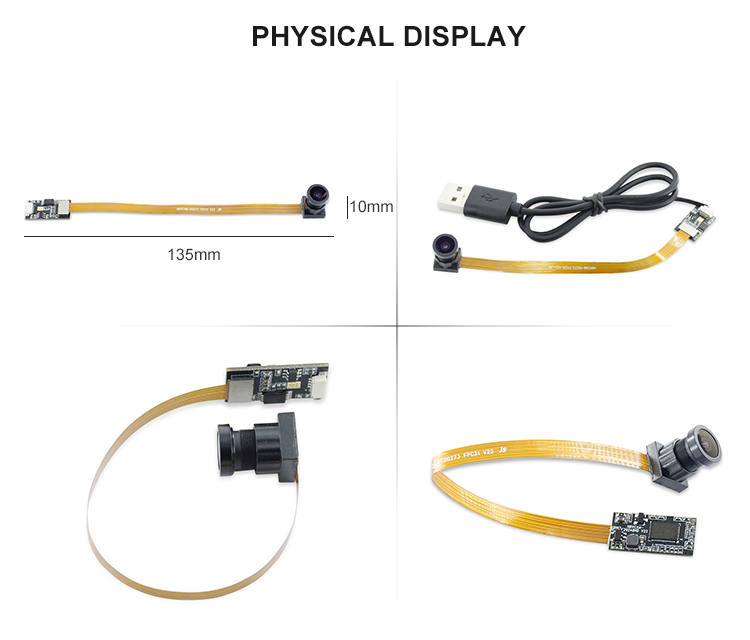

Detailed Images
