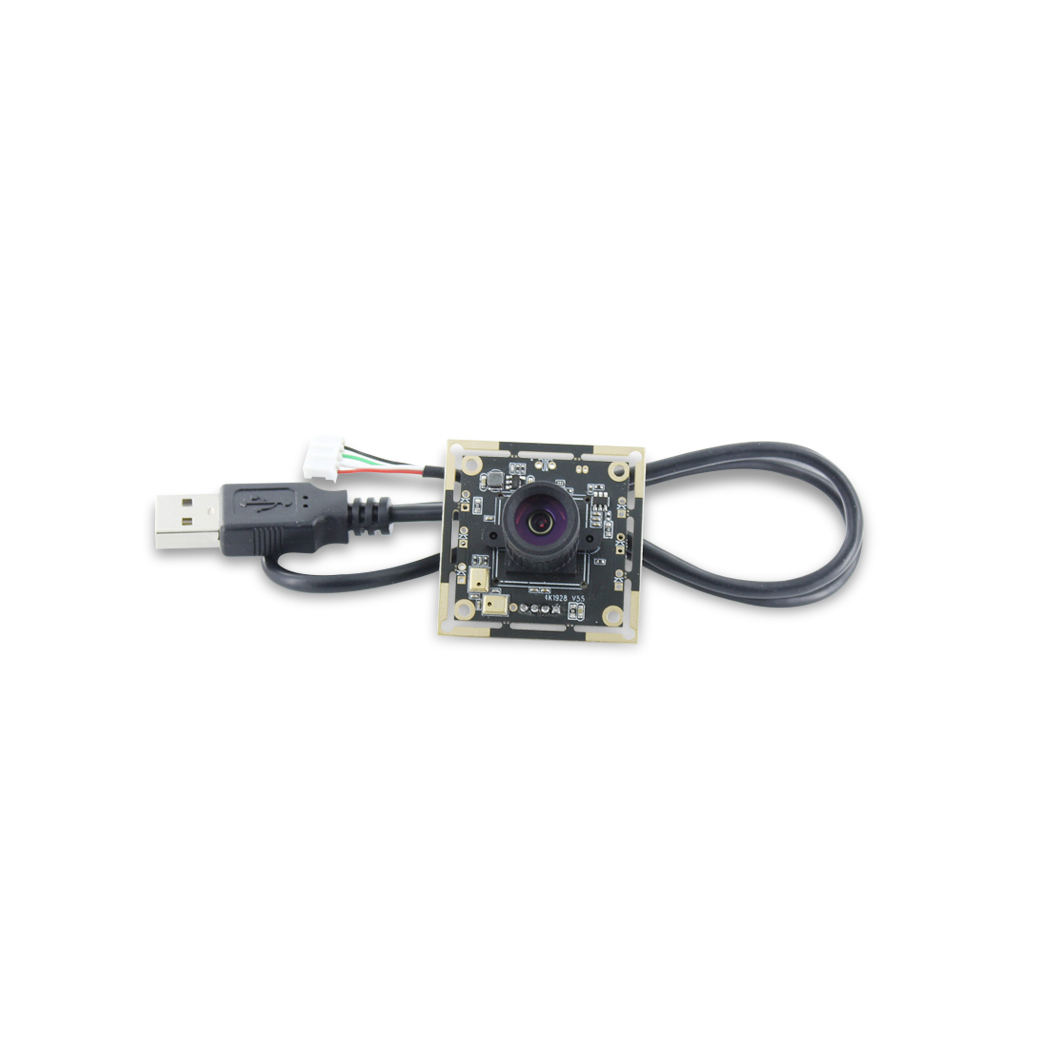

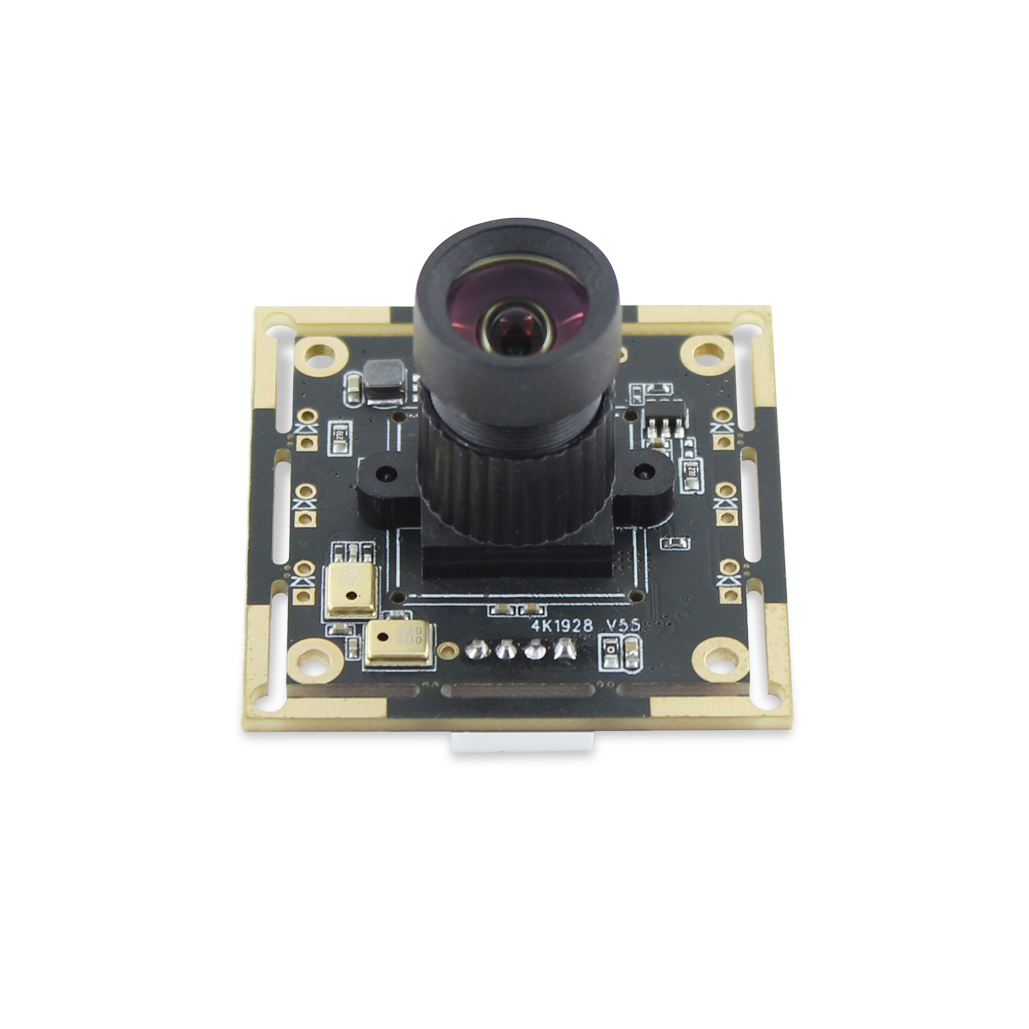

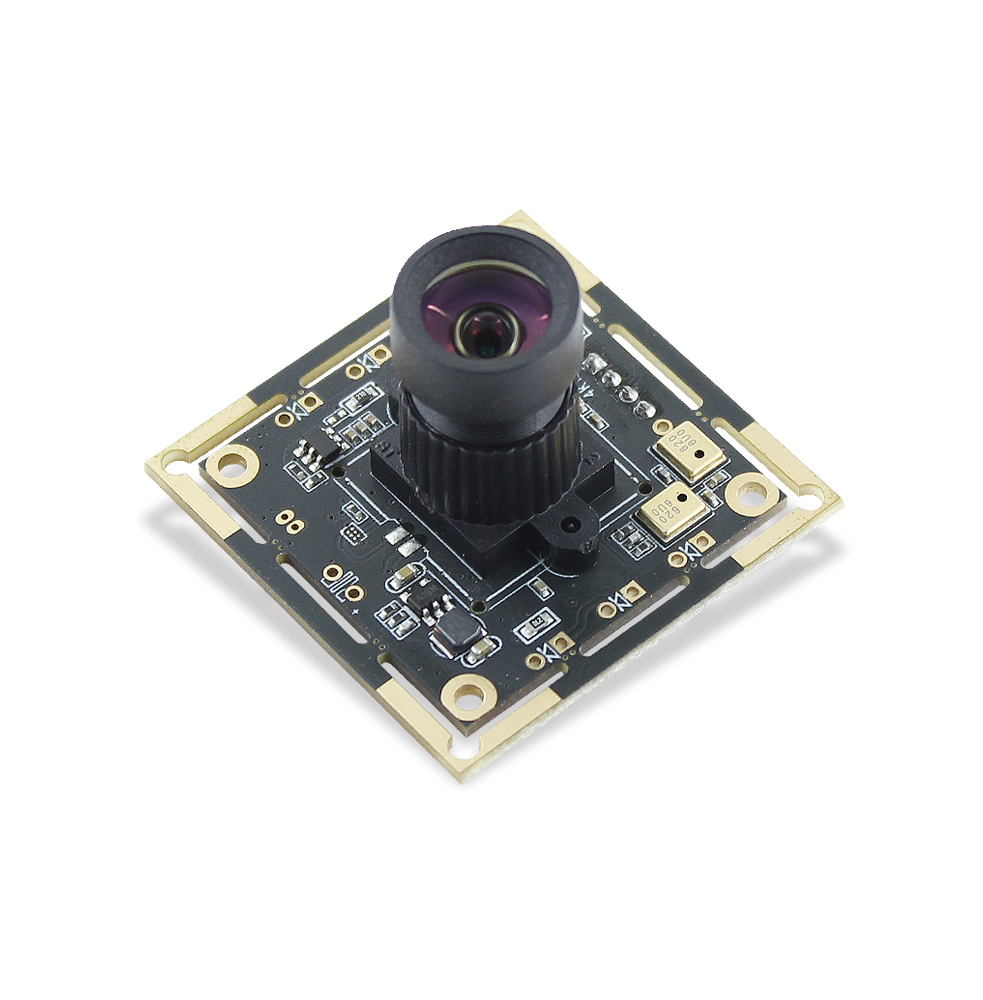

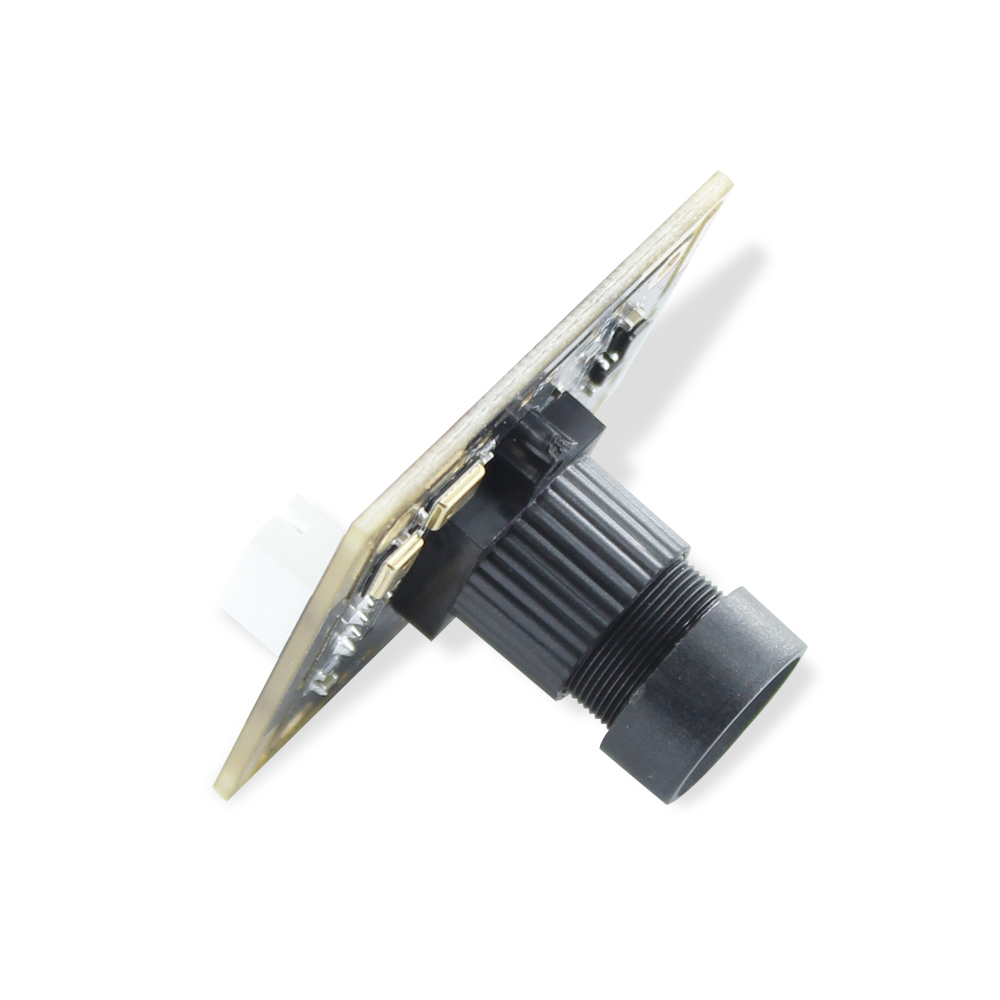

Customized 8MP 4K IMX317 camera module Support QR code scanning
$14.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 8MP 4K IMX317 Camera Module |
| Module No | BM4K1928 V55-85 |
| Module Size | 38mm × 38mm × 24.5mm±0.5MM |
| specificities | "1, standard industrial camera 38, 32mm plate structure 2, the main push high pixel effect has requirements, large screen 4k screen, live machine camera 3 Built-in dual digital microphone 4, can do autofocus big motor AF 5, can add welding 6 plug-in white light can be made into a bright open map off the map can also be photosensitive control lamps - can do night vision - can extend the light board". |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 940mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX317 (1/2.5" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 760mv /（lux-sec） |
| Pixel Size | 1.62µm x 1.62µm |
| Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
| S/N Ratio | 44 db |
| Max Dynamic Range | 82 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 4.2mm |
| FOV | 85° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
