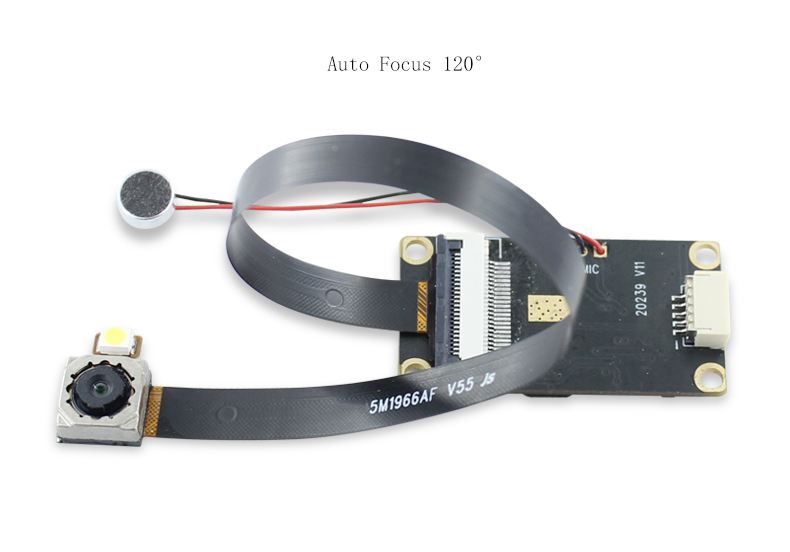

Auto Focus Wide Angle 120 degree 24pin gold finger OV5640 flexible camera module
$25.20
Availability:
In stock
Out of stock
Variations
Product Description
5mp usb camera module
OV5640 5MP fisheyes lens USB fixed focus Camera Module support Windows 2000\ Windows XP\Windows 7
| Model No. | BM20239 v11 |

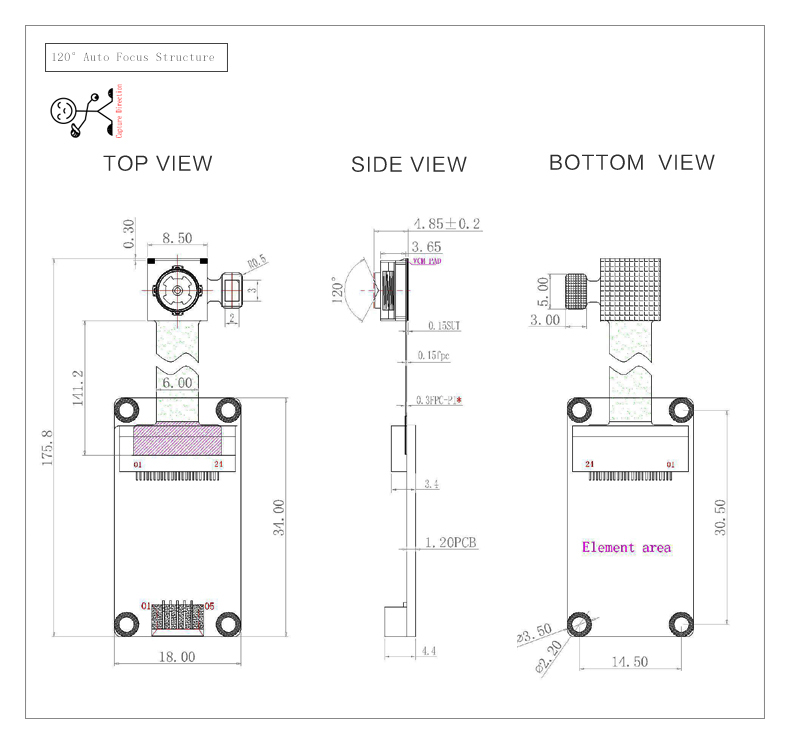

| Model Size | 175.8mm × 18mm × 4.85mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Maximum Power consumption | 920 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Certifications | FCC and CE |
| Active Array Size | 2592*1944 |
| Sensor | OV5640 (1/4" ) |
| Sensitivity | 600mv /(lux-sec) |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate | MJPEG 1280x720 30FPS / YUY21280x720 30FPS MJPEG 1600x1200 30FPS / YUY2600x1200 30FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 30FPS MJPEG 2048x1536 15FPS / YUY2 12048x1536 2FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 36db |
| Dynamic Range | 68db |
| Package | CSP,Bare Die |
| Output Formats | YUY2/MJPEG |
| Microphone | YES |
| Lens Type | |
| Lens Construction | 4P+IR |
| F/No | 2.4 |
| EFL | 2.4mm |
| FOV | 120° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | HBV5640 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | Anti-electrostatic tray |
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
