fisheye camera module cct camera module pcp board
$14.40
Availability:
In stock
Out of stock
Variations
Product Description

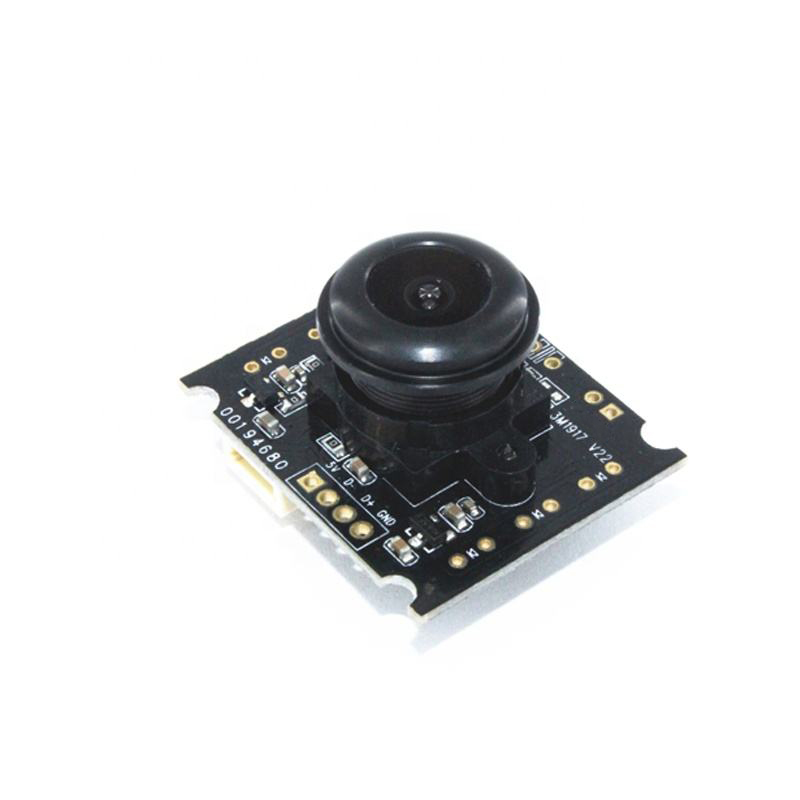

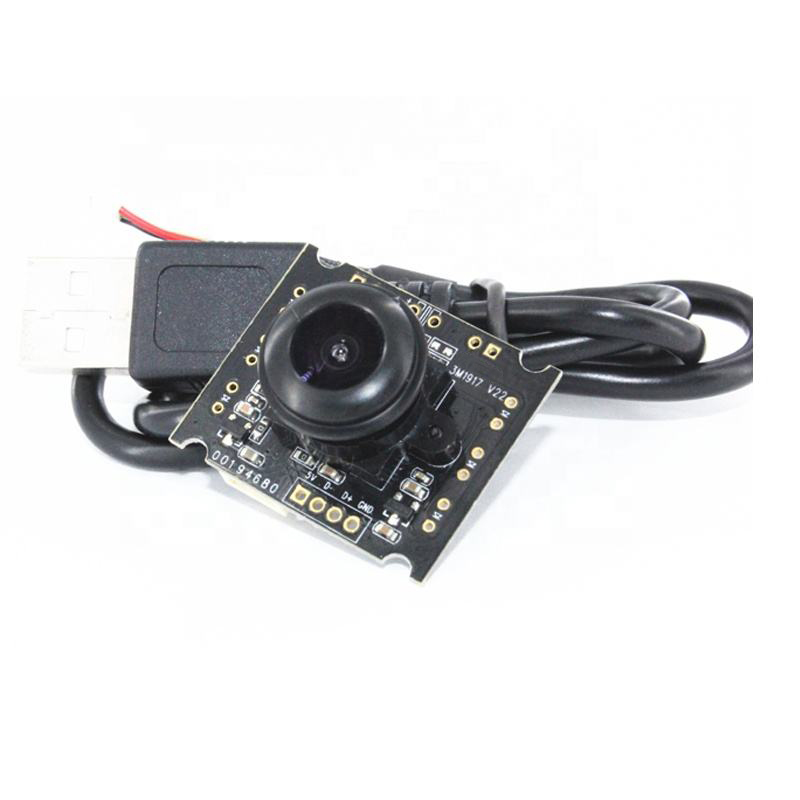

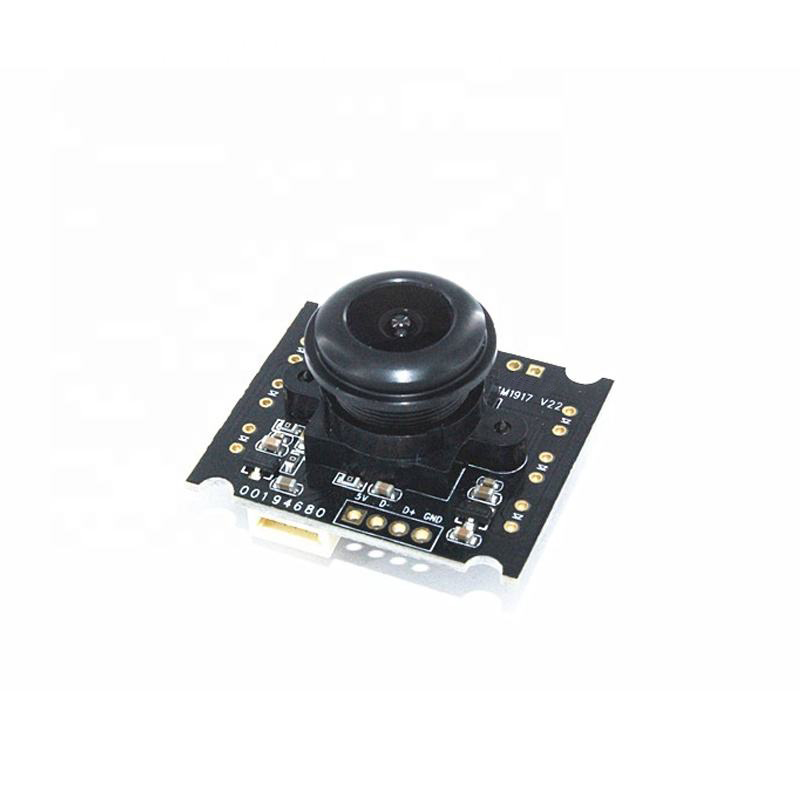

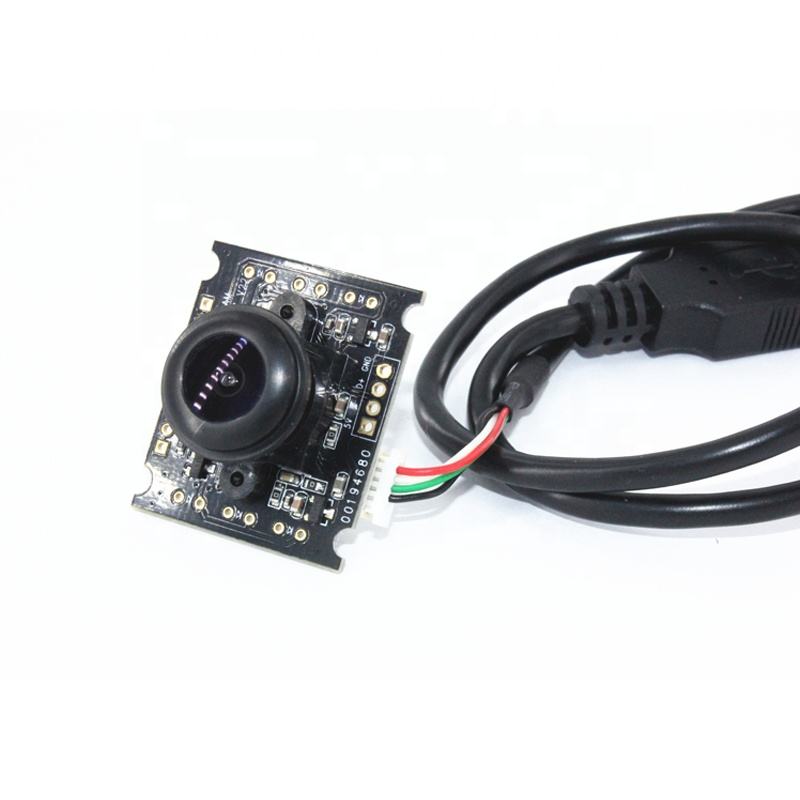

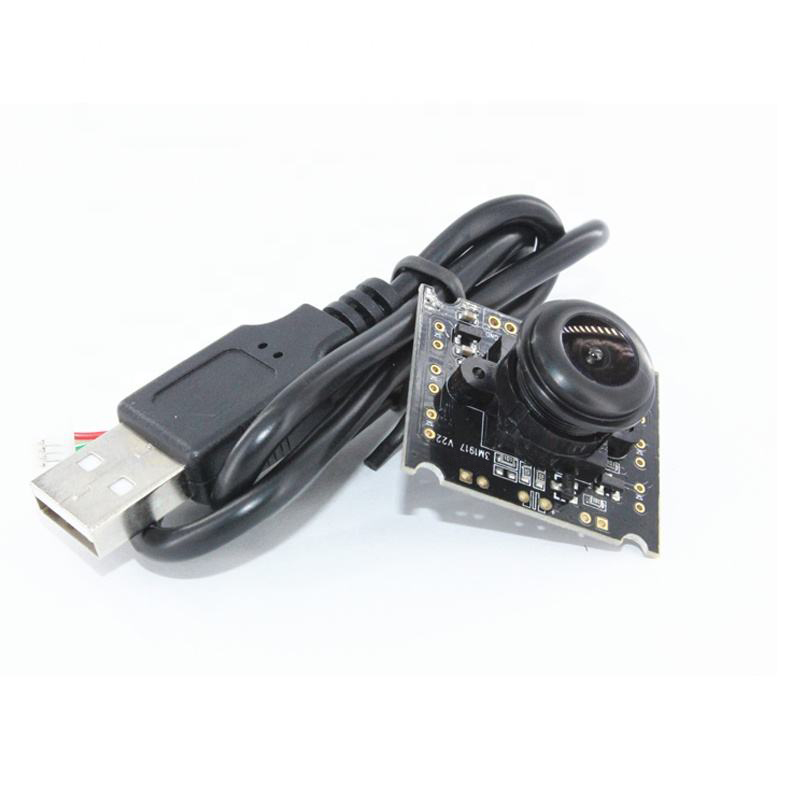

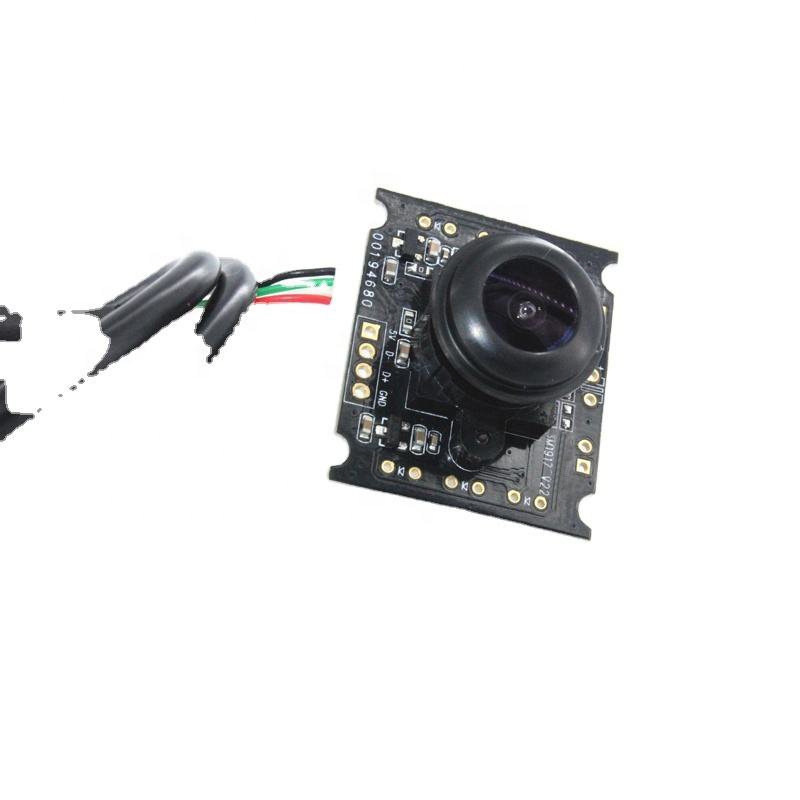

110 degree OV3660 (1/5 ) Sensor cct board camera module pcb with free driver
| Model No. | BM3M1917 V22 |
| Model Size | 30mm × 25mm × 14mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 600W |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV3660 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2048*1536 |
| Sensitivity | 670mV /(lux-sec) |
| Pixel Size | 1.4μm x 1.4μm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 7FPS / YUY2 1280X720 7FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS |
| S/N Ratio | 34B |
| Max Dynamic Range | 70B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4E+IR |
| F/No | 2.4 |
| EFL | 1.85m |
| FOV | 110 |
| TV Distortion | <7.6% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 40CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,
ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
