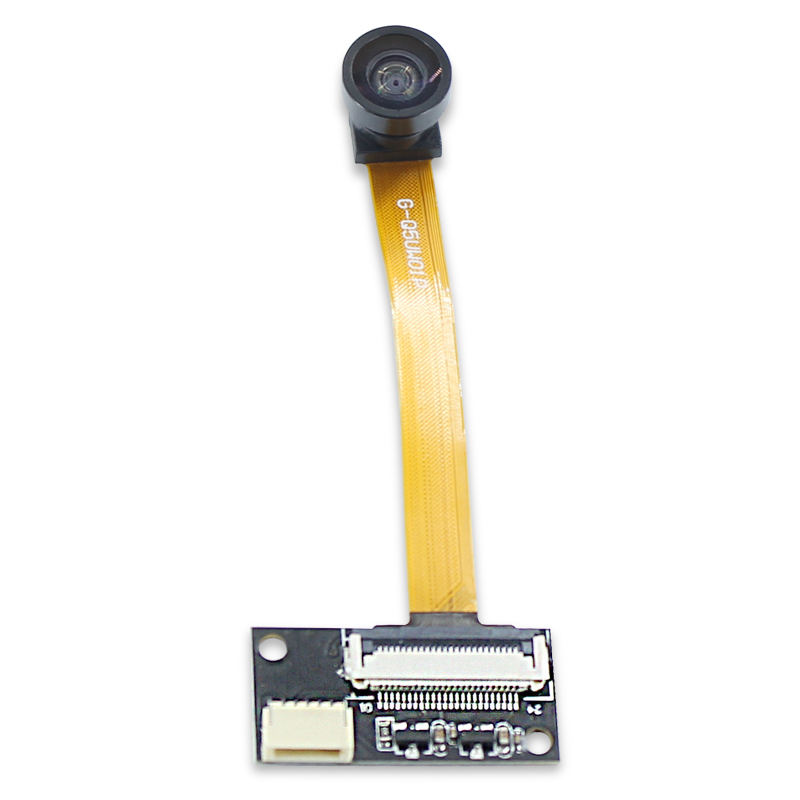

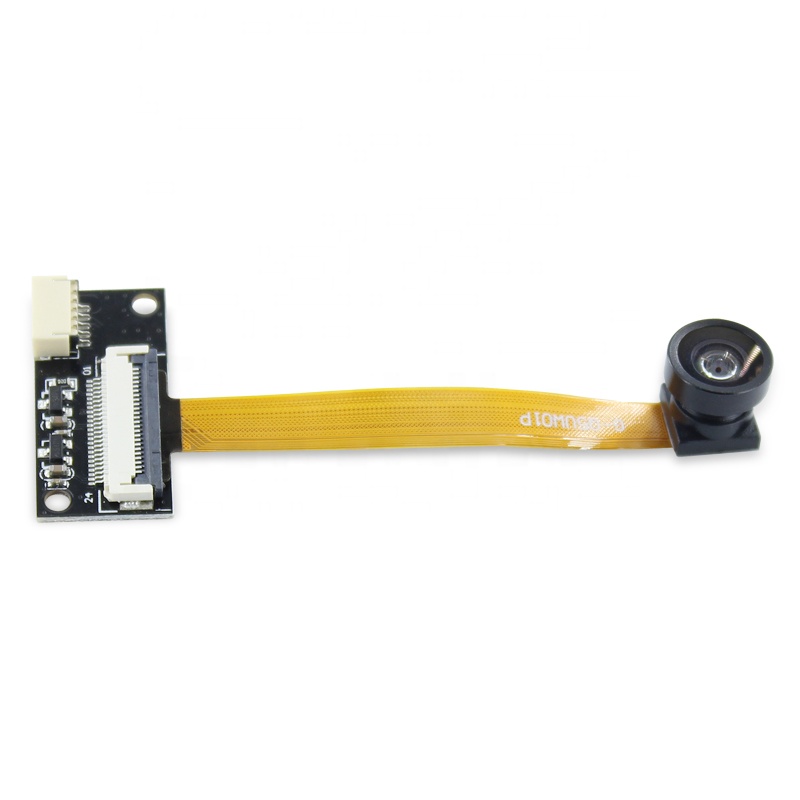

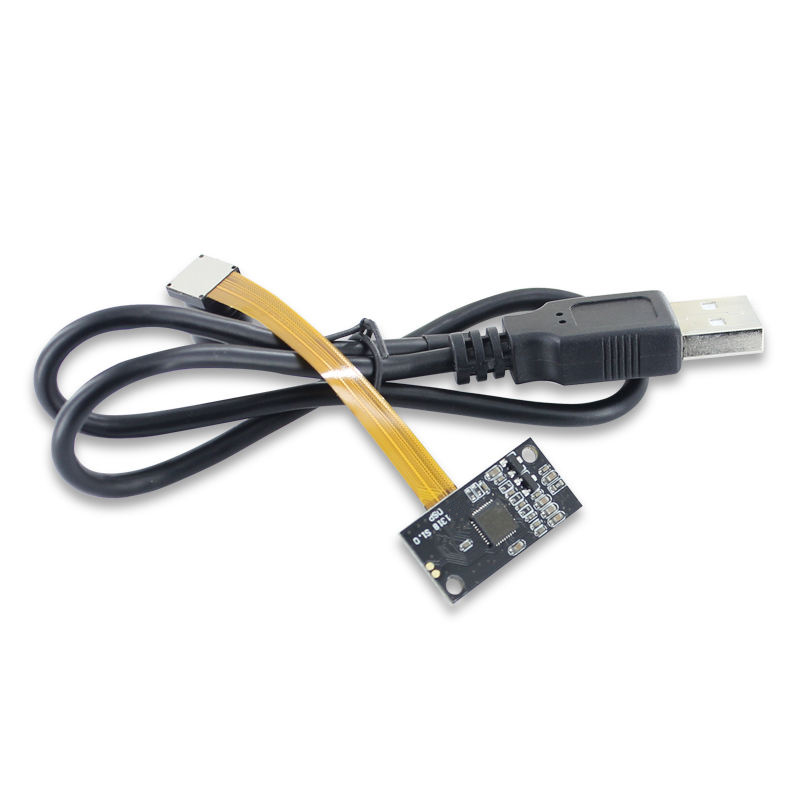

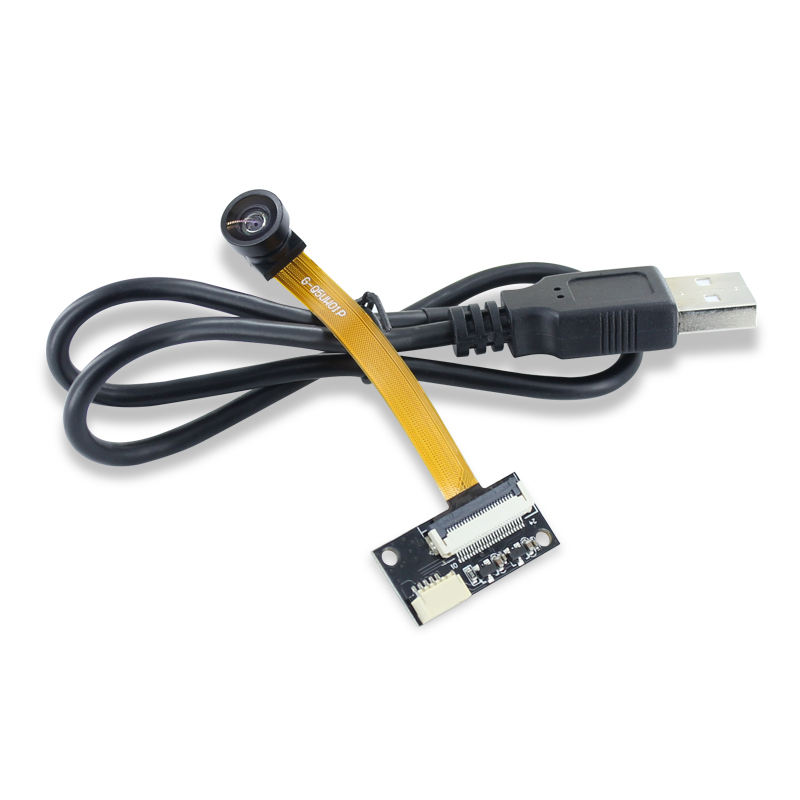

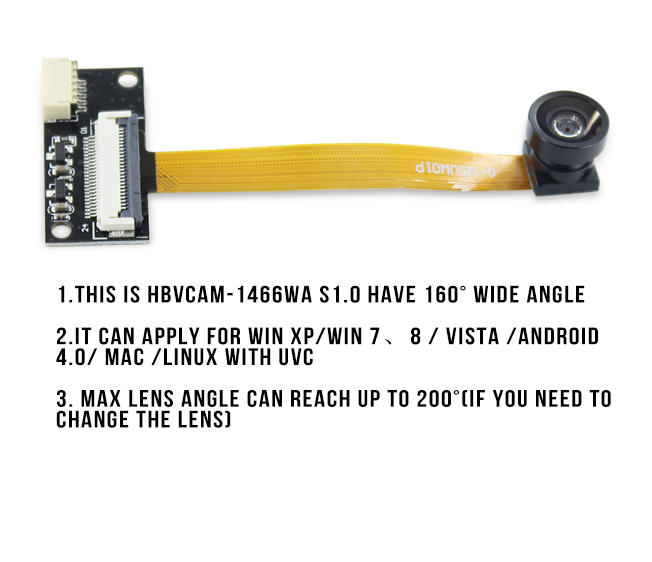

160 degree wide angle lens camera module OV5640 sensor chip
$10.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 5MP Wide angle lens camera module |
| Module No | BM1466 V22 +5M1966AF V110-160 |
| Module Size | 68.2mm × 26mm × 10mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 750 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5640 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 600mv /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 320x240 30FPS MJPEG 1280x720 30FPS / YUY2 352x288 30FPS MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS MJPEG 1920x1080 30FPS / YUY2 1280x720 10FPS MJPEG 2048x1536 15FPS / YUY2 1280x960 10FPS MJPEG 2592x1944 15FPS / YUY2 1920x1080 3FPS |
| S/N Ratio | 36 db |
| Max Dynamic Range | 68 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.0 |
| EFL | 1.66 mm |
| FOV | 160° |
| TV Distortion | <8.5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
