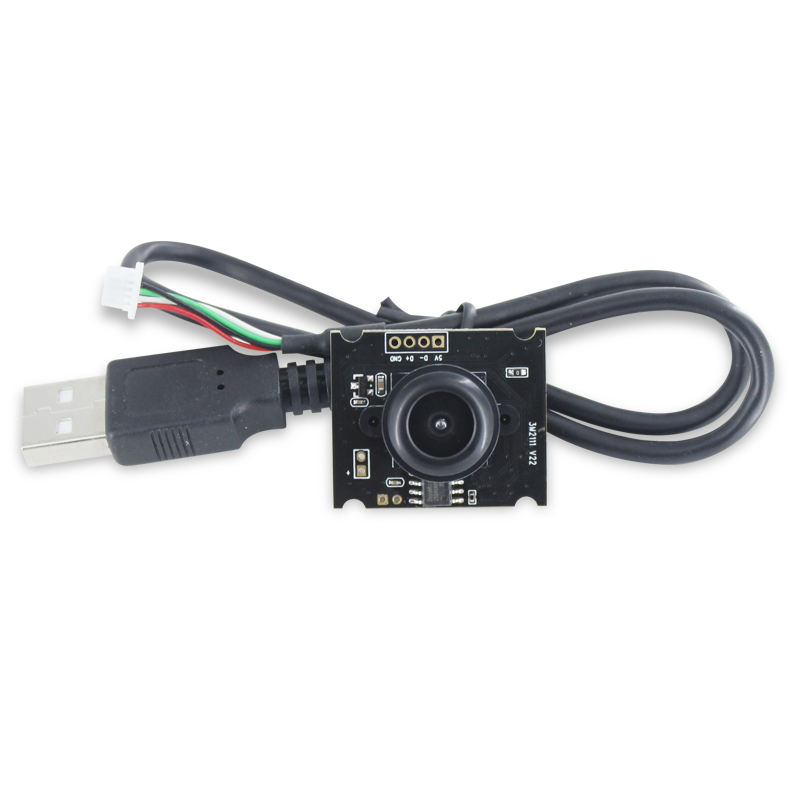

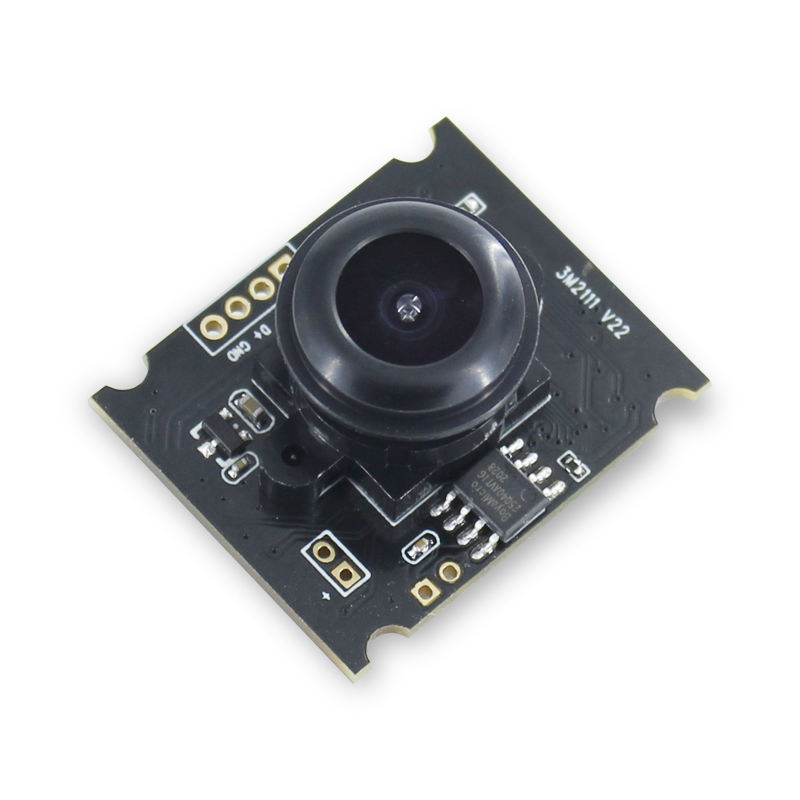

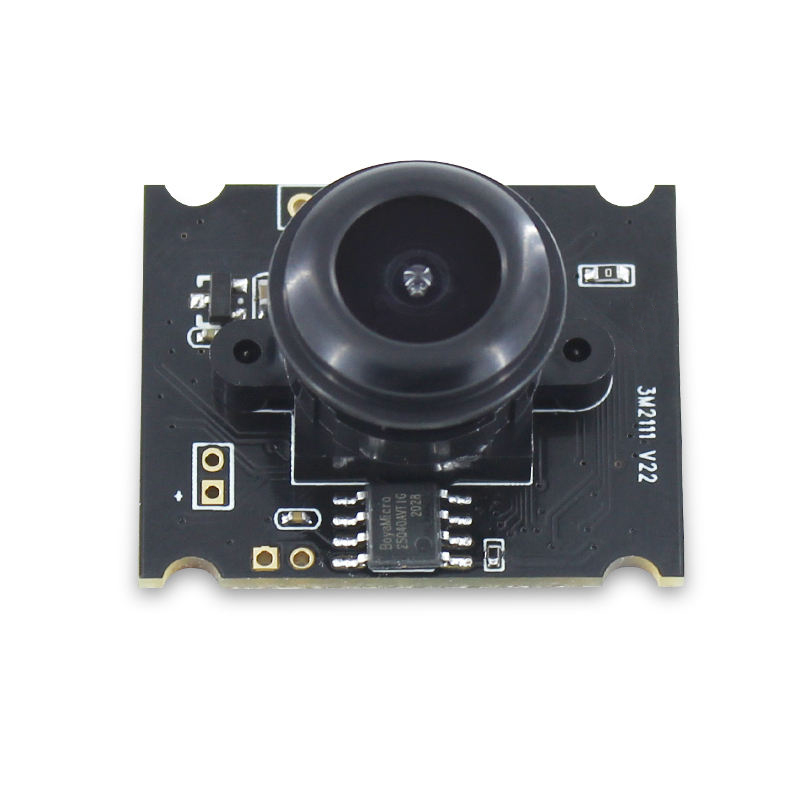

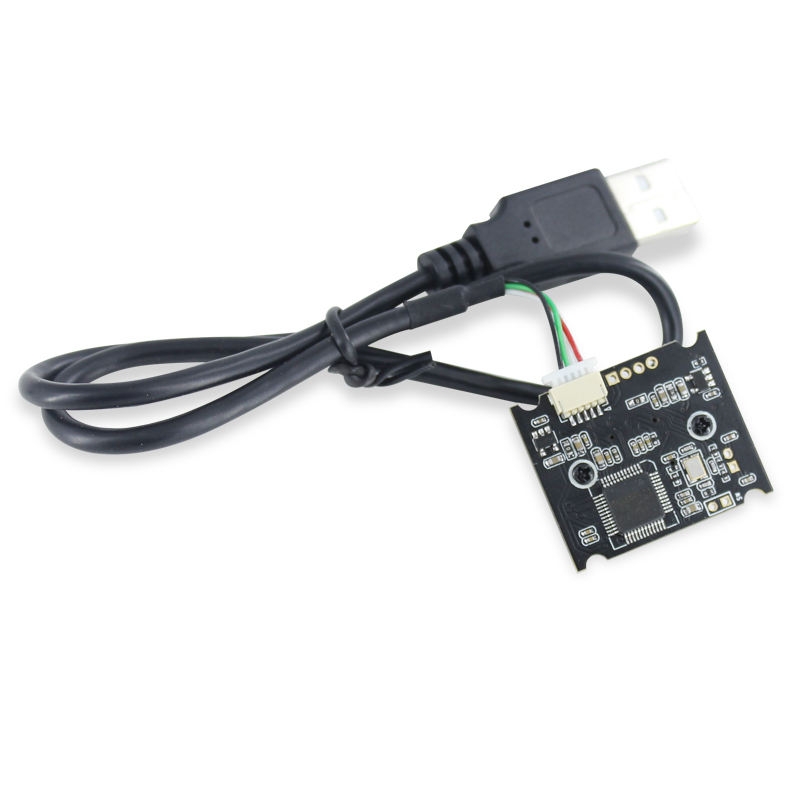

3MP computer camera module UVC protocol can be secondary development
$21.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 3MP USB Camera Module |
| Module No | BM3M2111 V22-110 |

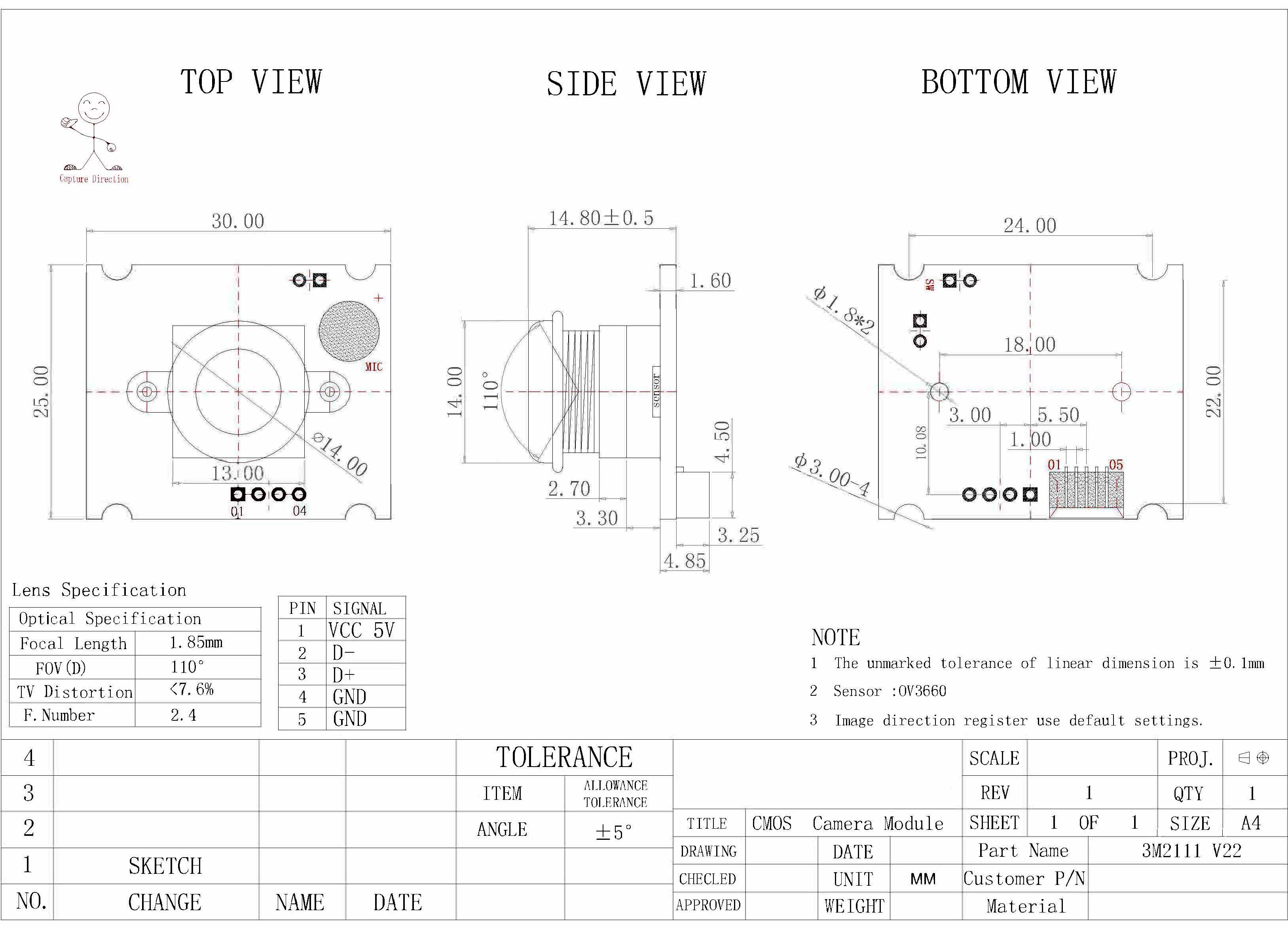

| Module Size | 30mm × 25mm × 14.8mm±0.5MM |
| Features | 1. The conventional standard 30X25mm structure has high universality 2. Can be used for PC camera 3. High cost-effectiveness 4. Disadvantage: Cannot add lights |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 640mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV3660 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2048*1536 |
| Sensitivity | 670mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 20FPS / YUY2 640x480 8FPS MJPEG 1280x720 20FPS / YUY2 1280X720 8FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 5FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 5FPS |
| S/N Ratio | 34 db |
| Max Dynamic Range | 70 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4E+IR |
| F/No | 2.4 |
| EFL | 1.85 mm |
| FOV | 110° |
| TV Distortion | <7.6% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROHS |
